Description
IE's record breaking software brings track-ready ECU programming to your Audi 3.0T supercharged engine while retaining factory comfort and reliability. Developed in-house, IE engineers are equipped with industry-leading tuning technology to completely reverse engineer the factory mapping and safely modify it to maximize performance. Years of professional tuning high-powered race vehicles and intimate knowledge of the VW & Audi engines results in a wicked fast car on the street or the track. Your new software tune is easily uploaded to your factory installed ECU (engine control module) without touching a wrench in your own driveway. Multiple tunes are available to match your stock or installed aftermarket hardware.
*IE POWERlink Flash Cable Required*
Stage 1- Gain 87hp on stock hardware
Unleash hidden power in 30 minutes or less
No hardware upgrades required
Supports 91 or 93 octanes
RPM limit raised to 7200 RPM
Easy upgrade to Stage 2 (only pay the difference)
Compatible with IE Cold Air Intake
Compatible with IE DSG Tune
Requires IE POWERlink Flash Tool
Requires Windows 7+ powered device
Stage 2 Single Pulley - Up to 492hp with a Supercharger Pully Upgrade
Software to match upgrade supercharger pulley
Supports 91, 93, 100, & 104 (race fuel) octanes
RPM limit raised to 7350 RPM
Includes optional exhaust crackle
Requires IE Press-Fit Style Supercharger pulley upgrade
Compatible with IE Cold Air Intake
Compatible with IE DSG Tune
Upgraded heat exchanger recommended
Requires IE POWERlink Flash Tool
Requires Windows 7+ powered device
Stage 2 Dual Pulley - Go all out with full bolt-ons for 534+hp
Software to match upgraded IE dual pulleys
Supports 91, 93, 100, & 104, and E40 octanes
RPM limit raised to 7350 RPM
Includes optional "true launch control"
Includes optional exhaust crackle
Includes optional throttle body upgrade tune
Requires IE Press-Fit Style Supercharger pulley upgrade
Requires IE Crank Pulley Upgrade
Requires IE DSG Tune
Requires Upgraded Heat Exchanger
Compatible with IE Cold Air Intake
Compatible with IE Throttle Body Upgrade
Compatible with IE HPFP Upgrade
Compatible with custom ported chargers
Requires IE POWERlink Flash Tool
Requires Windows 7+ powered device
How to install the tune
IE's own in-house developed POWERlink cable and software gives you the freedom to quickly flash your car’s engine control unit (ECU) or transmission control unit (TCU) with your new IE performance tune. The cable simply plugs into your vehicle’s OBD-2 port, from there simply follow the on-screen directions to quickly upload the tune. Adding horsepower is as easy as clicking FLASH NOW!
The flash tool also grants instant access to upgrade tune stages, switch fuel octanes, flash back to stock, perform engine diagnostics, read/clear codes and gather high-quality operating data via logging.
System Requirements
Laptop or tablet with Wifi connection and USB port running Windows 7 or above operating system required. Powered by 32 or 64 bit processor with 1.0GHz or greater and 4GB of Ram.
Optional Tune Features
Exhaust Crackle
Give your supercharged engine an aggressive sporty sound. This new feature makes your S car sound like a true performance machine when you rev, decelerate, or let off the throttle for gear changes. This exhaust crackle is completely safe and entirely addicting. Optional feature included with stage 2 and dual pulley tunes.
True Launch Control
IE's True Launch Control feature adds the motorsport function of two-step launch control built into the ECU software. This offers neck-breaking launches with engine load and boost built from a stop. This provides a large advantage over similarly powered vehicles. Optional feature included with dual pulley tune (2013+ B8.5 only)
Throttle Body
This is for all the marbles, designed to completely unleash the complete performance potential from your supercharger by removing the factory throttle body limitation. This tune feature is for dual pulley setups that are also running our IE Throttle Body Upgrade Kit for the fastest S4 in town! Optional feature included with dual pulley tune and requires IE Throttle Body Upgrade (IEINCG3A).
E40 Blend Fuel
The IE Stage 2 Dual Pulley Tune offers you tons of power potential on multiple octane options including support for E40. The direct injection factory fuel system cannot safely support the amount of fuel needed for full E85 fuel, even with an HPFP upgrade, however, it can support a maximum blend of ethanol to E40. This E40 blend is an ethanol mix of E85 with regular pump 91/93 fuel (about 2/5ths E85 and 3/5ths 91/93 with E10 premium gas). To run this fuel safely, it must be pre-mixed and verified before filling into an empty tank. You can read our blog article on how to safely blend ethanol HERE. Optional feature included with dual pulley tune.

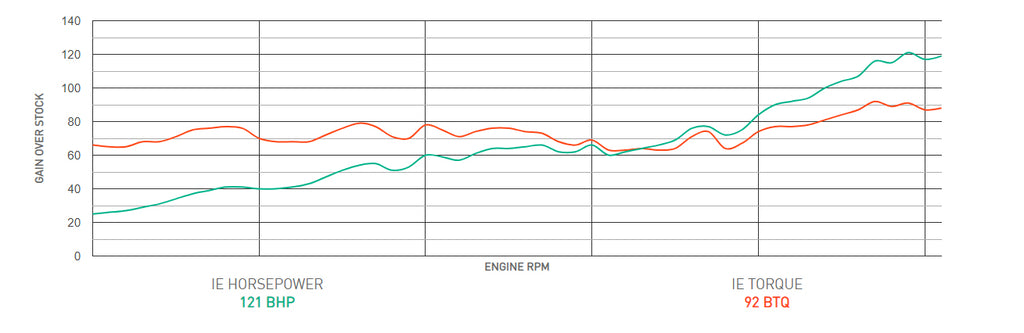

Power Gains
Double Pulley w/ Throttle Body Upgrade - 104 Octane
Double Pulley w/ Throttle Body Upgrade - 100 Octane
Double Pulley w/ Throttle Body Upgrade - 93 Octane
Double Pulley w/ Throttle Body Upgrade - 91 Octane
Double Pulley - E40 Blend
Double Pulley - 100 Octane
Stage 1 - 91 Octane
Compatibility
| MAKE | MODEL | YEAR | ENGINE |
|
AUDI |
S4 |
2008-2016 (B8 & B8.5) |
3.0T Supercharged |
|
AUDI |
S5 |
2013-2016 (B8.5) |
3.0T Supercharged |
|
AUDI |
S5 Cabriolet |
2009-2015 (B8 & B8.5) |
3.0T Supercharged |
|
AUDI |
Q5 |
2008-2017 (8R) |
3.0T Supercharged |
|
AUDI |
SQ5 |
2008-2017 (8R) |
3.0T Supercharged |
|
AUDI |
A6 |
2012-2017 (C7) |
3.0T Supercharged |
|
AUDI |
A6 Allroad |
2012-2017 (C7) |
3.0T Supercharged |
|
AUDI |
A7 |
2012-2017 (C7) |
3.0T Supercharged |
Tuning available for engines with press-fit supercharger pulleys only. Some late model 2016+ engines may be equipped with a 4 bolt supercharger pulley, this is not currently supported and is coming soon.
CONSUMER NOTICE:
BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.
Manufactured by
Integrated Engineering (IE)
Part Number
IESOVJ11 (Stage 1)
IESOVJ12 (Stage 2 Single Pulley)
IESOVJ13 (Stage 2 Double Pulley)
