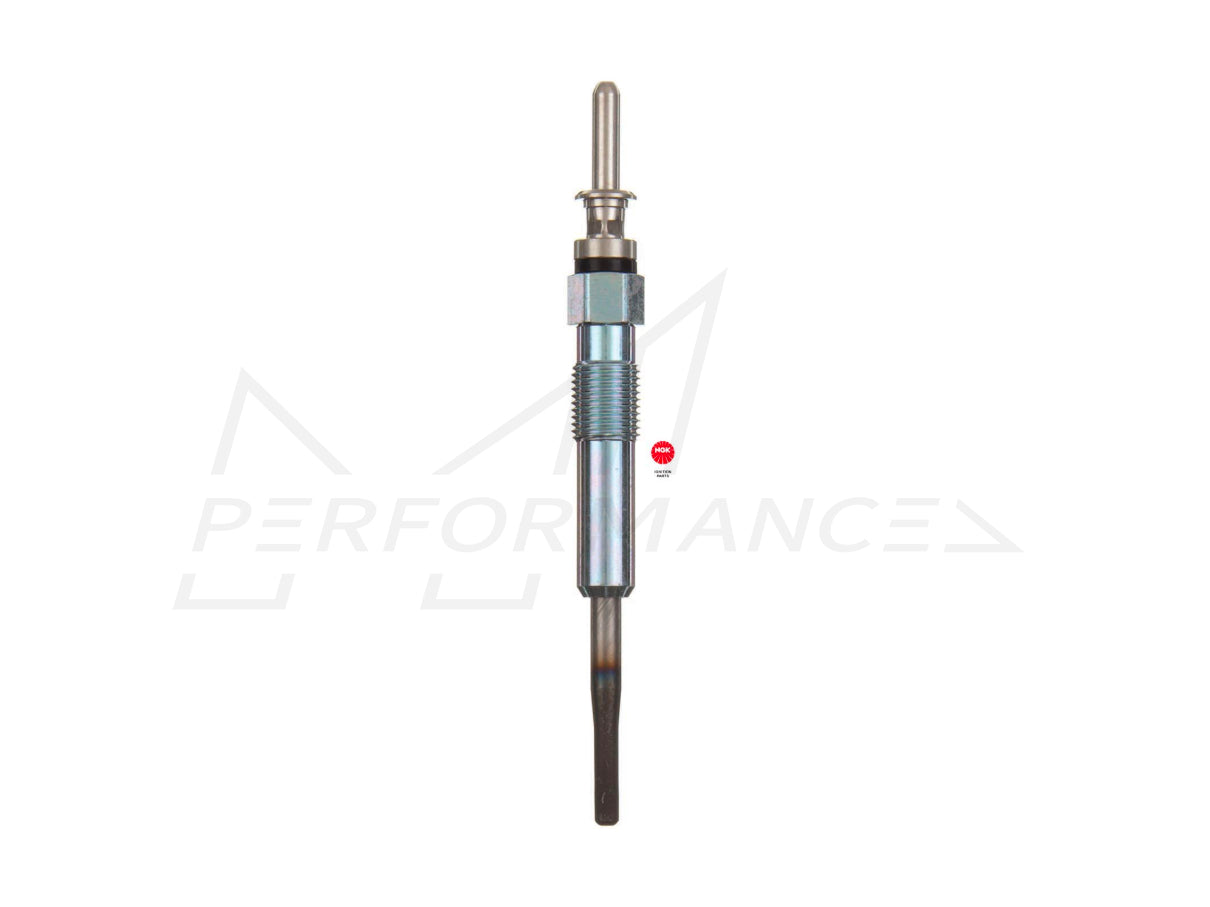

Glow Plugs are found in diesel engines, they are engine heating components that start warming the engine on ignition. The glow plug contains a heating element that starts to heat when electricity is passed to it on ignition, this heat is then passed to the engines cylinders to start thermally warming them.
NGK has been developing glow plugs for automotive engines since the early 1960s. With a huge and varied glow plug range and NGK's assurance that every product equals or surpasses the quality of the Original Equipment part it's no wonder NGK are considered the Number 1 glow plug choice for many applications. NGK are OE for many vehicle marques and their attention to performance and emissions reduction ensures that NGK continues to be a world leader.
- Serial Number: 7
- Model Type: Sheathed type (earthed through body)
- Heating Characteristics: Advanced quick glow system
- Battery Voltage: 12V
- Special Tube Material: Yes
- TerminalType: 4mm pin
- Hex Size: 10mm
- Thread Diameter: 10mmØ double coil (M10)
- Thread Pitch: 1.00mm
- Overall Length: 105.5mm
- Heater Tube Length: 32.5mm
Replaces:
- 12237786869
The listing is for a single plug, you will generally need 4 when replacing your plugs.
- 1' E87 (02/2003 — 02/2007)
- 118d, 120d
- 3' E46 (06/1998 — 08/2006)
- 318d, 318td, 320Cd, 320d, 320td, 330Cd, 330d, 330xd
- 3' E90 (02/2004 — 08/2008)
- 318d, 320d, 325d, 330d, 330xd, 335d
- 3' E90 LCI (02/2008 — 10/2011)
- 325d, 335d
- 3' E91 (02/2004 — 08/2008)
- 318d, 320d, 325d, 330d, 330xd, 335d
- 3' E91 LCI (03/2008 — 05/2012)
- 325d, 335d
- 3' E92 (05/2005 — 02/2010)
- 325d, 330d, 330xd, 335d
- 3' E92 LCI (12/2008 — 03/2013)
- 335d
- 3' E93 (09/2005 — 02/2010)
- 325d, 330d
- 5' E60 (02/2002 — 02/2007)
- 520d, 525d, 530d, 530xd, 535d
- 5' E60 LCI (10/2005 — 12/2009)
- 520d, 525d, 525xd, 530d, 530xd, 535d
- 5' E61 (11/2002 — 02/2007)
- 520d, 525d, 530d, 530xd, 535d
- 5' E61 LCI (11/2005 — 05/2010)
- 520d, 525d, 525xd, 530d, 530xd, 535d
- 6' E63 LCI (05/2006 — 07/2010)
- 635d
- 6' E64 LCI (04/2006 — 07/2010)
- 635d
- 7' E65 (11/2001 — 07/2008)
- 730d
- 7' E66 (03/2005 — 07/2008)
- 730Ld
- X3 E83 (01/2003 — 07/2006)
- X3 2.0d, X3 3.0d
- X3 E83 LCI (03/2006 — 08/2010)
- X3 2.0d, X3 3.0d
- X5 E53 (01/2003 — 09/2006)
- X5 3.0d
- X5 E70 (02/2006 — 03/2010)
- X5 3.0d, X5 3.0sd
- X6 E71 (01/2007 — 03/2010)
- X6 30dX, X6 35dX
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
