Description

034Motorsport is proud to offer the ultimate sway bar upgrade package for the B9 Audi A4/S4, A5/S5, and Allroad! The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.

Designed to further reduce body roll and enhance steering feel than a rear sway bar upgrade alone, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on track.

Please Note: We highly recommend using this upgrade in conjunction with Spherical Rear Sway Bar End Links and Spherical Front Sway Bar End Links for maximum performance. Unlike the Dynamic+ Rear Sway Bar, installing the Track Spec Sway Bar Kit will result in a noticeably firmer ride.

TRACK-PROVEN HANDLING PERFORMANCE

The Dynamic+ Sway Bar Kit was thoroughly evaluated on the street and track with the 034Motorsport B9 Audi A4 and 034Motorsport B9 Audi S4 before release.

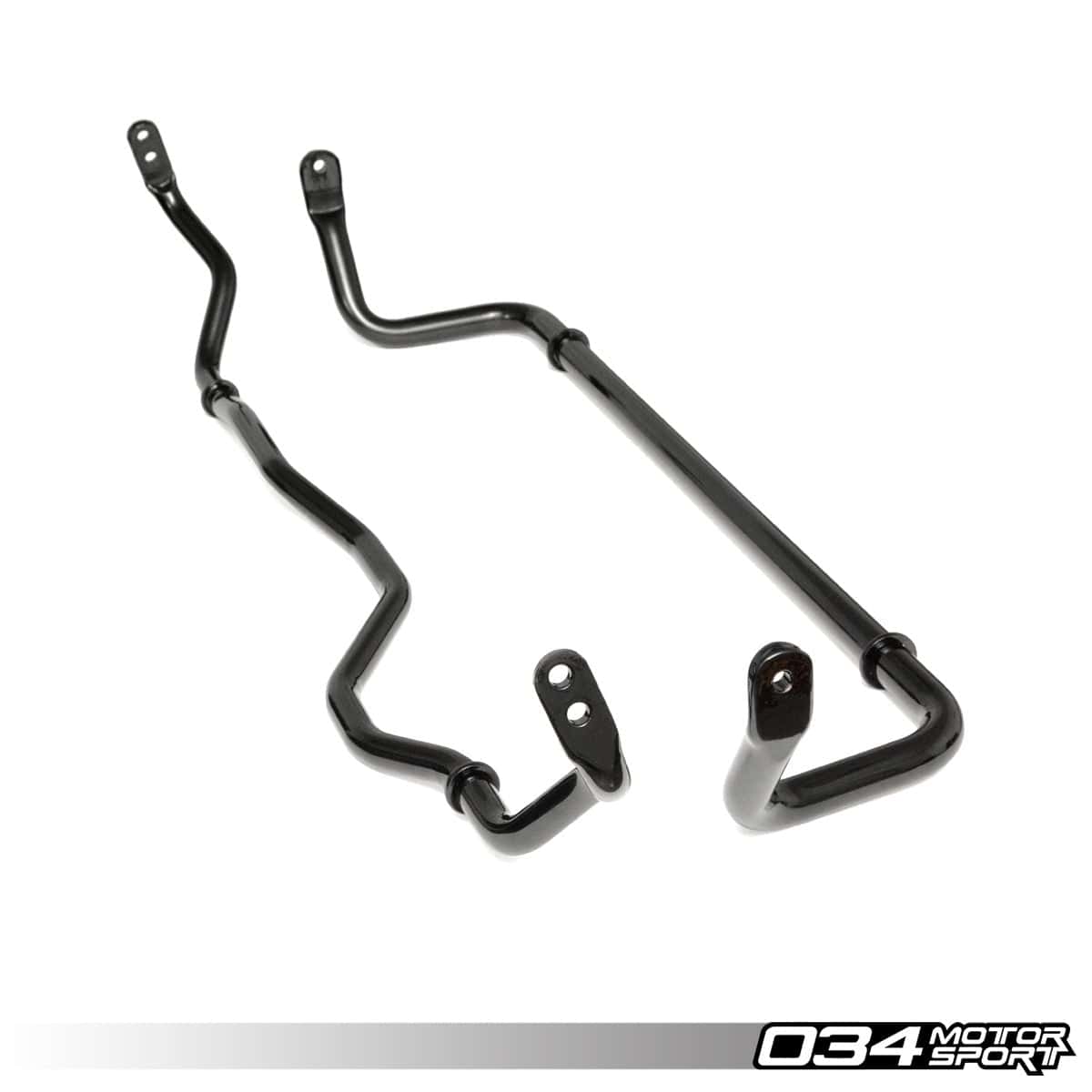

Front Sway Bar Features:

• 49.2% Increased Sway Bar Rate (Over Factory A4 28.19mm, 0.125 Wall Thickness Hollow Front Sway Bar)
• 28.6mm Diameter, 0.250 Wall Thickness
• Hollow Design with Thicker Walls Compared to Factory Bar

Rear Sway Bar Features:

• 2-Way Adjustable
• Soft Setting - 259.3% Increased Sway Bar Rate
• Firm Setting - 305.8% Increased Sway Bar Rate
• (Rate Comparisons to Factory A4 "Sport" 18.5mm Hollow Rear Sway Bar)
• 23.8mm Diameter
• One-Piece Design with Solid Spring Steel Construction

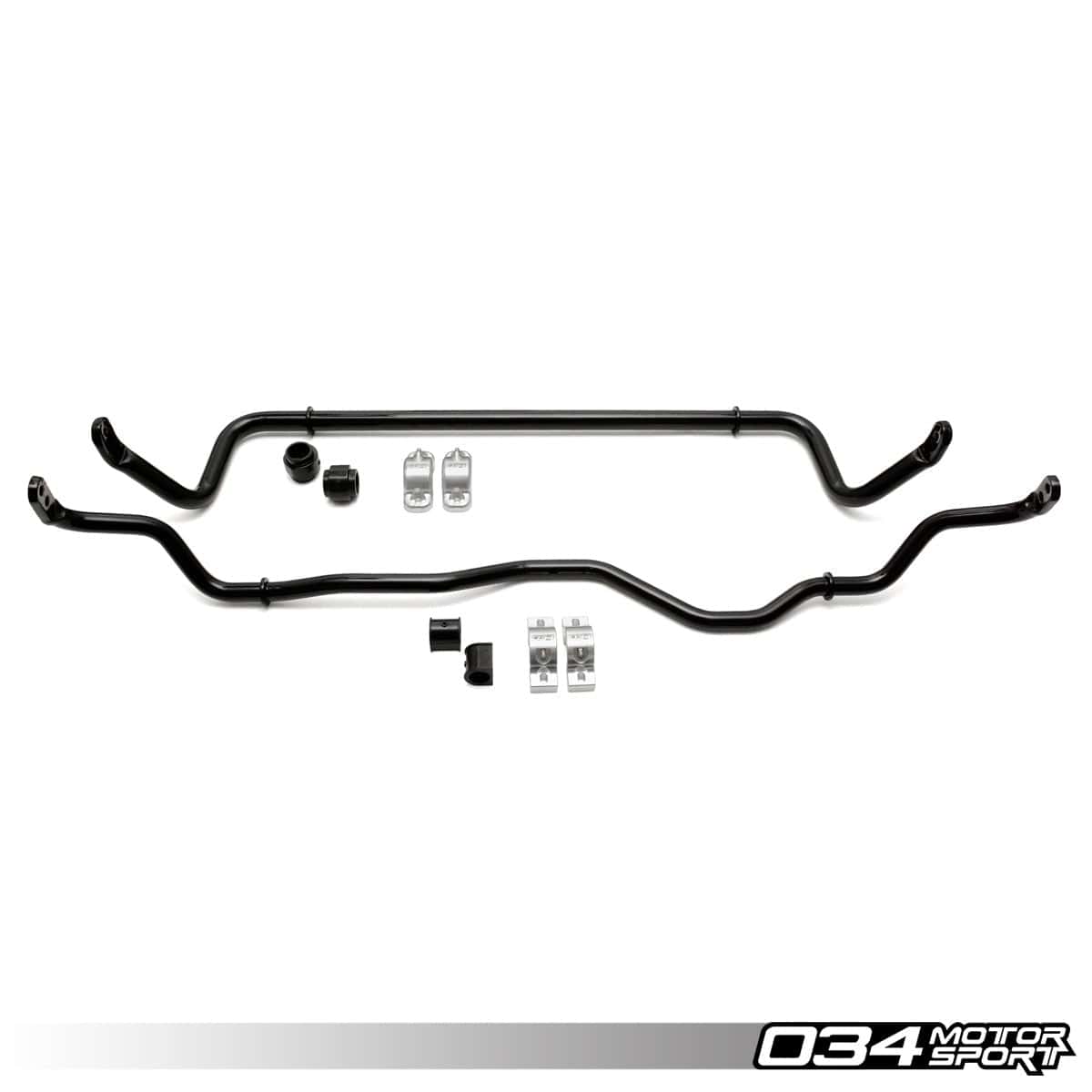

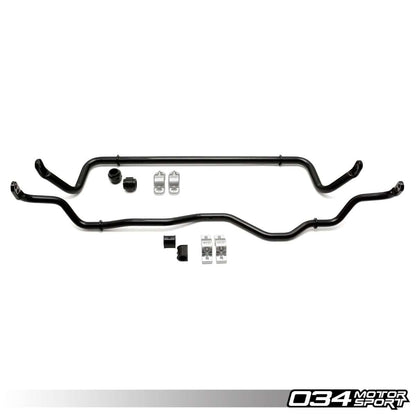

Inclusions:

• 034Motorsport Front Sway Bar Upgrade
• 034Motorsport 23.8mm Solid Adjustable Rear Sway Bar

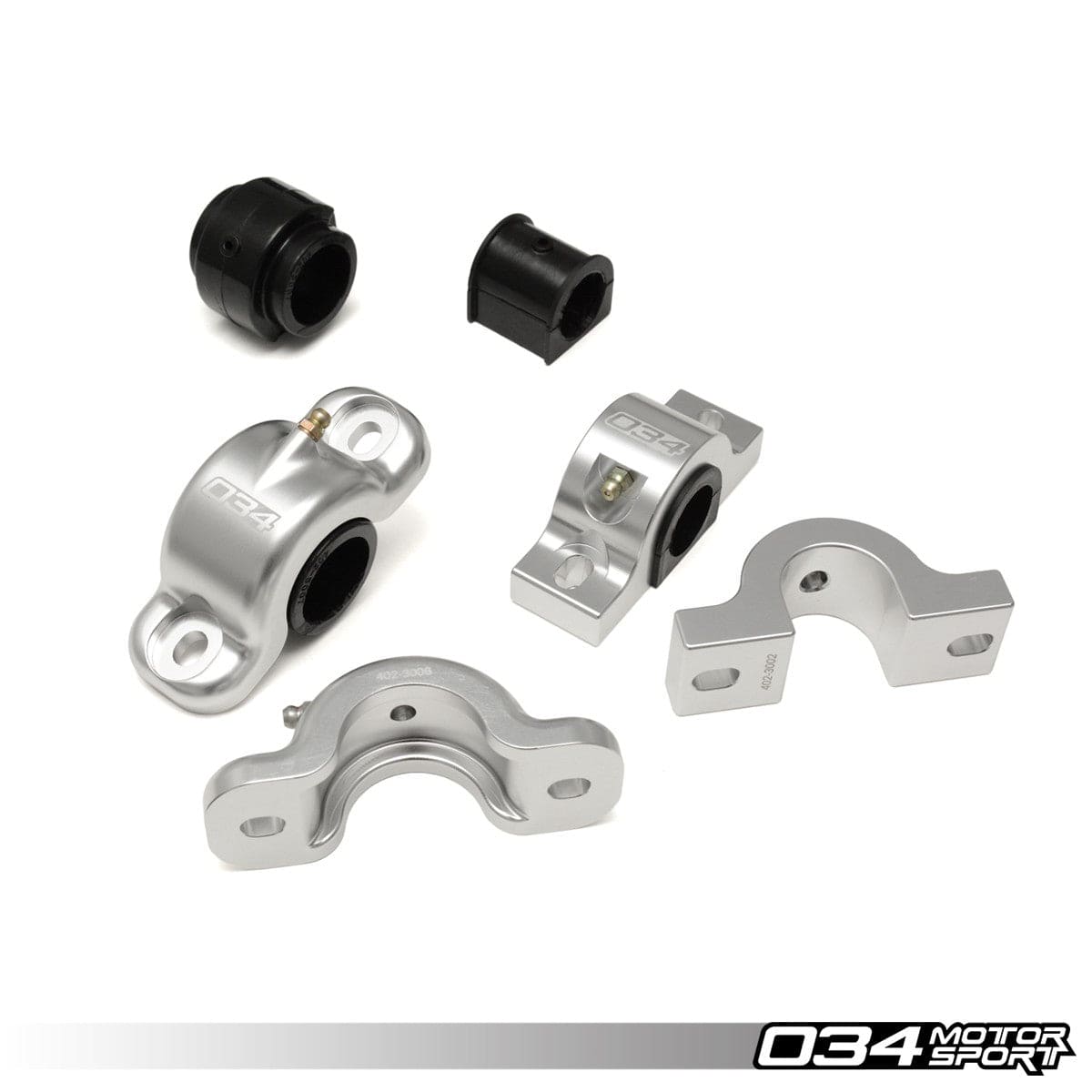

• Polyurethane Sway Bar Bushings

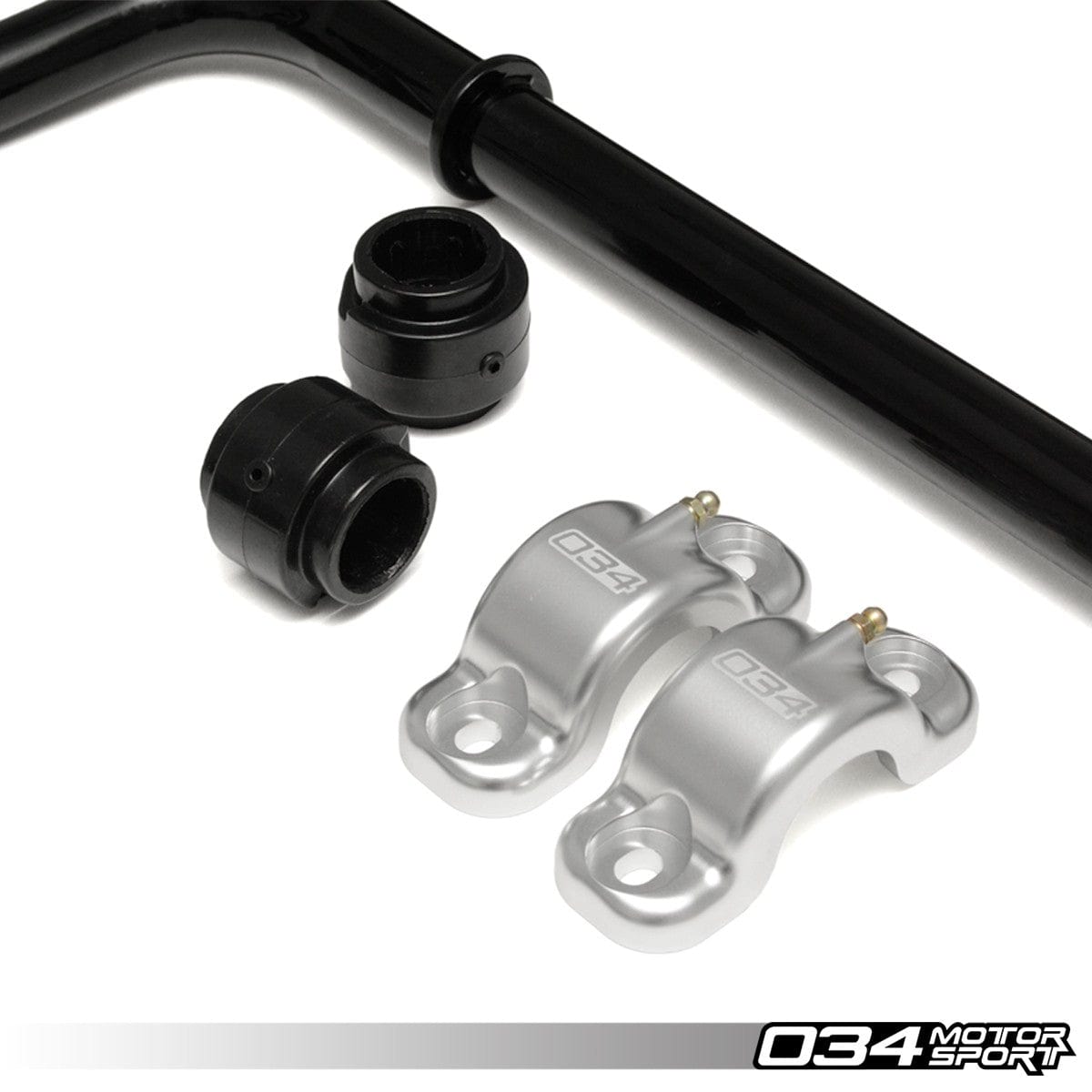

• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings

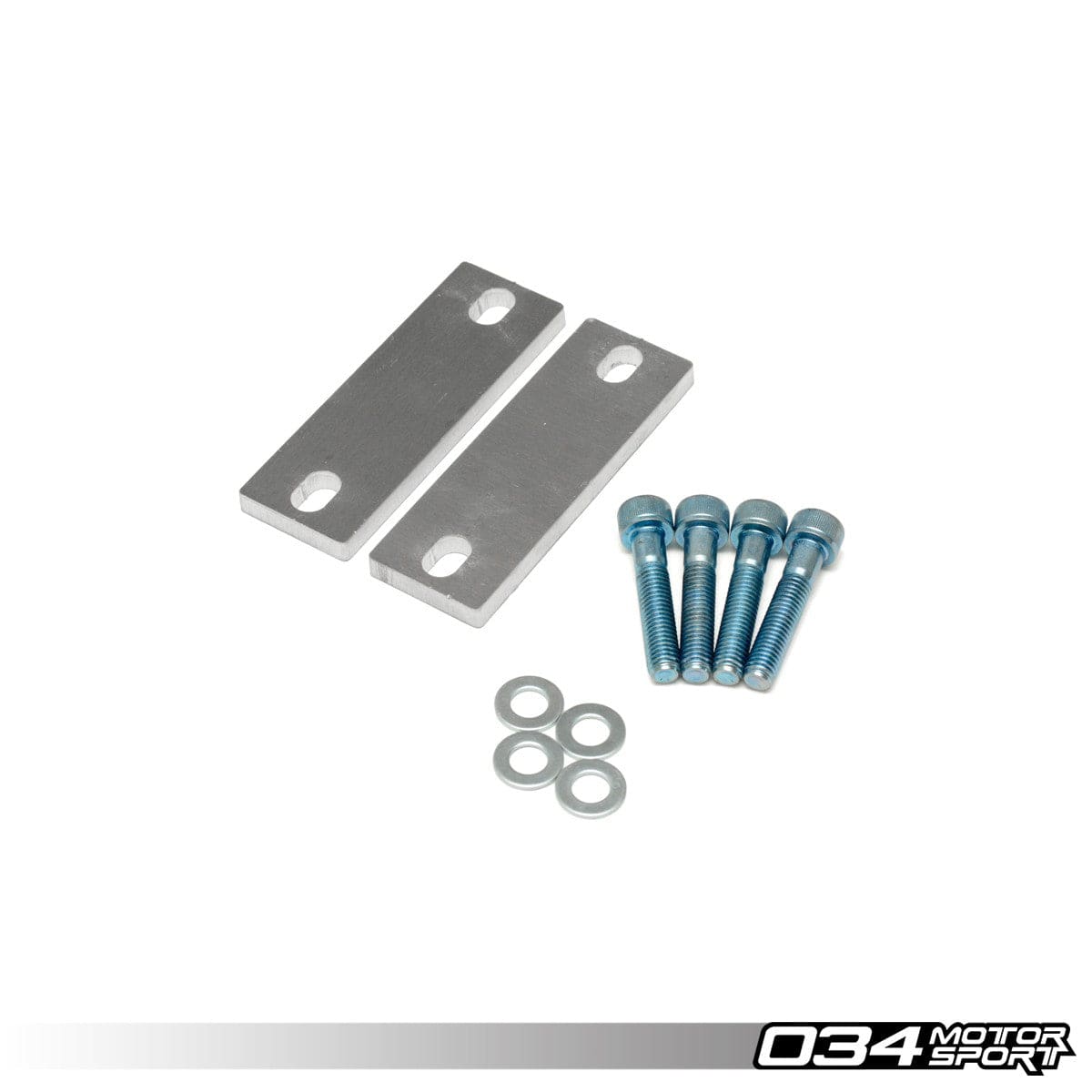

• Installation Hardware Kit

Compatibility

• 2017 - Present Audi A4 (B9)
• 2018 - Present Audi S4 (B9)
• 2018 - Present Audi A5 (B9)
• 2018 - Present Audi S5 (B9)
• 2017 - Present Audi Allroad (B9)

Installation Instructions

Front Bar Installation: PDF

Rear Bar Installation: PDF

Please Note

We highly recommend using this upgrade in conjunction with Spherical Rear Sway Bar End Links and Spherical Front Sway Bar End Links for maximum performance. Unlike the 22.2mm Dynamic+ Rear Sway Bar, installing the Track Spec Sway Bar Kit will result in a noticeably firmer ride.

Warranty

All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discoloration or cosmetic imperfections on carbon fiber finishes which occur over time.

Manufactured by

034Motorsport

Part Number

034-402-1012
