034Motorsport Audi P34 COLD AIR INTAKE, B9 A4/ALLROAD & A5 2.0 TFSI

034Motorsport

  • £450.28
    exc. VAT £375.23
    £375.23
  • 1


Description

034Motorsport's P34 Cold Air Intake System delivers improved power, sound, and acceleration to B9 Audi A4/Allroad & A5 owners in a clean OEM+ package.

Through extensive evaluation of the factory airbox design, 034Motorsport's engineers were able to create a performance replacement that allows for increased airflow to the turbocharger and engine. The P34 Air Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.

034Motorsport is pleased to introduce the P34 Cold Air Intake System for B9 Audi A4/Allroad & A5!

Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi A4/Allroad & A5. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

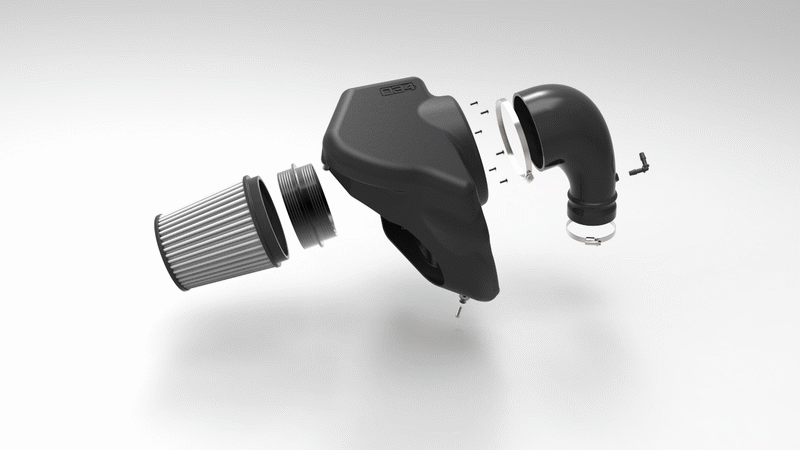

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding a reinforced silicone turbo inlet pipe.

Fitment Note

We recommend visually verifying your intake system to ensure that it does not have a MAF (mass airflow) sensor attached to the airbox. The 034Motorsport P34 Cold Air Intake is only for vehicles without a MAF attached directly to the factory airbox. Please see our visual guide for more details.



Features

  • Developed In-House by 034Motorsport's Engineering Team
  • Dyno-Proven Horsepower & Torque Gains
  • Increased Airflow to Turbocharger Inlet
  • Enhanced Engine & Induction Sounds
  • Improved Throttle Response
  • Superb Fit & Finish to Match Factory Engine Bay
  • Stealthy OEM+ Design Utilizes Factory Inlet & Heat Shield
  • Massive 5" Inlet Conical Air Filter
  • CNC-Machined Billet Aluminum Velocity Stack
  • Large-Diameter CFD-Optimized Turbo Inlet Hose
  • Securely Installs Using Factory Mounting Grommets
  • Simple, Straightforward Installation Instructions





      DYNO-PROVEN PERFORMANCE GAINS

      The P34 Cold Air Intake System for B9 Audi A4/Allroad & A5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the fruition of this design approach, the P34 Cold Air Intake System yields a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

      PEAK HORSEPOWER & TORQUE

      • Stock Intake: 253 Horsepower / 270 Foot-Pounds of Torque
      • P34 Intake: 262 Horsepower / 274 Foot-Pounds of Torque

      PEAK GAINS IN HORSEPOWER & TORQUE

      • Peak Horsepower Gain: 10 HP @ 6,100 RPM
      • Peak Torque Gain: 8 FT-LBS @ 6,100 RPM

      PRESSURE DROP REDUCTION

      • Stock Intake: Peak Pressure Drop of 0.58 PSI at 6,300 RPM
      • P34 Intake: Peak Pressure Drop of 0.10 PSI at 6,300 RPM



        P34 COLD AIR INTAKE SYSTEM PERFORMANCE DATA

          FACTORY B9 AUDI A4/A5 AIRBOX P34 COLD AIR INTAKE SYSTEM
        Peak Horsepower 253 HP 262 HP
        Peak Torque 270 FT-LBS 274 FT-LBS
        Peak Horsepower Gains   10 HP @ 6,200 RPM
        Peak Torque Gains   8 FT-LBS @ 6,200 RPM
        Peak Pressure Drop at Turbo Inlet 0.58 PSI 0.10 PSI
        Peak Pressure Drop Reduction   0.48 PSI @ 6,300 RPM



        Compatibility

        • 2017 - Present Audi A4  (B9)
          • 2.0 TFSI
        • 2017 - Present Audi Allroad  (B9)
          • 2.0 TFSI
        • 2018 - Present Audi A5 (B9)
          • 2.0 TFSI



        Installation Instructions PDF



        Manufactured by

        034Motorsport



        Part Number

        034-108-1012


        Next Day UK Delivery

        Get FREE Guaranteed next day UK delivery for orders over £50 (exc. VAT) on all in stock items. Same day dispatch available if your order is placed before 11:00 GMT on all in stock items!


        Worldwide Shipping

        We ship worldwide via DHL International, simply enter your full address at checkout to see the shipping option(s) and quote(s). Same day dispatch available if your order is placed before 11:00 GMT on all in stock items!
