034Motorsport BMW E87 E88 E90 E92 Billet Aluminum Rear Subframe Mount Insert Kit (Inc. 1M, 135i & 335i)

034Motorsport

  • £200.00
    exc. VAT £166.67
    £166.67

Compatibility Check - Enter the last 7 digits of your VIN. We will double check compatibility for you before dispatching!


Description

034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for E9X BMW models! E9X BMWs use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

The 034Motorsport Billet Aluminum Rear Subframe Mount Insert Kit for E9X BMW models is designed to limit movement in the factory rear subframe mounts to maintain proper suspension geometry when cornering, and improve the responsiveness of the rear suspension and differential.

By filling small voids in the four factory mounts as well as limiting vertical movement, this insert set eliminates the associated slop to ensure that you experience a more refined, connected driving experience, especially when driving at the limit. These billet aluminum parts will not pack and wear over time, and offer a lasting performance improvement.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

These inserts were tested extensively on multiple enthusiast-owned E9X BMW models before release. Installation is very simple and is completely reversible.



Features

  • T6-6061 Billet Aluminum Construction
  • CNC-Machined In-House
  • Clear Anodized Finish for Durability
  • Engineered to Fill Voids in Factory Rear Subframe Mounts
  • Helps Maintain Proper Suspension Geometry When Cornering
  • Reduces Rear Subframe Movement During Launches & Acceleration
  • Improves Shifting Feel, Resulting in Crisper Shifts
  • Virtually No Additional NVH Transfer Inside Cabin
  • Easy, Straightforward Installation



In the Box

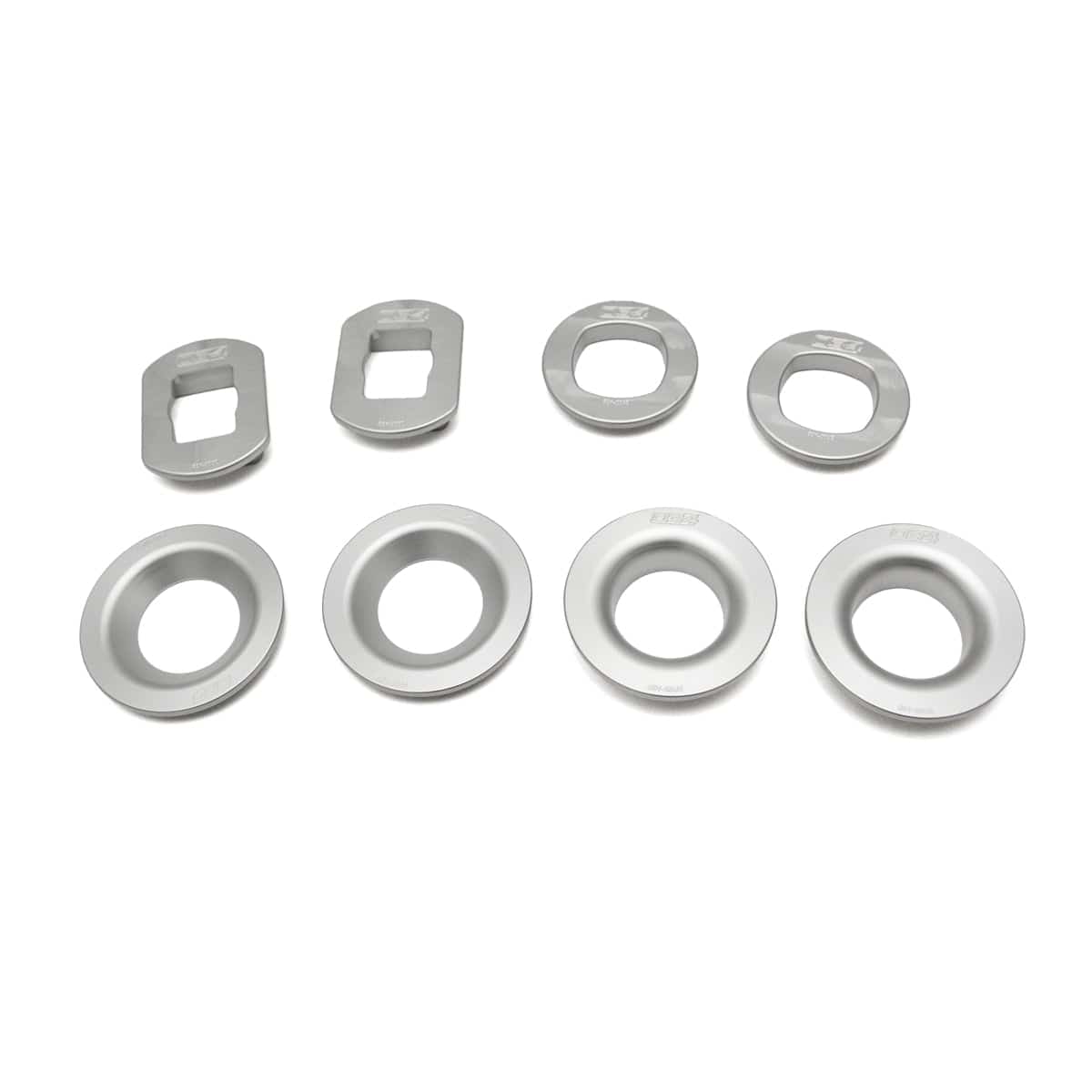

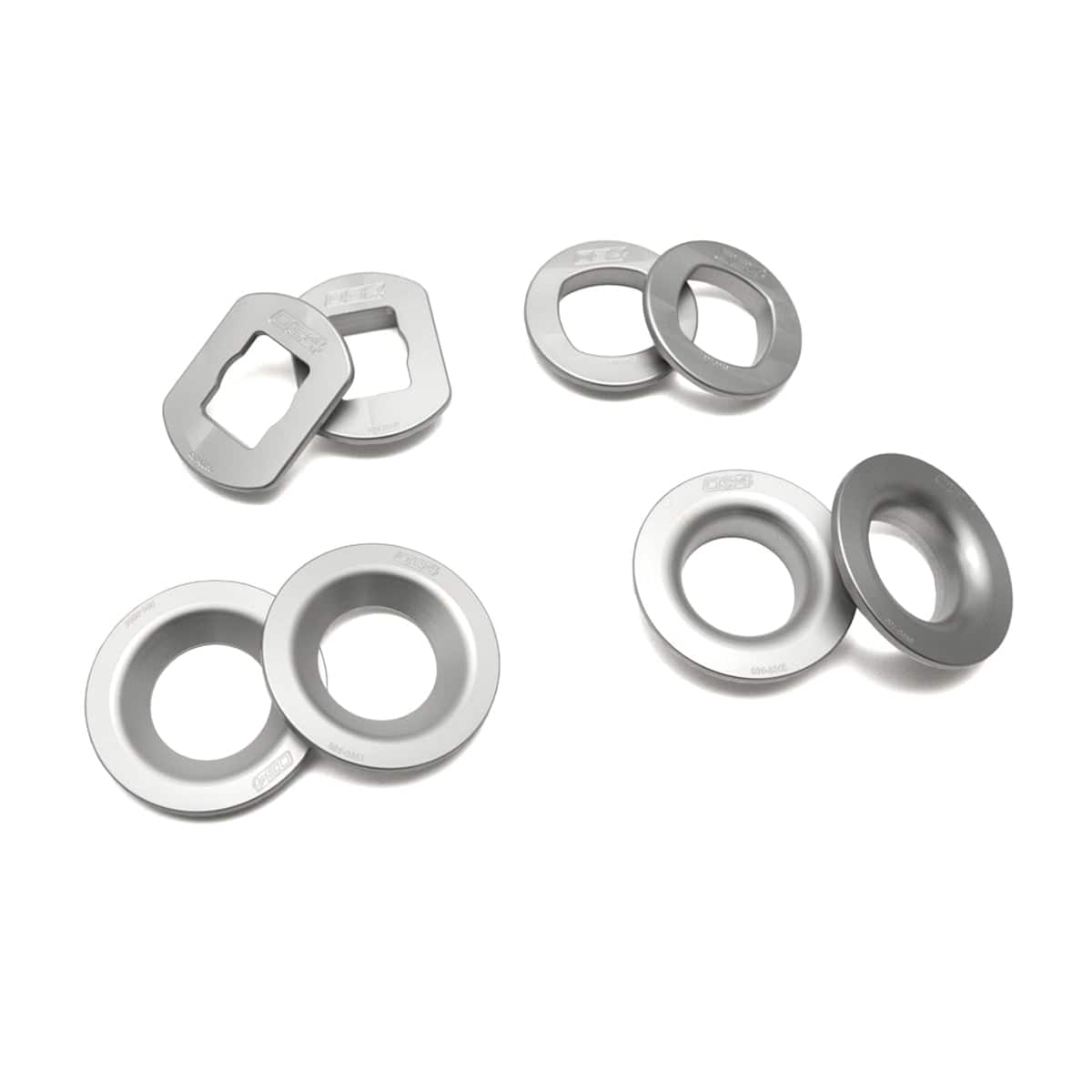

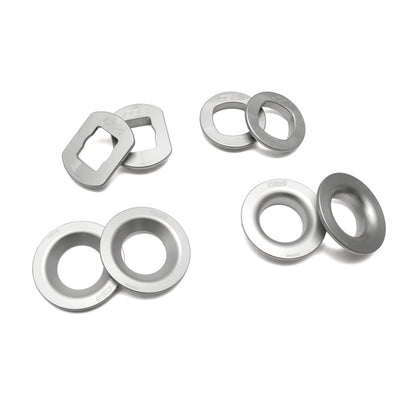

      • 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Front Upper (Pair)
      • 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Front Lower (Pair)
      • 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Rear Upper (Pair)
      • 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Rear Lower (Pair)



        Compatibility

        • E81 1-Series (02/2006 — 12/2011)
        • E87 1-Series (02/2003 — 02/2007)
        • E87 1-Series LCI (01/2006 — 06/2011)
        • E88 1-Series (11/2006 — 10/2013)
        • E82 1-Series (11/2006 — 10/2013)
        • E90 3-Series (02/2004 — 09/2008)
        • E90 3-Series LCI (07/2007 — 02/2012)
        • E91 3-Series (02/2004 — 08/2008)
        • E91 3-Series LCI (07/2007 — 05/2012)
        • E92 3-Series (05/2005 — 02/2010)
        • E92 3-Series LCI (11/2008 — 06/2013)
        • E93 3-Series (09/2005 — 02/2010)
        • E93 3-Series LCI (11/2008 — 10/2013)



        Free UK Delivery

        Free UK delivery on all orders, same day dispatch if ordered before 11am on all in stock items. Worldwide shipping available, simply enter your full address during checkout including the correct postal code for a shipping quote.



        Manufactured by

        034Motorsport



        Part Number

        034-601-0047



        034Motorsport BMW E81 E82 E87 E88 Billet Aluminum Rear Subframe Mount Insert Kit (Inc. 1M, 135i and 335i) - ML Performance UK

        The installation of your 034Motorsport E9X BMW Rear Subframe Bushing Insert Set is a relatively simple process that will take approximately 2 hours to complete. You can access our detailed installation guide by clicking the icon on the left.
