Description

034Motorsport is proud to offer an elegantly simple Boost Tap Kit for B8/B8.5 Audi S4/S5/Q5/SQ5 & C7/C7.5 A6/A7 3.0 TFSI.

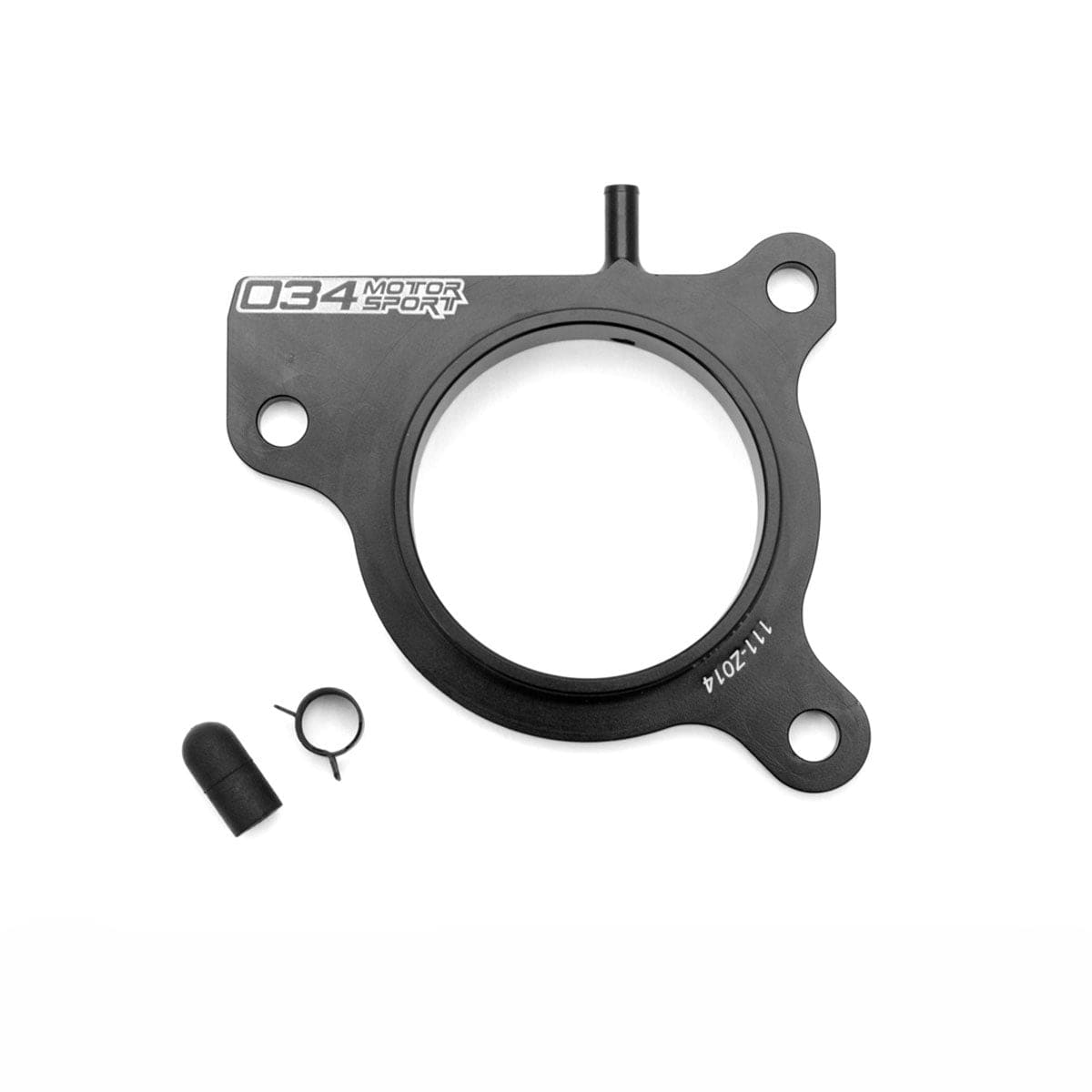

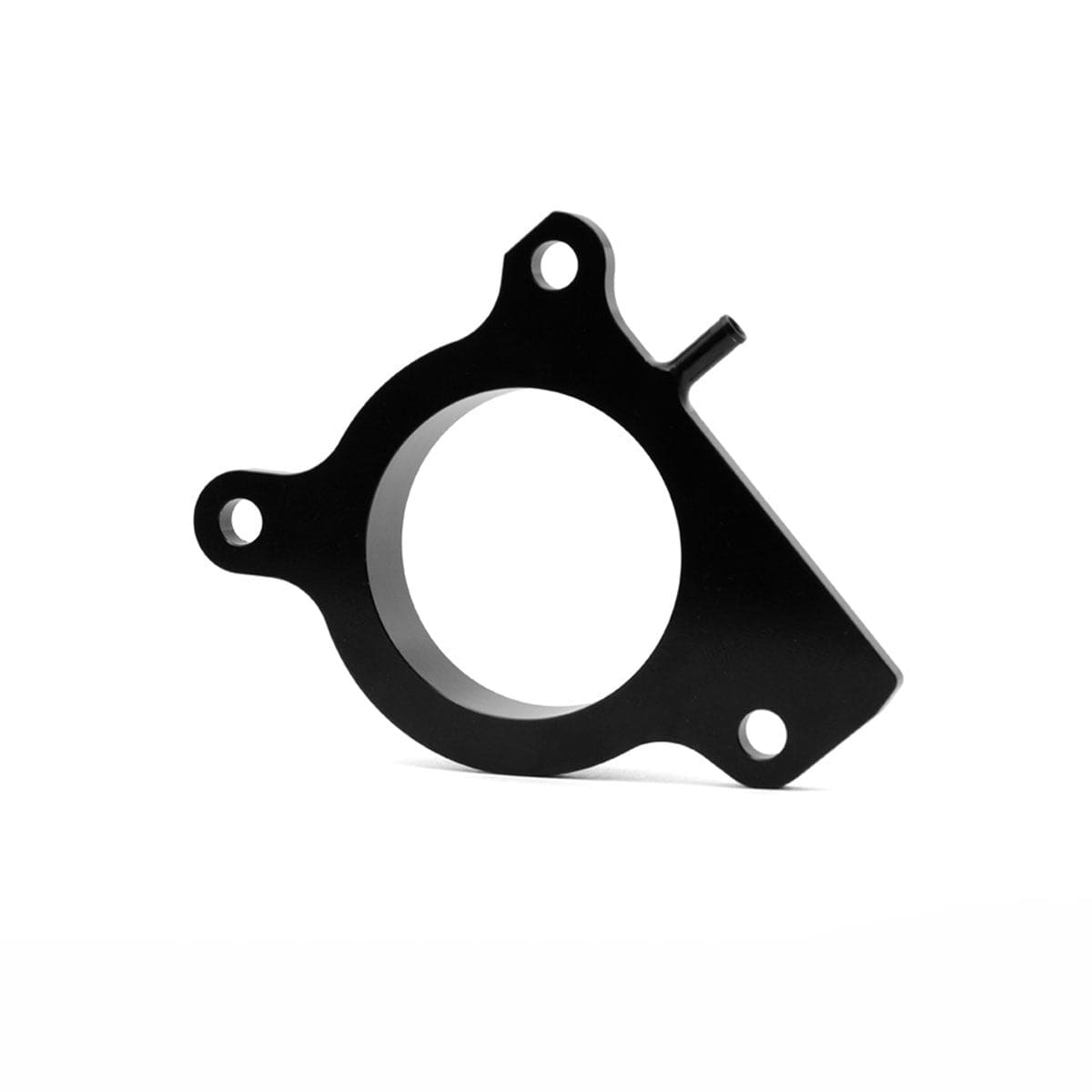

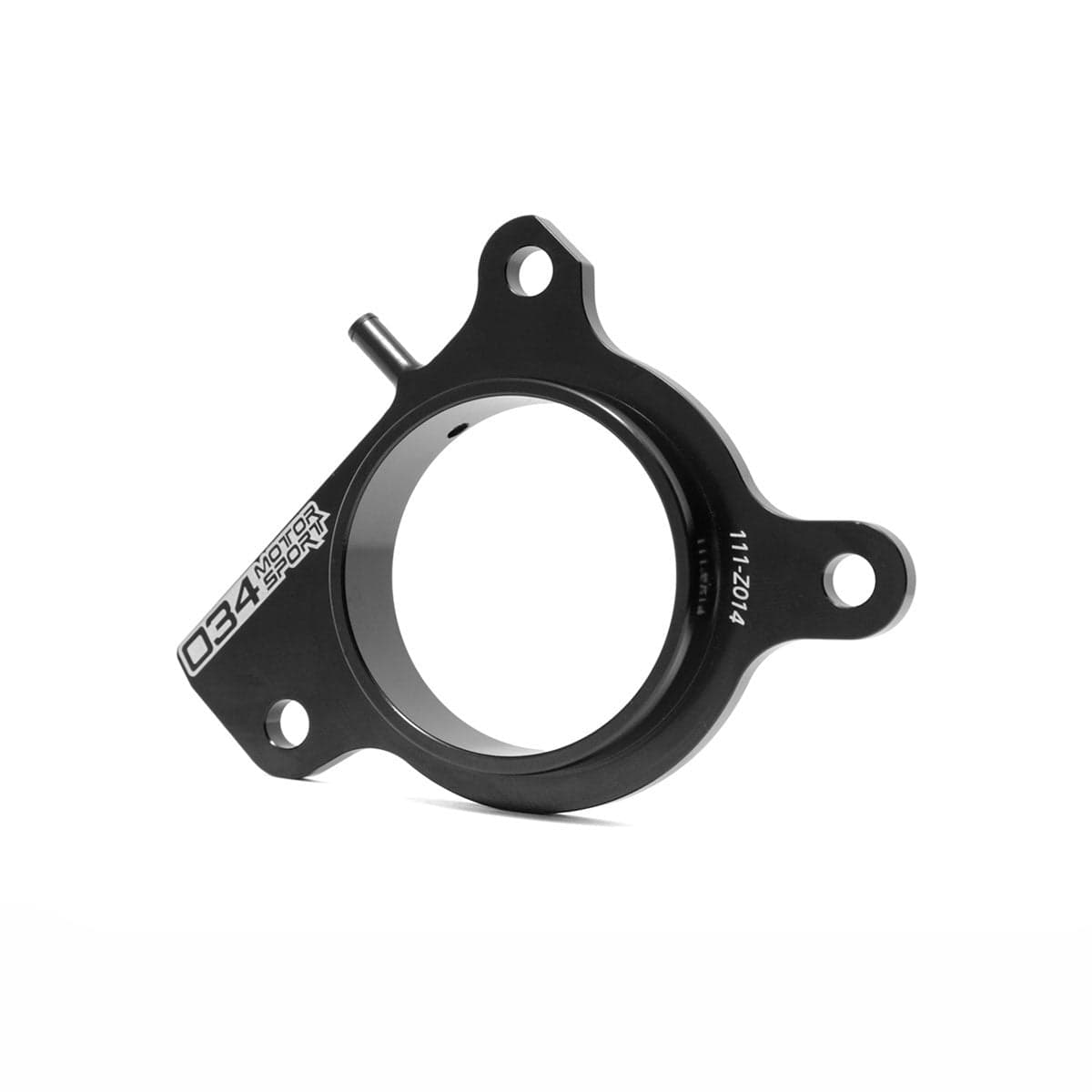

Designed to replace the factory plastic spacer between the supercharger and discharge tube, this billet aluminum boost tap will never warp or crack. A single 5mm (3/16") nipple stems from the rear of the boost tap for convenient routing to a vacuum port from the firewall. If you don't have an existing vacuum line in place, we supply a rubber cap to easily seal the 034Motorsport Boost Tap until access is needed.

The 034Motorsport Boost Tap Kit is an ideal solution for those running boost gauges, or looking to gain easy access to a vacuum port for diagnosis.

Features

• T6-6061 Billet Aluminum Construction
• Black Anodized Finish for Durability
• 5mm (or 3/16") Nipple for Securing Hose for Boost Gauge
• Engineered to be a Direct, Drop-In Unit
• Easy, Straightforward Installation
• No Modification Required!

What's Included

• 034Motorsport Billet Aluminum Boost Tap
• Rubber Nipple Cap
• Hose Clamp

Installation Instructions

• Web - PDF

Fitment

• 2009 - 2017 Audi S4 3.0 TFSI (B8/B8.5)
• 2009 - 2017 Audi S5 3.0 TFSI (B8/B8.5)
• 2008 - 2017 Audi Q5 3.0 TFSI (B8/B8.5)
• 2008 - 2017 Audi SQ5 3.0TFSI (B8/B8.5)
• 2012 - 2017 Audi A6 3.0 TFSI (C7/C7.5)
• 2012 - 2017 Audi A7 3.0 TFSI (C7/C7.5)

Manufactured by

034Motorsport

Part Number

034-111-Z015
