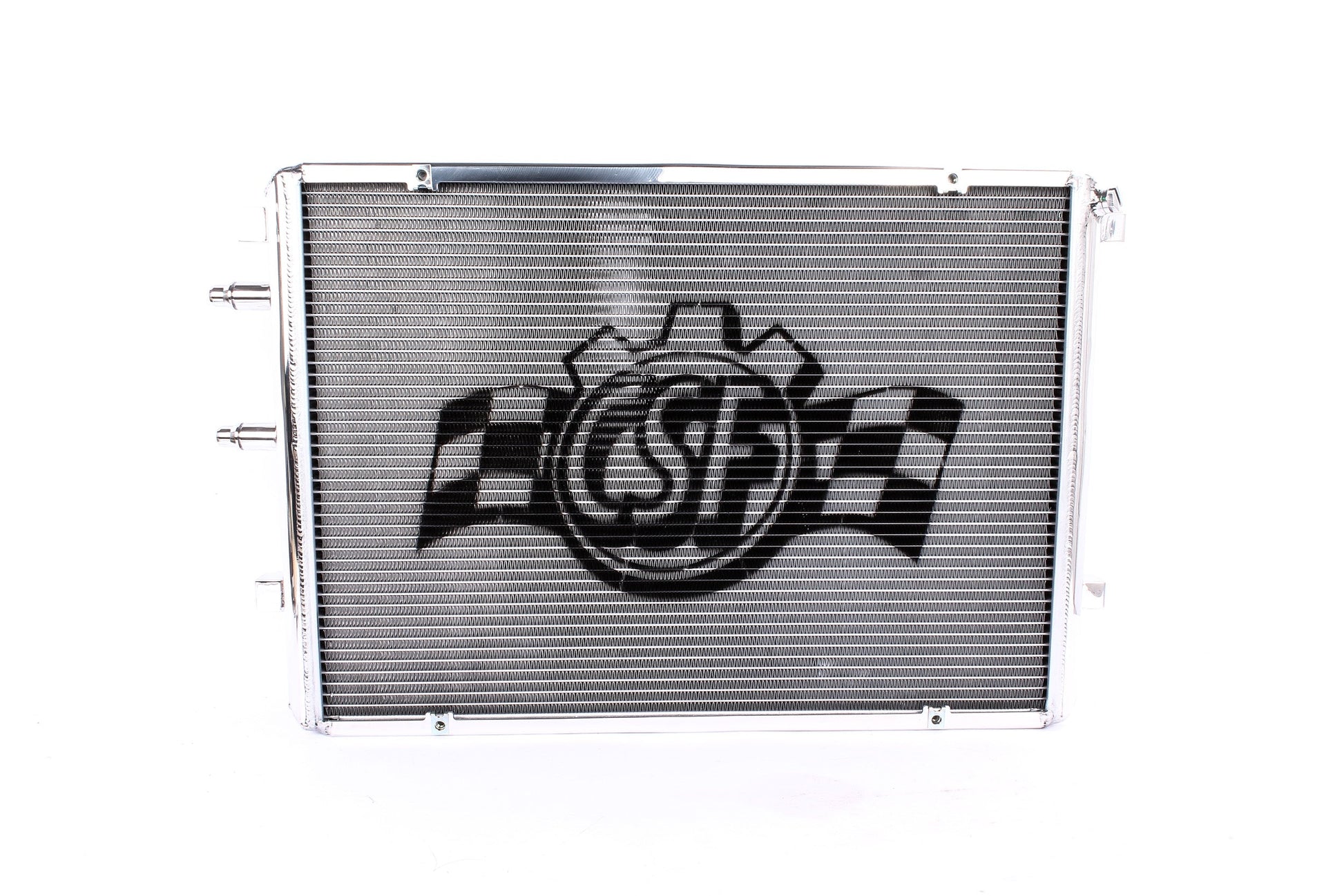

• CSF Race BMW F8X m3/m4 - Front Mount Heat Exchanger with rock guard
• 2-row 42mm core (dual core) featuring CSF’s exclusive B-tube technology
• Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact
• Dual-pass flow structure allows the coolant to flow across the core of the radiator 2 times before exiting the radiator for the lowest outlet temperature possible (OEM style design)

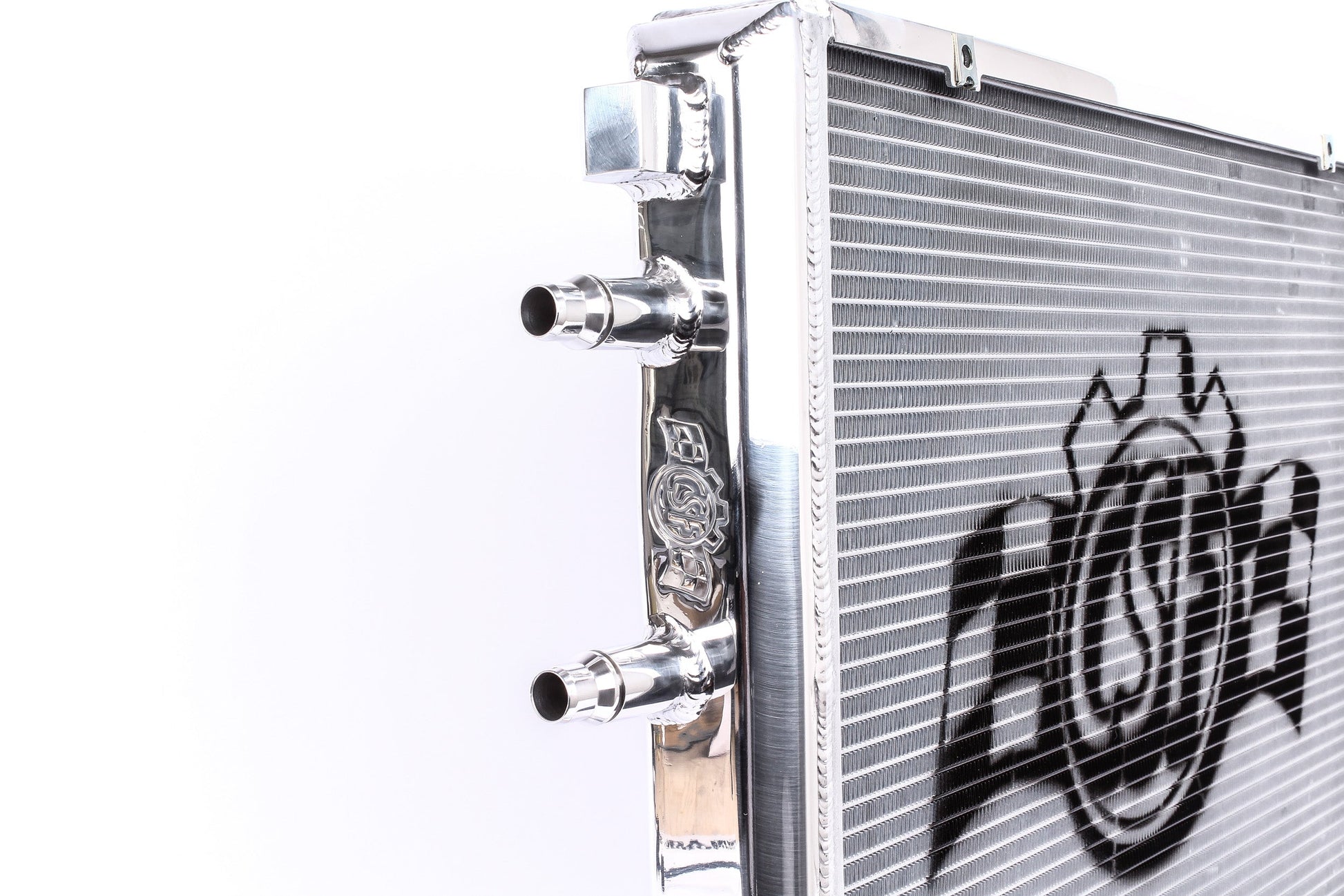

• CNC machined, OEM style “quick-connect” inlet/outlet connections
• CNC machined, OEM style mounting brackets & fittings for superb fit and durability

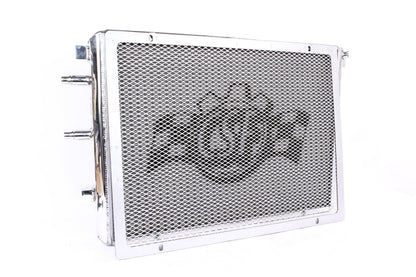

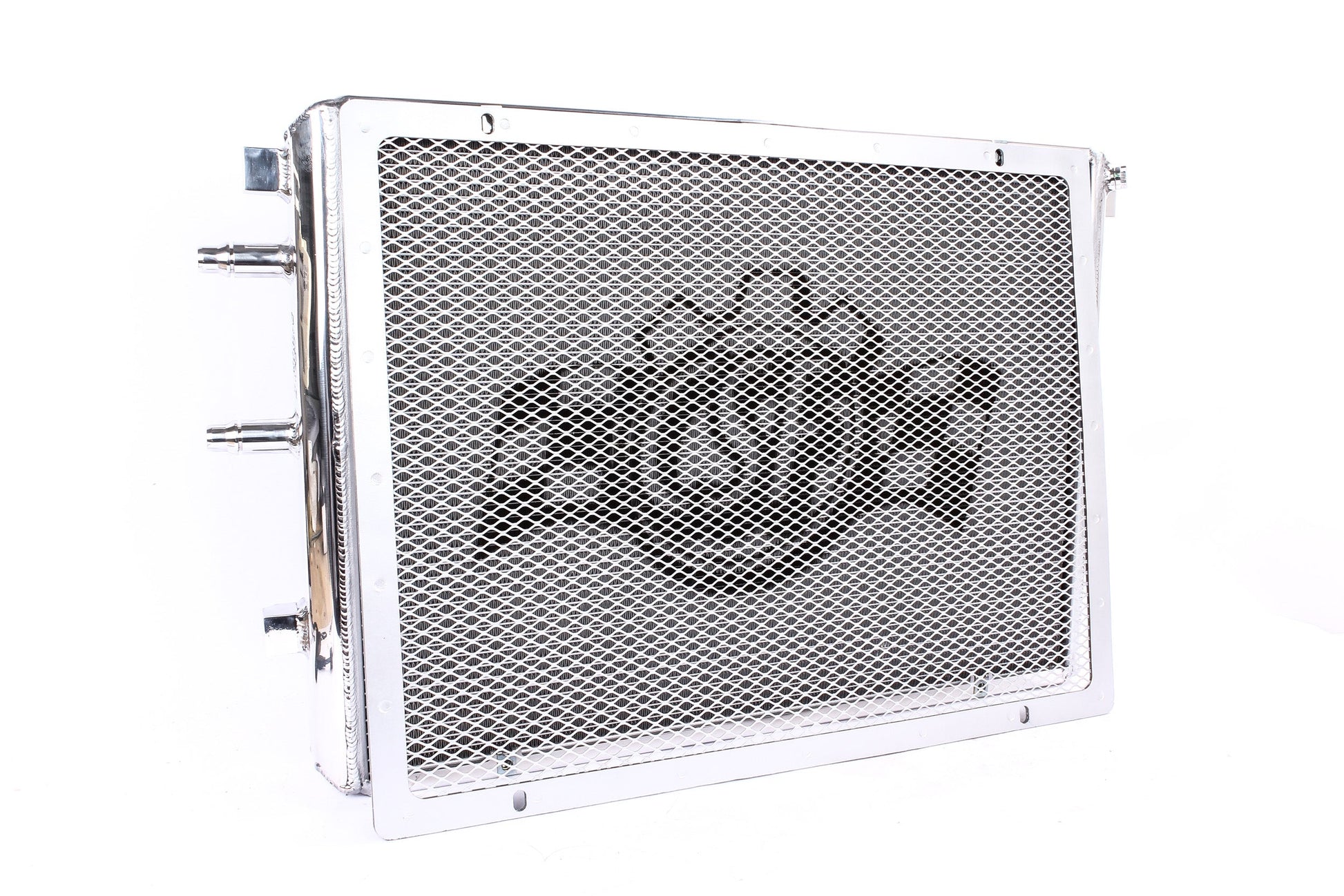

• Includes removable aluminum rock guard
• All-aluminum race style drain plug
• 1 hour “mirror finish” hand polish
• “Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including “quick-connect” hoses, mounting brackets, OEM X-brace, and all air ducting/shrouding. (Applies to Non-Race Version Only)

Please Note - Radiator

* Race version radiator (50 rows) is no longer available - requires some modification to upper core support

Description - Charge Air Cooler

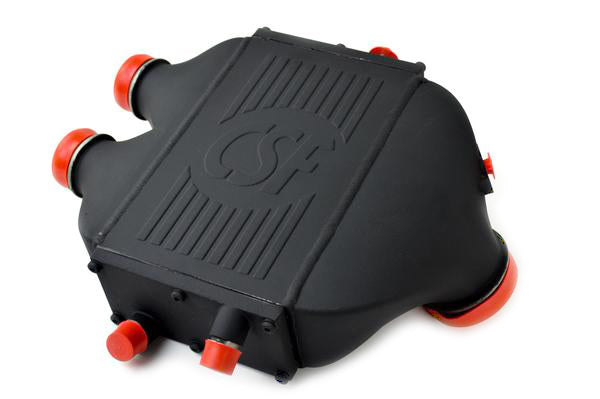

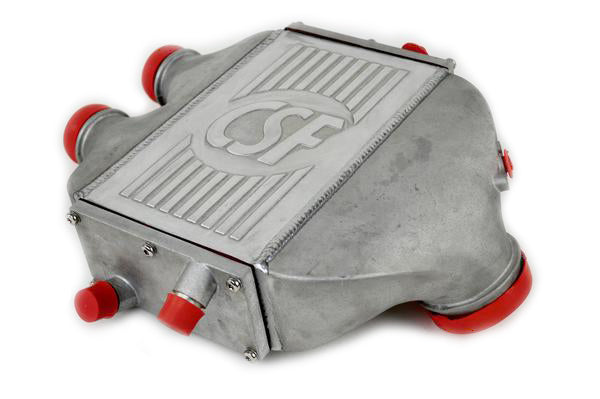

CSF is proud to announce the first ever cast endtank designed top-mount intercooler for the BMW S55 engine! Utilising multiple air dividers cast into the hot/cold side endtanks for optimised air flow. CSF designed this liquid-to-air core from a blank slate, and completed extensive testing and analysis to ensure optimum performance and cooling. The core itself is 60% larger and features a dual-core cross-flow design with 2-stage water cooling for maximum efficiency. If you're looking for a superior product with enhanced cooling and maximum efficiency, look no further than this CSF top-mount intercooler. Available in black or raw aluminium finish.

Features - Charge Air Cooler

• World's 1st cast endtank designed top mount charge-air-cooler for the BMW S55 engine
• Multiple air dividers cast into both hot/cold side endtanks for optimised air flow through the custom designed liquid-to-air core
• 60% increase in core size
• Left/right, cross-flow, dual-pass core configuration with 2-stage water cooling for maximum efficiency and intake temperature reduction
• Designed with 3D scanning/rapid prototyping technology to ensure precise fit and maximum surface area
• Bolt-on design for easy plug-and-play installation
• Available in wrinkle-black or raw aluminum finish
• Life-time warranty
