EBC PD20KF509 Opel Vauxhall Orangestuff Front Brake Pad & BSD Disc Kit - Girling/TRW/Bosch Caliper

EBC PD20KF509 Opel Vauxhall Orangestuff Front Brake Pad & BSD Disc Kit - Girling/TRW/Bosch Caliper

Regular price £207.99 Inc. VAT
Regular price £210.45 Sale price £207.99 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

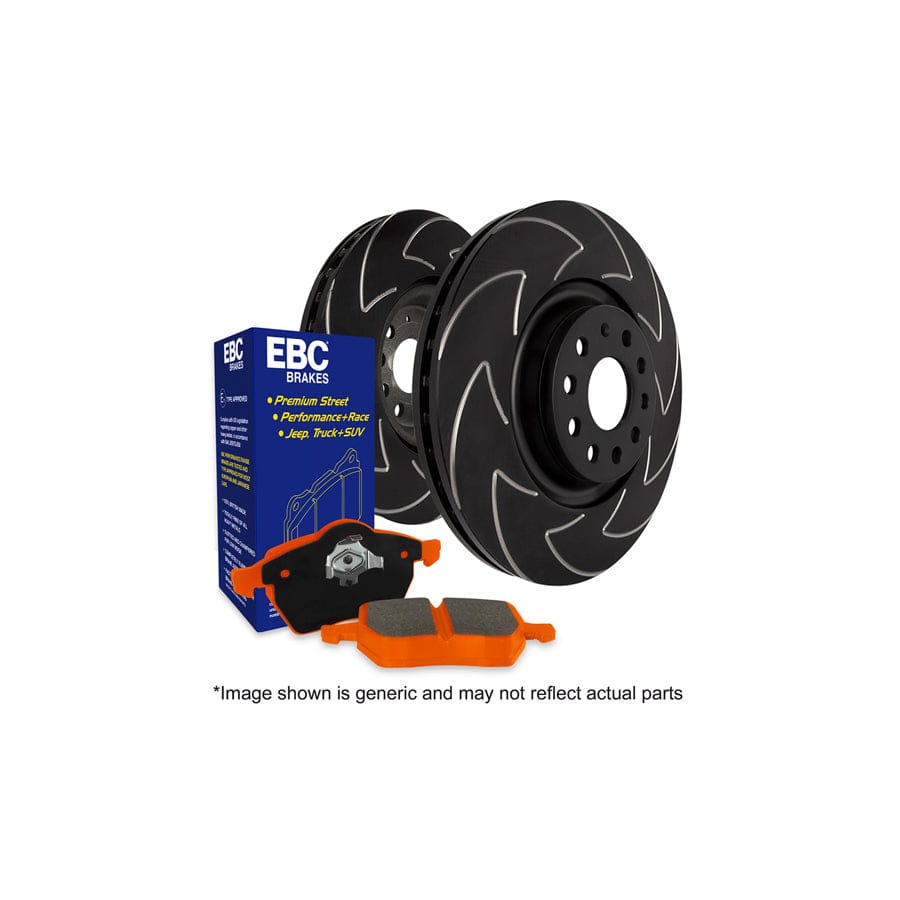

  • Kit contains one set of DP91520 Orangestuff brake pads and one pair of BSD899 BSD slotted and blade series slotted brake discs
  • Money saving brake kit including one set of pads and a pair of discs
  • Orangestuff 5000 NDX race formula ultra high friction race pad with a friction level peaking above 0.6 under braking that will generate more G force than most, if not all pads out there
  • NDX is capable of street use as it bites well from cold
  • pre-bedded out of the box, surface is heat seared or scorched at the factory
  • Pair of blade upgrade discs with bi-directional slots designed to dispel gasses and debris and give silent braking and better pad venting

One pair of slotted and dimpled upgrade brake discs. Wide slots and blind drilled dimples are designed to dispel gasses and debris. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.

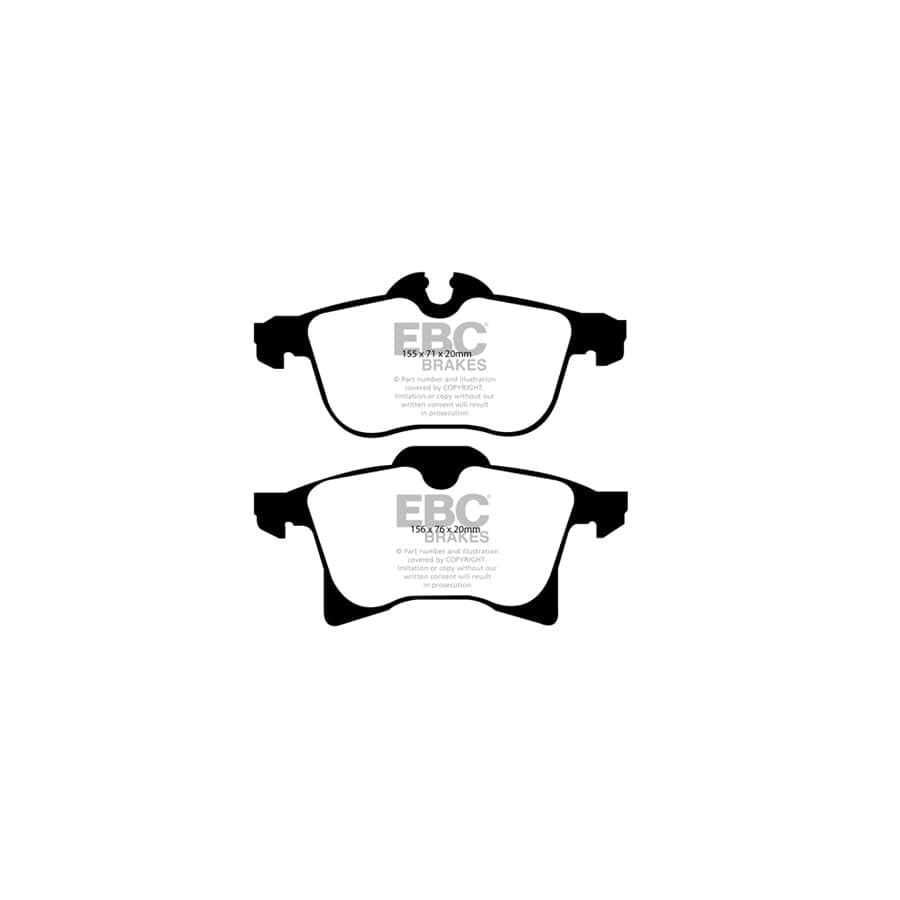

Pad A Dimensions : 155 x 71 x 20
Disc Type : Slotted
Solid or Vented : V
Bolt Holes : 5
Disc Diameter (mm) : 280
Disc Height (mm) : 41
Disc Thickness (new) (mm) : 25
Disc Thickness (min) (mm) : 23
Kit Components : DP91520 + BSD899



Model Sub-Model Engine BHP Year Position
Astra (H) - 1.4 - 2005-2010 Front
Astra (H) - 1.6 - 2005-2010 Front
Astra (H) - 1.8 - 2005-2010 Front
Astra (H) - 1.7 TD 100 2005-2008 Front
Astra (H) - 1.7 TD 110 2007-2010 Front
Astra (H) - 1.7 TD 125 2007-2010 Front
Astra (H) - 1.9 TD 100 2005-2010 Front
Astra (H) - 1.9 TD 120 2005-2010 Front
Astra (H) - 1.9 TD 150 2005-2010 Front
Astra GTC (H) - 1.4 90 2005-2011 Front
Astra GTC (H) - 1.6 105 2005-2008 Front
Astra GTC (H) - 1.6 116 2006-2011 Front
Astra GTC (H) - 1.8 125 2005-2007 Front
Astra GTC (H) - 1.8 140 2006-2010 Front
Astra GTC (H) - 1.7 TD 110 2007-2011 Front
Astra GTC (H) - 1.7 TD 125 2007-2010 Front
Astra GTC (H) - 1.9 TD 120 2005-2010 Front
Astra GTC (H) - 1.9 TD 150 2005-2010 Front
Astra Convertible (Twin Top) - 1.6 - 2005-2011 Front
Astra Convertible (Twin Top) - 1.6 Turbo - 2007-2011 Front
Astra Convertible (Twin Top) - 1.8 - 2005-2011 Front
Astra Convertible (Twin Top) - 1.9 TD 150 2005-2011 Front
Combo Tour - 1.4 - 2004-2011 Front
Combo Tour - 1.6 - 2001-2011 Front
Combo Tour - 1.3 TD - 2004-2011 Front
Combo Tour - 1.7 D - 2001-2011 Front
Combo Tour - 1.7 TD - 2004-2011 Front
Meriva - 1.4 100 2010-2017 Front
Meriva - 1.4 Turbo 120 2010-2017 Front
Meriva - 1.3 TD - 2010-2014 Front
Meriva - 1.7 TD 100 2002-2010 Front
Meriva - 1.7 TD 125 2006-2010 Front
Meriva - 1.7 TD 100 2010-2011 Front
Zafira (B) - 1.6 - 2005-2014 Front
Zafira (B) - 1.8 - 2005-2014 Front

Model Sub-Model Engine BHP Year Position
Astra (H) - 1.4 - 2004-2010 Front
Astra (H) - 1.6 - 2004-2010 Front
Astra (H) - 1.8 - 2004-2010 Front
Astra (H) - 1.7 TD 100 2004-2010 Front
Astra (H) - 1.9 TD 120 2005-2010 Front
Astra (H) - 1.9 TD 150 2004-2005 Front
Astra Sport Hatch (H) - 1.4 90 2005-2011 Front
Astra Sport Hatch (H) - 1.6 105 2005-2008 Front
Astra Sport Hatch (H) - 1.6 116 2006-2011 Front
Astra Sport Hatch (H) - 1.8 125 2005-2007 Front
Astra Sport Hatch (H) - 1.8 140 2006-2010 Front
Astra Sport Hatch (H) - 1.7 TD 110 2007-2011 Front
Astra Sport Hatch (H) - 1.7 TD 125 2007-2010 Front
Astra Sport Hatch (H) - 1.9 TD 120 2005-2010 Front
Astra Sport Hatch (H) - 1.9 TD 150 2005-2010 Front
Astra Convertible (Twin Top) - 1.6 - 2005-2011 Front
Astra Convertible (Twin Top) - 1.8 - 2005-2011 Front
Astra Convertible (Twin Top) - 1.9 TD 150 2005-2011 Front
Meriva - 1.4 100 2010-2017 Front
Meriva - 1.4 Turbo 120 2010-2017 Front
Meriva - 1.3 TD - 2010-2014 Front
Meriva - 1.7 TD 100 2002-2008 Front
Meriva - 1.7 TD 125 2006-2010 Front
Meriva - 1.7 TD 100 2010-2011 Front
Zafira (B) - 1.6 - 2005-2014 Front
Zafira (B) - 1.8 - 2005-2014 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-PD20KF509



Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
