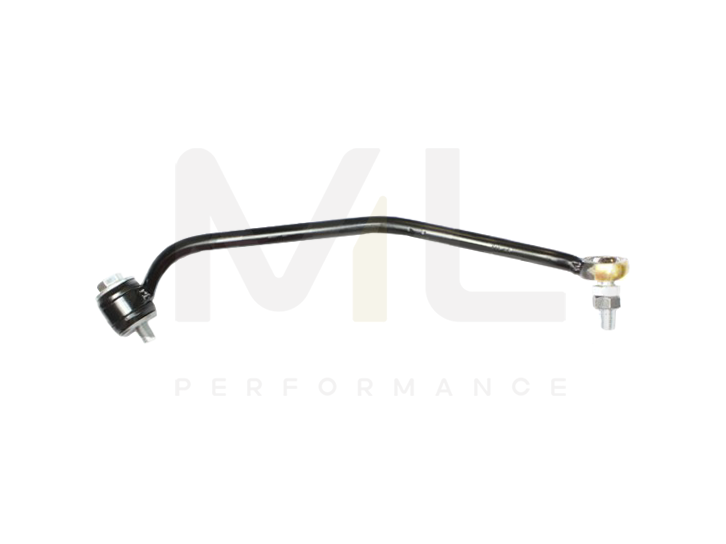

INTRODUCING THE ALL NEW, JHM HD LINKAGE CROSS ROD!!! This is NOT just a modified, OEM rod. We have created a heavy duty, upgraded Cross Rod from scratch, built exactly to OEM measurements.

Have you ever broken your delicate stock linkage cross rod and then called the dealer for a new one only to find they only sell it with the main rod for over $300?. Once again, JHM now has a solution.

We have taken our years of experience working on Audi transmissions and linkages and created a completely new, heavy duty, performance cross rod. We no longer modify the OEM unit, we build the ENTIRE cross rod from scratch. Using our in-house jig, we precisely build each unit to make sure it matches all the OEM angles. On the main shift rod end, we use a high-quality, spherical rod end with a bronze race for a more rigid side to side feel. It also increases the longevity and durability of the unit. On the selector shaft cap end, we upgrade from the stock rubber and plastic bushing to our heavy duty, graphite impregnated, polyurethane bushing. Can you say overkill?

Please Note:

We used to leave the stock rubber bushing on the selector shaft cap end OEM which would allow for the differing angles between the cross rod and linkage to work in concert. If we made this solid too the linkage would bind, trust us we tried it and it DID bind. Click HERE to see this original design. After spending time experimenting with different bushing materials, we were finally able to find a setup that was an upgrade over the stock setup while still allowing for the cross rod and linkage rod to have different angles.

Just like with the old version, our new JHM HD Cross Rod COMES COMPLETE, AND READY TO BOLT ON WITH ONLY MINOR MODIFICATIONS!!! All you have to do is enlarge the hole in your stock main shift rod for the stock cross rod to 5/16". This will allow the JHM HD Cross Rod to bolt right on. Click HERE for a picture showing how this hole is enlarged.

If you have an early cross rod on your 2001 and up B5-S4, you may have a late style selector shaft cap. This cap is shown below. This cap has provisions for both early AND late cross rods to be bolted in. The clearance between the OEM bushing and the protrusion for the late cross rod to be bolted to the cap is very tight on a stock car. In some cases, you may have to clearance the area on the cap just slightly to make sure the cross rod can rotate freely. The selector shaft car comes of very easily and is held on by 3 T45 bolts. Please note that you can't just change your cross rod without changing your shifter as well. Make sure you order the correct cross rod for your car and clearance the cap if you have to. The unit below didn't require clearancing.

Core Charge: With our new, completely in-house built HD cross rod, THERE IS NO CORE CHARGE. Now you do not have to worry about sending your rod in ahead of time, dealing with a costly core charges upfront, or worrying if your rod will be eligible for a refund! You can simply purchase this whole new rod that has been built by JHM and we will send you one of the units we have built in-house!

• 1x JHM HD Cross Rod with a spherical rod end and heavy duty, graphite impregnated polyurethane bushing.

Early

• Audi S4 B5 (1997-2002) 2.7t V6 30v

• Audi A6 C5 (1998-2004) all

• Audi RS4 B5 (1999-2001) 2.7t V6 30v

• Audi Allroad C5 (2001-2005) all

To confirm if your linkage is an Early or Late:

JHM-01EHDXRODE

Manufactured by

JH Motorsports
