Mishimoto Honda FK8 Civic Type R Secondary Race Radiator

Mishimoto Honda FK8 Civic Type R Secondary Race Radiator

Regular price £471.99 Inc. VAT
Regular price £476.97 Sale price £471.99 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

The 2017+ Civic Type R may have been designed to attack the track, but it's no secret that it can’t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8’s cooling system the backup it needs with our 2017+ Honda Civic Type R Secondary Race Radiator Kit.

Employing the use of one of our smaller, yet efficient, radiator designs, we mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic’s heater core. Utilizing the airflow generated throughout the engine bay, the Secondary Race Radiator produces additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017+ Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is included with the radiator kit to keep your CTR cool and you worry-free.



  • Direct fit for the 2017+ Honda Civic Type R
  • Incorporates additional radiator into factory cooling system for increased engine cooling
  • Utilizes factory aerodynamics for airflow to unique mounting location
  • Full aluminium construction with durable, TIG-welded end tanks
  • Robust mounting bracket design for worry-free installation
  • Increases coolant capacity
  • Mishimoto Lifetime Warranty



Specifications

Outlet/Inlet

16mm

Core Length

280mm

Core Height

128mm

Core Size

280mm x 128mm x 40mm

Coolant Capacity

.64L

Dimensions

25.4 x 45.72 x 71.12

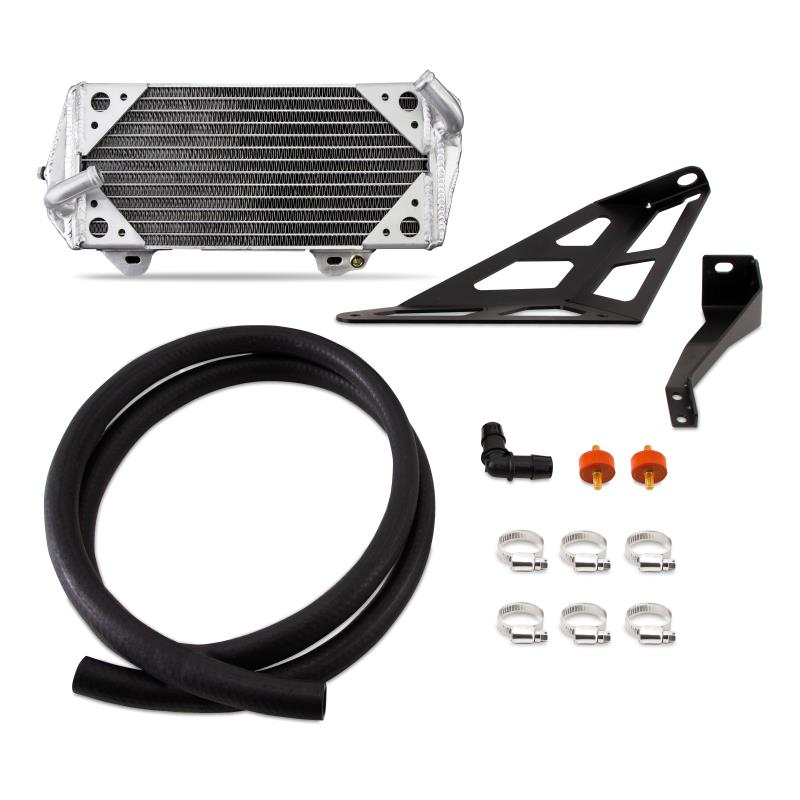

(1) Secondary Race Radiator

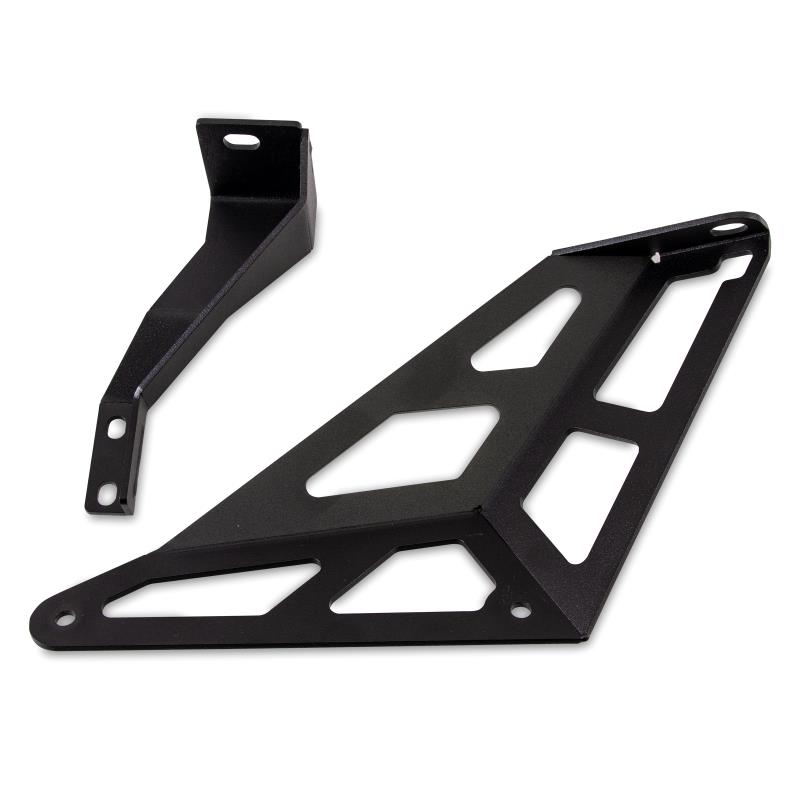

(1) Mounting Bracket Set
(1) Heater Hose
(1) 90° Barbed Hose Adapter
(6) Worm Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty



Fits

2017+ Honda Civic Type R

Engine Codes

K20C1

Chassis Codes

FK8


To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Mishimoto Honda Civic Type R Secondary Race Radiator 2017 - ML Performance US



MMRAD-CTR-17S


Manufactured by

Mishimoto



Warranty

Mishimoto Lifetime Warranty
