The S58 under the hood of the 2021+ G80 M3 has over 45 years of lineage behind it, and it shows in nearly three-second 0-60 times and over 500 horsepower. Like every generation before it, however, the G80 M3 has the potential to be even more powerful. Bolt-on mods, big turbos, and tunes can push the S58 over the 800 HP mark, but that much power requires serious cooling. Luckily, Mishimoto has developed a charge air cooler manifold suited for serious power.

The stock G80 M3 charge air cooler is…fine. It's efficient, but it's let down by the tube-and-fin core crimped onto the thermoplastic plenum. Those crimps are quickly becoming a notorious weak point, with many failing at as little as 3 lbs. of boost over stock. The solution is Mishimoto's cast aluminum and TIG-welded manifold with a robust bar-and-plate core, designed to withstand boost pressures over 60 PSI without breaking a sweat.

Reliability aside, the Mishimoto charge air cooler's performance possibilities are nearly endless. Our core is over 33 percent larger than stock, and the manifold flows an average of 14 percent better to each cylinder. That, combined with the increased cooling capacity of the bar-and-plate core, results in reduced pressure drop and intake air temps within 25 degrees or less of ambient under heavy load. Our CFD-designed plenum also features an internal diverter to ensure the entire core is utilized and each cylinder receives even flow for safe and optimal fueling. The CNC-machined runners feature O-ring grooves to accept factory seals, and we've included a fiber gasket that insulates the runners from engine heat for those seeking every degree of cooling.;

Insane power levels require equally insane amounts of fuel, so we've added provisions for port fuel injection, including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel, with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. Additionally, six nitrous ports accept 1/8 or 1/16-NPT nozzles and can be capped off when not in use.

If cooling, flow, and reliability weren't enough, we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy, a stud to fit the stock engine cover, and longer EVAP lines for a seamless installation. A convenient cutout in the plenum allows for easy access to the oil filter, without affecting flow. Like all Mishimoto products, this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. Last but not least, we're adding style to power with 21 different custom powder coated color options, including 5 OEM equivalents to match your BMW's style. So if you want the ultimate upgrade to squeeze serious power from your S58 engine, this Mishimoto charge air cooler manifold is for you.

• Direct fit for 2021+ G80 BMW M3
• Includes billet fuel rail, injector blanks, and precision-drilled ports for port injection
• Nitrous ready with 1/8 or 1/16-NPT nozzle adapters and caps
• Includes PTFE -AN fuel lines that tee into stock lines
• Robust bar-and-plate core withstands over 60 PSI of boost and maintains IATs within 25 degrees of ambient
• Improves flow to each cylinder by an average of 14%
• Reduces pressure drop by 2 PSI compared to stock
• 33-percent larger core volume over stock with a 24% greater flow area
• CFD-designed plenum for even flow distribution and safe fueling
• CNC-machined runners accept stock O-rings or included fiber gasket
• Includes harness brackets, engine cover mount, and new EVAP lines for seamless install
• Plenum cutout allows easy access to oil filter without impeding flow
• Anodized injector blanks and nitrous caps feature O-ring seals for leak free operation
• Mishimoto Lifetime Warranty

Specifications

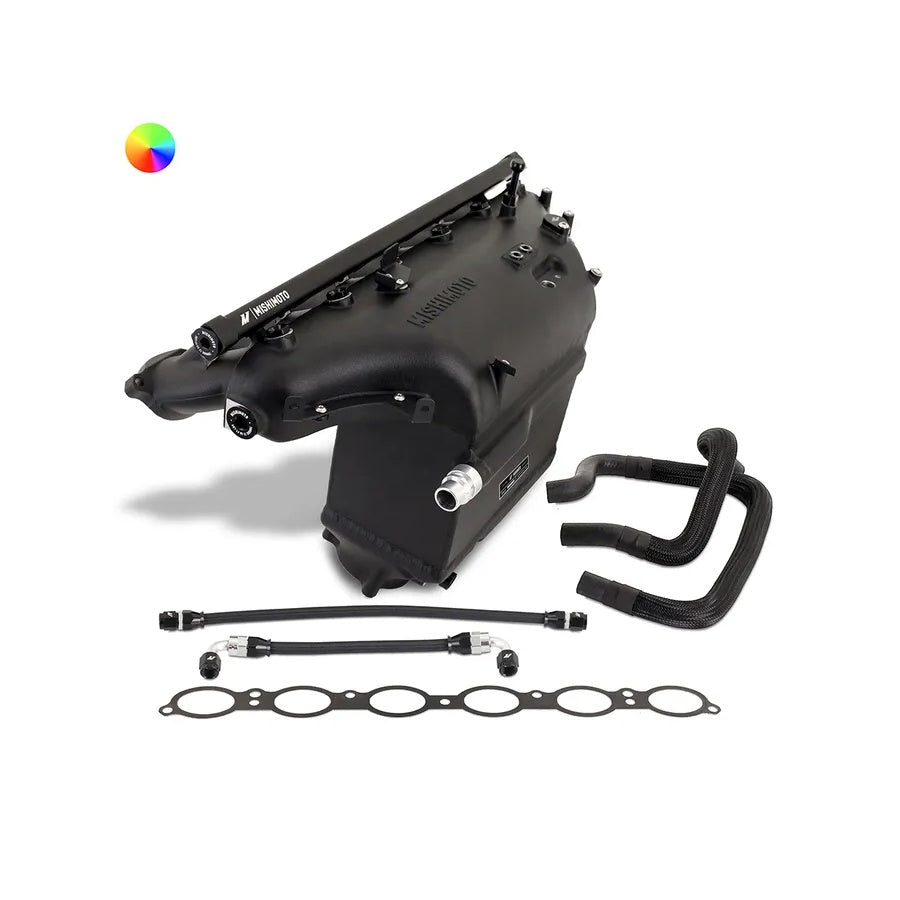

• 1 x Mishimoto Charge Air Cooler Manifold
• 1 x Intake Manifold Gasket
• 1 x Manifold/Intercooler Accessory Bracket Set
• 6 x -6 ORB Plugs
• 6 x -6 ORB to 1/8-in NPT Adapters
• 6 x -6 ORB to 1/16-in NPT Adapters
• 1 x Fuel Rail
• 6 x Fuel Injector Blanks
• 2 x -8 ORB Plugs
• 1 x -10 ORB Plug
• 2 x 1/8-in NPT Plugs
• 2 x EVAP System Hoses
• 1 x Port Injection Fuel Line Kit
• 1 x Hardware Kit
• Mishimoto Lifetime Warranty

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

MMINT-G80-21N

Manufactured By

Mishimoto
