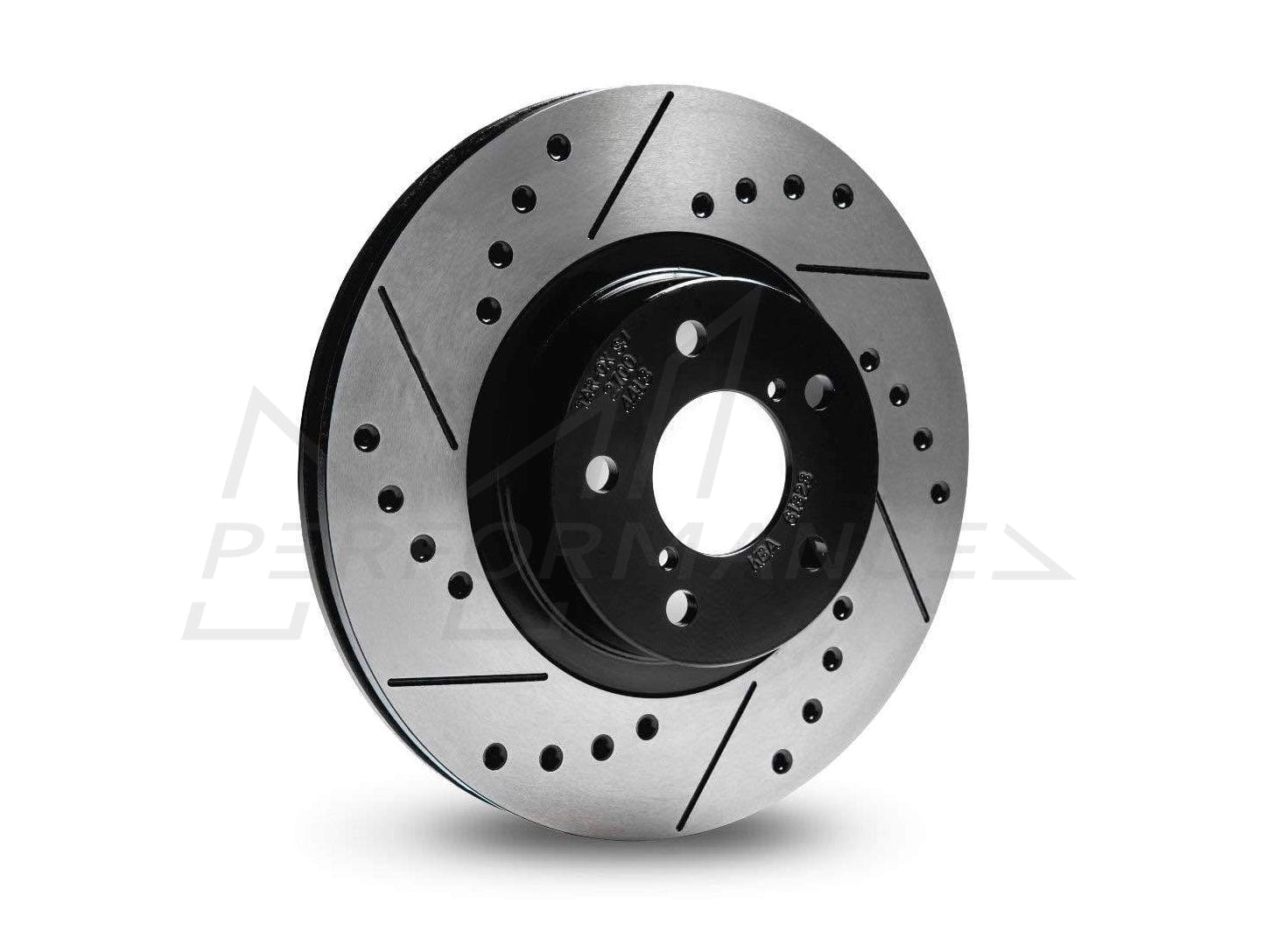

TAROX Sport Japan Rear Brake Discs.

As the name implies Sport Japan discs were originally designed for the Japanese market where tough looks and high performance are important factors. Sport Japan discs are now one of the only aftermarket performance discs to still feature fully drilled countersunk holes which are much more effective at venting gasses that cause brake fade than the more common dimples. 6 grooves on the braking surface keep pads from glazing. All Sport Japan discs are based on original equipment specification, TÜV approved castings, heat-treated for strength and hand-finished to ensure the smoothest possible braking surface. Sport Japan Discs are TÜV approved for most applications.

You may also wish to replace your front brake discs with Tarox BMW E82 135i 338mm Sport Japan Drilled & Slotted Front Brake Discs

• Every blank cast passes stringent quality controls

• Precision facing by CNC turning machines and TAROX built machinery

• Perfectly level surface machined to a tolerance approaching 0.015mm

• Ground individually by a specialised operator, resulting in that distinctive shine

• Structural stress relieving heat treatment at the end of each machining phase

Specifications

• QUANTITY: 2 Discs

• AXLE: Rear

• DISC TYPE: Vented

• VEHICLE YEAR: 2007 >

• VEHICLE ENGINE SIZE: 3.0

• DISC DIAMETER: 324

• DISC THICKNESS: 32.0

• MINIMUM DISC THICKNESS: 20.0

• OFFSET (DISC HEIGHT): 77.0

• CENTRE BORE DIAMETER: 75.0

• STUD HOLE ARRANGEMENT: 5

• BRAKE SYSTEM: ATE

• PADS: SP0529

• DISC NAME: Sport Japan

Diagram

• A - Diameter
• B - Thickness
• C - Minimum thickness
• D - Offset (height)
• E - Center bore
• F - Stud hole

BMW 1 Series E82 135i (2007-2013)

5505-SJ

Manufactured by

TAROX Performance Brakes
