034Motorsport Audi Cast Stainless Steel Racing Catalyst, B9 A4/A5 & Allroad 2.0 TFSI

034Motorsport

  • £715.00
    exc. VAT £595.83
    £595.83


Description

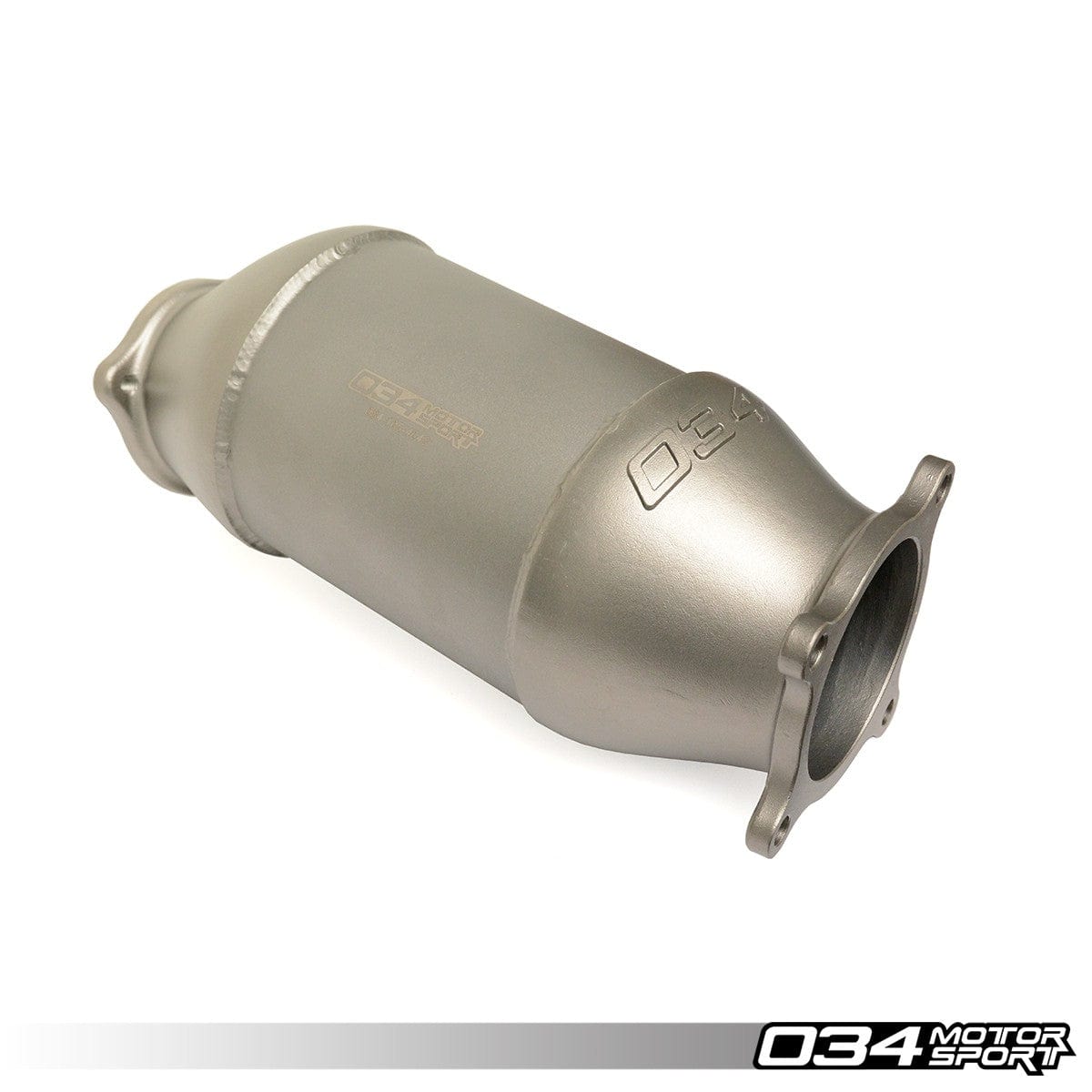

034Motorsport is proud to introduce the all-new Cast Stainless Steel Racing Catalyst for B9 Audi A4/A5 & Allroad models equipped with the longitudinal 2.0 TFSI engine!

Designed as a drop-in replacement for the restrictive factory catalytic converter, the Cast Stainless Steel Racing Catalyst offers increased horsepower and torque throughout the powerband, reduced turbocharger lag, improved throttle response, and an enhanced exhaust note.

 034Motorsport is proud to introduce the all-new Cast Stainless Steel Racing Catalyst for B9 Audi A4/A5 & Allroad models equipped with the longitudinal 2.0 TFSI engine! Designed as a drop-in replacement for the restrictive factory catalytic converter, the Cast Stainless Steel Racing Catalyst offers increased horsepower and torque throughout the powerband, reduced turbocharger lag, improved throttle response, and an enhanced exhaust note. This upgrade eliminates the primary flow limitation in the factory exhaust system, allowing you to maximize the potential of your turbocharged engine.

Optimized for increased flow and maximum performance, the Cast Stainless Steel Racing Catalyst features organic geometry and a massive 135mm diameter Euro 3 racing catalytic converter in the factory location. This complete drop-in solution includes an integrated 4-bolt flange at the turbine outlet, integrated oxygen sensor bung after the catalyst, integrated 3-bolt downpipe flange, and a complete gasket/hardware kit to allow for precise fitment and ease of installation. The Cast Stainless Steel Racing Catalyst for B9 Audi A4/A5 & Allroad is constructed from 304 stainless steel and TIG-welded for maximum durability and corrosion resistance.

034Motorsport's Cast Stainless Steel Racing Catalyst was developed entirely in-house on 034Motorsport's Development B9 Audi A4 utilizing the latest in 3D Scanning Technology, CAD Software, and Rapid Prototyping Techniques. Final production units were then tested extensively on multiple enthusiast-owned B9 Audi A4/A5, and Allroad vehicles before release.





Features

  • Increased Horsepower & Torque Throughout the Powerband (+ 22 HP / + 22 TQ Peak)
  • Quicker Turbocharger Spool & Faster Transient Response (100-200 RPM Quicker Spool)
  • Enhanced Exhaust Note & Turbocharger Sounds
  • Direct, Bolt-In Upgrade for Factory Catalytic Converter
  • Engineered In-House by 034Motorsport's Engineering Team
  • Factory-Location 135mm Euro 3 Racing Catalytic Converter (200 CPI)
  • 304 Stainless Steel Construction with Integrated Inlet/Outlet Flanges & O2 Sensor Bung
  • Precision CNC-Machined Flange Mating Surfaces
  • TIG Welded & Backpurged with Sand-Blasted Titanium-Look Finish

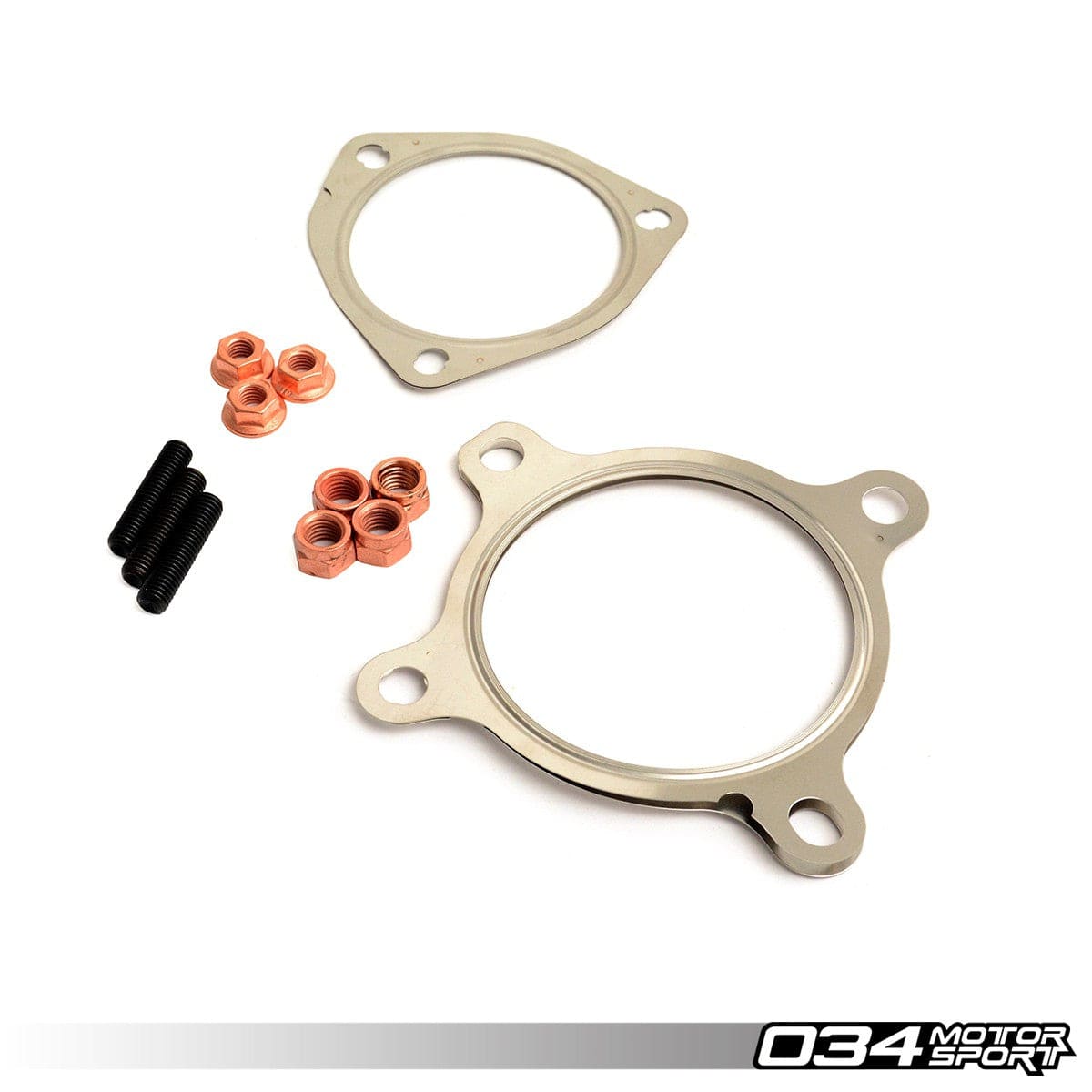

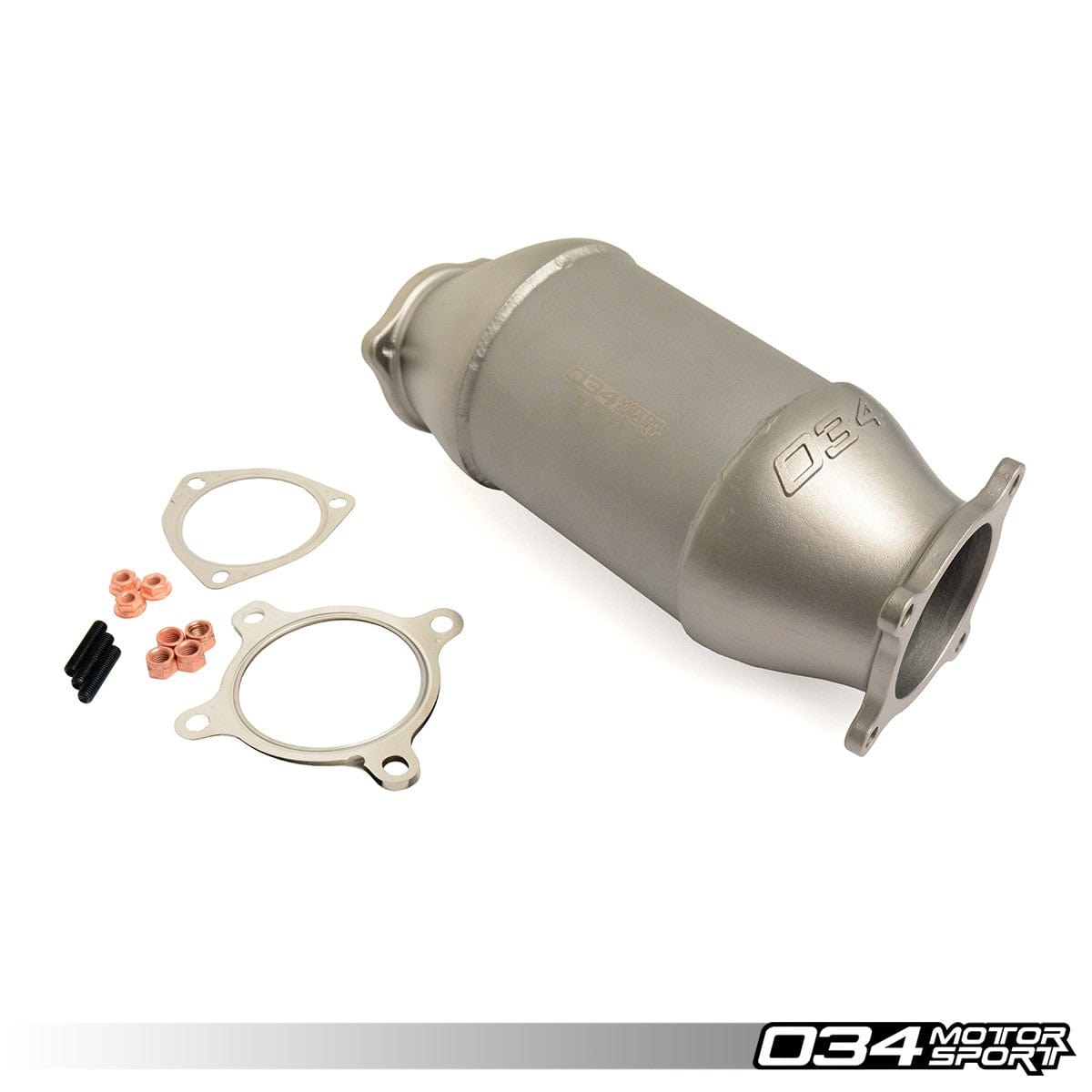

      In The Box

      • 034Motorsport Cast Stainless Steel Performance Downpipe
      • Integrated Euro 3 Racing Catalytic Converter
      • Factory Turbocharger Outlet Gasket
      • Factory Catalyst to Downpipe Gasket
      • M10 Locknuts (4)
      • M8 Locknuts (3)
      • M8x30 Studs (3)



      Compatibility

      • 2017 - Present Audi A4 (B9)
        • 2.0 TFSI
      • 2017 - Present Audi Allroad (B9)
        • 2.0 TFSI
      • 2018 - Present Audi A5 (B9)
        • 2.0 TFSI
      • Important: This racing catalyst requires a Stage 2 ECU remap to eliminate any check engine lights due to removal of the factory catalyst.



            034MOTORSPORT B9 AUDI 2.0 TFSI RACE CATALYST PERFORMANCE COMPARISONS

            These Performance Comparisons were performed using an in-house 2017 Audi A4 2.0 TFSI with development Performance Software and 91 Octane fuel.

              FACTORY CATALYST (91 OCTANE) 034 RACE CATALYST (91 OCTANE)
            Peak Horsepower 280 HP 300 HP
            Peak Torque 309 FT-LBS 322 FT-LBS
            Peak HP Gains vs. Factory Catalyst   22 HP @ 5,650 RPM
            Peak TQ Gains vs. Factory Catalyst   22 FT-LBS @ 2,850 RPM



            FACTORY CATALYST VS. 034 RACE CATALYST - 91 OCTANE



            34 RACE CATALYST POWER GAINS - 91 OCTANE



            Installation Instructions PDF



              Warranty

              All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discoloration or cosmetic imperfections on carbon fiber finishes which occur over time.



              Free UK Delivery

              We aim to deliver your order within 1-2 weeks on all in stock items. We also offer worldwide shipping, simply checkout to get a shipping quote.



              Manufactured by

              034Motorsport



              Part Number

              034-105-4043
