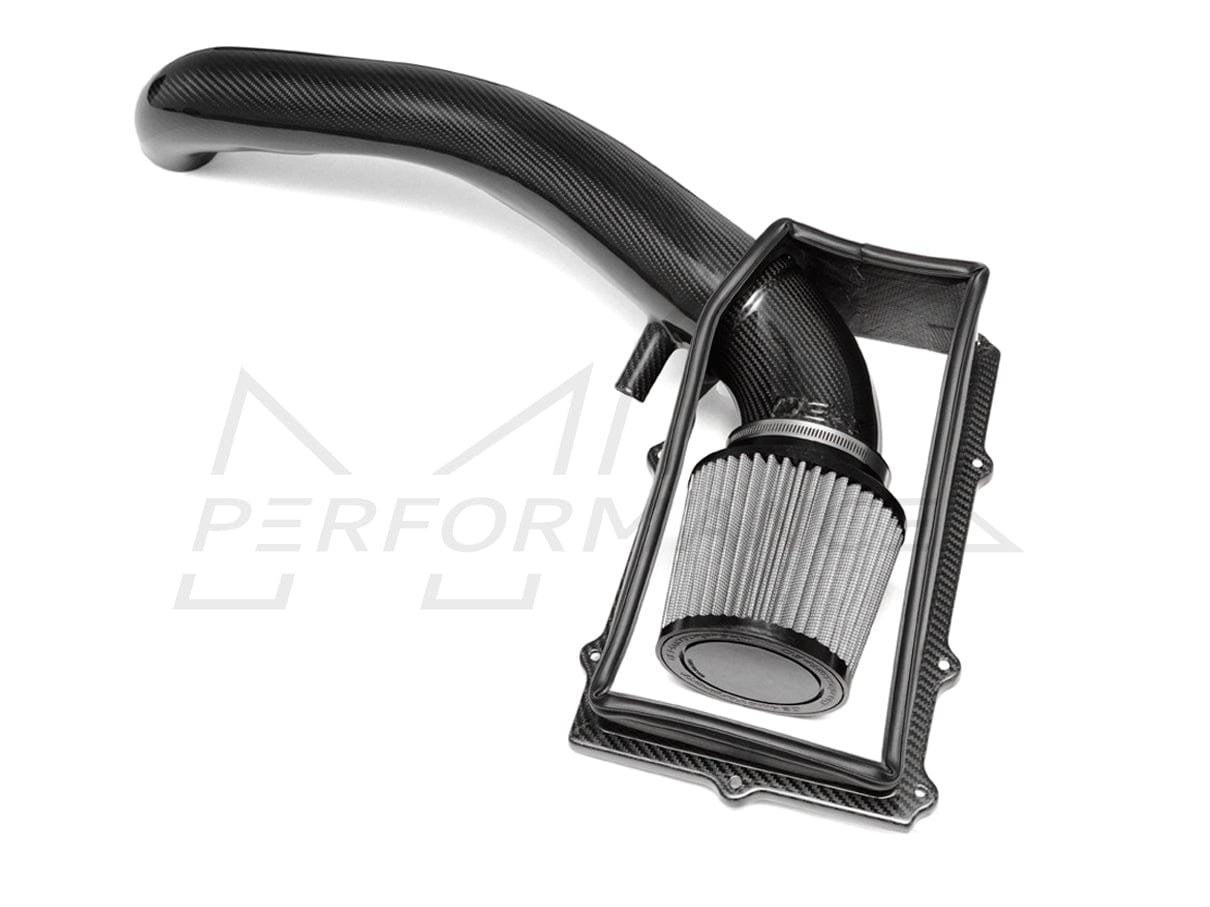

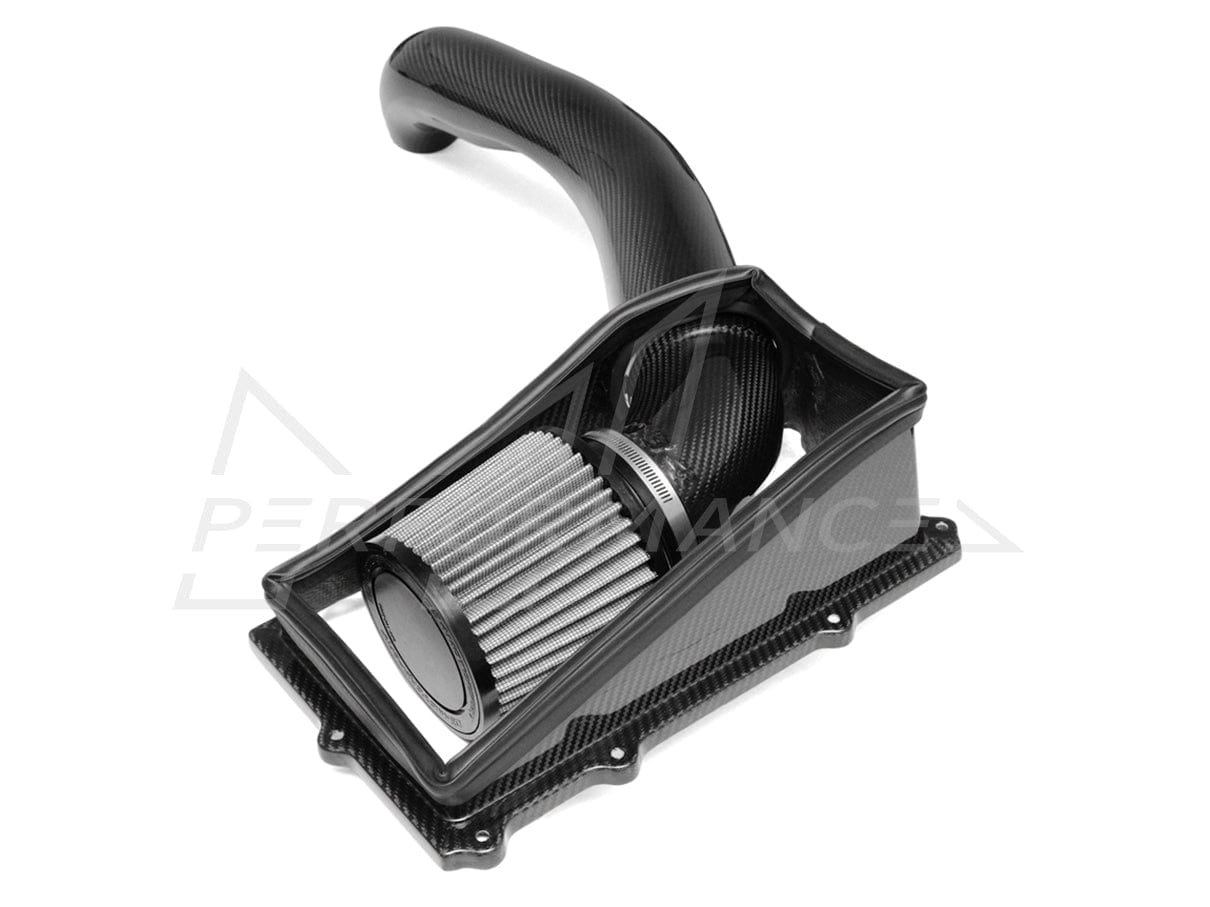

034Motorsport Audi X34 Carbon Fiber Cold Air Intake System (RS3 2.5 TFSI)

034Motorsport

  • £1,005.00
    exc. VAT £837.50
    £837.50


Description

ML Performance UK is pleased to present the 034Motorsport X34 Carbon Fiber 8V Audi RS3 2.5 TFSI Cold Air Intake System for the latest Audi RS3 Sportback sold outside of the US! This intake offers horsepower and torque gains throughout the powerband, with peak gains of up to 14 crank horsepower and 10 ft-lbs of torque on stock turbo tunes, and even greater power increases with an upgraded turbocharger.

034Motorsport's engineers spent extensive effort to develop a complete cold air intake solution for the latest RS3 that yields horsepower and torque gains over the well-designed factory airbox, ultimately resulting in this beautifully-manufactured Carbon Fiber Cold Air Intake System.



MAXIMIZING AIRFLOW

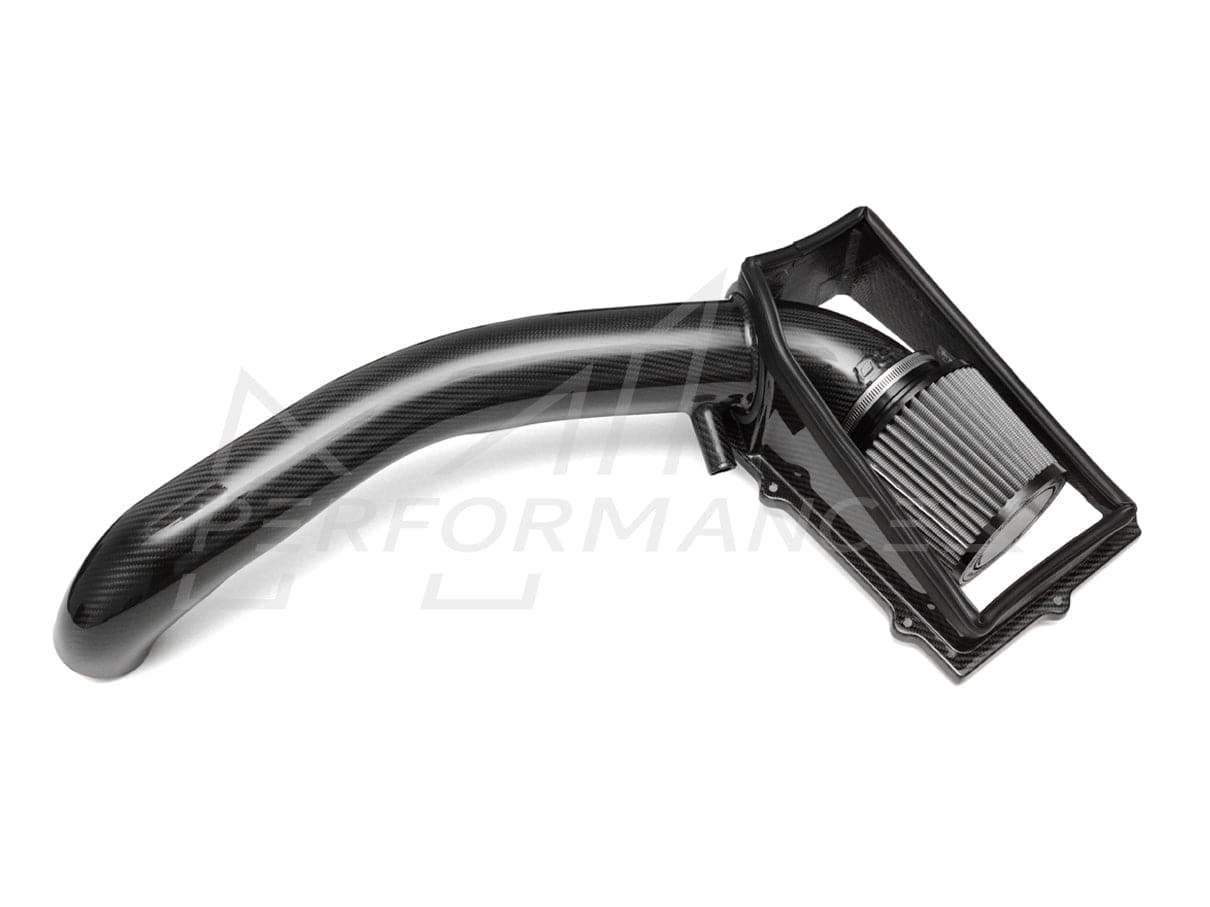

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to maximize the cross-sectional area of the intake tube while being mindful of space constraints, including the factory high-pressure fuel pump and firewall.

The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.

034Motorsport 8V Audi RS3 2.5 TFSI Air Intake Flow Analysis

MINIMIZING INTAKE AIR TEMPERATURE

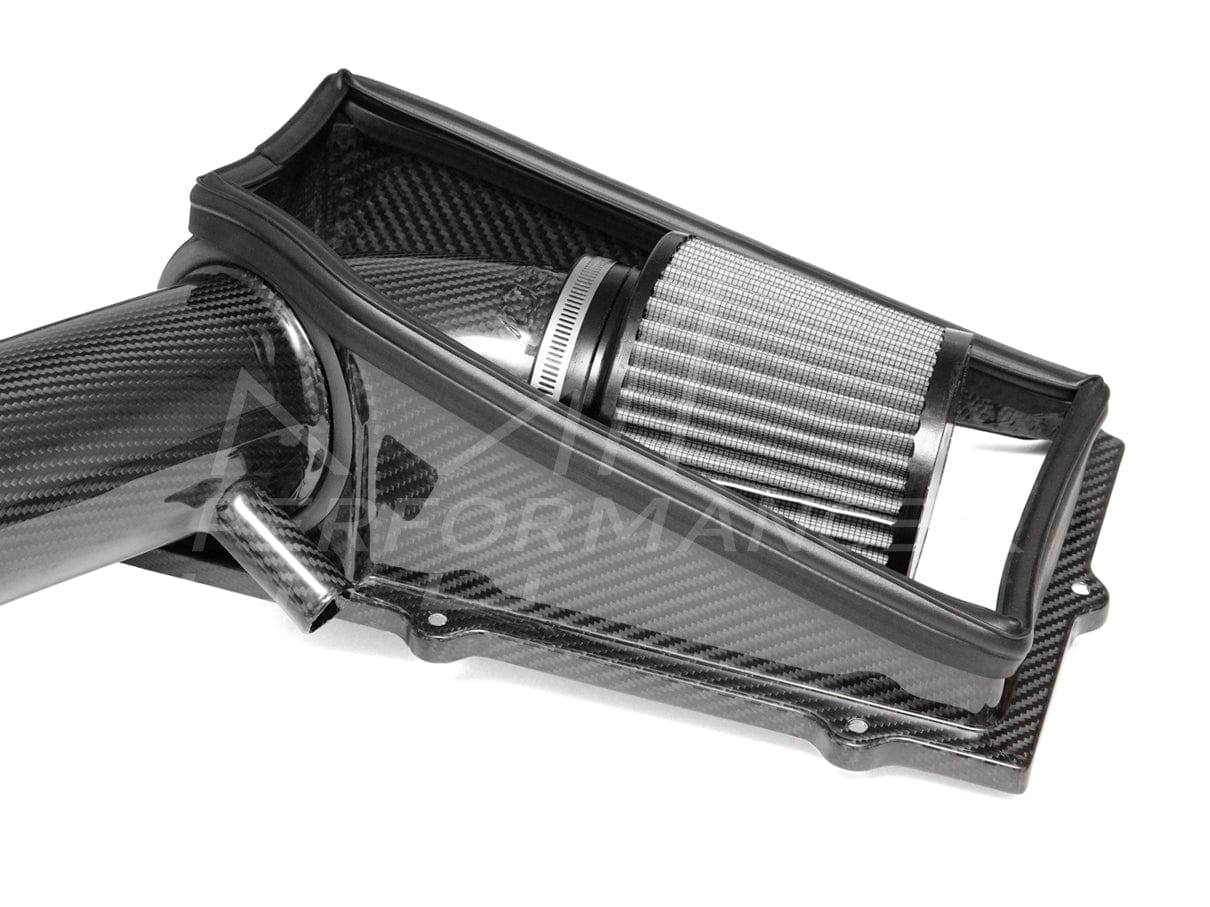

To ensure that the 034Motorsport X34 Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber heat shield to replace the upper airbox. Bolting to the factory lower airbox, this heat shield allows the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator.

Both the carbon fiber heat shield and carbon fiber intake tube are designed to aid in isolating cold, dense intake air from the heat of the engine bay.

8V Audi RS3 CAI Heat Shield Carbon Fiber

OEM+ FIT & FINISH

034Motorsport carefully selected the carbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in the 8V Audi RS3's engine bay.

The X34 Cold Air Intake System for 8V Audi RS3 was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.

8V Audi RS3 Carbon Fiber Intake Engine Bay Trim

DYNO-PROVEN HORSEPOWER & TORQUE GAINS

034Motorsport's engineering and development efforts were validated by dyno testing performed on Awesome GTI's Dynojet Dynamometer to ensure that the 034Motorsport Audi RS3 Cold Air Intake System provided substantial increases in horsepower and torque, even on stock turbo vehicles.

Peak Wheel Horsepower & Torque with Stage 2:

  • Stock Intake: 440 Crank Horsepower / 543 Crank Foot-Pounds of Torque
  • X34 Carbon Fiber Intake: 454 Crank Horsepower / 547 Crank Foot-Pounds of Torque



Feature

  • High-Quality OEM+ Carbon Fiber Construction
  • Increased Airflow vs. Factory Airbox & Intake Tube
  • Dyno-Proven Horsepower & Torque Gains
  • Increased Engine & Induction Sounds
  • Improved Throttle Response





Dyno Graph (Click to enlarge)

034Motorsport Audi X34 Carbon Fiber Cold Air Intake System (RS3 2.5 TFSI) ML Performance UK





Compatibility

2015 - 2017 Audi RS3 2.5 TFSI (8V)

  • Only fits first generation (iron block) engine.
  • Not for US Models - Fitment Confirmed for ROW (Rest of World) Vehicles Only!



Installation Instructions

 Installation instructions can be found here.



Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Free UK Delivery

Current lead-time is around 1-2 weeks on this item! We can also ship worldwide, simply add the item into your cart and enter your full address including the correct postal code for a shipping quote.



Warranty

1 year warranty



Manufactured by

034Motorsport



Part Number

034-108-1010
