034Motorsport Audi X34 Carbon Fiber Open-Top Cold Air Intake System TTRS & RS3 2.5 TFSI EVO
034Motorsport is pleased to present our X34 Carbon Fiber Cold Air Intake System for the 2.5 TFSI EVO engine found in the 8S Audi TTRS and 8V.5 Audi RS3!
034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TTRS and RS3 that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured Carbon Fiber Cold Air Intake System.
034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.
Minimizing Intake Air Temperature
To ensure that the 034Motorsport X34 Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber heat shield to replace the upper airbox as well as a stainless steel heat shield to block heat from saturating the intake tube. The upper carbon fiber heat shield bolts to the factory lower airbox, allowing the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. The stainless steel heat shield bolts to the stock intake tube mounting point and to the back of the head, preventing the high temperatures from the exhaust header and turbo from radiating directly at the intake tube. Both heat shields work together to minimize pre-turbo intake air temperature.
Performance Air Filter
The 034Motorsport Carbon Fiber Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.
OEM+ Fit & Finish
034Motorsport carefully selected the carbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in the Audi TTRS & RS3 2.5 TFSI engine bay. The 034Motorsport Audi TTRS & RS3 Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.
Dyno-Verified Wheel Horsepower & Torque Gains
034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.
Peak Wheel Horsepower & Torque with Stage 2 E85
- Stock Intake: 456 Wheel Horsepower / 430 Wheel Foot-Pounds of Torque
- 034 Carbon Fiber Intake: 472 Wheel Horsepower / 442 Wheel Foot-Pounds of Torque
- See Dyno Chart
- Peak Gains: 21 WHP / 16 WTQ @6,950 RPM
- See Dyno Chart
Product Features & Details
- High-Quality Carbon Fiber Construction
- High Gloss Epoxy Finish
- OEM+ Fit & Finish
- Dyno-Proven Horsepower & Torque Gains
- Increased Engine & Induction Sounds
- Improved Throttle Response
- Large-Diameter CFD-Optimized Air Intake Tube
- Fiberglass-Backed Heat Shield
- Improved Airflow from Factory Airbox & Intake Tube
- Reduced Intake Air Temperature
- High Performance Pleated Cotton Air Filter

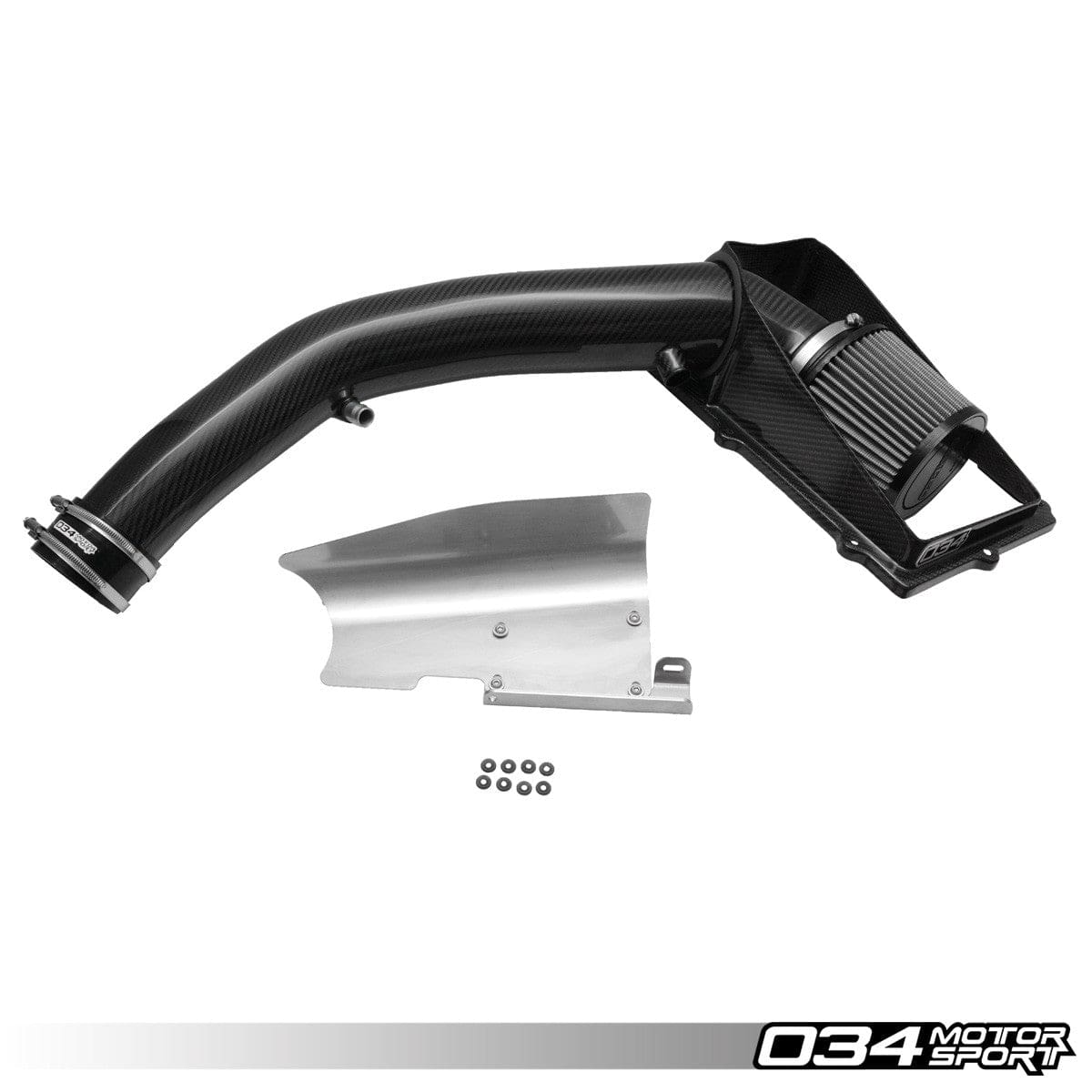

- 034Motorsport Carbon Fiber Audi TT RS & RS3 Air Intake Tube
- 034Motorsport Carbon Fiber Audi TT RS & RS3 Upper Airbox Heat Shield
- 034Motorsport Double-Layer Pleated Air Filter
- 034Motorsport Stainless Steel Heat Shield
- 034Motorsport Silicone Coupler
- Installation Hardware
- Xacto X75300 Precision Razor Saw Set
- 2017 - Present Audi RS3 2.5TFSI EVO (8V.5-MQB)
- 2018 - Present Audi TTRS 2.5TFSI EVO (8S-MQB)
The installation of your 034Motorsport X34 Carbon FIber Cold Air Intake for the 8S/8V.5 Audi TTRS/RS3 2.5 TFSI EVO is a relatively simple process that will take approximately one hour to complete. You can access our detailed installation guide by clicking the icon on the left.
Not for use on emissions-controlled vehicles in California.
All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discolouration or cosmetic imperfections on carbon fiber finishes which occur over time.
