Description

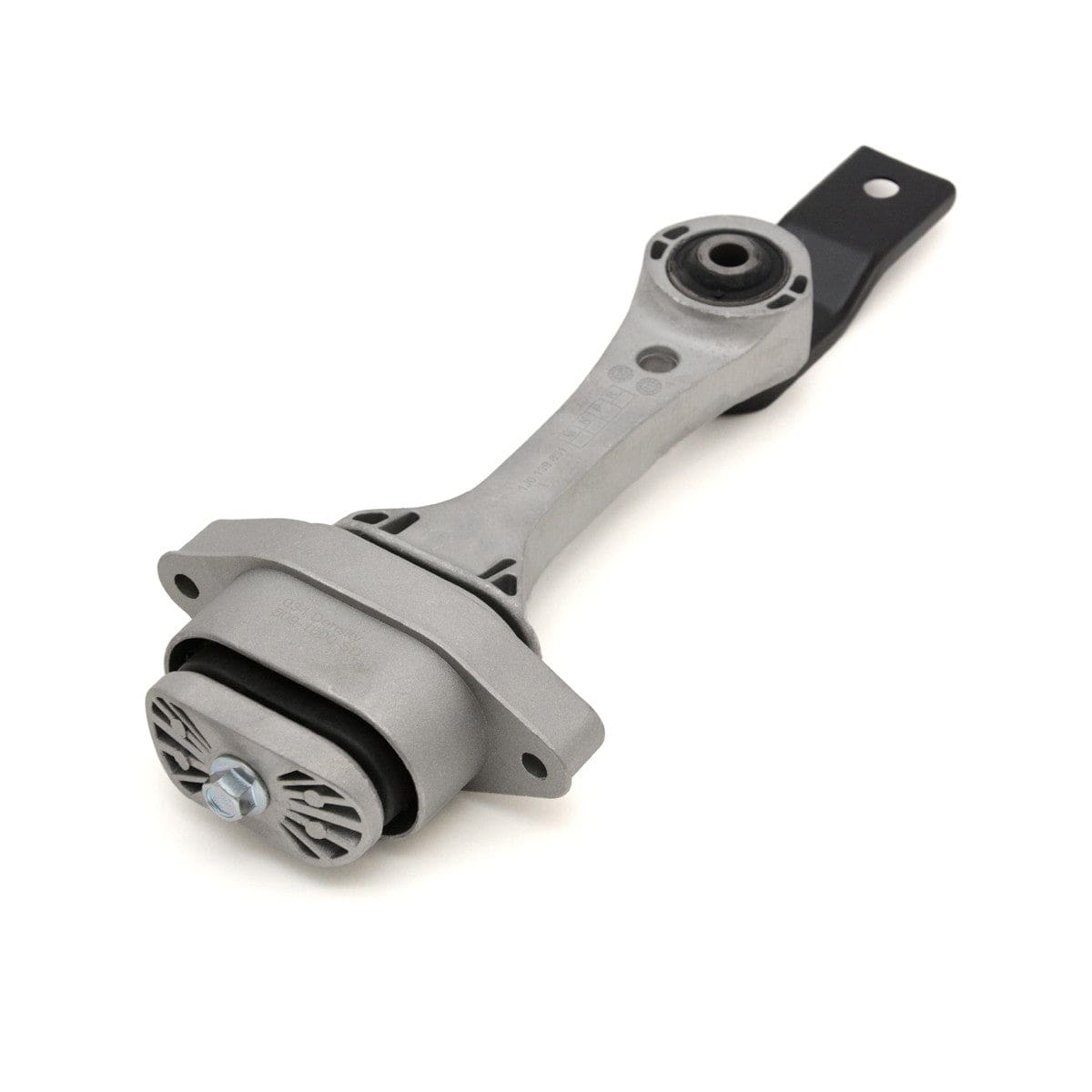

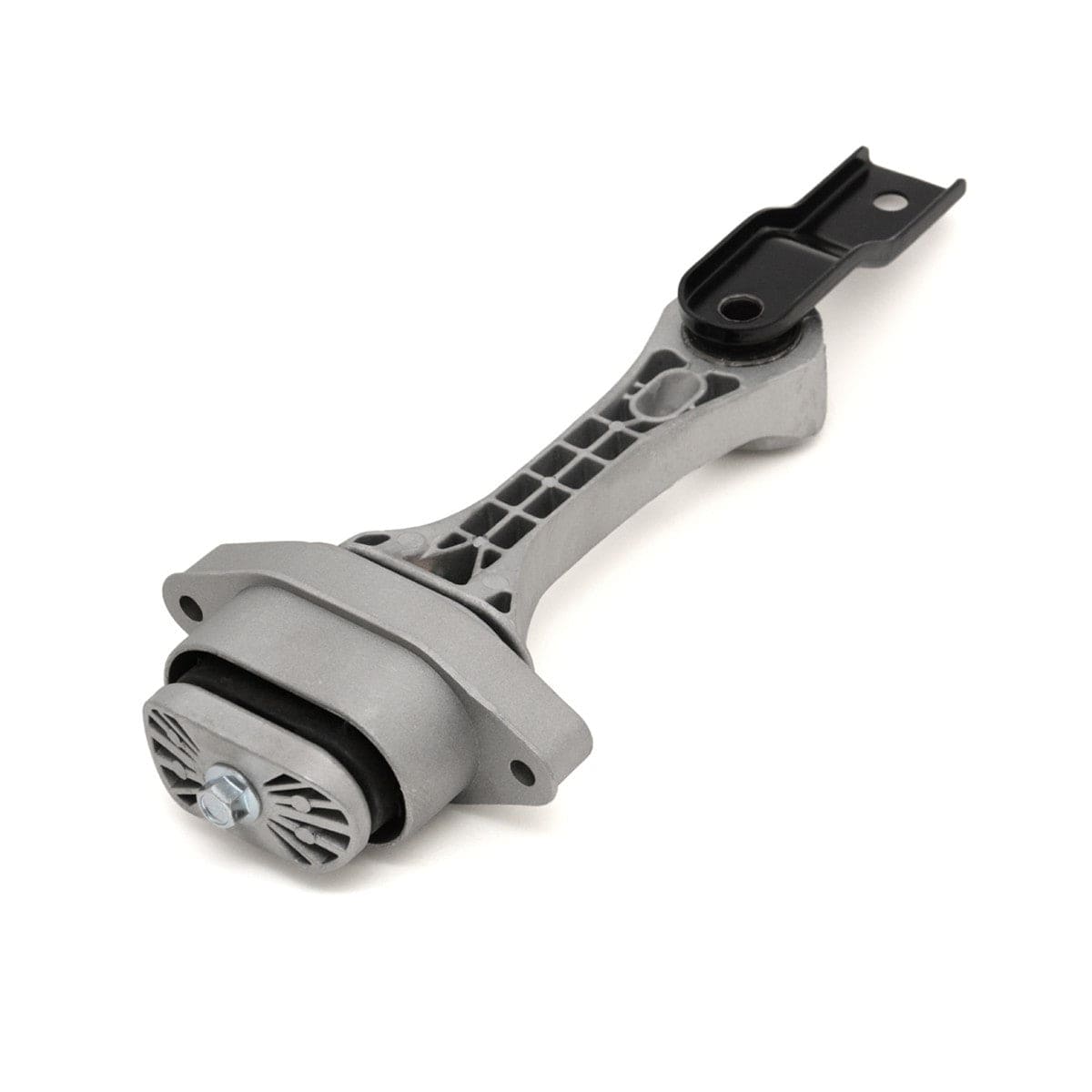

We're proud to announce the availability of the Density Line Dogbone Mount for MkIV Chassis Volkswagen and 8L & 8N Chassis Audi models!

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are void-free and fluid-free, eliminating the slop associated with the factory mounts.

Street Density

The Street Density Engine Mount Pair is manufactured from 50 durometer rubber, which is approximately 25% stiffer than stock. Since the mounts are also void-free and solid-filled, the resulting mount is approximately 60% stiffer than stock. The cast aluminum mount bodies have also been redesigned to cope with the added stress of spirited driving.

The result is greatly reduced drivetrain slop, crisper shifting, and minimal wheel hop, without any significant increase in noise, vibration, or harshness (NVH) inside of the cabin. These mounts are a completely re-engineered performance solution, not just inserts for use with the factory mounts.

Track Density

The Track Density Engine Mount Pair is manufactured from 80 durometer rubber, which is approximately 90% stiffer than stock. Since the mounts are also void-free and solid-filled, the resulting mount is approximately 120% stiffer than stock. The cast aluminum mount bodies have also been redesigned to cope with the added stress of spirited driving.

The result is a locked-down drivetrain, solid shifting, and virtually no wheel hop. Track Density Mounts will cause a noticeable increase in noise, vibration, and harshness (NVH) inside of the cabin. These mounts are a completely re-engineered performance solution, not just inserts for use with the factory mounts.

Features

• Manufactured from 60 Durometer (Street Density) or 80 Durometer (Track Density) Rubber with Void-Free Construction
• Reduced Drivetrain Slop
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Complete Drop-In Replacement of Factory Dogbone Mount

Fitment

• 1996 - 2003 Audi A3/S3 (8L)
  • 1.8T (180HP & 225HP)
• 1998 - 2006 Audi TT (8N)
  • 1.8T (180HP & 225HP), 3.2L VR6
• 1999 - 2005 Volkswagen Golf / GLI / GTI / Jetta / New Beetle (MkIV)
  • 1.8T, 2.0L, TDI, 2.8L & 3.2L VR6

Warranty

• 1 Year Limited Replacement Warranty (If you encounter any issues with our products outside of the warranty period, we will work with you to provide a resolution.)

High-Durometer Rubber vs. Polyurethane

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to increased complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings.

Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for control arm bushings that apply a shear force to the bushing during articulation.

Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.

Street Density vs. Track Density

We recommend Street Density Mounts for all daily-driven vehicles. They offer a significant increase in performance with a minimal increase in NVH transfer into the cabin. Track Density Mounts are recommended for purpose-built track cars, or those who do not mind significantly increased engine noise and vibration in the cabin.

Please select Street Density or Track Density from the dropdown menu below.

Note - "The black steel bracket on the small end of the dogbone mount is held on from the factory with a very light crimp simply to keep the bracket with the mount, it serves no structural purpose.  It is possible and normal for the bracket to come loose during shipping or transpiration, simply install the bracket in the mount in the event this happens, the bolts are what hold the bracket in place, not the superficial crimp.  Enjoy your upgraded Dogbone mount and the more controlled engine movement - Thank you!"

Manufactured by

034Motorsport

Part Number

034-509-1000
