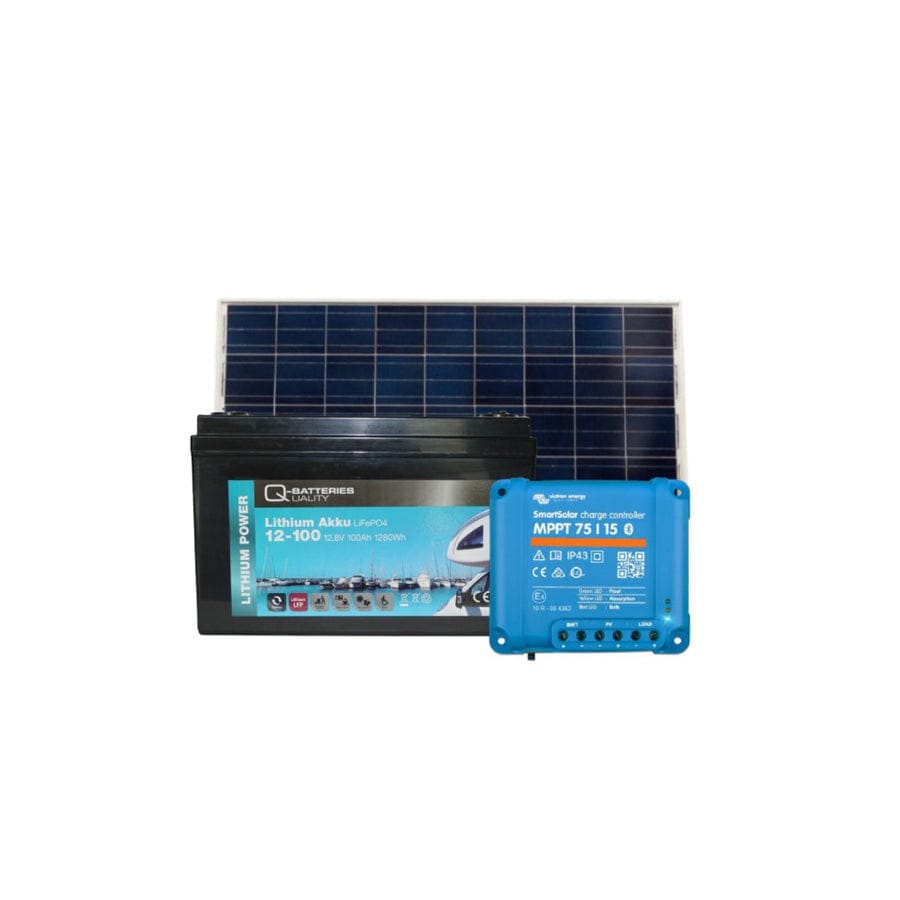

• The Q-Batteries lithium battery 100Ah with lithium iron phosphate technology (LiFePO4) is an extremely deep cycle and versatile battery. Compared to lead-acid batteries, lithium-ion batteries are significantly lighter and have a longer service life. Even under extreme conditions or incorrect use, there is no risk of explosion, as the innovative cell technology offers high operational reliability, long shelf life and large temperature ranges.
• Victron Energy Smart Solar MPPT 75/15. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Smart Solar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. Smart Solar maintains battery health, extending its life.
• Victron Energy Solar Panel 175W Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high voltage operation.

1 x Q-Batteries lithium battery 12.8V 100Ah

1 x Victron Energy Smart Solar MPPT 75/15 – SCC075015060R

1 x Victron Energy Solar Panel 175W – 12V Mono series 4a – SPM041751200

Specification

Q-Batteries lithium battery 12.8V 100Ah

• Brand : Q-Batteries
• Product Type : Deep Cycle batteries
• Voltage : 12.8
• Capacity : 100
• Length : 330
• Width : 173
• Height (inc terminals) : 216
• Hold down : B00
• Technology : Lithium
• Warranty : 4 Years
• Weight (kg) : 10.5 mm

Victron Energy Smart Solar MPPT 75/15 – SCC075015060R

• Brand: Victron Energy
• Battery Voltage: 12/24V Auto Select
• Maximum efficiency (%): 98
• Charge Algorithm: Multi-stage adaptive
• Rated Charge Current: 15A
• Nominal PV Power, 12V: 220W
• Nominal PV Power, 24V: 440W
• Dimensions: H100 x W113 x D40mm
• Weight kg: 0.5
• IP (Ingress Protection) rating: : IP43 (electronic components), IP22 (connection area)
• Data Communication Port: VE. Direct
• Warranty: 5 Years

Victron Energy Solar Panel 175W – 12V Mono series 4a – SPM041751200

• Voltage: 12V
• Warranty: 5 Years
• Brand: Victron Energy
• Nominal PV Power in Voltage/Watts: 175W
• Cell Type: Monocrystalline
• Number of Cells in Series: 36
• Dimensions: L1485 x W668 x D30mm
• Maximum System Voltage: 1000V

Please make sure your current battery has the matching required specification to ensure a like for like replacement.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Q-BATTERIES-70069

Manufactured by

Q-BATTERIES
