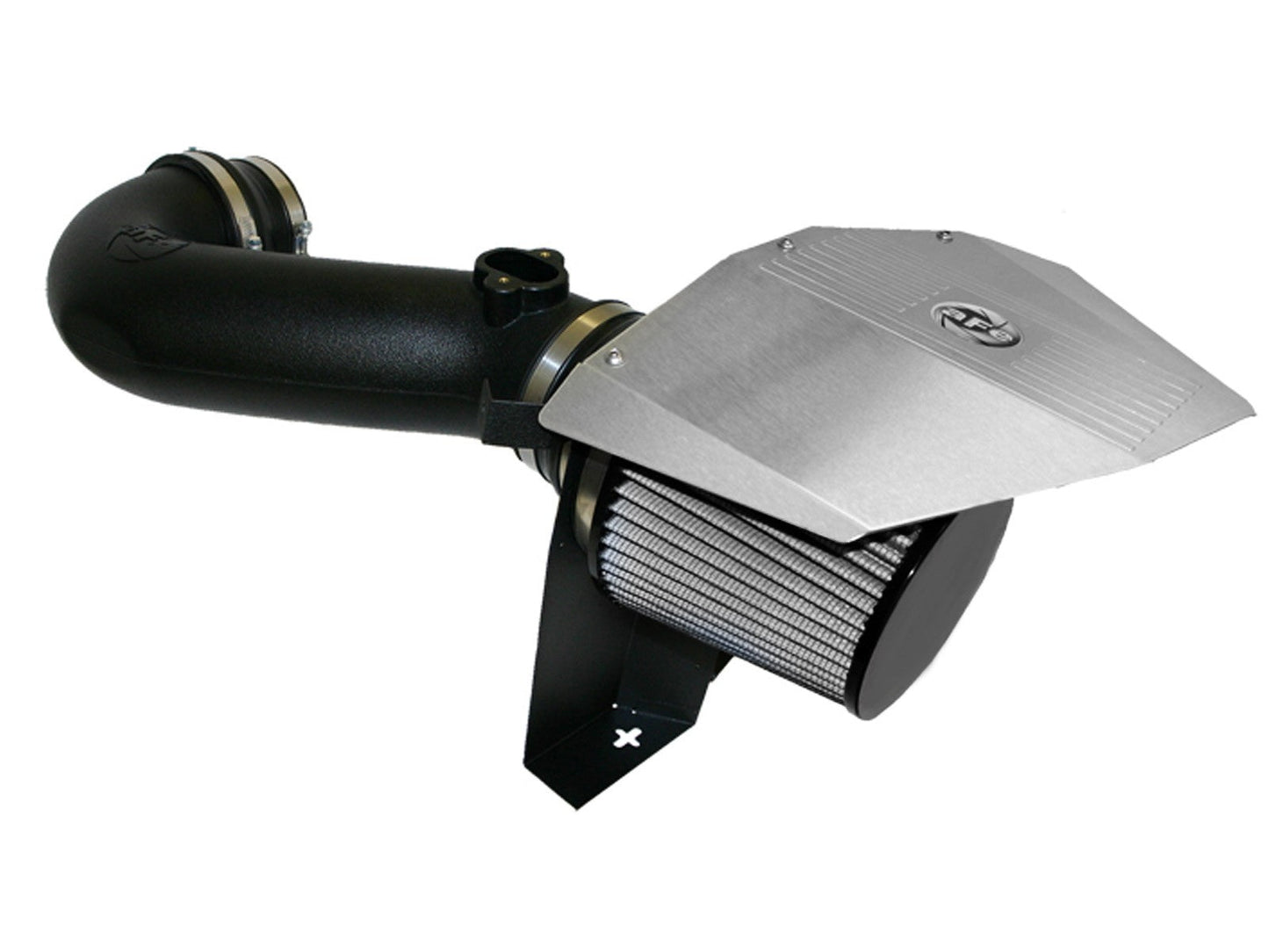

Pro DRY S Filter Media Intake System

In recent testing this air intake system produces 12 max horsepower, 11 lbs. x ft. torque and out-flows the factory intake by 45%. This air intake system offers a washable/reusable "oiled" conical air filter with inverted top that directly mounts to a unique 3-angle filter adaptor that helps smooth the air transition into the intake tract for better performance. This intake system also features a heat-insulating molded plastic tube that replaces the stock intake tract and directs increased air flow with improved volumetric efficiency for maximum performance. A one-piece black powder-coated heat shield and cover requires little to no assembly for a hassle free installation. The filter is constructed with 100% polyurethane for long life and multiple cleaning cycles.

5-1/2 Conical Filter with Inverted Top: This intake utilizes a huge, 5-1/2" conical Pro 5R performance air filter with inverted top for maximum flow. This 5-layer progressive, oiled cotton gauze air filter provides maximum flow for increased horsepower and torque.

Pro 5R Filter Media Intake System

In recent testing this air intake system produces 12 max horsepower, 11 lbs. x ft. torque and out-flows the factory intake by 45%. This air intake system offers a washable/reusable "oil-free" synthetic conical air filter that directly mounts to a 3-angle filter adaptor that helps smooth the air transition into the intake tract for better performance. This intake system also features a heat-insulating molded plastic tube that replaces the stock intake tract and directs increased air flow with improved volumetric efficiency for maximum performance. A one-piece black powder-coated heat shield and brushed aluminum cover requires little to no assembly for a hassle free installation. The filter is constructed with 100% polyurethane for long life and multiple cleaning cycles.

5-1/2 Conical Pro DRY S Air Filter: This intake utilizes a huge, 5-1/2" conical Pro DRY S performance air filter for increased performance. This 3-layer progressive, synthetic material air filter requires no oils and cleans with soap and water for maximum convenience.

One-Piece Filter Housing: The air filter is housed in a one-piece, black powder coated 18-gauge heat shield that keeps warm engine air out for maximum performance. This one-piece heat shield uses factory mounting locations and comes with all hardware for a hassle-free installation.

Brushed Aluminum Cover: An attractive brushed aluminum cover is included to keep temperatures down while providing ready access to the filter for servicing.

3-Angle Adaptor: A 3-angle adaptor is used to speed up the air flow for improved performance and throttle response.

Emissions Disclaimer:
Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-38 for details.

• BMW 5 Series E60 550i (N62 Engine V8 4.8L) 2006-2009
• BMW 6 Series E63/E64 650i (N62 Engine V8 4.8L) 2006-2009

Dyno Graph (Click to Enlarge)

Airflow Chart (Click to Enlarge)

51-11142  Pro DRY S

54-11142  Pro 5R

Manufactured by

aFe

Warranty

1 year warranty
