This is AIRTEC Motorsport Intercooler Upgrade for BMW 1 & 3-Series Diesel

Our solution to increasing the intercooleràsize and performance within the confines of the limited space behind the bumper is based upon a wider, taller core with a huge 150mm depth. This offers a massive 94% increase in overall capacity in comparison to the original intercooler, as well as a significant increase in frontal area over standard, which allows it to make the most of the air flow provided.

As part of our expanding BWM product range, AIRTEC Motorsport is proud to launch our 1 & 3-Series diesel intercooler upgrade suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

The design
Our solution to increasing the intercooleràsize and performance within the confines of the limited space behind the bumper is based upon a wider, taller core with a huge 150mm depth. This offers a massive 94% increase in overall capacity in comparison to the original intercooler, as well as a significant increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high-quality powder coated black finish, the comprehensive kit also comes complete with all fixtures and fittings, as well as detailed fitting instructions.

Its proven cooling efficiency increase makes it an essential modification for modified 1 & 3-Series diesel models.

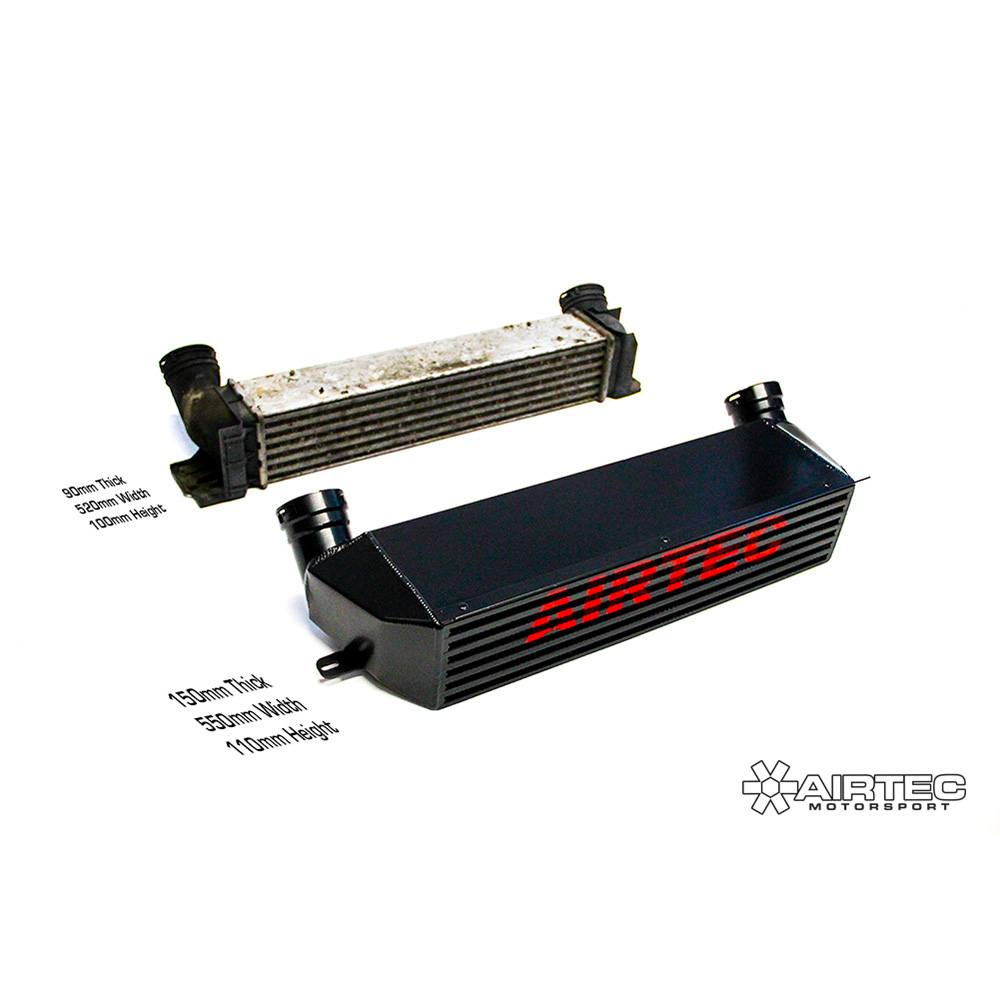

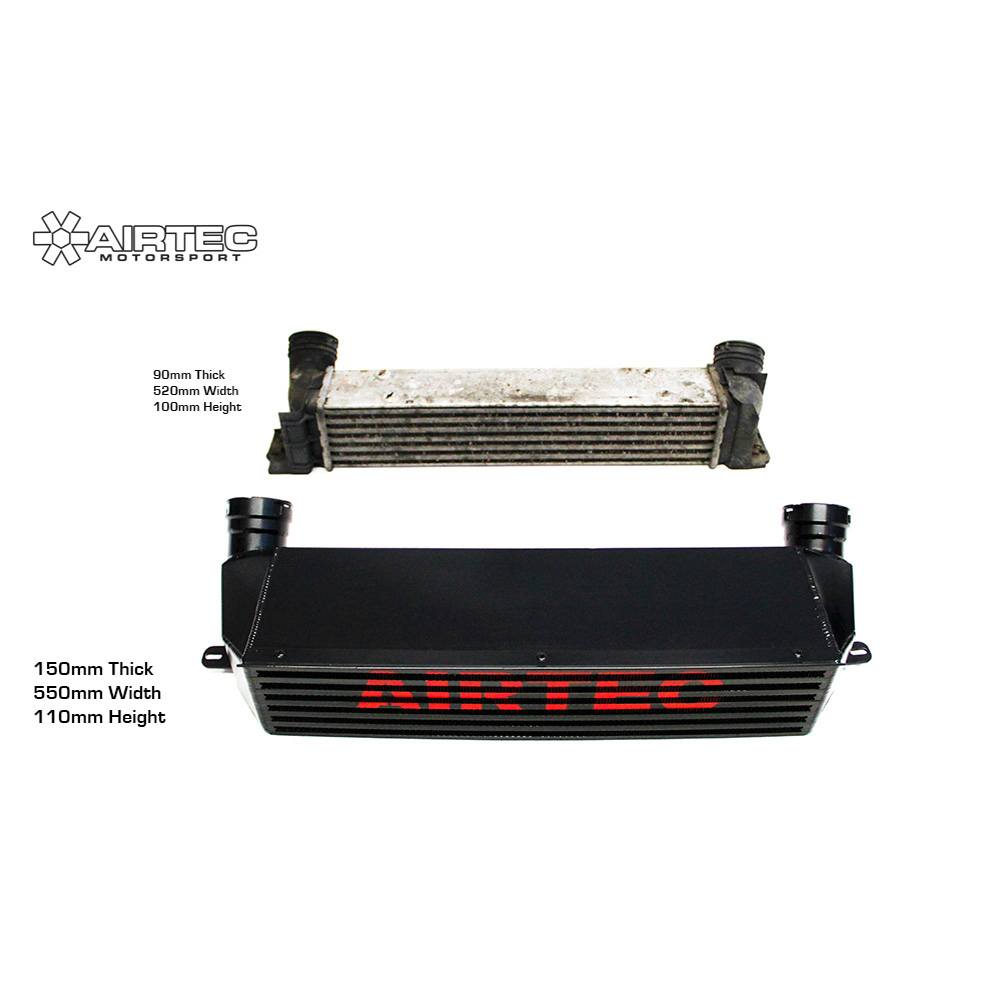

Dimensions
OEM intercooler AIRTEC Motorsport intercooler

• Width: 520mm Width: 550mm
• Height: 100mm Height: 110mm
• Depth: 90mm Depth:150mm
• Capacity: 4.7 litres Capacity: 9.1 litres
• Front area: 5,200cmront area: 6,050cm/li>

Inlet and outlets: 62mm

Fitment
This intercooler is a replacement for BMW part number 17517524916 and is suited for all models with matching 62mm inlet and outlets.

PLEASE NOTE: If your car has 70mm inlet and outlets you require this intercooler.

Fits the following E-Series models:
1-Series:

• 2003 to 2011 116d/118d
• 2003 to 2007 120d

3-Series:

• 2004 to 2011 316d/318d
• 2004 to 2008 320d

X1:

• 2008 to 2015 16d/18d

Features

• 94% increase in overall capacity in comparison to original
• AIRTEC logo cast end tanks for improved air flow and unbeatable strength
• Increase in frontal area over standard
• Huge increase in cooling ability
• Powder coated black finish
• Includes fittings and fixtures
• AIRTEC Logo at no extra cost

Registered Design Right number: 6049893

AIRTEC Part No: ATINTBMW3

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

AIRTEC-ATINTBMW3-1

Manufactured by

AIRTEC Motorsport
