This is AIRTEC Motorsport High Flow Intercooler Kit for Abarth 500

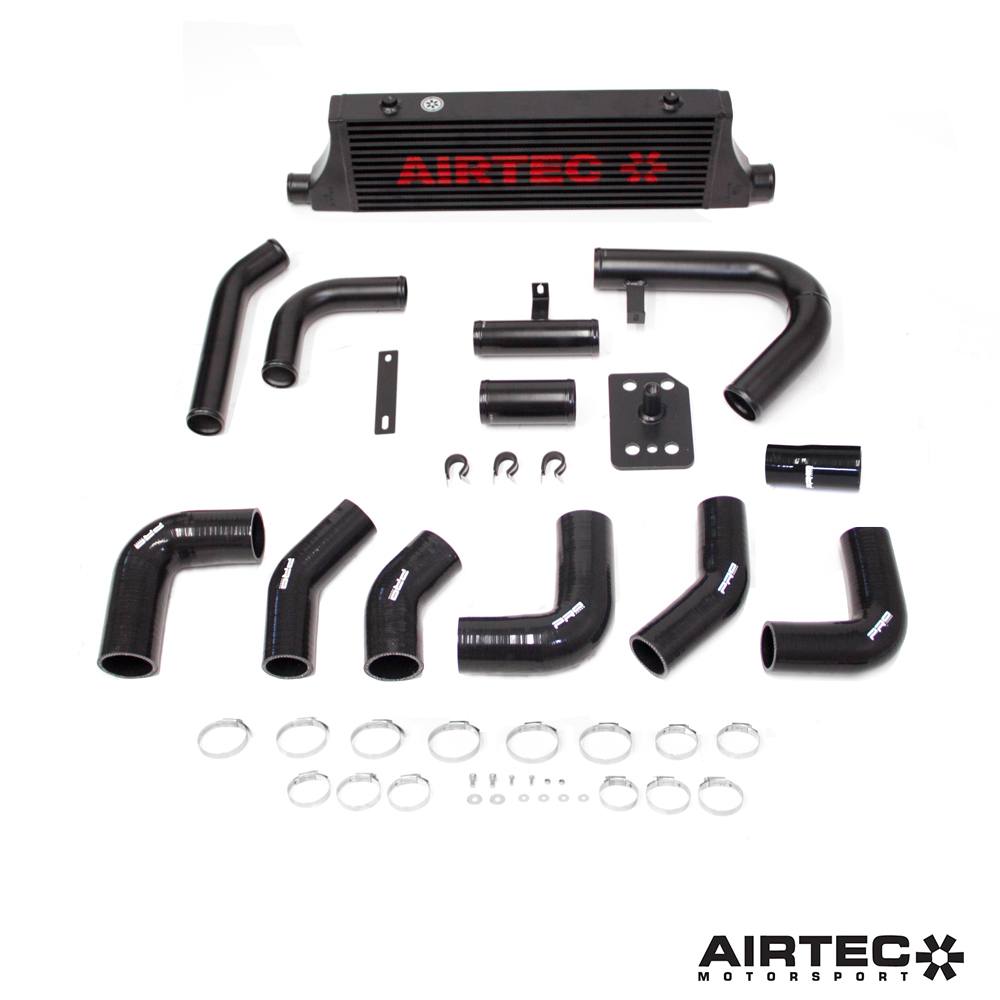

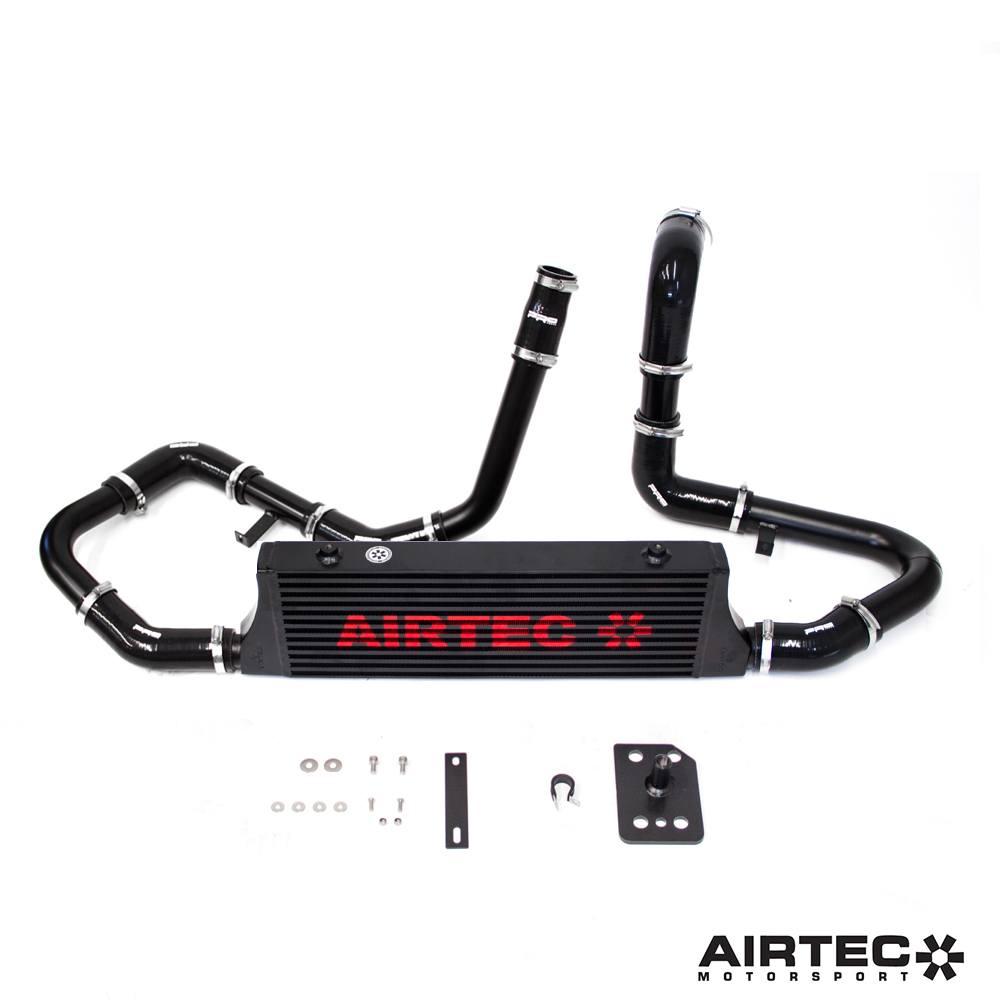

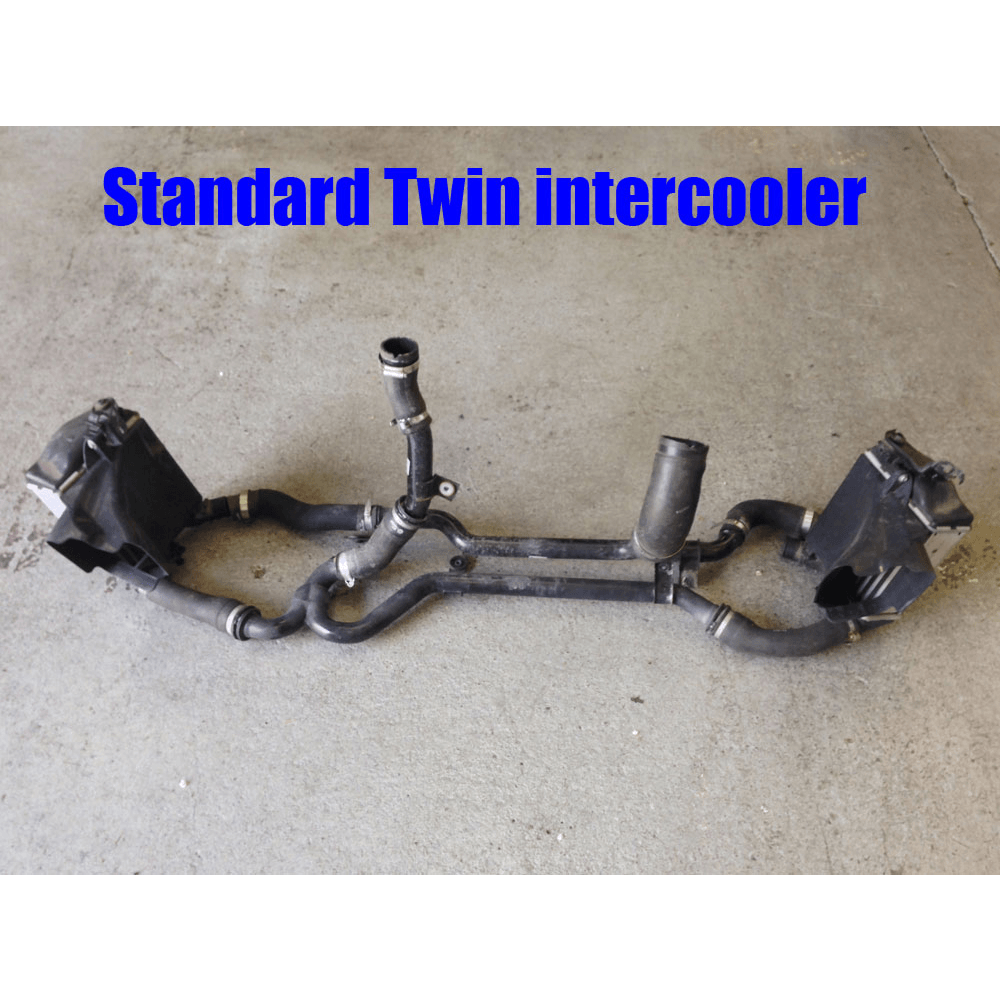

The AIRTEC Motorsport High Flow Intercooler Kit is a great addition to any standard or re-mapped Abarth 500. It features 50mm pipe-work into the turbo and 60mm out of the turbo, which helps match the throttle body and provides fast turbo spool up and maximum power output. This kit replaces the restrictive twin intercooler setup and lengthily pipe-work with AIRTECàhigh flow 60mm core intercooler and shortened alloy pipe kit.

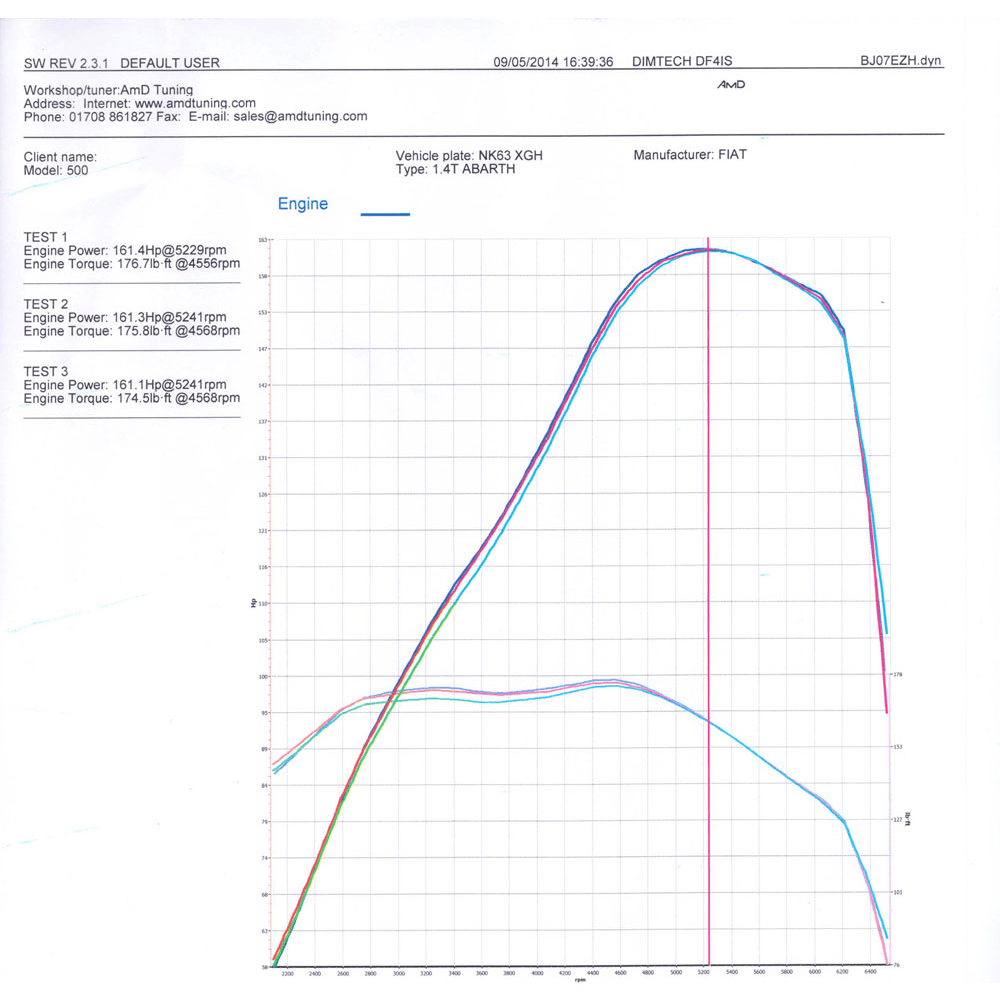

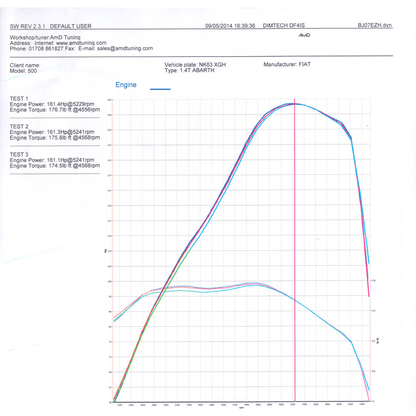

• Dyno test results 2esults taken from Fiat 500 Abarth, fitted with cat back exhaust and AIRTEC FMIC
• Run 1. 120 degree into the intercooler and 22 degree out of the intercooler
• Run 2. 122 degree into the intercooler and 22 degree out of the intercooler
• Run 3. 123 degree into the intercooler and 22 degree out of the intercooler
• Conclusion, the AIRTEC intercooler dropped the intake temperatures by 100 degrees on each run and did not suffer from heat soak.

Features:

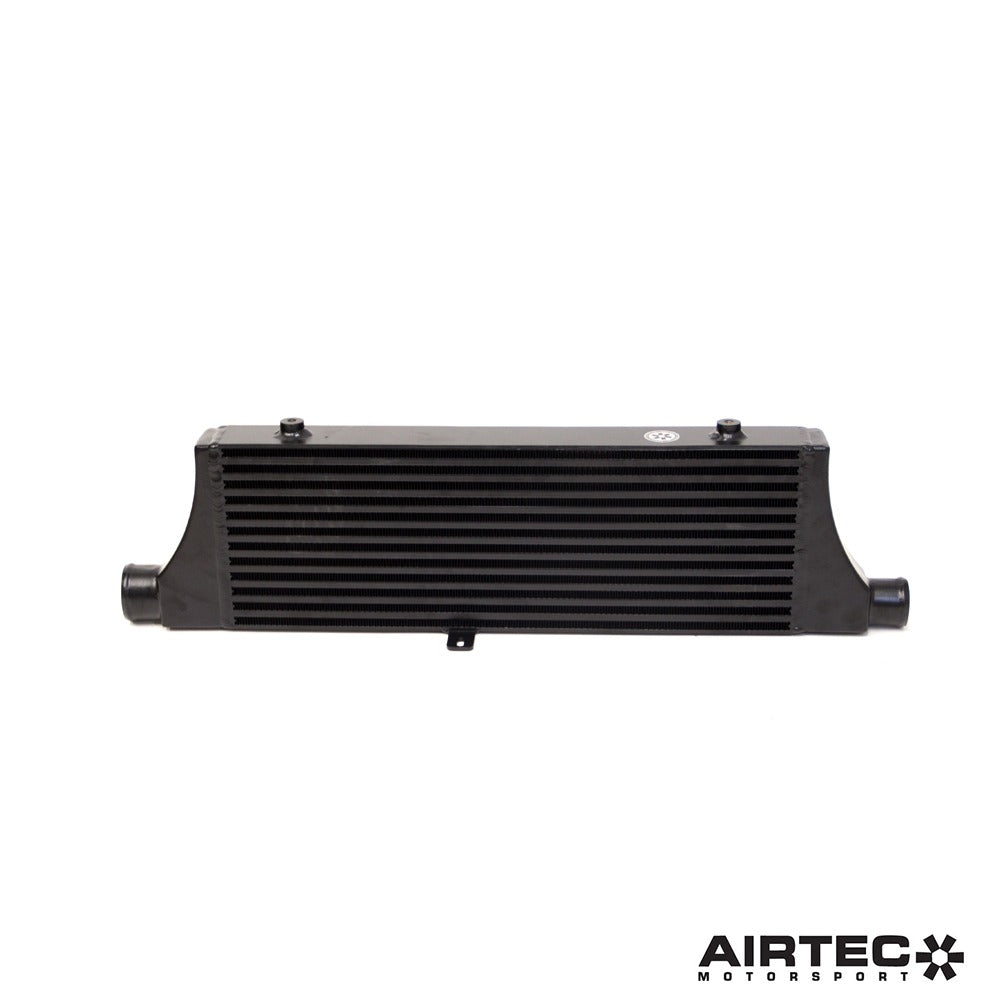

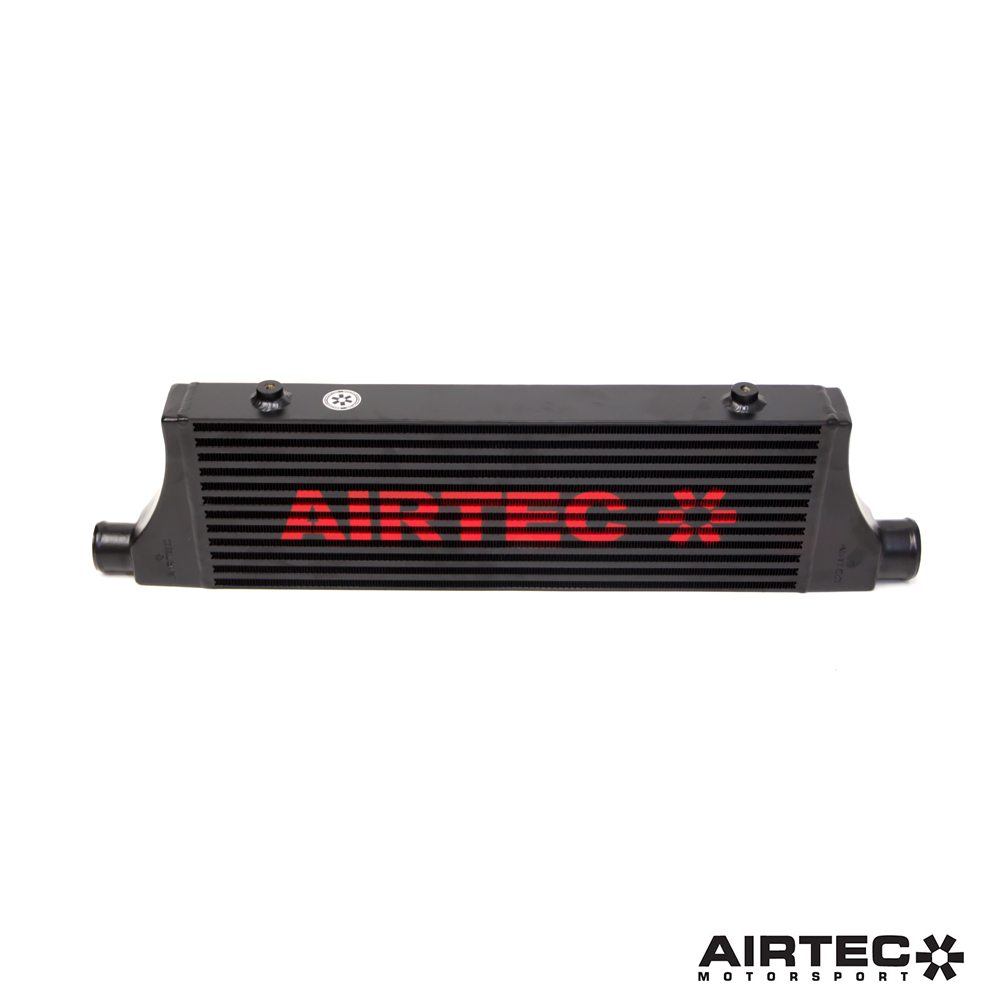

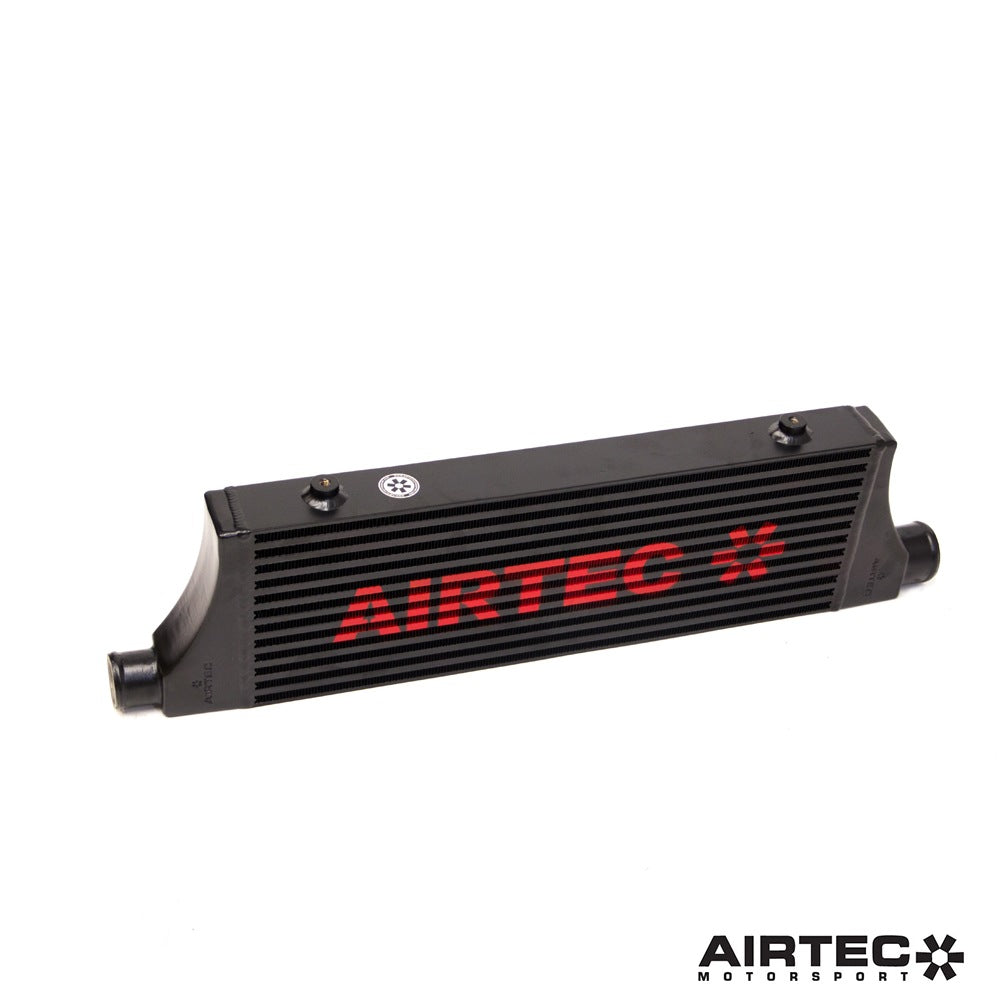

• 60mm thick proven bar and plate core, specced to AIRTEC design

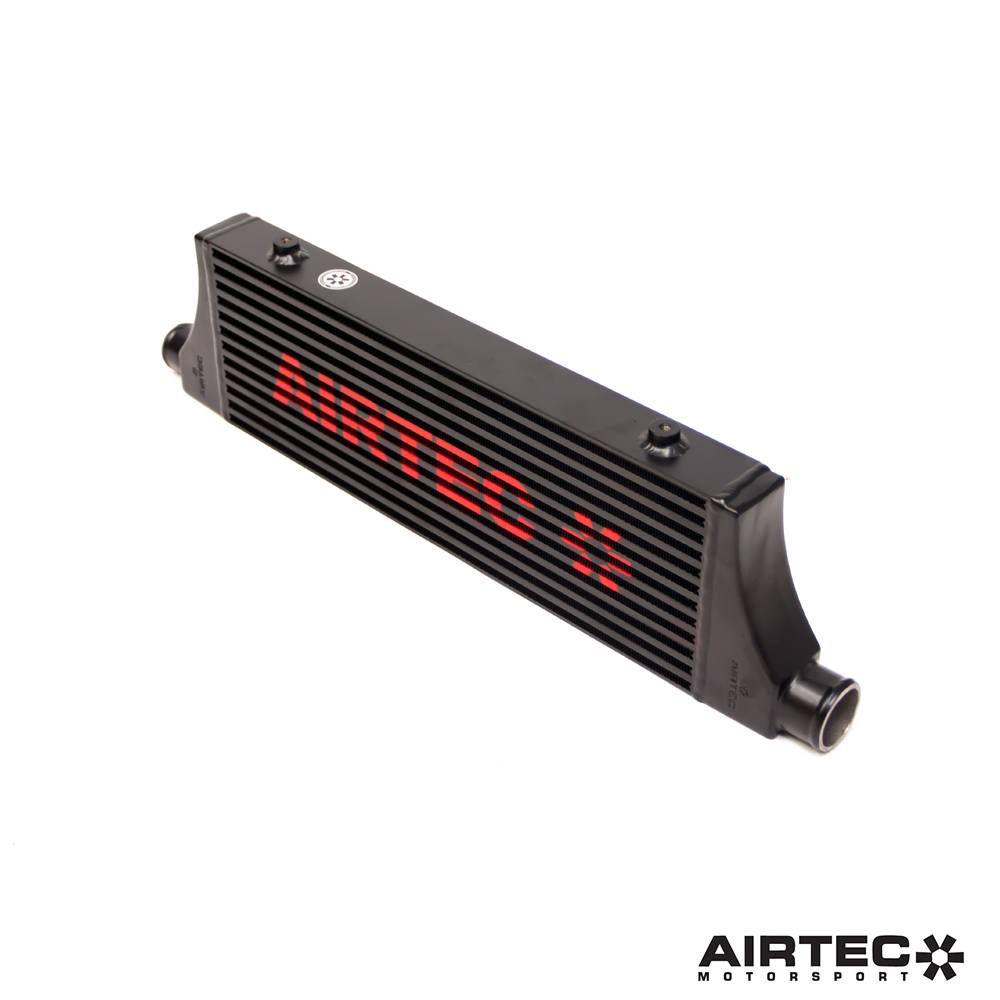

• AIRTEC logo Cast end tanks for improved airflow and unbeatable strength
• Dyno proven, gain BHP
• Lower intake temps means safer engines CT/li>
• Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
• Fitting takes 2-3 hours
• 3 year unlimited mileage warranty
• Available in Pro-Series satin Black or Natural Silver
• AIRTEC logo available at no extra charge
• Unbeatable value for money

This intercooler kit is designed to fit Abarth 500 / 595 models fitted with the IHI turbo, including 135, 140, 145, and 160 bhp models. It has a height of 205mm, width of 820mm, and thickness of 65mm. Registered Design Right number: 6023445

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

AIRTEC-ATINTFT1

Manufactured by

AIRTEC Motorsport
