This is AIRTEC Motorsport Intercooler for Abarth 595 (AUTO)

The AIRTEC Motorsport Intercooler is a great addition to any standard or re-mapped Abarth 595 (AUTO). It features 50mm pipe-work into the turbo and 60mm out of the turbo, which helps match the throttle body and provides fast turbo spool up and maximum power output. This intercooler is specifically designed to fit with the automatic gearbox and is compatible with Abarth models equipped with the Garrett GTI446 Turbo.

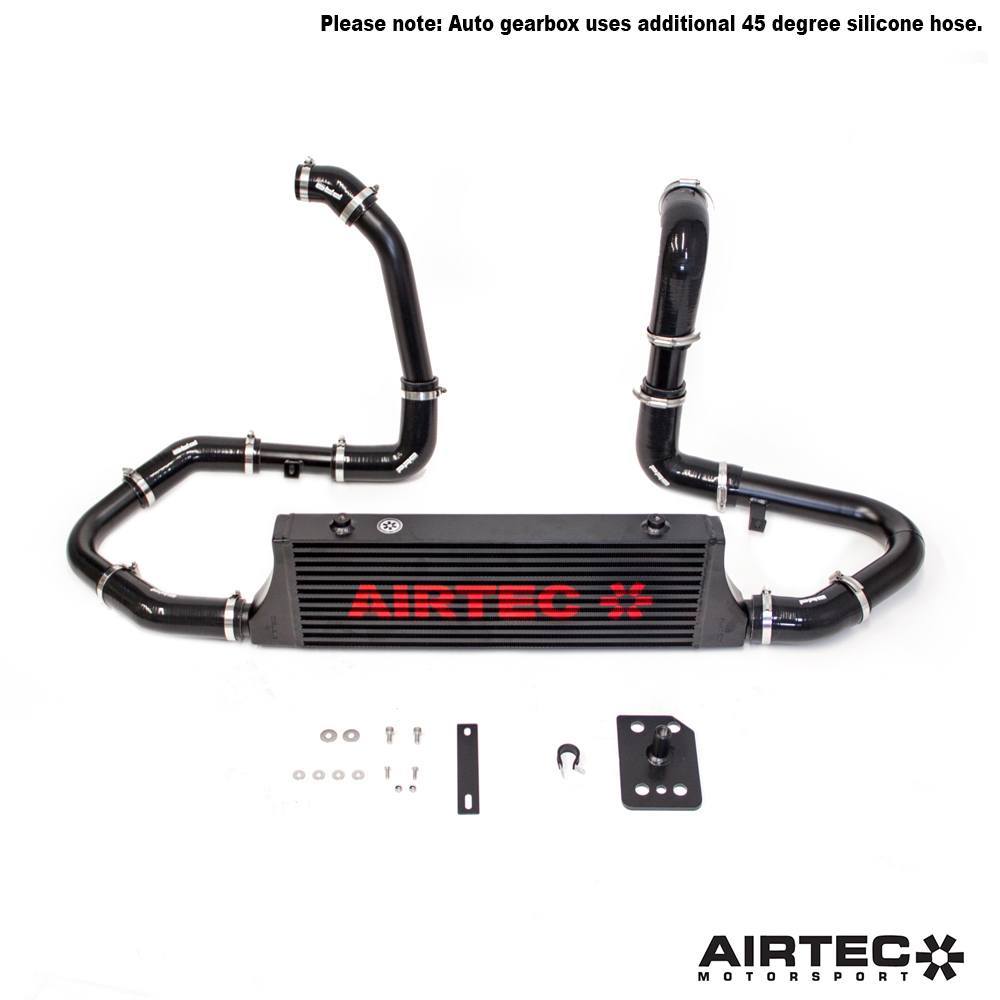

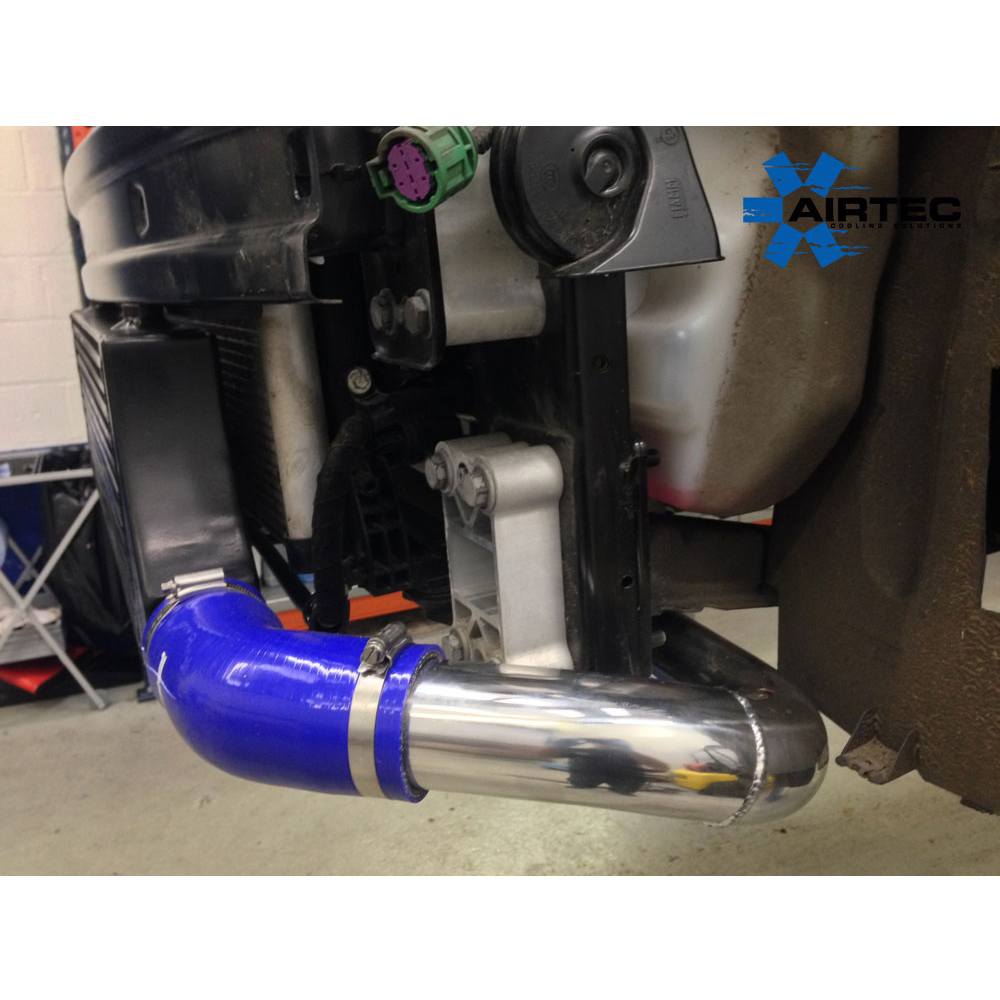

The AIRTEC part number for this intercooler is ATINTFT3/AUTO. It replaces the restrictive twin intercooler setup and lengthy pipe-work with Airtecàhigh flow 60mm core intercooler and shortened alloy pipe kit. The combination of 50mm pipe-work into the turbo and 60mm out of the turbo ensures fast turbo spool up and maximum power output.

Here are the dyno test results taken from a Fiat 500 Abarth Auto with standard map, intercooler, and exhaust:

• Run 1: 75 degrees into the intercooler and 40 degrees out of the intercooler 168 BHP
• Run 2: 73 degrees into the intercooler and 42 degrees out of the intercooler 166 BHP

And here are the dyno test results taken from a Fiat 500 Abarth Auto with Airtec FMIC and Miltek turbo back:

• Run 1: 64 degrees into the intercooler and 19 degrees out of the intercooler
• Run 2: 67 degrees into the intercooler and 20 degrees out of the intercooler
• Run 3: 69 degrees into the intercooler and 21 degrees out of the intercooler

Features of the AIRTEC Motorsport Intercooler include:

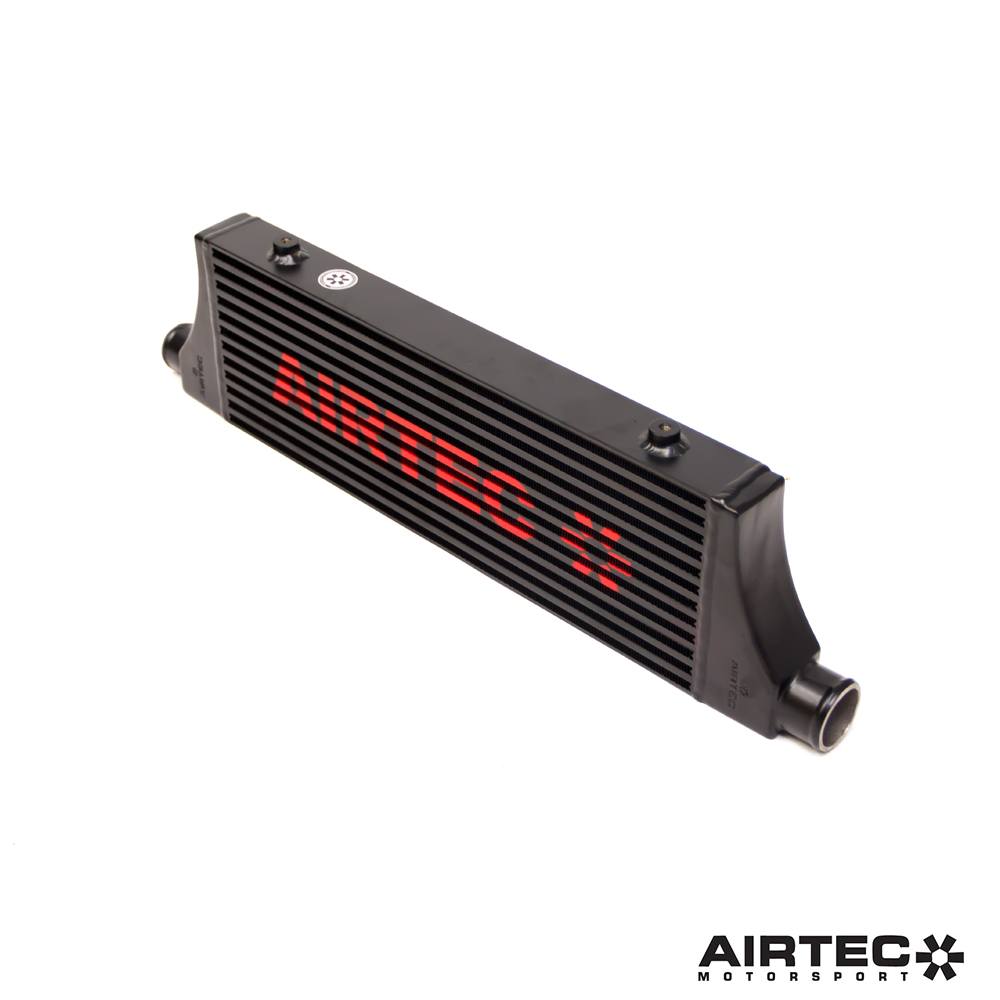

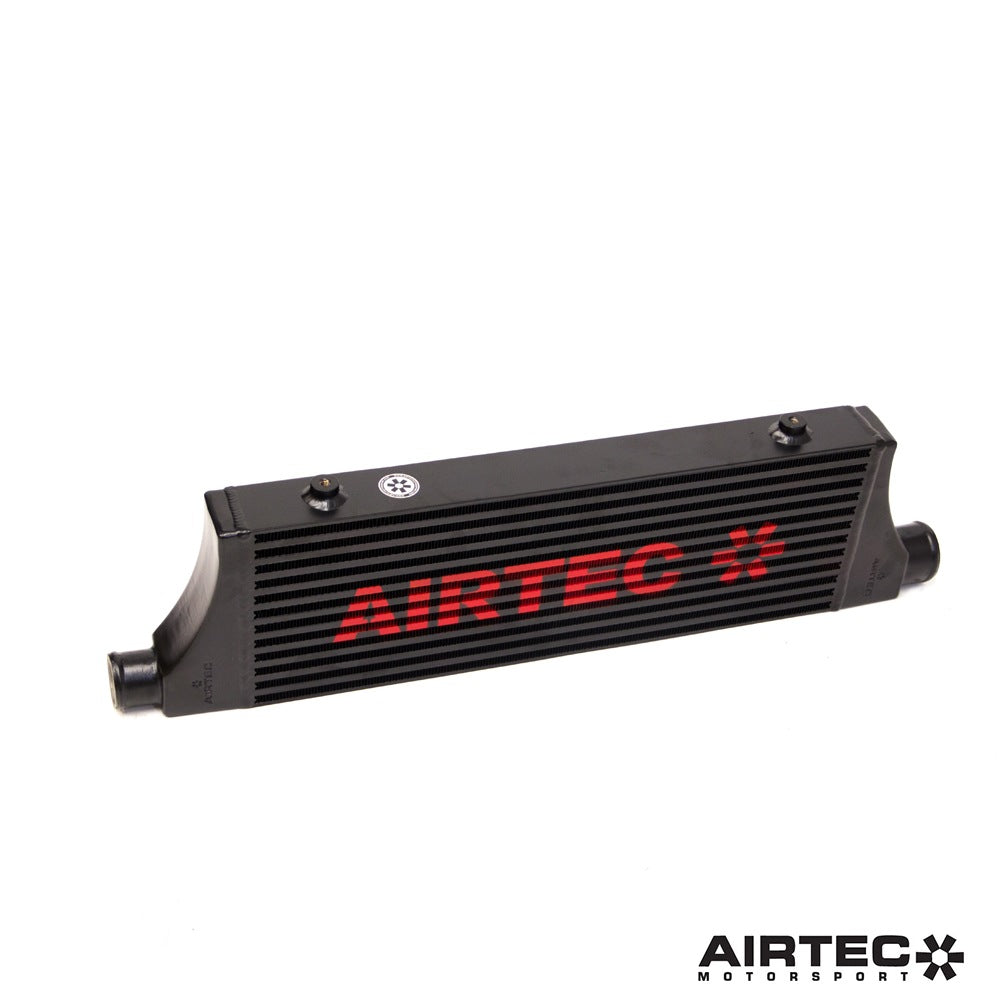

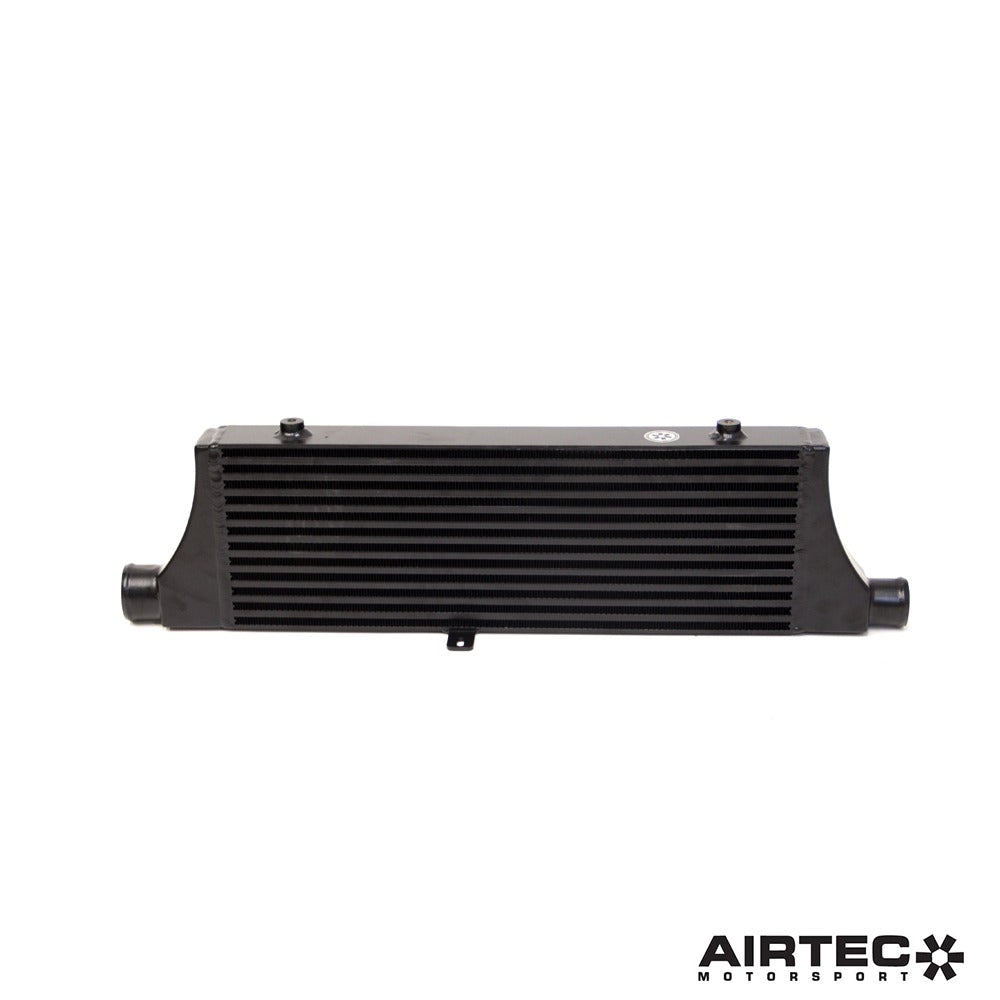

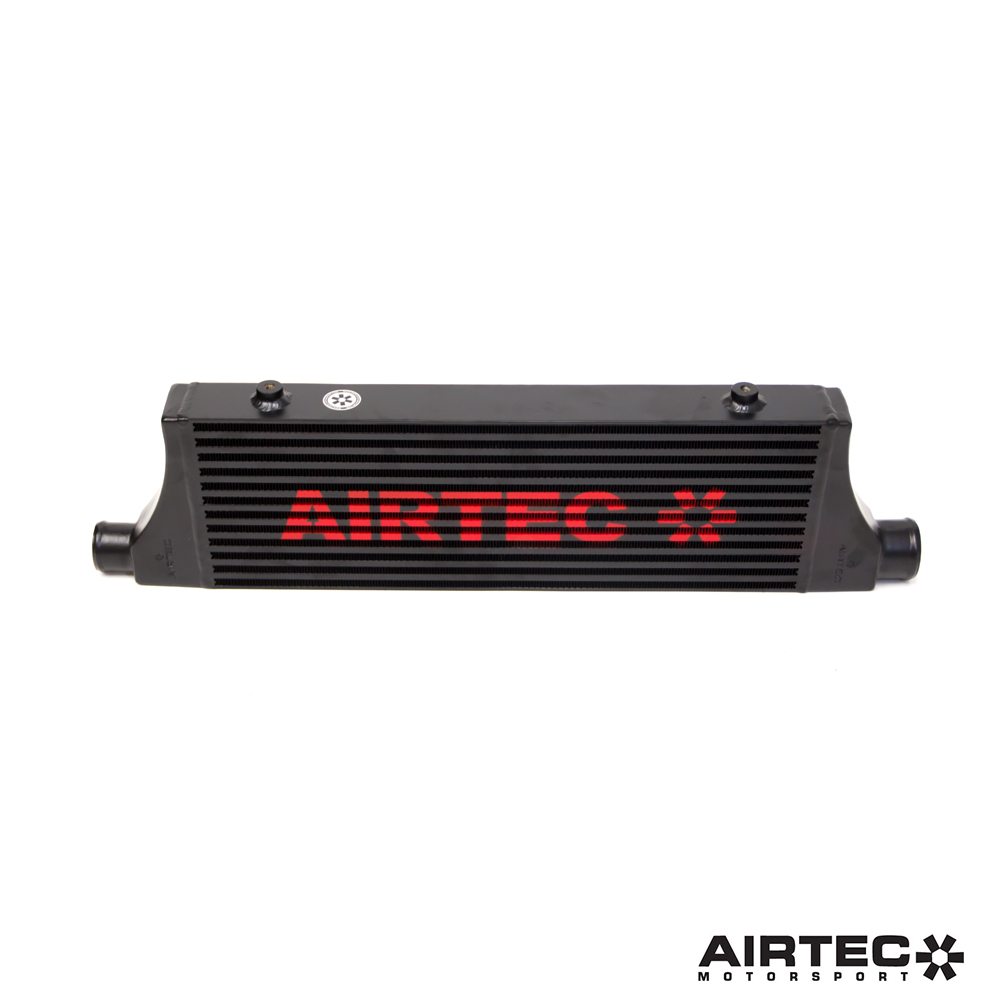

• 60mm thick proven bar and plate core, specked to Airtec design
• Airtec logo Cast end tanks for improved airflow and unbeatable strength
• Dyno proven, gain BHP
• Lower intake temps means safer engines

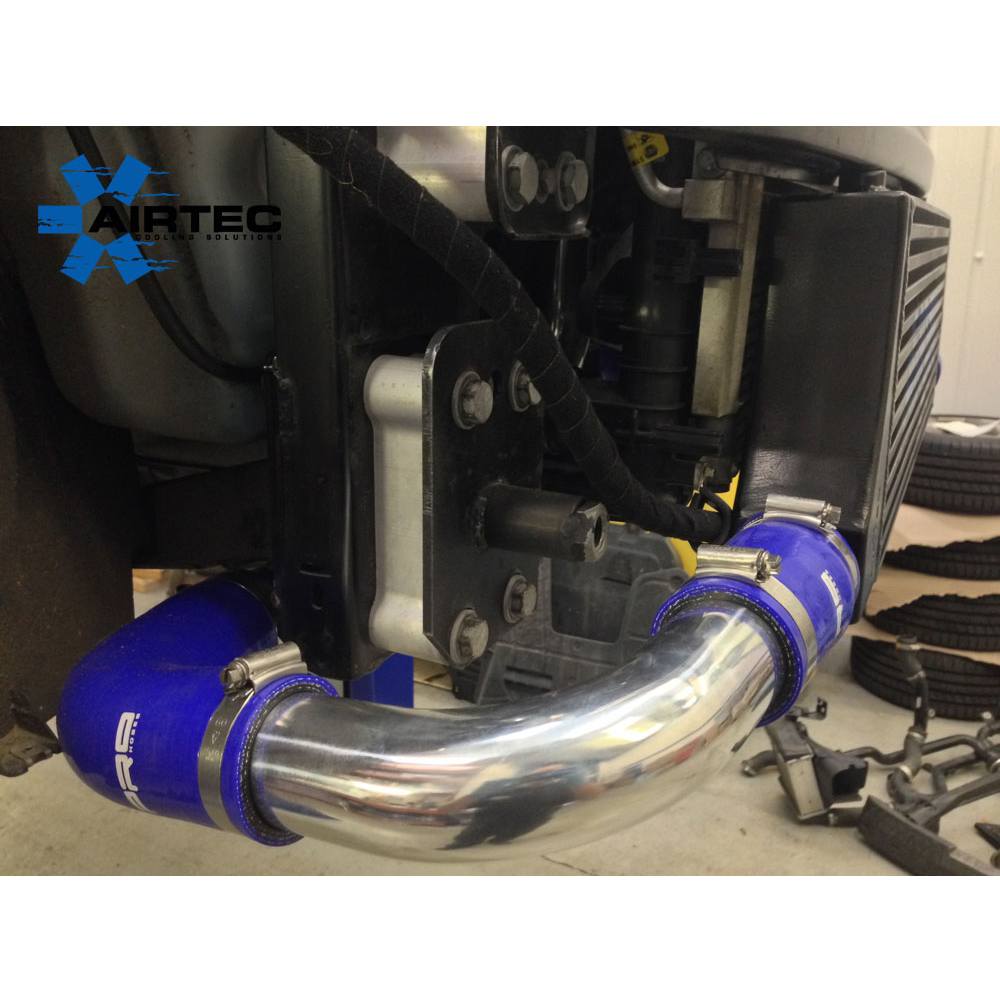

• Shorter charge pipes than standard twin intercooler set-up for fast turbo spool up
• Fitting takes 2-3 hours
• 3-year unlimited mileage warranty
• Available in Pro-Series Satin Black Only
• Airtec Logo available at no extra charge
• Unbeatable value for money

This intercooler will fit the following Abarth models:

• Series 3 180 Competizione (Mid-Late 2015)
• Series 4 Turismo
• Series 4 Competizione

Please note that this intercooler is also compatible with the automatic paddle shift gearbox.

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

AIRTEC-ATINTFT3/AUTO
