AP RACING

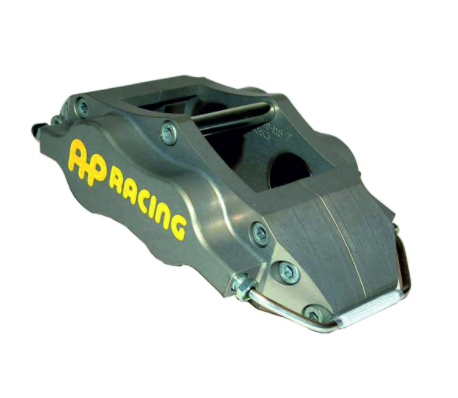

AP RACING CP5219-19S0 BRAKE CALIPER RADI-CAL (GK)LHLX25.4-CP3215

AP RACING CP5219-19S0 BRAKE CALIPER RADI-CAL (GK)LHLX25.4-CP3215

Regular price £2,037.01 Inc. VAT
Regular price £1,715.38 Sale price £2,037.01 Inc. VAT
9th Anniversary Badge

Price Match

Notify Me When Available

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

Radial 4 Piston - Two Piece Billet - CP5219

Applications:
- Front & Rear for 13" wheel.
- Lightweight Sportscar.

Features:
- Radial Mount, 152 x 42.78mm centres.
- Two piece billet aluminium alloy body.
- Suits 280 x 25.4mm disc.
- High Grade Aluminium pistons.
- CNC machined from billet.
- Superior dynamic performance than that of CP4219.
- Stainless Steel wear plates.

Part Numbers:
- RHT = CP5219-16S0. / - LHT = CP5219-17S0.
- RHL = CP5219-18S0. / - LHL = CP5219-19S0.

| Brake Pad Information|-|

CP3215D42

- Pad Area = 51.7cm²
- Pad Depth = 42.0mm
- Thickness = 16.8mm || TECHNICAL SPECIFICATIONS || Piston Sizes - mm | - 34.9 x 2

  • 41.3 x 2 || Piston Area cm³ | 45.92 || Disc Diameter - mm | 280.0 || Disc Thickness - mm | 25.4 || Weight (no pads) - Kg | 1.98 || Hydraulic Threads | M10x1.0 || Mounting Type | Radial || Mounting Centres - mm | 152.0 || Mounting Offset - mm | 42.78 || Mounting Hole - mm | 10.27 || ‘PL’ Dimension - mm | 56.81 || Bleed Screw Tightening Torque | 17Nm || SPARE PARTS || Pistons | - 34.9 = CP2876-101
  • 41.3 = CP2270-92 || Seal Repair Kit | CP4518-GK || Pad Retainer | Bolt = CP4219-122 || Pad Retainer Bolt | CP5100.126 || Wear Plates | CP4219-7 || Bleed Screw | CP3880-1 || Fluid Pipe | CP5219-6 |



Feel free to contact us at info@mlperformance.co.uk should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



AP-RACING-CP5219-19S0



Manufactured by

AP RACING
