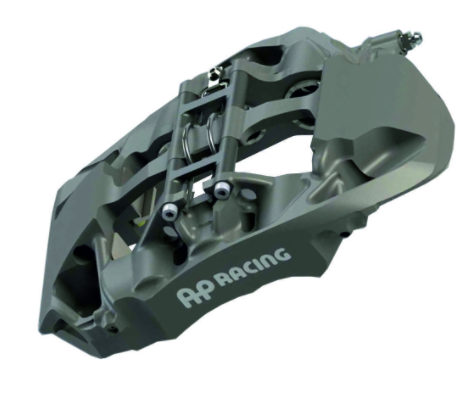

CP6269 - GT3 Forged Radi-CAL - 6 Piston

Applications:
- GT3

Features:
- Radial Mount, 210 x 42mmmm centres.
- Radical asymmetric design concept.
- Superior dynamic performance.
- Ducted Air cooling features, significantly reduces caliper temperatures.
- Forged Monobloc Aluminium alloy body.
- Designed to operate on 390.0mm x 36mm Iron Disc.
- 95.6mm total stack thickness allowed.
- Stainless Steel pistons fitted.
- Internally Ported.
- Dry Breaks available as an option.
- Pads are retained by a bolted retainer, with a quick release spring clip supplied for use in events when fast pad changes are required.

Part Numbers:
- RHT = CP6269-2S7L.
- LHT = CP6269-3S7L.
- RHL = CP6269-4S7L.
- LHL = CP6269-5S7L.

Brake Pad Information
- CP6210D54 Iron Pad

- Pad Area = 83.0cm²
- Pad Depth = 54.0mm
- Thickness = 30.0mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm 31.8 / 33.8 / 41.3
Piston area = cm² 60.75
Disc Diameter - mm 390.0
Disc Thickness - mm 36.0
Weight (no pads) - Kg 3.3
Hydraulic Threads M10 x 1.0
Mounting Type Radial
Mounting Centres - mm 210.0
Mounting Offset - mm 42.0
Mounting Hole - mm 12.15
‘PL’ Dimension - mm 63.5
Bleed Screw Tightening Torque 17Nm

SPARE PARTS
Pistons
- 31.8mm - CP6268-104
- 33.8mm - CP6268-105
- 41.3mm - CP6268-106

Seal Repair Kit CP8518-EFK
Pad Retainer H-Piece Kit - CP6268-20
Pad Retainer Bolt
Quick Release (Clip) Pad Retainer Kit CP6268-21

Pad Abutment Plates
- Leading x 2 - CP6269-102
- Trailing x 2 - CP6269-103

Pad Supports CP6269-104
Anti-knockback Springs CP6518-7LBSSL
Bleed Screw CP3880-1
