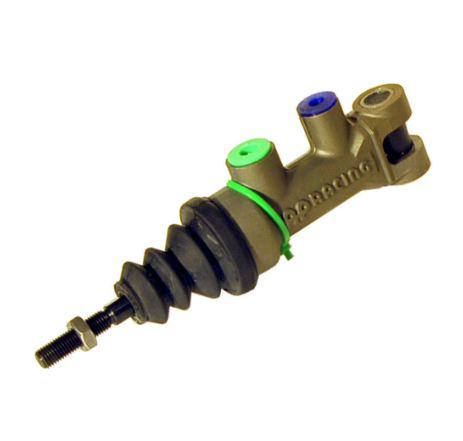

CP7854

A high efficiency single circuit, short push type master cylinder. Fixed through a trunnion system running in needle roller bearings and with a one piece piston / push rod it offers a significant improvement in efficiency over traditional cylinder designs.
Ranging from 14mm to 7/8" with 30mm stroke and 15/16" to 1.00" with 28mm stroke.

Note:
The following master cylinder part numbers have larger body dimensions, please check customer drawing before cylinder selection.
CP7854-93 / -94 / -95 & -96.

Features:
- Hard anodised Aluminium Alloy body.
- Compact Design.
- Extra Short travel to cut-off standard.
- One piece piston and push rod.
- Use with CP5520-3, -4 or -13 Trunnion type balance bar or purpose designed pedal box.
- Full range of 10 bore sizes.
- Rubber boots fitted as standard.
- Replaces CP5854 family

Weight - .28 to .293Kg (.61 to .64lbs)
Full Stroke - 14mm to 7/8" Bores - 30mm (1.18") /- 15/16" to 1.0" Bores - 28mm (1.10")
Travel To Cut-Off - Extra Short - .48 to .63mm (.19" to .25")
Inlet Hydraulic Thread - 7/16" x 20UNF
Outlet Hydraulic Thread - 3/8" x 24UNF
Push Rod Threads - PRTE = 5/16" x 24UNF

Bore Sizes Available Part Numbers
14mm - CP7854-88PRTE
15mm - CP7854-89PRTE
15.9mm (.625") 5/8" - CP7854-90PRTE
16.8mm - CP7854-905PRTE
17.8mm (.70") - CP7854-91PRTE
19.1mm (.75") 3/4" - CP7854-92PRTE
20.6mm (.812") 13/16" - CP7854-93PRTE
22.2mm (.875") 7/8" - CP7854-94PRTE
23.8mm (.937") 15/16" - CP7854-95PRTE
25.4mm (1.00") - CP7854-96PRTE
