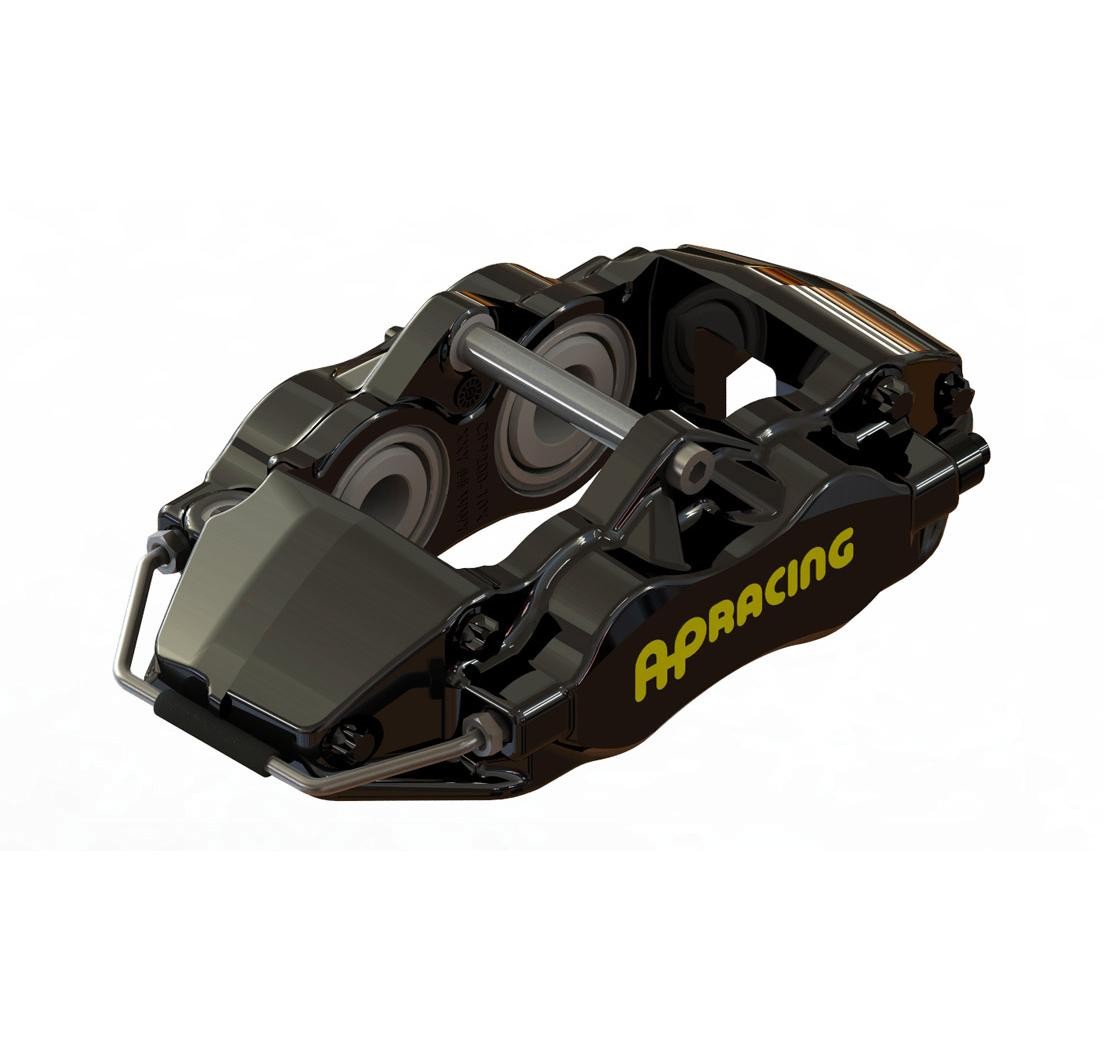

CP9202 - Forged Rear - 152mm Mounting Ctrs
Applications:
- Rear.
- Factory Big Brake Kit. - Compliment CP9040 Front 6 piston caliper.
Features:
- Radial Mount, 152mm centres.
- Suits 360 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body. - Designed to compliment CP9040. 6 piston caliper family.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9202-2S0BG / - LHT = CP9202-3S0BG.
- RHL = CP9202-4S0BG / - LHL = CP9202-5S0BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9202-2S0R2
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | 27.0mm (1.06") x 4 |
| Disc Diameter - mm | 360.0 |
| Disc Thickness - mm | - Max = 28.0 - Min = 26.0 |
| Weight (no pads) - Kg | 2.48 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152.0 |
| Mounting Offset - mm | 46.86 |
| Mounting Hole - mm | |
| PL Dimension - mm | 60.36 |
| Bleed Screw Tightening Torque | 17Nm |
Click on the link to download the relevant drawing.
