CP9561 Family - 58.6cm² Piston Area

Applications:
- Performance Road Front or Rear.

Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits 390mm Max or 356mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.

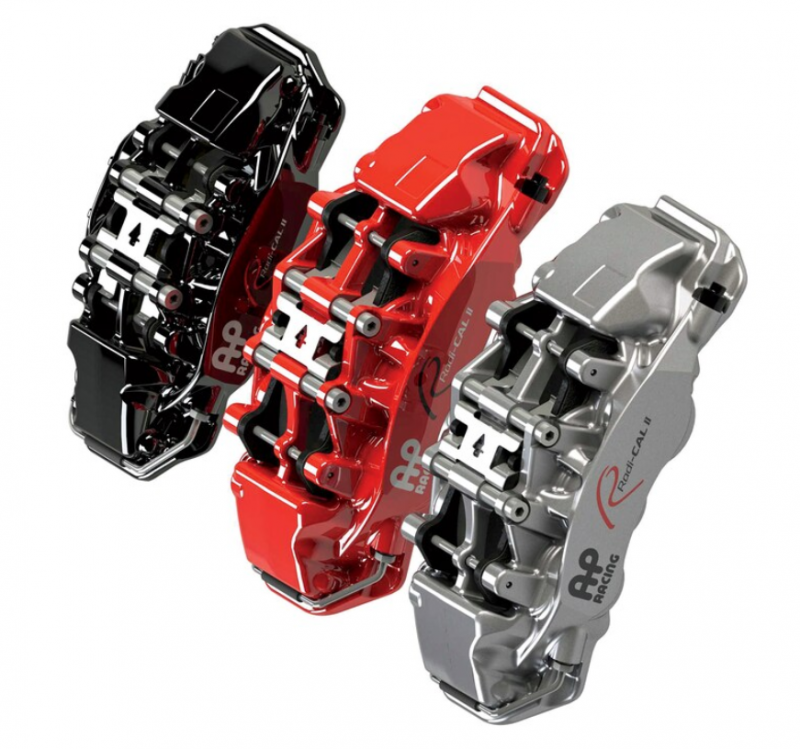

- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
RHT = CP9561-2S0BG4 / LHT = CP9561-3S0BG4

RHL = CP9561-4S0BG4 / LHL = CP9561-5S0BG4

Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9561-2S0R12

Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9561-2S0S10

Brake Pad
CP7555D70

- Pad Area = 108.9cm²
- Pad Depth = 70mm
- Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- 31.8 x 4
- 41.3 x 2

Piston Area - cm² 58.6

Disc Diameter - mm
- Max = 390.0
- Min = 362.0

Disc Diameter - mm
- Max = 36.0
- Min 34.0

Weight (No Pads) - Kg 4.5
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting centres - mm 195.0
Mounting Offest - mm 49.50
Mounting Hole - mm 12.1
PL Dimension - mm 70.0
Bleed Scrwe Tightening Torque - Nm 17.0

CALIPER SPARES
Pistons
31.8mm = CP8336-116 x 4
41.3mm = CP8335-111 x 2

Seal Repair Kit CP427-EEK

Tube Pad Retainer and Bolt part Nos
CP9560-106 x 4
CP5555-156ST
Pad Retaining Pin CP7555-116 x 2
Bleed Screw Kit CP3880-1
Pad Anti Rattle Clip CP9560-107
