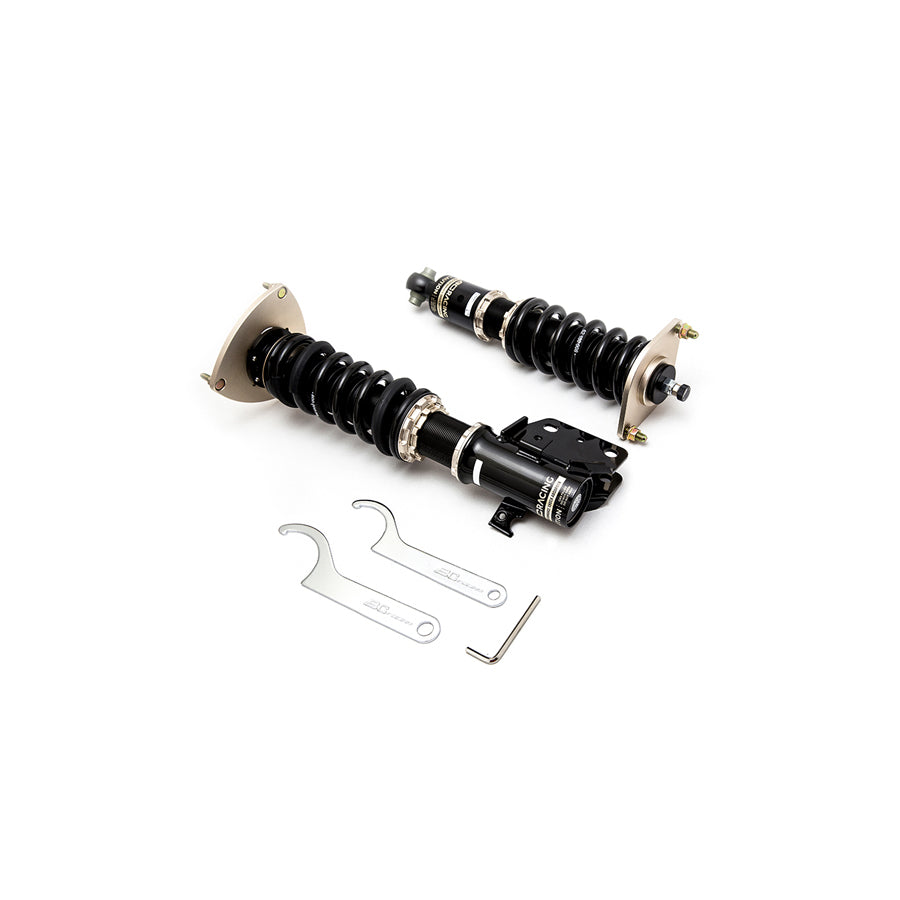

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.

As the damper unit operates the oil contained within heats up. The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristic of the unit.

BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

Please Note : The Rear Suspension Is True Spring Over Damper Coilovers. These Place All Of The Forces The Springs Deal With On The Mounting Point Of The Damper. The Shell Must Be Reinforced To Be Capable Of Handling This Extra Load. These Kits Are Not Sold For Use In A Standard Shell And Are For Competition Use Only

• Pillowball top mounts
• Bearing mounted upper spring platform
• Camber adjustable top mounts (depending on model)
• Ride height adjustment separate to spring preload
• 30 way adjustable damping
• Monotube damper design
• Tapered bottom mount locking collar to prevent collar working loose
• Custom spring rates available
• All spare parts available with low lead times
• Dust boot to protect damper seals
• 1 year manufacturer warranty

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

I-32-BR

Manufactured by

BC Racing
