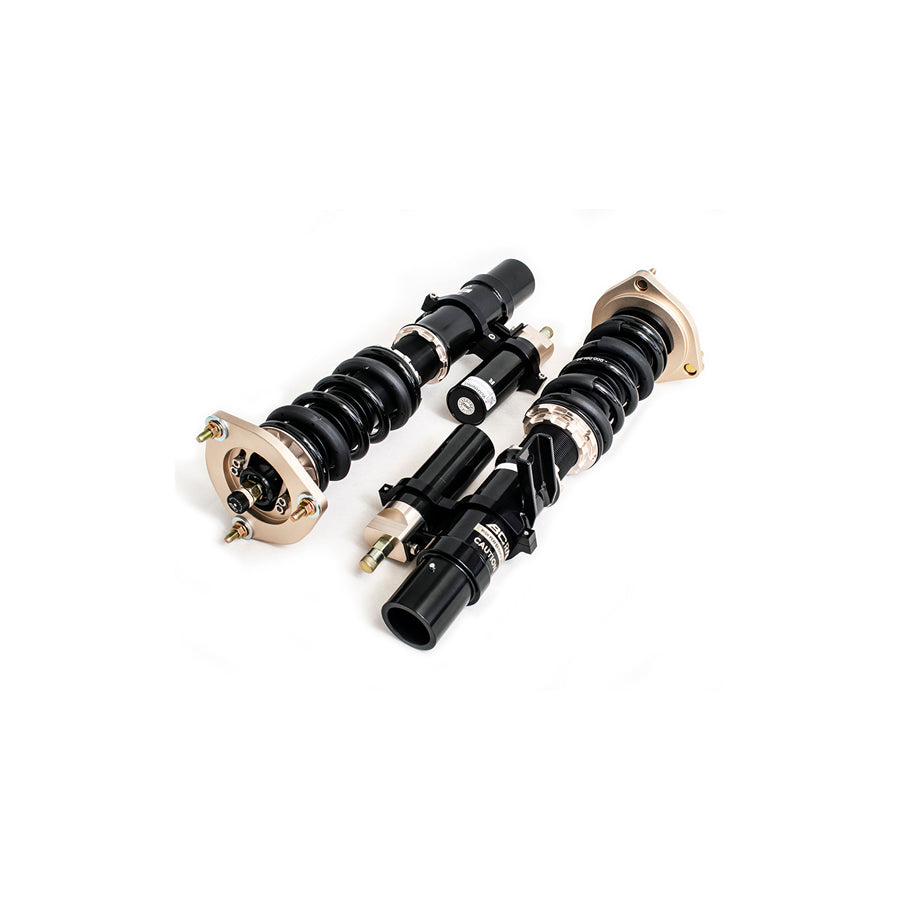

BC Racing's HM Coilover system offers the same great benefits of the RM Series with the addition of 2 way damping adjustment. Each HM Coilover system features inverted mono-tube dampers with independently adjustable compression and rebound. The inverted damper design moves vital damper fluid away from detrimental heat sources to avoid overheating which can cause damper fade under extreme track use.

The inverted damper also allows for decreased unsprung weight by moving the majority of the coilover mass up to the chassis improving ride quality, wheel control and steering feel. With the combination of inverted mono-tube dampers and external reservoirs the HM Series is suited for the most demanding users on the track.

• 30 levels of separate rebound and compression adjustment
• Inverted damper design (depending on model)
• Dual Piston design (1 reservoir, 1 in shock)
• Teflon coated steel braided lines for external reservoir on inverted dampers and solid stem for double A-arm cars
• Tapered bottom mount locking collar to prevent it from working loose
• Pillowball top mounts
• Dust boot to protect the damper seal
• Custom spring rates available
• All spare parts available with low lead times
• 1 year manufacturer warranty

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

U-05-HM

Manufactured by

BC Racing
