Bilstein

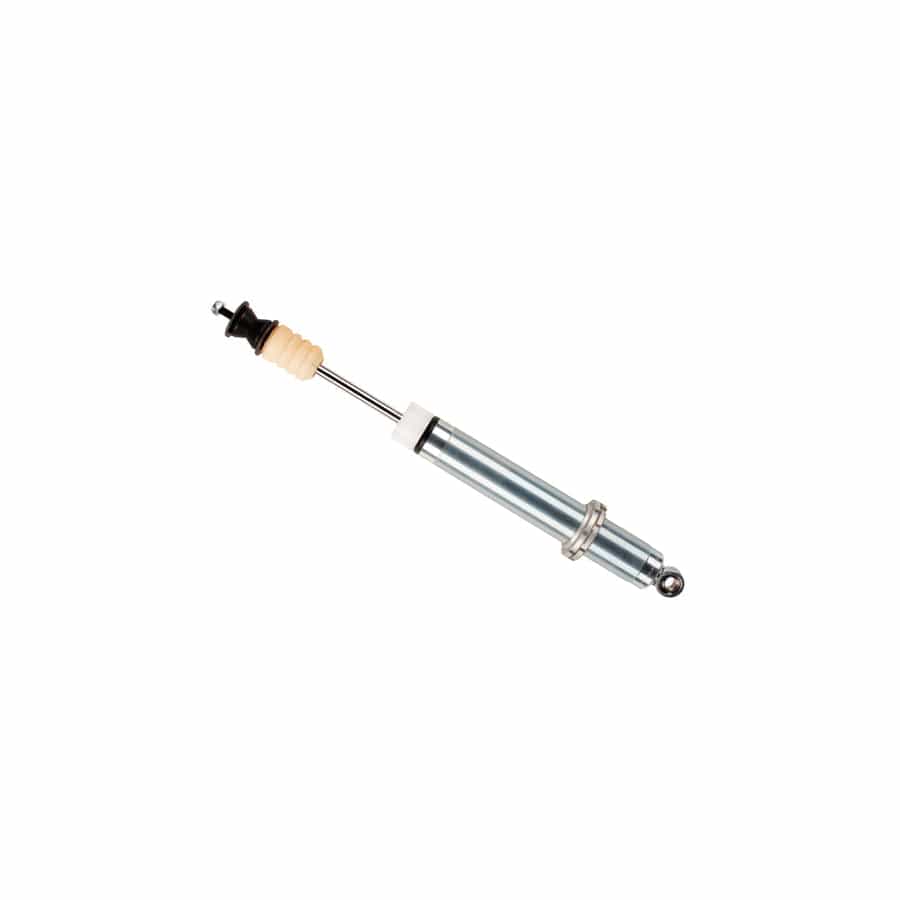

Bilstein 24-595452 PORSCHE 911 M 9200 Rear Shock Absorber

Bilstein 24-595452 PORSCHE 911 M 9200 Rear Shock Absorber

£368.67 Inc. VAT
£474.00 £368.67 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

For The Competitive Off-Road

The superior design of the BILSTEIN M 9200 (Coilover) is comprised of aerospace-class materials and engineered to the tightest tolerances. Available in multiple lengths and valvings for a wide range of race applications.

Increased Travel

Multiple stroke lengths available ranging from 8" to 16".

Larger Piston Diameter

The 46mm and 60mm large bore hard anodized aluminum piston combined with a 22mm piston rod offer a greater range of damping control, provides brute tensile strength and reduces internal gas force ramp-up for a smoother ride and exceptional long-term durability.

Threaded Body for Quick Adjustments

Threaded body with dual-rate coilover hardware allows users to make quick spring and preload changes, and adjust the transition between a dual and single rate. The softer dual rate will provide a smoother ride over choppy terrain and the stiffer single rate will provide increased compression control.



  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8” to 16”
  • Case hardened, centerless ground 22mm piston rod
  • Machined billet aluminum components
  • 5/8” uniball mounts with 1/2” step spacers
  • 60mm remote reservoir
  • 46mm shock uses a 2.5” ID Coilover Spring
  • 60mm shock uses a 3.0” ID Coilover Spring
  • 3 stage high-temp seal
  • Red synthetic high-temp racing oil
  • Zinc plated
  • Multiple valvings available
  • Owner rebuildable
  • Made in the USA
  • 46mm coil carrier (non reservoir) and 60mm coilover with Reservoir available



Characteristics
Fitting Position : Rear Axle
Parameter : 180/170
Shock Absorber Design : Spring-bearing Damper
Shock Absorber Mounting Type : Bottom eye, Top pin
Shock Absorber System : Height Adjustable, Monotube
Shock Absorber Type : Gas Pressure
Thread Size : M14



  • 911
    • 911 (01.63 - 11.90)
      • 2.3 T / 2.3 E / 2.3 S / 2.7 / 2.7 S Carrera / 2.7 SC Carrera RS / 3.0 SC Carrera / 3.0 SC / 3.0 Turbo / 3 / 3.2 / 3.2 SC Carrera / 3.3 Turbo / 3.3 SC Turbo

    • 911 Convertible (08.82 - 08.89)
      • 3.0 SC / 3 / 3.2 SC Carrera / 3.2 Carrera Speedster / 3.3 Turbo Carrera / 3.3 Turbo

    • 911 Targa (11.64 - 11.90)
      • 2.3 T / 2.3 E / 2.3 S / 2.7 / 2.7 S / 2.7 SC Carrera RS / 3.0 SC Carrera / 3.2 Carrera / 3.3 Turbo



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



BILSTEIN-24-595452



Manufactured by

Bilstein



EAN

4025258503574



UPC

651860503578
