Bilstein

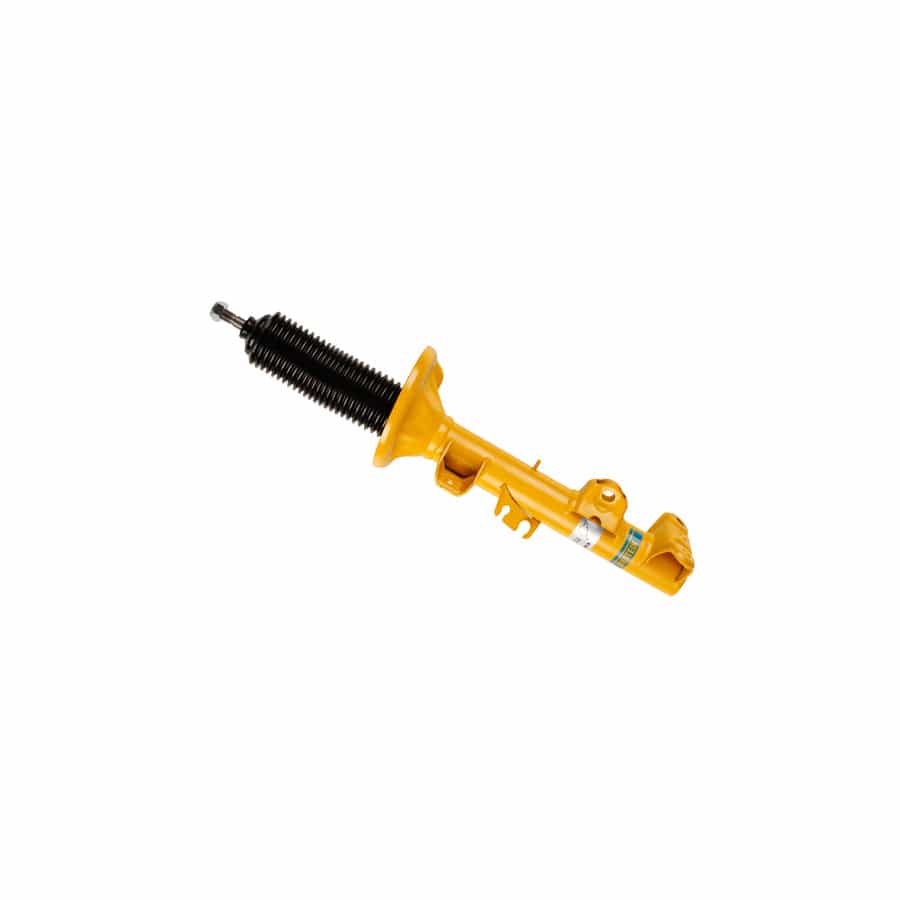

Bilstein 35-233602 BMW E36 M 9200 Front Right Shock Absorber

Bilstein 35-233602 BMW E36 M 9200 Front Right Shock Absorber

£271.60 Inc. VAT
£349.20 £271.60 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

For The Competitive Off-Road

The superior design of the BILSTEIN M 9200 (Coilover) is comprised of aerospace-class materials and engineered to the tightest tolerances. Available in multiple lengths and valvings for a wide range of race applications.

Increased Travel

Multiple stroke lengths available ranging from 8" to 16".

Larger Piston Diameter

The 46mm and 60mm large bore hard anodized aluminum piston combined with a 22mm piston rod offer a greater range of damping control, provides brute tensile strength and reduces internal gas force ramp-up for a smoother ride and exceptional long-term durability.

Threaded Body for Quick Adjustments

Threaded body with dual-rate coilover hardware allows users to make quick spring and preload changes, and adjust the transition between a dual and single rate. The softer dual rate will provide a smoother ride over choppy terrain and the stiffer single rate will provide increased compression control.

For the corresponding Front Right Shock Absorber, please see  Bilstein 35-233596 BMW E36 M 9200 Front Left Shock Absorber



  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8” to 16”
  • Case hardened, centerless ground 22mm piston rod
  • Machined billet aluminum components
  • 5/8” uniball mounts with 1/2” step spacers
  • 60mm remote reservoir
  • 46mm shock uses a 2.5” ID Coilover Spring
  • 60mm shock uses a 3.0” ID Coilover Spring
  • 3 stage high-temp seal
  • Red synthetic high-temp racing oil
  • Zinc plated
  • Multiple valvings available
  • Owner rebuildable
  • Made in the USA
  • 46mm coil carrier (non reservoir) and 60mm coilover with Reservoir available



Characteristics
Fitting Position : Front Axle Right
Parameter : 280/150
Shock Absorber Design : Suspension Strut
Shock Absorber Mounting Type : Top pin
Shock Absorber System : Single Tube Upside Down
Shock Absorber Type : Gas Pressure



  • 3 SERIES
    • 3 (E36) (09.90 - 11.98)
      • 316 i / 318 i / 318 is / 320 i / 323 i / 325 i / 328 i / M3 3.0 / M3 3.2 / 318 tds / 325 td / 325 tds

    • 3 Coupe (E36) (10.91 - 05.99)
      • 316 i / 318 is / 320 i / 323 i / 325 i / 325 is / 328 i / M3 3.0 / M3 3.2

    • 3 Compact (E36) (01.94 - 08.00)
      • 316 i / 316 g / 318 ti / 323 ti / 318 tds



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



BILSTEIN-35-233602



Manufactured by

Bilstein



EAN

4025258729721



UPC

651860730639
