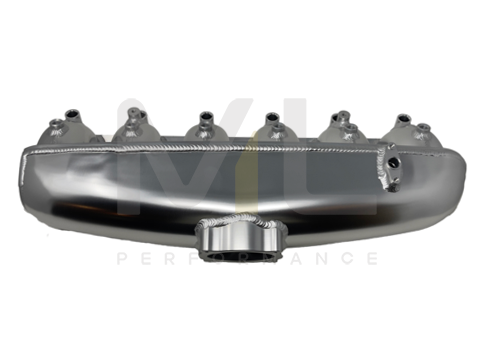

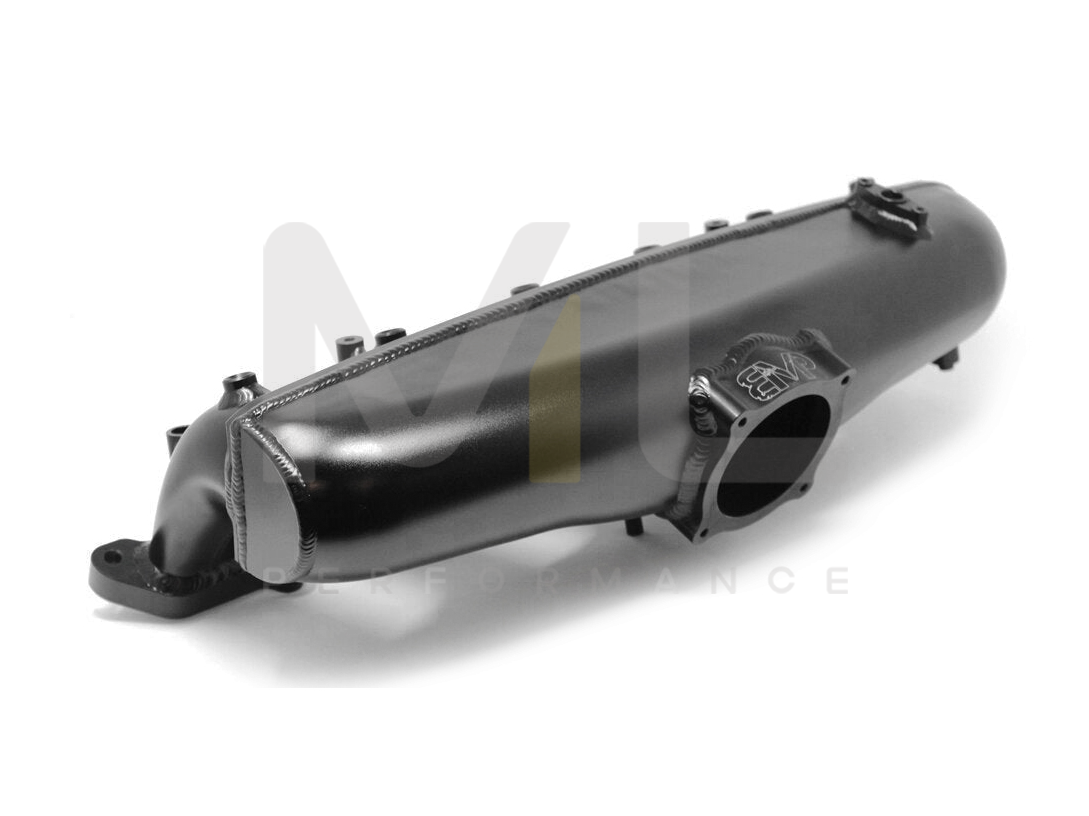

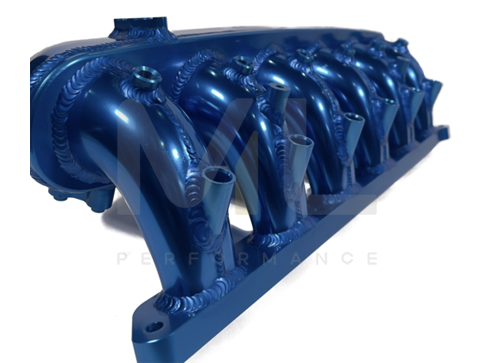

The Black Market Parts N54 PERFORMANCE INTAKE MANIFOLD (stock location) is designed to work with most all BMW's that came with N54 engines. This is a perfect way to add reliability while increasing air flow, adding port injection. Best of all our kit comes with ports to add direct port meth or direct port nitrous!

This high quality solution is direct plug and play replacement for the factory intake manifold on all N54 cars. With the OEM like fitment and the ability to run any fuel or combination of fuels the BMP intake manifold is the right solution for all build levels!

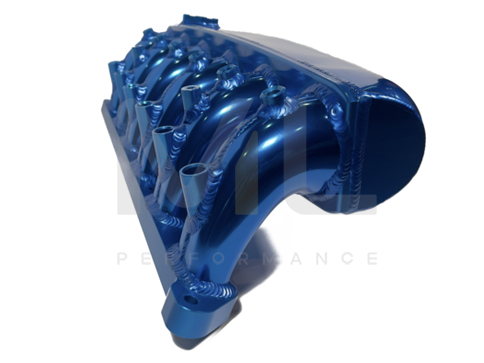

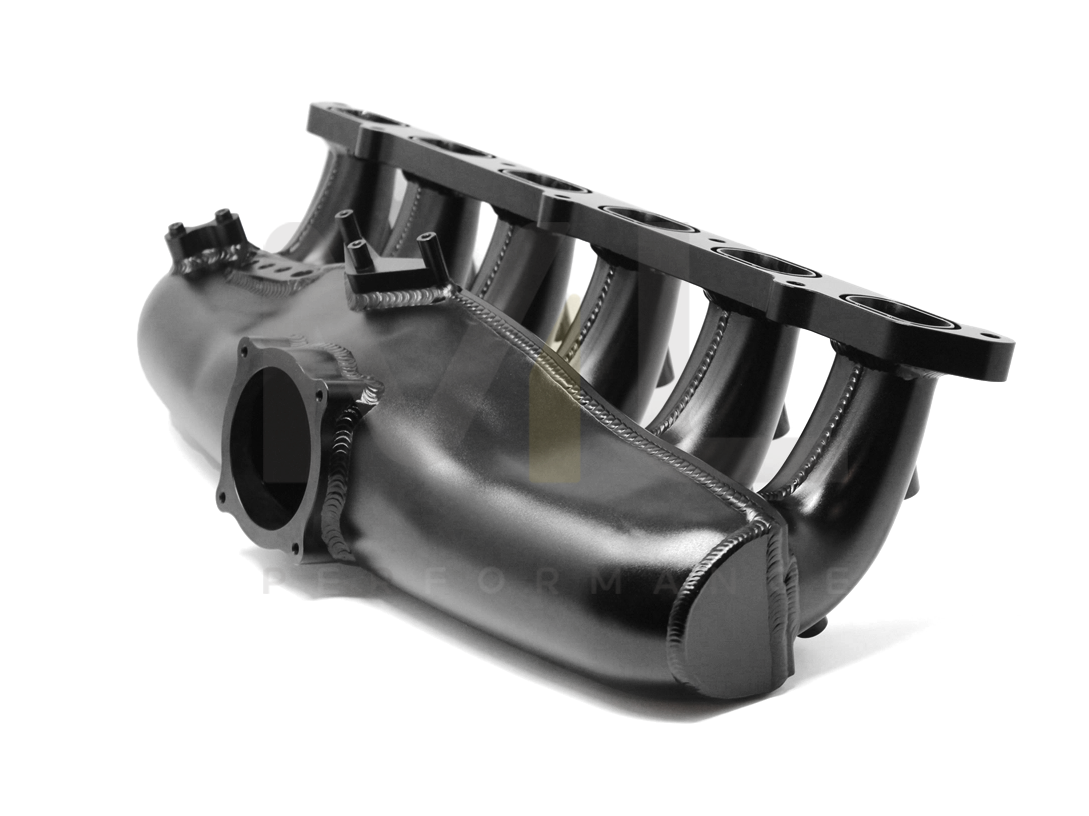

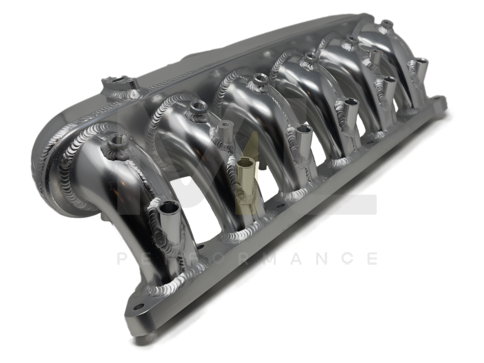

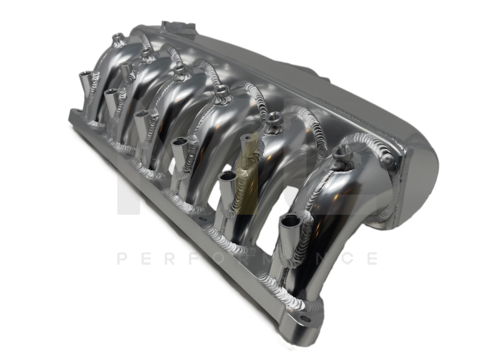

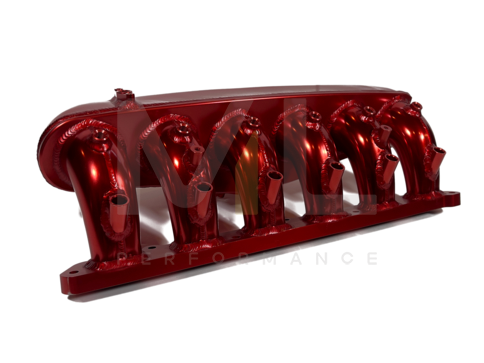

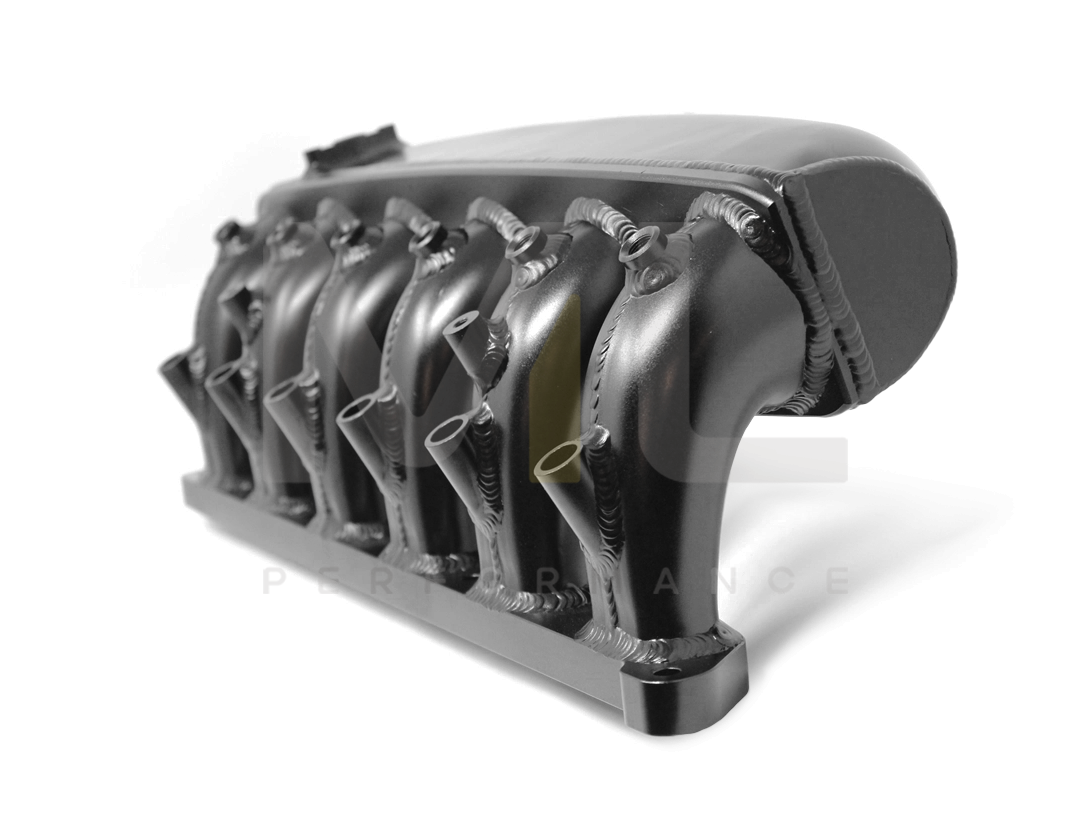

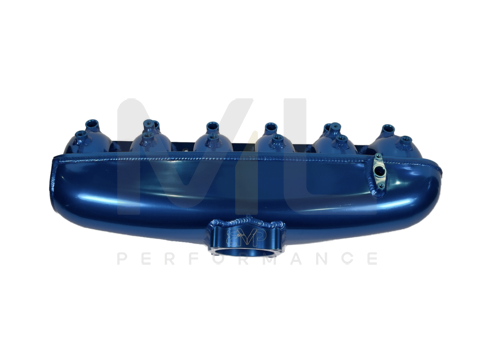

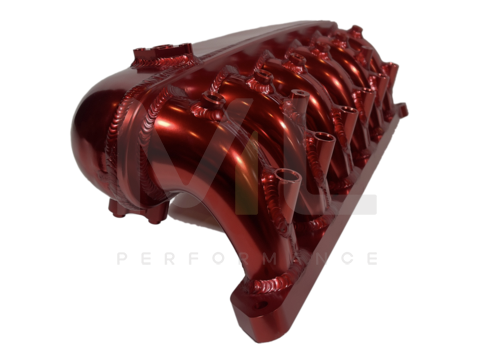

Manifold is available in either Black, Blue, Red or Silver finishes.

• Increased Airflow

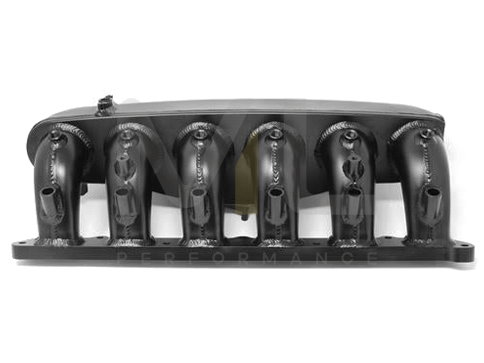

• Center flow port injection (fits all brand injectors)
• Stronger than stock plastic manifold
• Multiple expansion ports for larger BOV line, Boost Gauge, etc
• Proprietary machining allows our manifold to use OEM o-rings (included)
• Less heat soak than aftermarket cast manifolds means proven lower IAT's

Required Fueling option(s)

• Pack of 6 Genuine Bosch Motorsports injectors
  • Flow matched to the highest standards (certs included)
  • Full stainless wetted internals for corrosion resistance
  • Individually serialized for full injector flow and resistance report (included)
  • 750cc at 3bar , 900cc at 4bar , 1050cc at 5 bar (advertised at 750cc by industry standards)

• Performance Fuel Line
  • Features Aeroquip AN6 Socketless fuel hose
  • All fittings CNC machined from 6061 aluminum

  • Anodized finish to withstand all fuel types (including e85)
  • Female fitting features dual seals to ensure a zero leak connection to HPFP

Specification

• Weight: 14.8 lbs (without injectors or fuel line)
• Construction: Die formed sheet metal & billet CNC
• Injector Compatibility:  Compatible with all injectors for port injection
• Meth/Nitrous Ports: Features 6 direct port meth or nitrous ports (1/8" NPT)
• Expansion Ports: Features 4 optional ports for use with BOV, Boost Gauge, Hobbs Switch, etc..
• Optional Fuel Injectors
• Optional Fuel Line

Please Note:

• Actual flow rate may vary, as the advertised rate is based upon an overall average.
• Factory style air box is incompatible with this manifold.

• BMW 1 Series E82 E88 N54 (2007-2013)
• 135i, 135is & 1M Coupe
• BMW 3 Series E90 E91 E92 E93 N54 (2007-2013)
• 335i, 335is & 335xi
• BMW 7 Series F01 F02 N54 (2008-2012)

• 740i & 740Li
• BMW  X Series X6 E71 N54 (2009-2013)

• X6 35i & X6 M
• BMW  X Series X6 F16 N54 (2014-2019)
• X6 35is & X6 35ix
• BMW  Z Series E89 N54 (2009-2016)
• Z4 35i & Z4 35is

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Manufactured by

BMP
