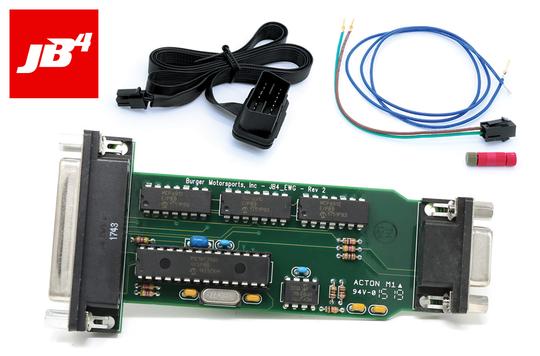

Upgrades your existing BMS Stage1 to a EA888 JB4 system. The JB4 features CANbus connectivity for more advanced tuning, direct AFR control, advanced safety systems for boost, air/fuel ratio, fuel trims, and engine knock, boost mapping by gear for improved traction, integrated water/meth control, and much more.

The upgrade kit cost is $125 outright. There is no longer a core exchange program available. After the upgrade you can keep your old Stage1 board as a spare/backup. This JB4 requires exclusive OBDII/CANbus access while tuning is enabled and is not compatible with various CANbus enabled boost gauges or 3rd party devices that also require OBDII/CANbus.

When ordering use the drop down to specify left or right drive hand and your Stage1 hardware version. Vehicles in the USA and most other countries are left hand drive (LHD) while UK, AU, SA, and a few others are right hand drive (RHD). For the Stage1 hardware version systems purchased after approx 11/1/16 are REV2 and can be identified by an unused black Molex/2 position connector already incorporated in to the harness. Check the installation guide below for additional information on identifying your existing hardware.

• 2014 and up VW MK7 Golf 1.8T
• 2014 and up VW MK7 Golf GTI 2.0T & Performance Pack
• 2014 and up VW Golf R 2.0T
• 2013 and up Audi A3 8V 1.8TFSI
• 2013 and up Audi A3 8V 2.0TFSI
• 2015 and up Audi S1 2.0TFSI
• 2013 and up Audi S3 8V 2.0TFSI
• 2015 and up Audi TT 8S
• 2015 and up Seat Leon Cupra 2.0T
• 2015 and up Skoda Octavia vRS
• 2015 and up VW Polo 1.8T

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

BMS093

Manufactured by

Burger Motorsports / Burger Tuning (BMS)

Warranty

5 year warranty.
