BMS Audi & VAG JB1 STAGE 1 FOR VAG 1.8 AND 2.0 TSI (MK7 Golf, A3, S1 & S3) ML Performance UK

BMS Audi & VW JB4 Gen3B Beta (A3, A4, A5, Passat & Polo GTI)

BMS

  • £429.00
    exc. VAT £357.50
    £357.50


True Plug & Play Tuning

Description

JB4 Group 8:

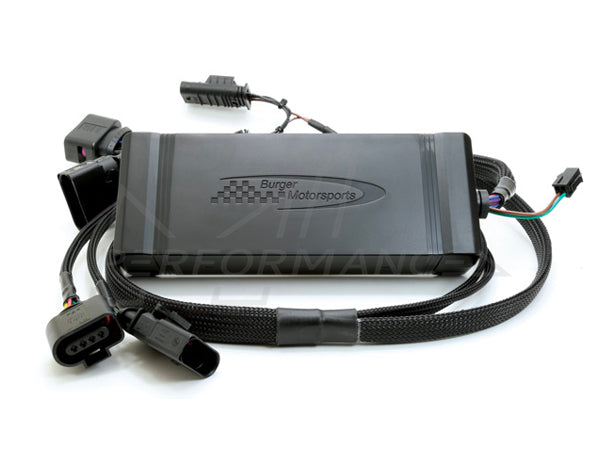

This plug and play Audi tuner plugs in to easy access sensors in the engine bay and works with your factory ECU tuning to remap your boost, timing, and fueling for optimal performance and reduced turbo lag. It features a 64mhz processor allowing sensors to be sampled 800 times per second using dedicated 10 bit digital to analog converters, ensuring smooth and powerful performance.
Minimum power gains of 30whp and 45ft lb on 91AKI/95Ron

Unlike other tuning systems the JB4 includes a fully programmable CANbus system, at home upgradable firmware, and data logging capability. CANbus allows the JB4 to access engine data to take in to account pedal input, throttle position, gear, engine speed, air/fuel ratio, fuel trims, ignition advance, knock, and many other factors and incorporate those in to the performance mapping. It can also read/delete fault codes, incorporate unique safety features such as keeping boost pressure low until oil and water is up to temperature to provide proper engine and turbo lucubration, and drop to a low boost map if the engine starts to over heat, run lean, excessively knock, or over boost.

The default JB4 map1 runs 3psi over stock peak and tuned maps including stock and valet mode can be selected on the fly using a BMS diagnostics cable or JB4 mobile smart phone adapter.
Installation is very discrete and it quickly removes without a trace when needed. Fuel economy during normal driving is unchanged.











Installation

The simple plug and play installation is very discrete and it quickly removes without a trace when needed.



 Compatibility

  • Audi 8V A3 2.0T 184hp
  • Audi B9 A4 2.0T 190hp
  • Audi B9 A5 2.0T 190hp
  • Skoda Kodiaq 2.0T 180hp
  • Seat Ateca 20T 190hp
  • VW Aerton 2.0T 190hp
  • VW Tiguan 2.0T North American
  • VW Tiguan 2.0T 140kw/184hp
  • VW T-Roc N1 2.0T 184hp
  • VW Passat 2.0T North American 174hp
  • VW Polo GTI 2.0T 200hp



Optional JB4 Wireless Mobile Connect Kit or BMS Data Cable
Wirelessly connect the JB4 to your Bluetooth 4.0 compatible iOS and Android device via the JB4 Mobile connect kit, or to your Windows laptop with the BMS data cable. Both options allow you to record and analyze vehicle and tuning data, change JB4 performance maps, and update JB4 firmware as we release free newer versions with updates, more powerful maps, and new features under development.



Free Next Day UK Delivery
FREE next day UK delivery if ordered before 11am! We can also ship worldwide, simply contact us for a quote.



Warranty

5 year warranty.



Manufactured by

Burger Motorsports / Burger Tuning (BMS)



Part Number

BMS030



Dimensions

25 x 16 x 6cm



Weight

0.6 Kg
