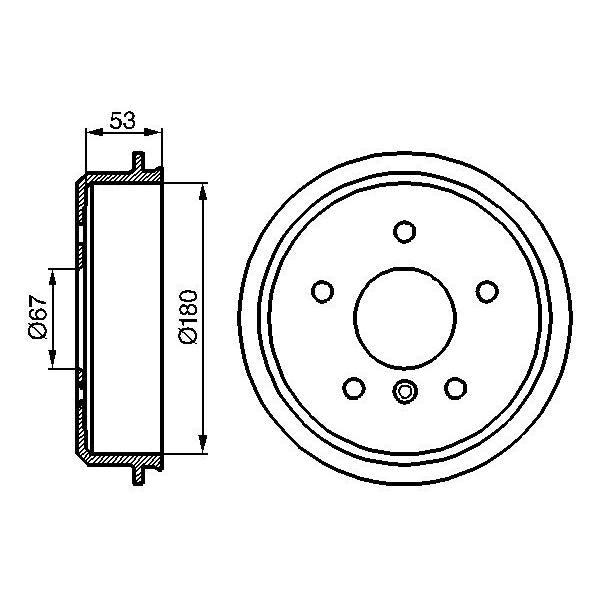

This is the BOSCH 0986477096 Brake Drum.
Specification
| Fitting position | Rear |
| Inner diameter | 180.0 mm |
| Outer diameter | 220.0 mm |
| Total height | 57.5 mm |
| Number of fitting holes | 5.0 pcs |
| Locating hole diameter | 67.1 mm |
| With a bearing | No |
| Max slide size | 181.2 mm |
| Inner height | 49.0 mm |
| Flange fitting spacing | 112.0 mm |
| ATE - TEVES | 24.0218-0023.1 |
| BENDIX | 329240B |
| BREMBO | 14.7756.10 |
| DELPHI | BF395 |
| FTE | BT1019 |
| GIRLING | DB 4235 |
| JURID | 329240J |
| LPR | 7D0443 |
| MINTEX | MBD062 |
| PAGID | 62921 |
| PEX | 150109 |
| PILENGA | 6180 |
| QUINTON HAZELL | BDR544 |
| ROADHOUSE | 7121.00 |
| SBS | 1825253301 |
| TEXTAR | 94020200 |
| TEXTAR | 981000202 |
| ZIMMERMANN | 400507100 |
| MERCEDES | 1684230201 |
| MERCEDES | 1684230401 |
| MERCEDES | A1684230201 |
| MERCEDES | A1684230401 |
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
BOSCH-0-986-477-096
