Underfloor shifter for A3/S3 8V & TT FV with 02M/Q 6-speed cable transmission, transmission type, MQ350.

Please Note:

• The original gear levers need to be modified. Modified gear levers (10145KIT) are sold separately. (MQ350 ONLY)

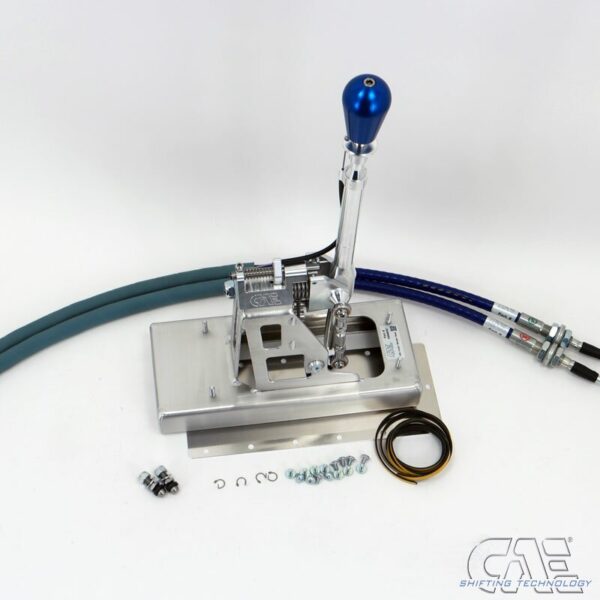

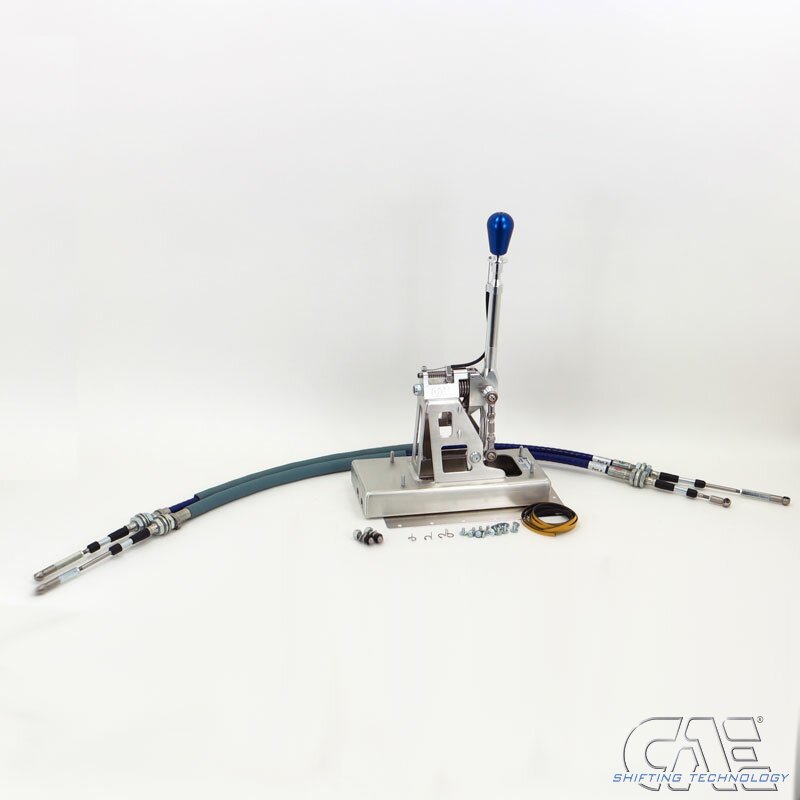

• Scope of delivery: Shifter completely assembled, cover plate, CAE HD shift cables, all screws and small parts
• You can find the INSTALLATION INSTRUCTIONS for download
• ATTENTION A PARTS CERTIFICATE is also available for this shifter . Entry in the vehicle documents for use in the area of ​​the STVZO is therefore possible without any problems in accordance with §19/3

• CAE Ultra Shifter for Audi A3/S3 8V & TT FV
   Technically also suitable for corresponding VW AG platform vehicles "MQB"
• Aluminum version, uncoated
• UNDERFLOOR VERSION ACCORDING TO THE SERIES PART
  , NO HOLES FOR SHIFTING CABLES NECESSARY, NO MACHINING OF THE CENTER CONSOLE, ONLY THE COVER FRAME MUST BE CUT OUT.
  THIS SHIFTER CAN BE INSTALLED PRACTICALLY INVISIBLY!
• Short and super-precise switching paths H-switched.
• The clutch system remains original.
• Racing look.
• Optimal ergonomics with the Focus Motorsport: Perfect positioning of the gear lever close to the steering wheel. The H circuit diagram is within approximately 70 x 70 mm.
• Reverse gear unlocking via cable pull from the shift lever. It is impossible to accidentally engage R gear. The reverse gear is unlocked by pulling up the sliding sleeve on the shift lever.
• Low weight and high stability: The milled and turned parts are made of 7075 aluminum, the substructures are made of laser-cut, 3 mm thick aluminum sheet AlMg3. The parts are joined together using TIG welding and brushed bright for an optimal finish.
• Easy gear changes under load or when cornering.

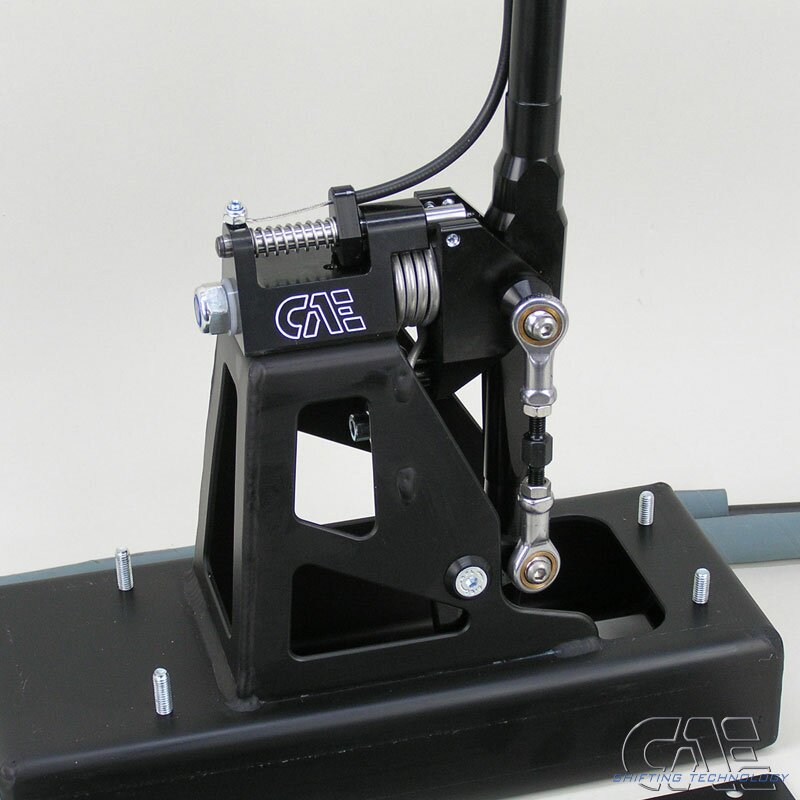

• Integrated middle position spring, resulting in perfect feedback when changing gears while upshifting and downshifting.
• Right/left stops and reverse gear stop can be adjusted separately.
• Easy installation thanks to the complete conversion kit, delivered with all small parts and fastening material
• Installation instructions can be downloaded here (PDF tab)
  Neither removal nor processing of the center console is necessary, only the cover frame needs to be processed

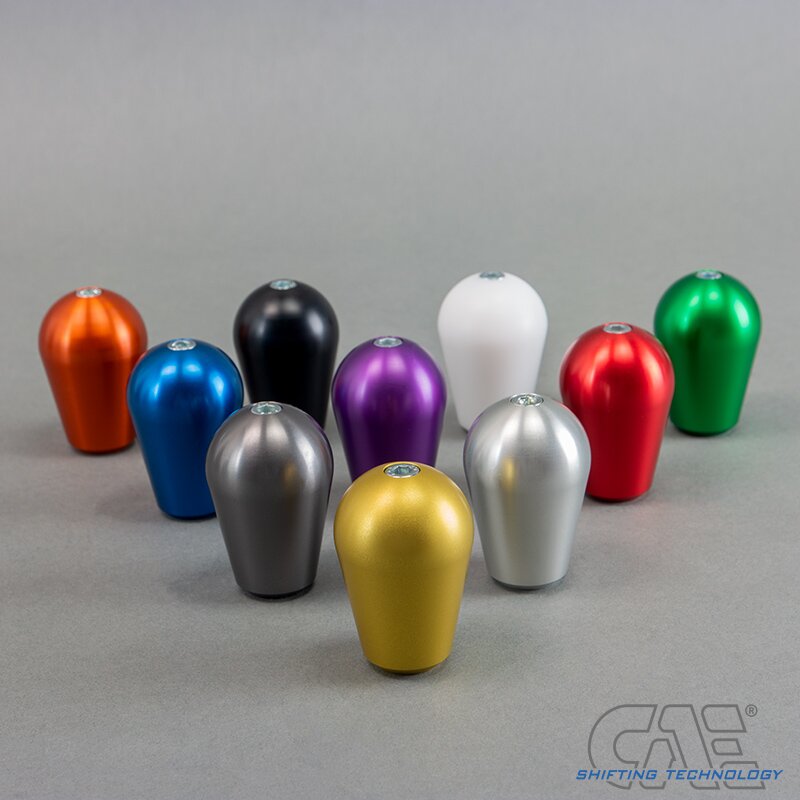

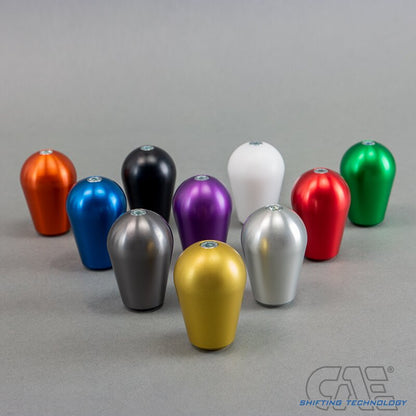

• Gear knob in different designs freely selectable.

Specifications

• Total height above: approx. 450 mm

• Total length above: approx. 300 mm

• Base plate dimensions: approx. 300 x 125 mm

• Switching path: approx. 70 mm

• Dialing path (transverse direction): approx. 70 mm

• Weight (complete): approx. 3.5 kg

• Shift knob offset (rear/top): approx. 50 / 100 mm

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

• Audi 8V/8V.2 A3 S3 3-Door/Sportback/ Saloon & Cabrio 2013 to 2018
• Audi 8S TT Mk3 2015 and later


Manufactured by

CAE Racing

10047HD AU-ALU (Aluminium, uncoated)

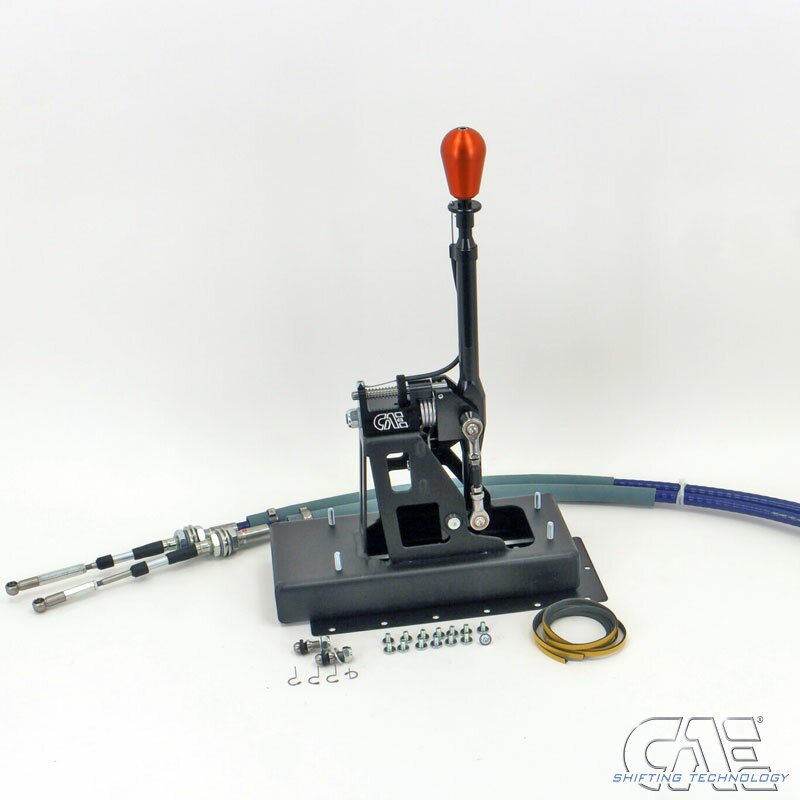

10047HD AU-EXS (Anodised Black Coating)
