CAE Street Edition Ultra Shifter for BMW models - optimised for motorsport. The street-friendly version of CAE’s best-selling Ultra Shifter.

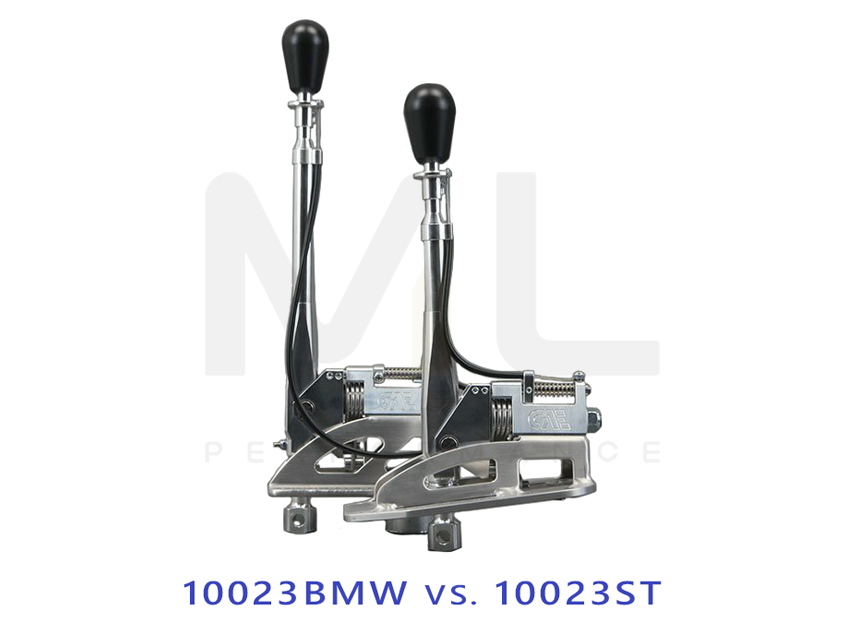

About 70mm less height compared to our 10023BMW and more moderate shift travel make this shifter the ideal companion in everyday life

Suitable for vehicles with 5 and 6-speed Getrag or ZF transmission, standard H pattern or dog leg.

Super-precise switching paths H-switched.

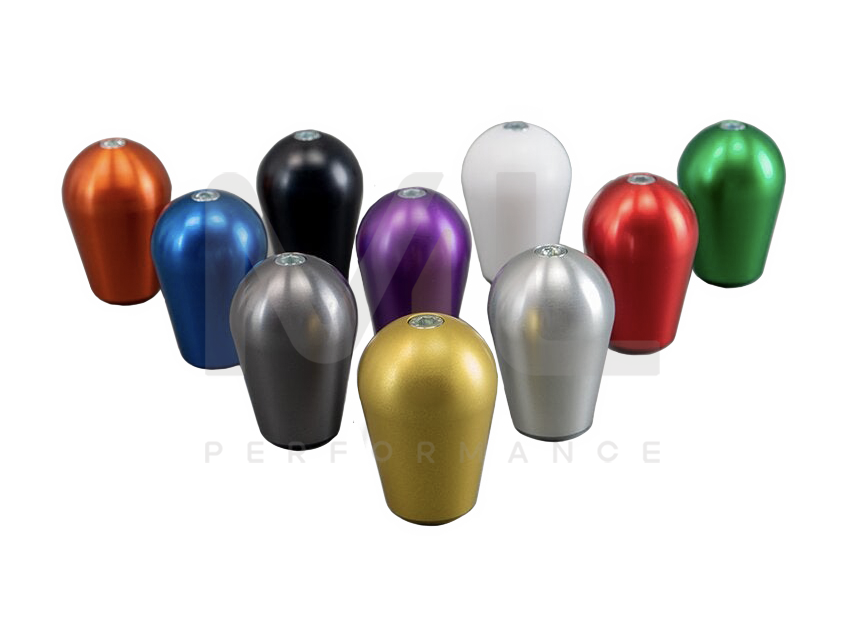

All shifters with supplied with anodised aluminium gear lever knob in the following colours: titanium grey (standard), blue, red, black, silver, orange, green, purple or gold; or black/white plastic.

• Perfect positioning of the shifter closer to the steering wheel. The H shift pattern is within about 75 x 75 mm.
• Reverse gear unlocking via cable pull from the shift lever. Accidentally engaging reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding sleeve on the shift lever.
• Low weight and high stability: The milled and turned parts are made of 7075 aluminum, the substructures are made of laser-cut, 3 mm thick aluminum sheet AlMg3.
  The parts are joined together using the TIG welding process and are brushed bright for an optimal finish.
• Trouble-free gear changes under load or when cornering.
• Integrated center spring, resulting in perfect feedback when changing lanes while shifting up and down.
• Right/left stops and reverse gear stop can be set separately.
• Shifter is delivered fully assembled for adaptation to the BMW shift rod, including all small parts, fastening material and detailed installation instructions.
• The center console only needs minimal modification for installation.

• Gear knob anodized in titanium grey, blue, red, silver or orange as well as in black or white plastic
  and available as an accessory with gray Alcantara covered with red or blue X-seam

Specifications

• Total height above sea level: approx. 315mm
• Total length above: approx. 184mm
• Dimensions base plate: 184x115mm
• Shift travel: approx. 75mm
• Dial path (transverse direction): approx. 75mm
• Weight (complete): about 1.1kg
• Shift knob offset (rear / up): depending on the vehicle type approx. 0 / 100 mm
• We recommend our shift rod 10023ROD-AL-___ (not included)

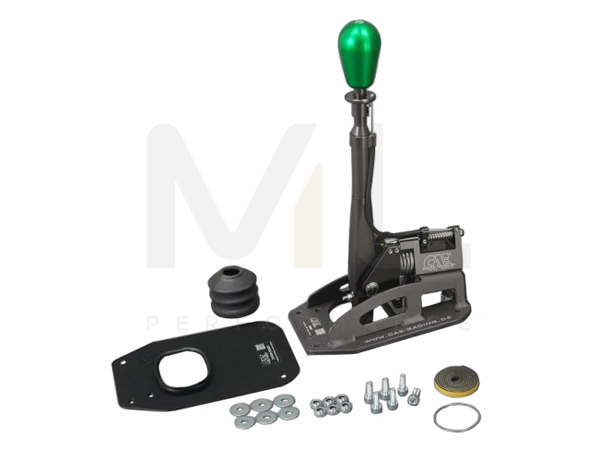

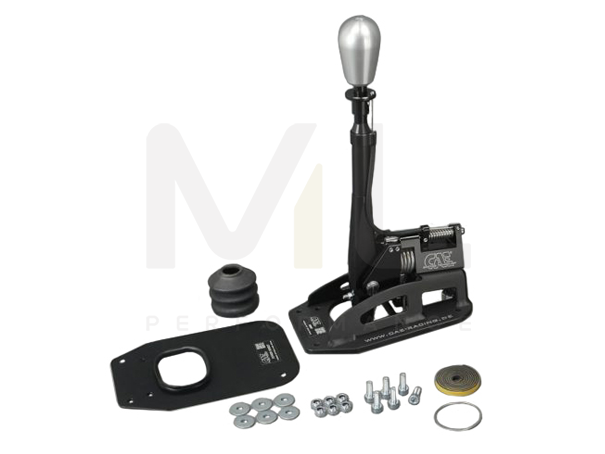

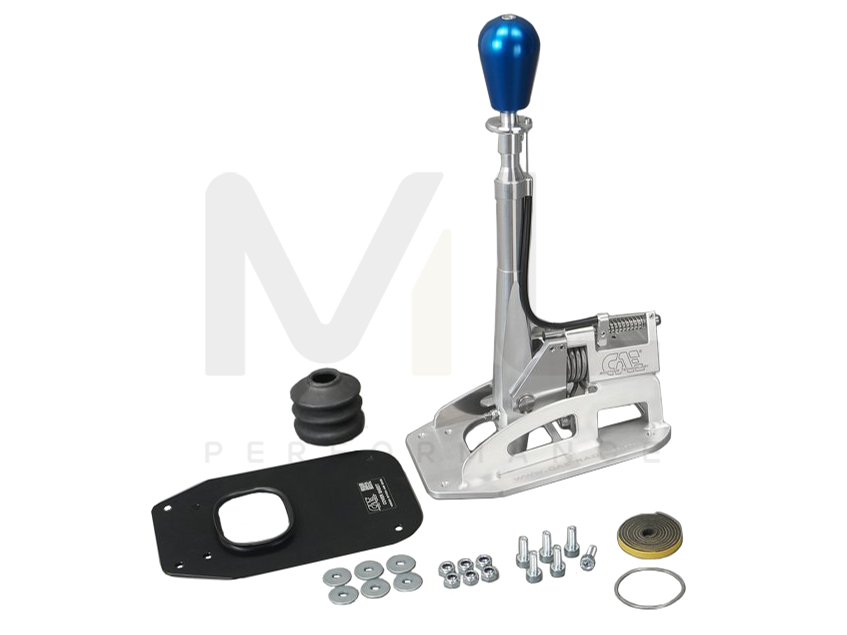

• Scope of delivery: Shifter fully assembled, all small and fastening parts, screws and small parts

BMW E10 ('02), BMW Z3 M, BMW Z3/E36 COMPACT, CAE RACING, E21, E24, E24 M6, E28, E28 M5, E30, E30 M3, E34, E34 M5, E36, E36 M3, E39, E39 M5, E46, E46 M3,

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

10023ST-ALU (Plain Aluminium)

10023ST-EXS (Black Anodised)

10023ST-EXGR (Grey Anodised)

Manufactured by

CAE Racing
