CAE Street Edition Ultra Shifter for BMW models - optimised for motorsport. The street-friendly version of CAE’s best-selling Ultra Shifter.

CAE Ultra Shifter for BMW F2X & F3X with manual 6 Speed Gearbox

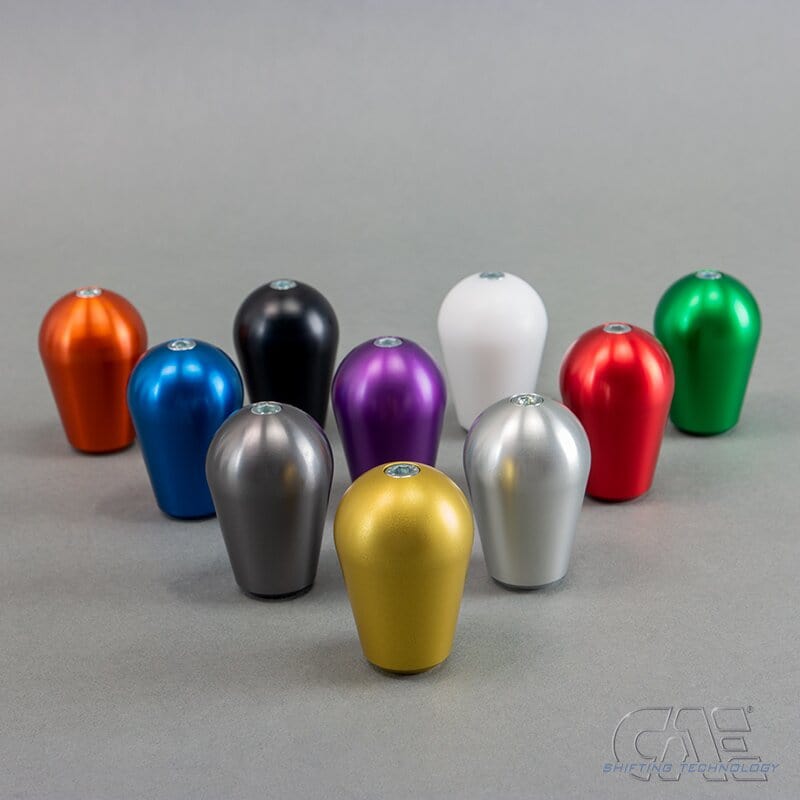

All shifters with supplied with anodised aluminium gear lever knob in the following colours: titanium grey (standard), blue, red, black, silver, orange, green, purple or gold; or black/white plastic.

We have further developed 85% of all components of this shifter to make it perfect.

• Complete kit for adaptation to BMW F2X & F3X with 6 speed manual gearbox standard H-pattern. (for M2 M3 M4 please select the appropriate shifter)

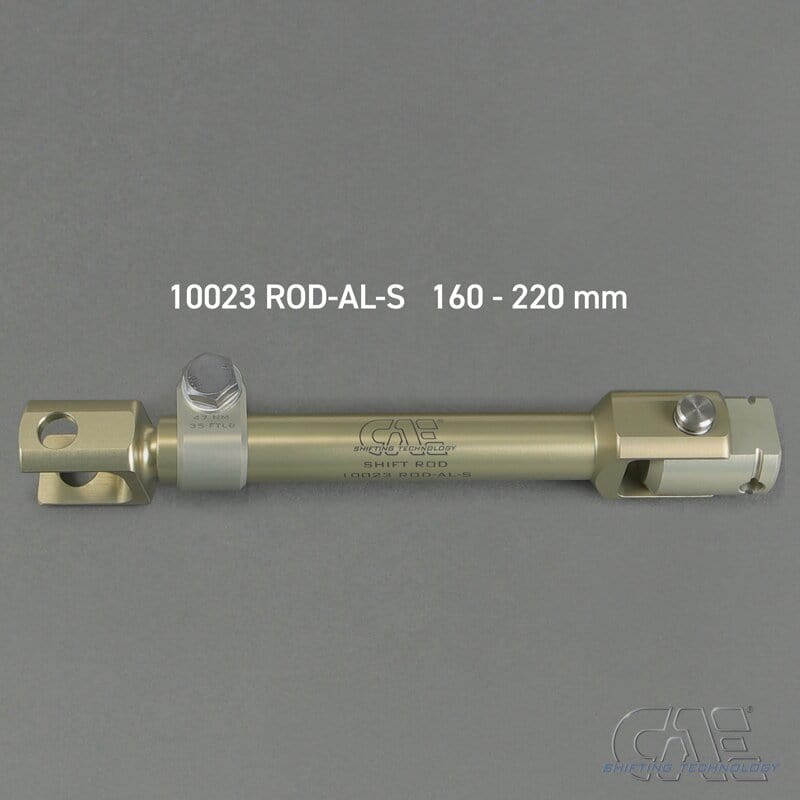

• This Shifter is technically equal with our F8X Shifter but will be delivered with shift rod S
• No drilling into the Tunnel Sheet required !!!
• Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift knob close to the steering wheel.
• The shift pattern is confined to approx. 75 x 75 mm, therfore super-precise shifting, exclusively H-pattern.
• The coupling system remains in its original form.
• Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.

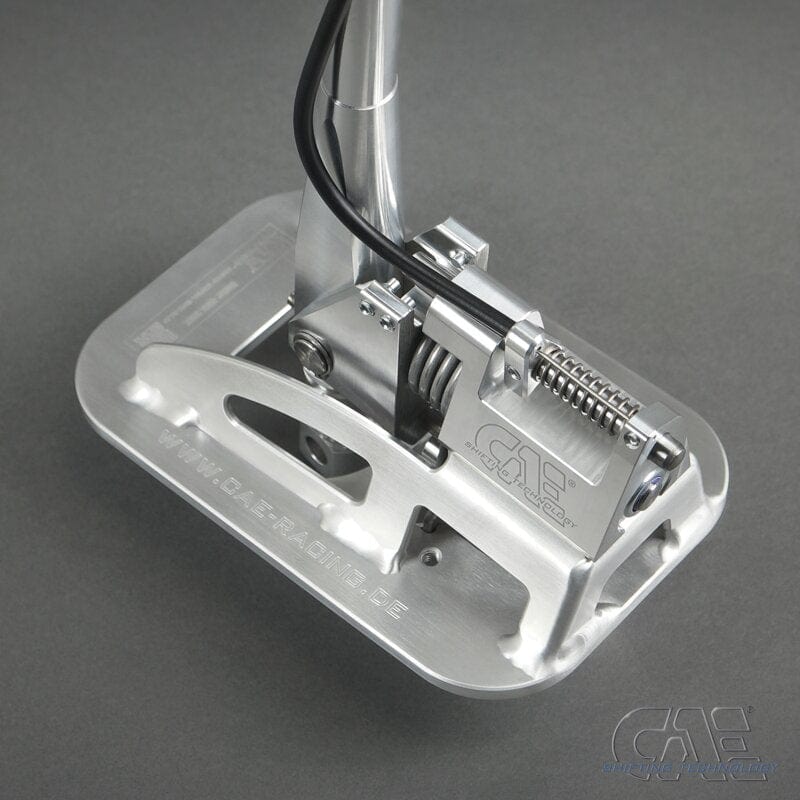

• Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3/ 6mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
• Problem-free shifting of gears under stress or in curves.
• Integrated 3/4 position spring, ensuring perfect feedback when changing alleys while shifting up and down.
• 1/2 - 5/6 and reverse alleys adjustable separately.

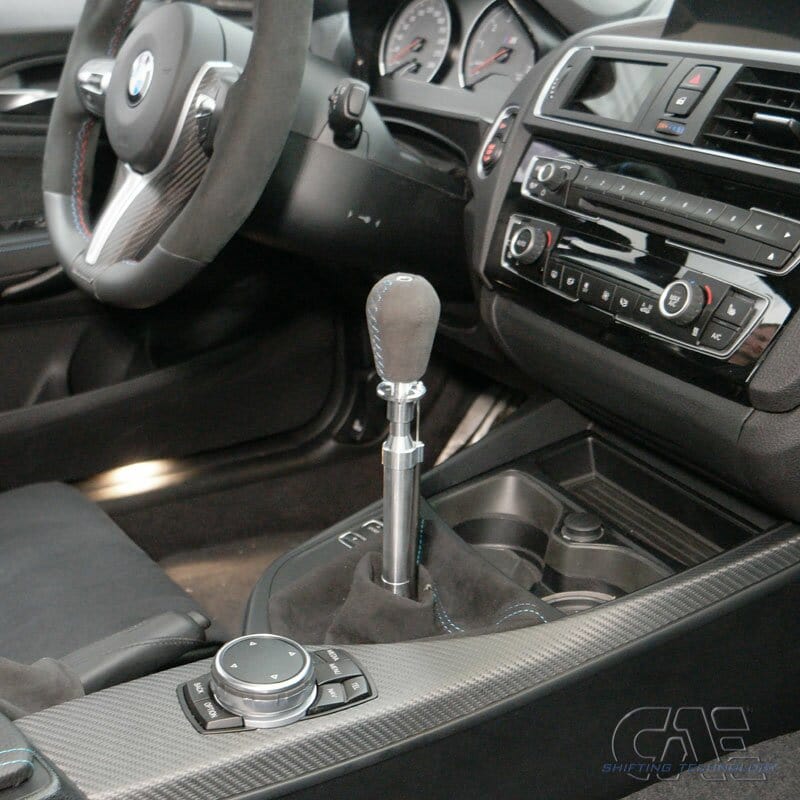

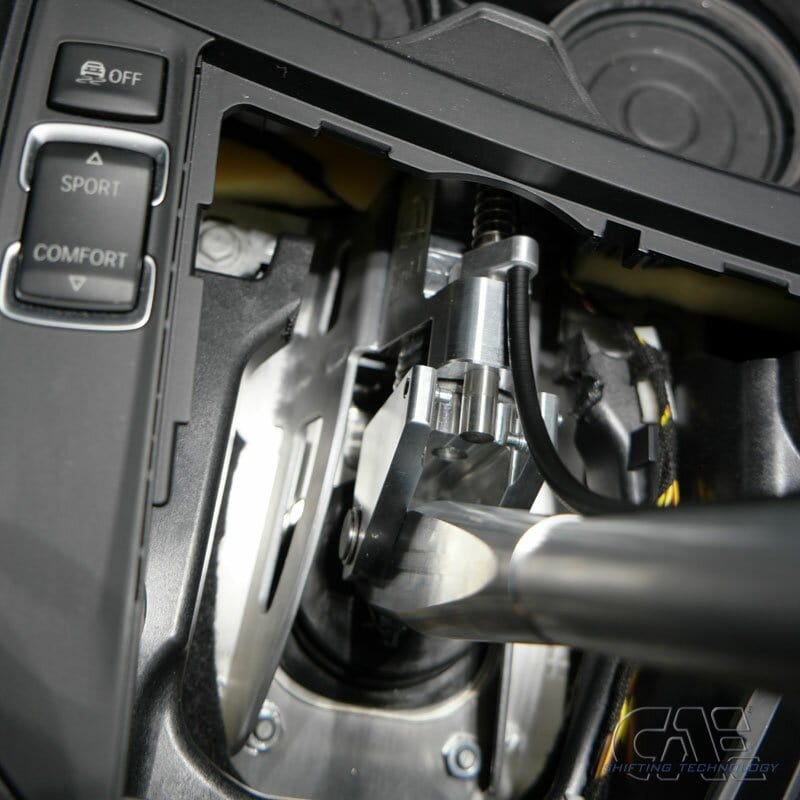

• Shifter is intended for vehicles with interior equipment, he can be installed nearly invisible
• The centre console have to be modified for fitting over the Shifter.
• Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.

Specifications

• Total height: approx. 375 mm
• Total length: approx. 180 mm

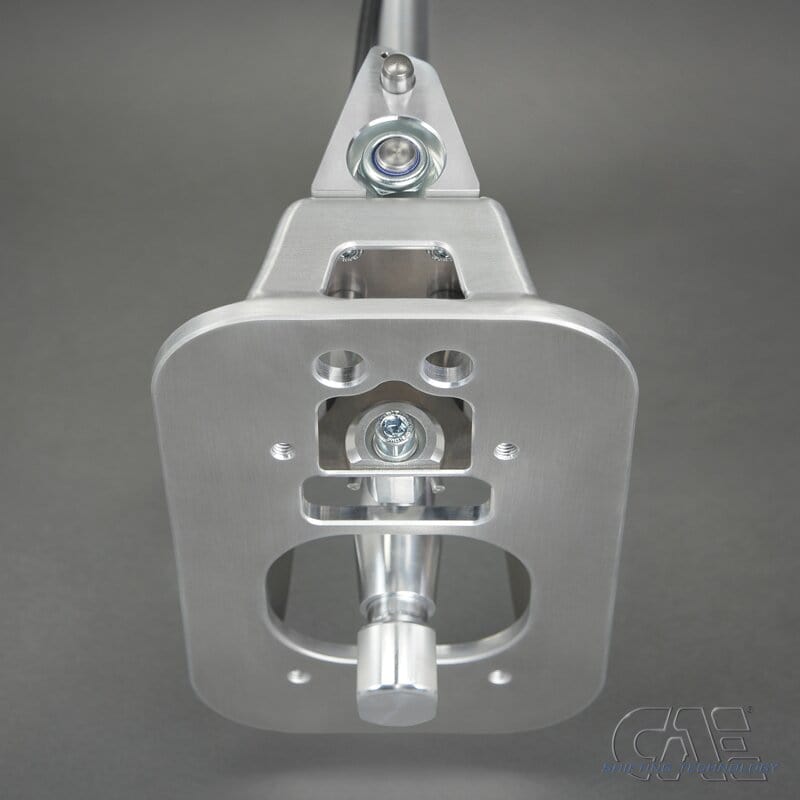

• Dimensions of base plate: approx. 180 x 115 mm
• Shifting travel: approx. 75 mm
• Selector travel (transverse direction): approx. 75 mm
• Weight (complete): approx. 1,66 kg
• Offset of the gear lever knop (back / up): depending on vehicle type approx. 0 / 100 mm

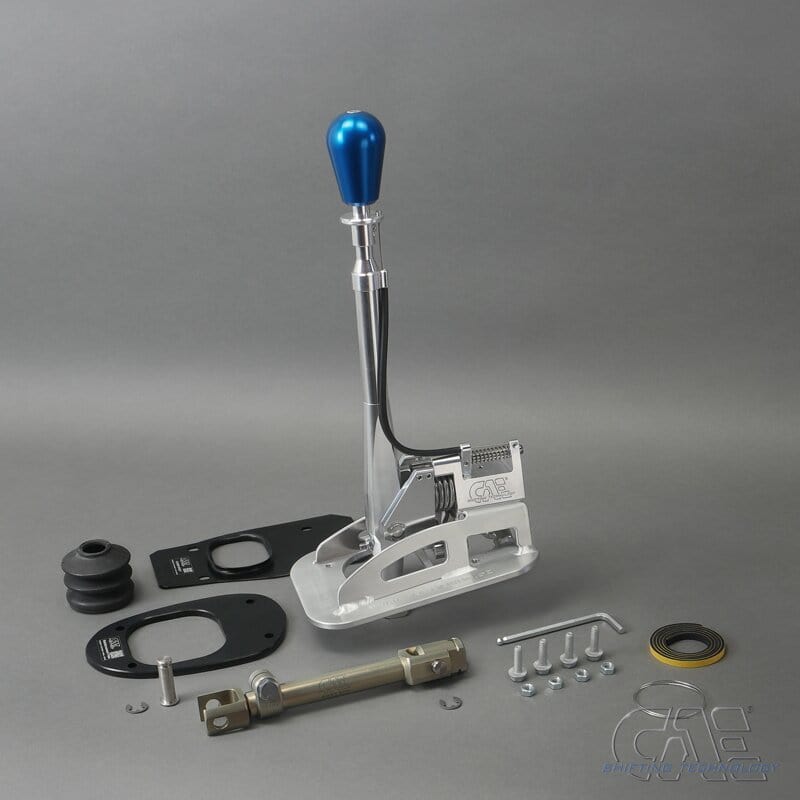

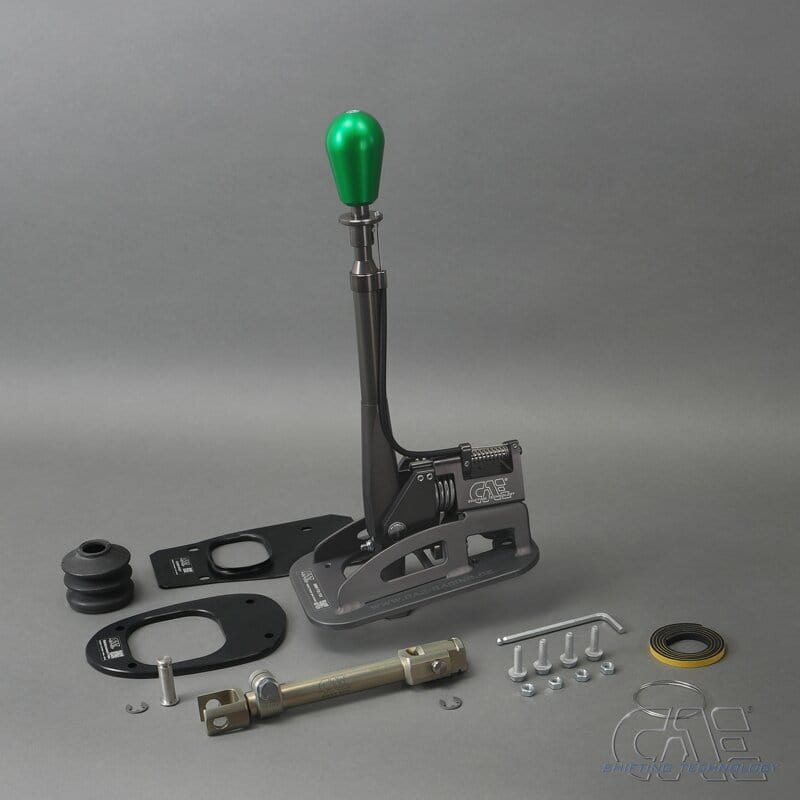

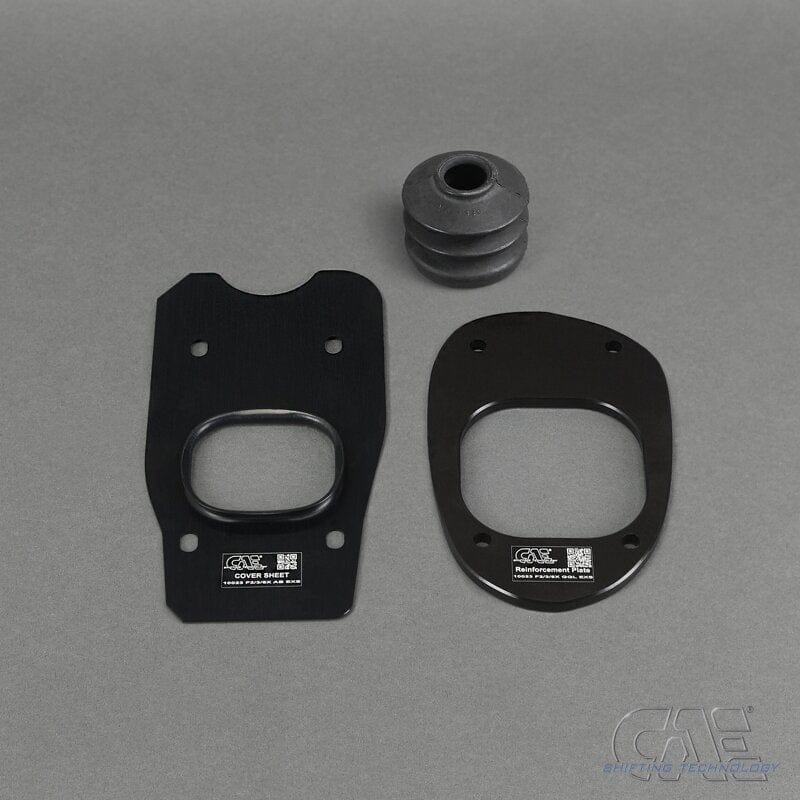

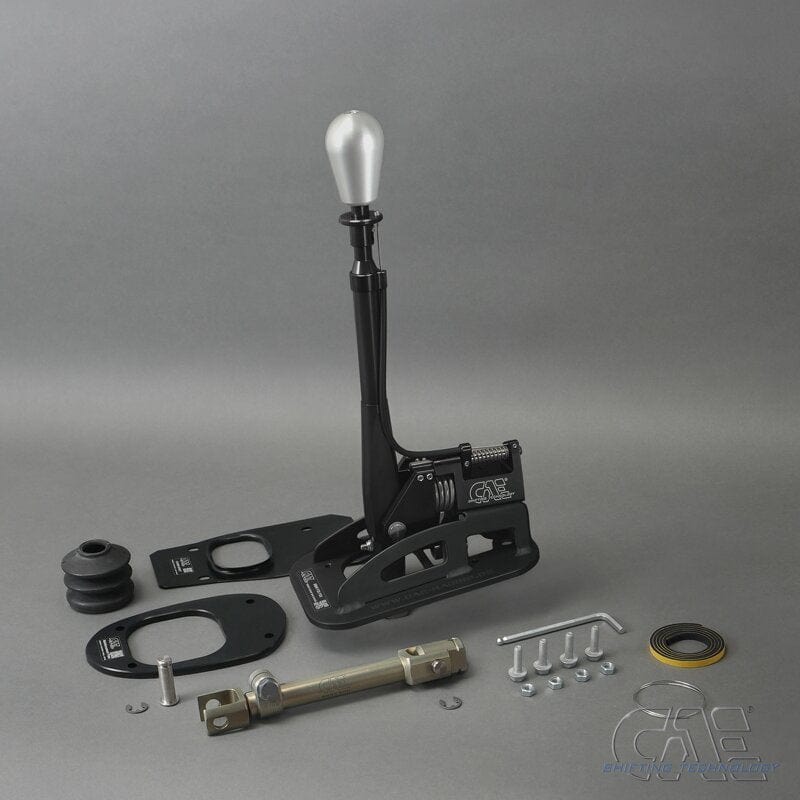

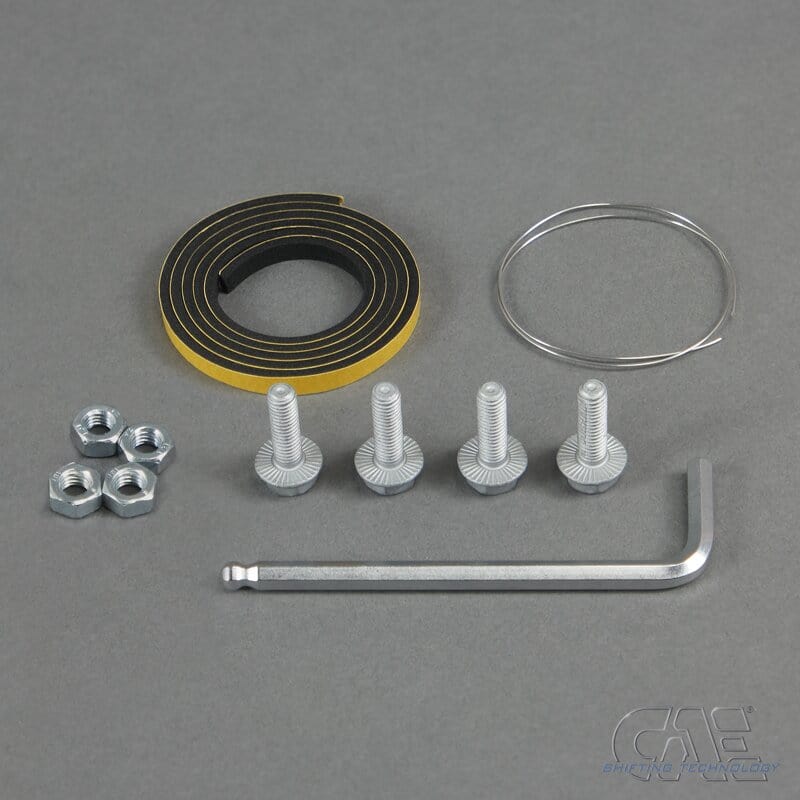

Delivery: Shifter completely assembled, CAE Shift Rod "S", Cover plate with rubber boot all screws and small parts

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



10023 F2/3X-ALU (Plain Aluminium)

10023 F2/3X-EXS (Black Anodised)

Manufactured by

CAE Racing
