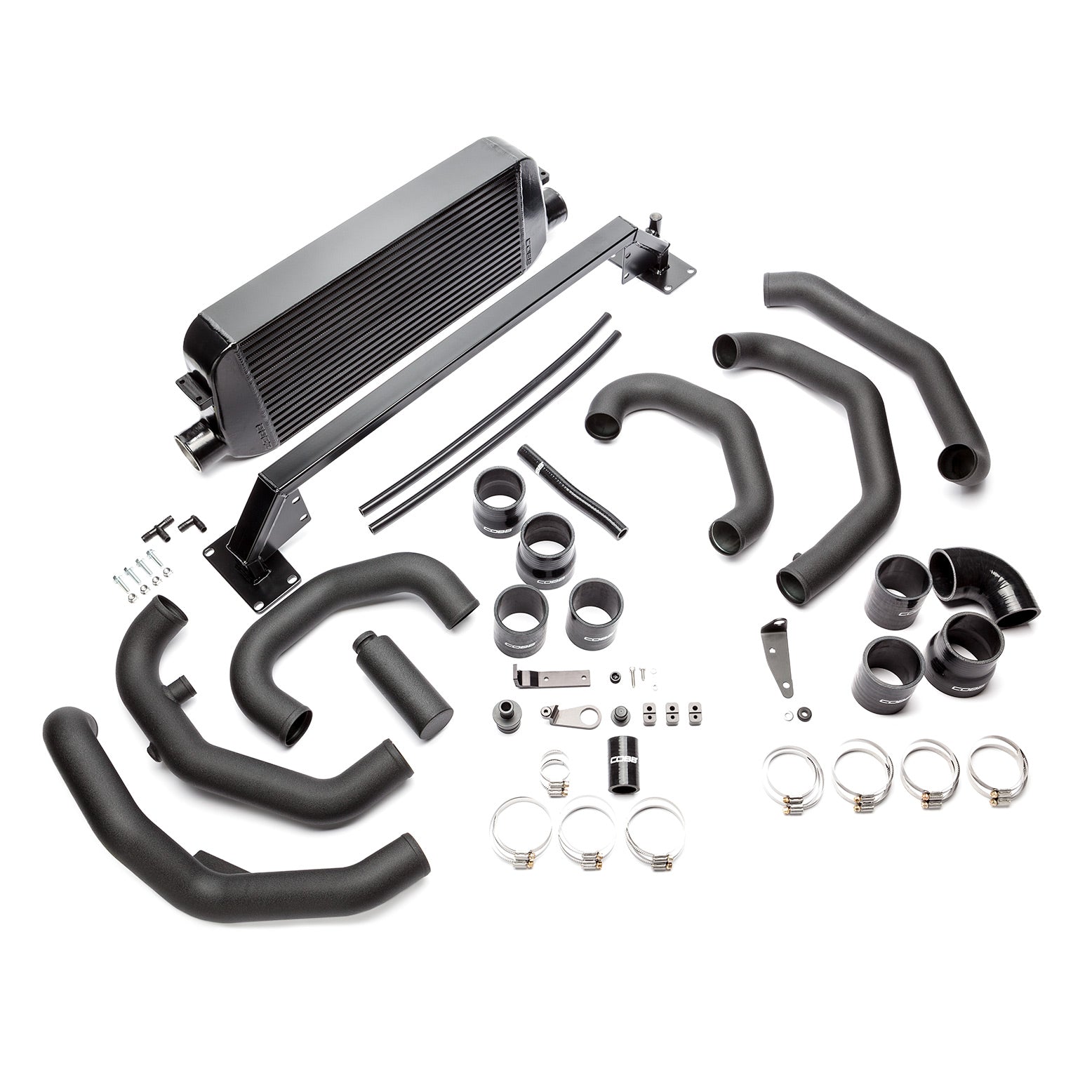

Remove the overworked factory intercooler from your 2015+ STI in favor of the Black COBB Front Mount Intercooler Kit. Featuring a massive 24" x 11" x 4" Bar and Plate core and 2.5" piping, this kit is capable of supporting in excess of 800 whp. The intercooler core is finished in a black heat-dissipating coating. The piping is mandrel bent aluminum and finished in wrinkle black powder coat to keep the engine bay tidy. An included BPV adapter plate will allow installation of the factory bypass valve, COBB XLE BPV, or any valve with factory-like fitment. The cold side piping includes an integrated bung for an Intake Air Temperature sensor which makes for a straight-forward Speed Density conversion. The COBB FMIC is designed to work with the COBB SF Intake and Airbox combination. Compatibility with other intake kits cannot be confirmed. A feature unique to this intercooler kit is the integrated mounting provision for a factory tow hook or license plate relocation bracket.

FEATURES

Subaru Front Mount Intercooler Kit (Black) STI 2015-2017

30" x 10.35" x 3.5" Bar and Plate Core (Silver)

Integrated IAT Bung in Charge Pipe

2.5" Black Powdercoated Aluminum Tubing

Compatible with OEM or COBB Bypass Valve

Compatible with COBB SF Intake

1 x Intercooler Core

1 x Bumper Beam

4 x 12mm Bolt

4 x 12mm Nut

1 x Coolant Overflow Reservoir

1 x Coolant Overflow Reservoir Bracket

2 x M6x16 Flange Head Bolt

1 x M6x25 Flange Head Bolt

1 x T-Fitting

1 x 90 Degree Fitting

1 x Upper Hot Pipe Support Bracket

1 x M6x20 Bolt

1 x 2' Vacuum Hose

1 x 6" Vacuum Hose

1 x Washer Fluid Reservoir Adapter

1 x Washer Fluid Reservoir Silicone Extension Hose

1 x Washer Fluid Reservoir Silicone Cap

3 x Spacer

2 x 10mm Bolt

1 x 10mm Nut

2 x Aluminum Bushing

2 x Rubber Insert Bushing

3 x Zip Ties

Hot Side Piping

1 x 3" - 2.5" silicone reducer

2 x 2.5" silicone coupler

1 x 2.5" - 2" silicone elbow

6 x #44 clamp

1 x #48 clamp

1 x #40 clamp

1 x lower hot pipe

1 x mid hot pipe

1 x upper hot pipe

Cold Side Piping

1 x 3" - 2.5" silicone reducer

2 x 2.5" silicone coupler

1 x 2.5" - 2.75" silicone reducer

1 x 35mm silicone coupler

1 x #48 clamp

7 x #44 clamp

2 x #20 clamp

1 x lower cold pipe

1 x mid cold pipe

1 x upper cold pipe

CONFIRMED APPLICATIONS

SUBARU

2015 Subaru WRX STI Sedan MT USDM

2016 Subaru WRX STI Sedan MT USDM

2017 Subaru WRX STI Sedan MT USDM
