Coolingmist Race Tank for water-methanol injection. Available in a variety of sizes and volumes.

The optional Coolingmist Universal Tank Sight Tube is also available as a separate purchase.

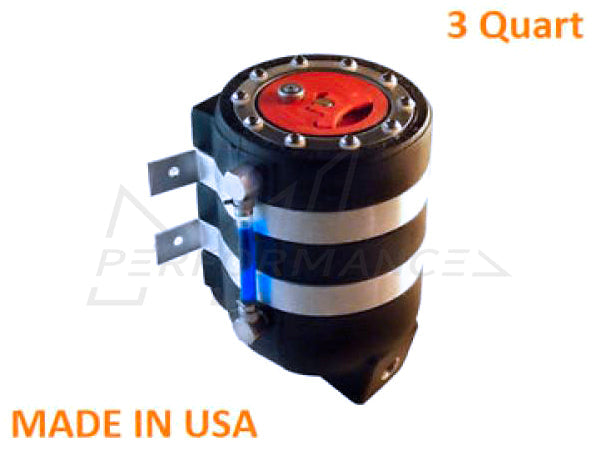

3-quart Race Tank Features

• 3-quart capacity
• Roto molded construction
• Flush mount fuel cell cap
• Vent built into cap
• Stainless steel cap ring and hardware
• Low level cavity designed into rear of tank
• Built in bottom sump
• 3/8 NPT threaded outlet port
• Brushed aluminum mounting brackets
• Includes mounting hardware
• 100% methanol compatible
• Dimensions: 10.0" tall x 6.0" width x 6.0" depth (8.0" width with straps)
• Special Notes:
• Does not include sight level gauge shown in picture.
• Tank outlet fitting is not included.

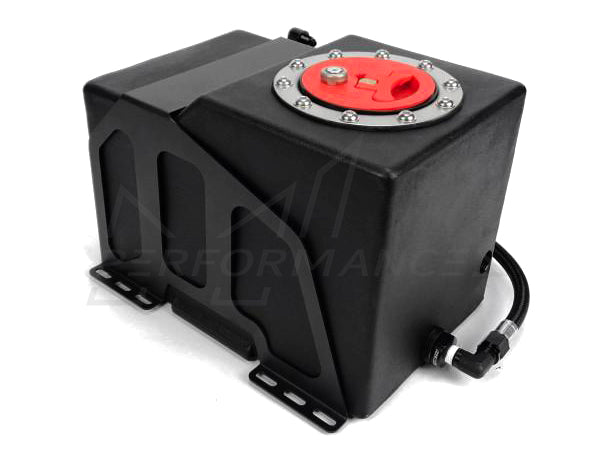

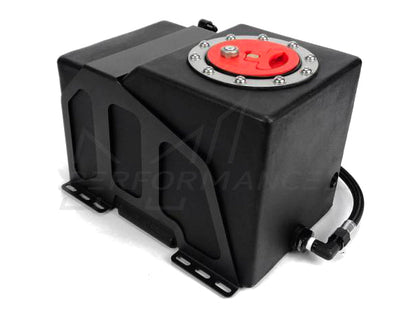

2 Gallon Race Tank Features

• 2 gallon capacity
• 100% methanol compatible
• Seamless roto molded construction
• 6AN stainless steel braided hose
• 6AN tank outlet fitting
• 6AN pump inlet fitting
• 4AN pump outlet fitting
• Flush mounted fuel cell cap
• Tank air vent integrated into cap
• Stainless steel cap ring and hardware
• Pump mount cavity designed into underside of tank
• Pump mounting inserts molded into tank
• Accepts Shurflo and Aquatec pumps
• Black powder coated aluminum mounting brackets
• Includes pump and bracket mounting hardware
• Dimensions: 13.0" length x 12.0" width x 8.0" height
• Special Notes:
• Will work with all Aquatec style pumps carried by competitors.
• This tank can be used with 3/8 NPT type pumps and pumps with 1/4" push to connect fittings built into the pump. Please select the type pump you are working with from the drop down menu above and we will provide the proper hose and fittings to match it.
• Does not include pump shown in picture.
• Does not include sight level gauge shown in picture - sight level gauge is optional
• Does not include low level sensor shown in picture - low level sensor is optional
• Tank was designed to be installed with the outlet fitting positioned towards the rear of vehicle. Doing so will insure pick up stays covered under acceleration.

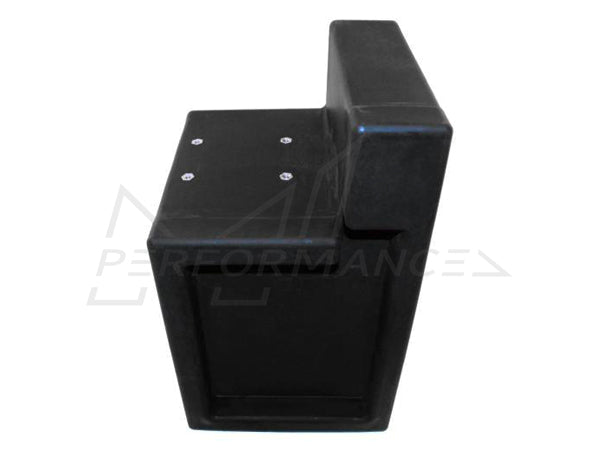

2.25 Gallon Race Tank Features

This 2.25 Gallon water-methanol tank has a built in sump and fluid control baffle. This eliminates the pickup being uncovered during sprinted driving. Because of the tanks quality design and it featuring a real sump in it, you can run the tank down to approximately 1 qt of fluid before uncovering the pickup. This tank is made with 1/4" thick HDPE, which is the same material and construction that is commonly used in manufacturing fuel cells. Dimensions are 8" x 13.5" x 8.5". So It's best suited for trunk placement.

This tank features a 3" opening for easy fill up. This tank can be used for any alcohol water mixtures. It's 100% methanol compatible. Tanks design also allows for proper ventilation for the pump heat. Vented cap is included. This tank does not come with drain fitting. We recommend our self sealing bulkhead.

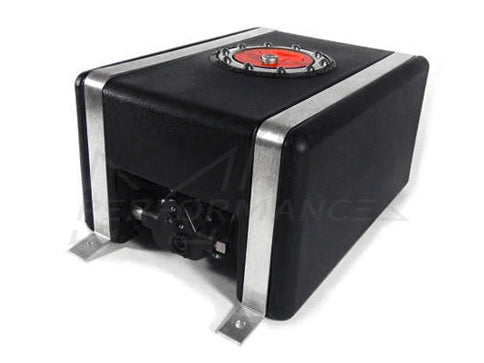

3 Gallon Race Tank Features

This is our 3 Gallon tank.  It integrates with your pump perfectly.  The design will narrow down to a very small angle so all the water/meth will drain into the pump no matter how hard you turn, accelerate or brake.  It will not create any air bubbles.

• 3 gallon capacity
• Built-in rear facing sump
• 100% methanol compatible
• Large 3/8 NPT thread outlet port
• Seamless roto molded construction
• 4AN stainless steel braided hose
• Flush mounted fuel cell cap
• Tank air vent integrated into cap
• Stainless steel cap ring and hardware
• Pump mount cavity designed into underside of tank
• Pump mounting inserts molded into tank
• Accepts Shurflo and Aquatec pumps
• Black powder coated aluminum mounting brackets
• Includes pump and bracket mounting hardware
• Dimensions: 15.5" length x 10.5" width x 8.0" height (18.5" length with straps)
• Special Notes:
• Will work with all Aquatec style pumps carried by competitors.
• Does not include pump shown in picture.
• Does not include sight level gauge shown in picture - sight level gauge is optional
• Does not include low level sensor shown in picture - low level sensor is optional
• Tank was designed to be installed with the sump/outlet fitting positioned towards the rear of vehicle. Doing so will insure pick up stays covered under acceleration.

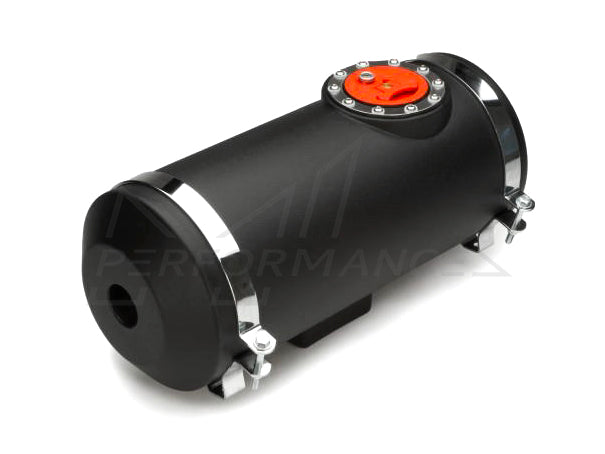

4.2 Gallon Race Tank Features

• 4.2 gallon capacity
• Roto molded
• Flush mount fuel cell cap
• Vent built in to cap
• Stainless steel cap ring and hardware
• 3/8 NPT threaded outlet ports (2)
• 3/8 NPT threaded return port
• Built-in sump with over head baffle
• Heavy duty chrome plated steel tank brackets
• Mounting hardware and rubber bushings
• 100% methanol compatible
• Dimensions: 23.0" long x 8.0" wide 10.25" tall
• Special Notes:
• Tank fitting included. Please select proper tank fitting to match hose size being used.
• Low level sensor is not included and provided as an option.
• Recessed receptacles for mounting low level sensor are located midway on each side of the tank.
• When positioning tank parallel to vehicle its recommended you locate the sensor towards the rear of tank.

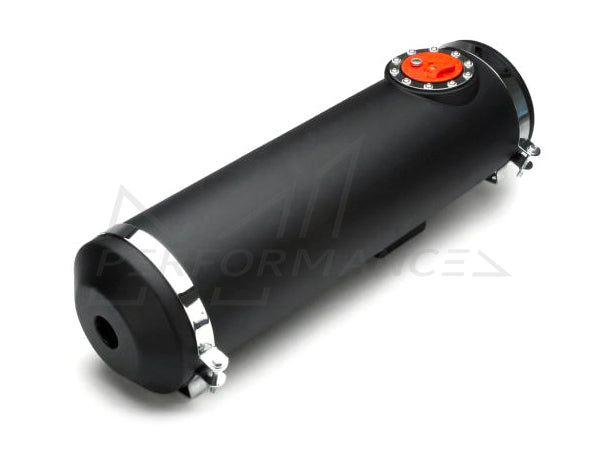

6.6 Gallon Race Tank Features

• 6.6 gallon capacity
• Roto molded
• Flush mount fuel cell cap
• Vent built in to cap
• Stainless steel cap ring and hardware
• 3/8 NPT threaded outlet ports (2)
• 3/8 NPT threaded return port
• Built-in sump with over head baffle
• Heavy duty chrome plated steel tank brackets
• Mounting hardware and rubber bushings
• 100% methanol compatible
• Dimensions: 30.0" long x 8.0" wide 10.25" tall
• Special Notes:
• Tank fitting included. Please select proper tank fitting to match hose size being used.
• Low level sensor is not included and provided as an option.
• Recessed receptacles for mounting low level sensor are located midway on each side of the tank.
• When positioning tank parallel to vehicle its recommended you locate the sensor towards the rear of tank.

Universal

3qtrace (3-quart Race Tank)

PM2g (2 Gallon Race Tank)

racetank (2.25 Gallon Race Tank)

3grace (3 Gallon Race Tank)

4.2gtank (4.2 Gallon Race Tank)

6.6gRT (6.6 Gallon Race Tank)

Manufactured by

Coolingmist
