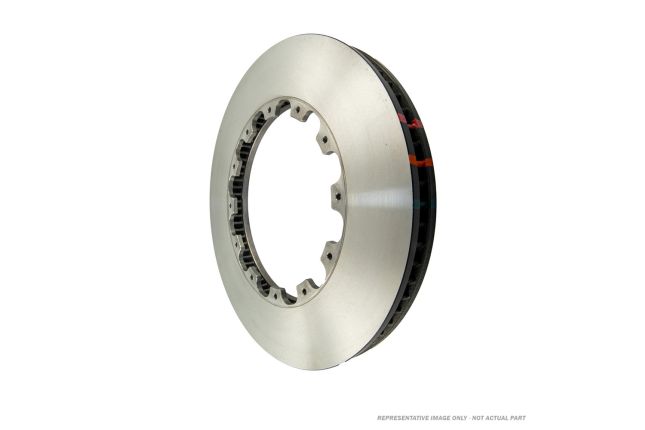

The 5000 Series HD replacement rings from DBA are designed for enthusiasts and professionals alike, they boast a host of features that set them apart. Crafted from premium materials and utilizing state-of-the-art manufacturing processes, these rings are engineered to meet the demands of high-performance driving. The heat-treated cast iron construction ensures superior strength, while the advanced metallurgy enhances thermal stability, reducing the risk of brake fade even in the most challenging conditions. DBA 5000 Series direct replacement rotors are offered in two options: complete assemblies, where the hat and rings are bolted together for straightforward replacement, or as individual replacement parts, allowing for the replacement of hats or rings as needed. The option to replace only the cast iron rotor rings, while keeping their previously used aluminium hats is not only cost effective for those that are hard on brakes, but it allows for easy replacement of DBA hats or rings. We recommend that aluminium hats should always be thoroughly inspected for damage and wear when only replacing the 5000 Series rings, along with the use of DBA spec bolts and nuts. When tightening the NAS nut and bolt assembly a 13 Nm or 9.6 ft lb of torque is recommended.

• Bolt Circle Diameter mm 92.07
• Bolt Hole Quantity 5.00
• Disc Diameter (mm) 356
• Disc Finish Plain (Blank)
• Disc Height (mm) 49.50
• Hub Hole Diameter (mm) 62
• Disc Side Left/Right
• Disc Size 356x28mm
• Max Thickness 28
• Min Thickness 26
• Disc Vane Style Curved Vane
• Disc Type Vented
• Disc Quality Premium
• Material Cast Iron
• Package Contents 1x Brake Disc

This information can be found above, but feel free to contact us at info@mlperformance.co.uk should you require any assistance!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

DBA-53922.1

Manufactured by

DBA Brakes
