Enhance your S58 engines performance with the do88 Charge Cooler Manifold!

Background
The S58 engine, introduced with the G80/82 M3/M4 2021+, has proven to be a real gem of an engine, capable of high outputs with great character. However, there are a few week points that needs addressing, both for performance and reliability. The S58 comes equipped with a water-to-air charge cooler that is coupled a with front-positioned heat exchanger (water radiator). The heat exchanger serves to cool the water circulating through the charge air cooler, which in turn helps dissipate heat from the charge air before it enters the engine.

Challenges with the factory components

The charge air cooler is integrated into the intake manifold on the S58, making it an intricate and dense construction, demanding accuracy in the design and execution by us as an aftermarket producer. This design that merges the intercooler with the intake manifold is effective; however, its performance is compromised by the tube-and-fin core that is attached to the thermoplastic tanks through crimping. These crimped connections have emerged as a significant vulnerability, with numerous instances of failure occurring with boost just a bit beyond the factory level.

Owners of tuned S58 engines often confront the issue of rapid heat soak in the charge air cooling system, particularly when the vehicle is used for track days. Elevated intake air temperatures may prompt the ECU to decrease the power output, or even switch the car into limp-home mode.

Additionally, the factory installed direct injection system, with its obvious benefits, is not well suited for insane horsepower applications or ethanol flex fuel usage. To be able to inject more fuel, many turn to modifying the stock intake by drilling holes for port fuel injectors.

As is often the case, factory components can become limiting factors when you strive for high power levels, particularly in terms of airflow. The factory (OE) intake manifold is such a component, that not only restricts airflow but also poses a significant risk of cracking under high boost levels, due to its plastic construction.

The do88 solution

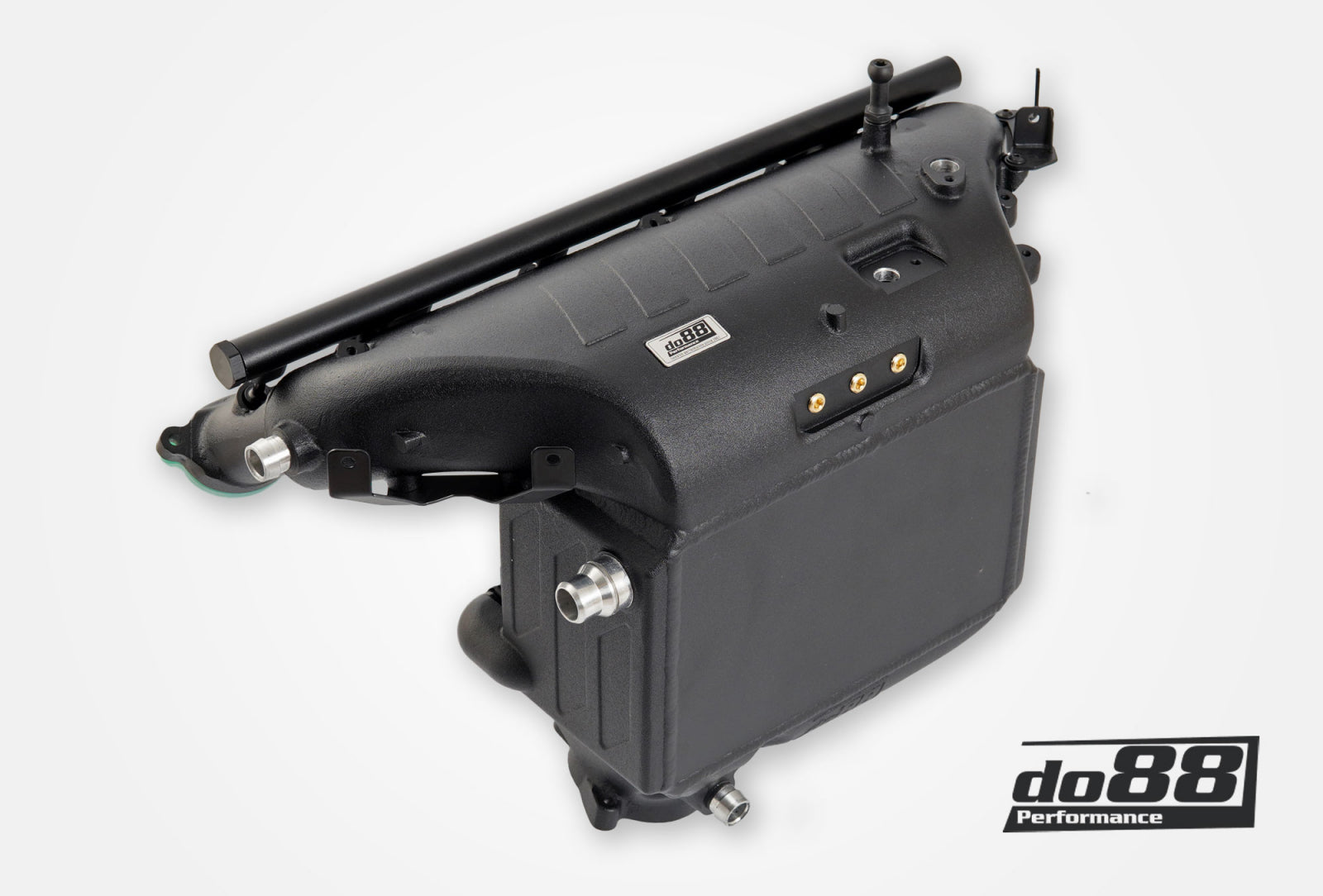

Bar&Plate core
Our manifold features a Bar&Plate design air-water core, which incorporates densely stacked cooling fins, offering great heat transfer. The core is precisely 127 mm (5 inches) thick, maximizing its effectiveness for this specific application. Our core is remarkably 62 percent larger than stock! Both the air and water fins´ characteristics have undergone careful evaluation to achieve the ideal balance between optimal cooling and airflow.

Innovatively designed cast end tanks
The charge air and cooling water are evenly distributed across the core through carefully designed, cast end tanks. The development of these end tanks involved a comprehensive process, including 3D-scanning, multiple design iterations followed by Computational Fluid Dynamics (CFD) analysis and 3D-printing, before arriving at the finalized prototype. We opted for cast end tanks over CNC-machining. Casting allows complex shapes that better serves the desired function. To us, maximum performance supersedes the bling factor!

Key Features

Versatile Manifold Design: From Fuel Injection to Power Modifications
Our manifold outlet tank is pre-configured to accommodate auxiliary port fuel injection. A custom-made fuel rail with female AN-8 threads is included, this easily installs to the outlet tank. We designed it for compatibility with Injector Dynamics ID1050x-34-14 or Bosch EV14 (short) fuel injectors. If you opt to not use port fuel injection, we provide injector blanking plugs for your convenience. Additionally, each cylinder runner on the outlet tank is equipped with a 1/8"; NPT port, suitable for nitrous or methanol injection - a commonly used power modification for the S58 engine (sealing plugs are included).

Extra Measurement & Vacuum Ports
Integrated into the side of the manifold outlet tank, do88 has incorporated a 3-port pad directly into the casting. This feature offers the flexibility to measure additional parameters or serve as an extra vacuum source. Should you choose not to utilize these three 1/8"; NPT ports, sealing plugs are provided in the included hardware kit.

Advanced Thermal Management
Included with the intake manifold is a special thermal barrier spacer, engineered to insulate the aluminum intake manifold from conductive heat transfer from the cylinder head. This barrier effectively lowers intake air temperatures (IAT´s), enhances the efficiency of the charge air cooler, and helps minimize the issue of heat soak. Unlike the OE plastic intake manifold, the do88 manifold is made from aluminum, capable of withstanding higher boost pressures. The thermal barrier spacer reduces the conductive heat transfer, otherwise typical to aluminum components. The spacer features a robust seal, achieved through custom-made, high-specification FKM-silicone O-rings. These O-rings are installed in precision-machined grooves for a secure fit. This approach offers a significantly better seal compared to other competitors´ methods, which often rely on less reliable sealing agents.

Product Details:

• Utilizes a high performance, Bar&Plate, air-to-water intercooler core, 127 mm (5";) thick.
• Maintains low air intake temperatures and shows improvement over the OE charge cooler manifold. 28,5°C compared to OEM 33°C. Exact figures to be found in the diagrams under the product pictures.
• More air to your engine, less backpressure and better airflow! Airflow at 0,05 bar / 0,73 psi pressure drop: 511 CFM (422 CFM), 21% higher! See diagram under the product pictures.
• Designed in SolidWorks using Computational Fluid Dynamics (CFD).
• Easy access to spin-off oil filter for quick oil changes "" no need to remove the manifold every oil change.
• Integrated sensor pad with three 1/8"³ NPT ports to measure additional parameters (sealing plugs are included).
• Fuel rail is included for auxiliary top feed port injection.
• Fuel injector plugs for each cylinder runner is included.
• Individual 1/8"³ NPT ports on the top of each cylinder runner for nitrous or meth injection (sealing plugs are included).
• Plug-and-play design, see installation instruction.
• Included are all the essential brackets needed for various components, such as wire harnesses.
• Thermal barrier spacer included, engineered to insulate the aluminum intake manifold from conductive heat transfer from the cylinder head.
• Custom made high spec FKM-silicone O-rings included for both the thermal barrier spacer and intake manifold (12 pcs in total).
