DO88 High Performance Intercooler Pressure Pipe & Hose Kit

To Fit:

• Audi A3/S3 (8V) 2012 to 2019 1.8, 2.0TFSI
• Suitable for cars with 6 or 7 Speed DSG and manual gearboxes.

The best AUDI SEAT SKODA VW 1.8 / 2.0 TSI performance intercooler pipe kit on the market!

This kit is built for people with significant horsepower goals, and who also want the absolute best! Our pressure pipe kit has considerably better airflow than the stock pipe. This has been verified in several tests, both in car and in our own in-house SuperFlow SF-1020 flow bench.

Significant advantages with do88 pressure pipes (OEM pipes):

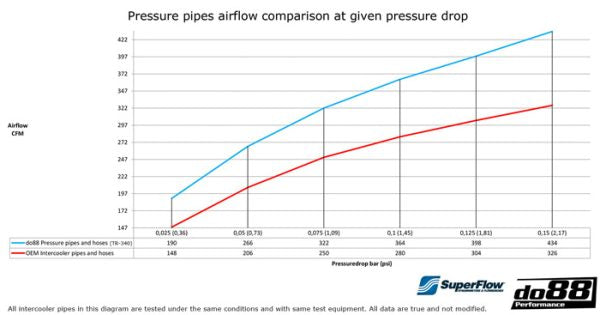

• Air flow at 0,1bar/1,45psi pressure drop: 364CFM (280CFM), do88 30% higher! See diagram below.
• Designed to handle high pressure and temperatures!
• The pipe has one methanol injection connection (1/8 -27 NPT). The pipe is delivered with blanking plug in this connection.

Click here for installation guide!

The pressure pipe is manufactured in 63mm (2,5i mandrel bent seamless aluminium pipe. Custom made high quality silicone hose with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler pipes and hoses were designed for the power level that the car was built for and that a power increase or even very hard use of the car in a standard version may cause the OEM pipes and hoses to lack the performance you need. So after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!

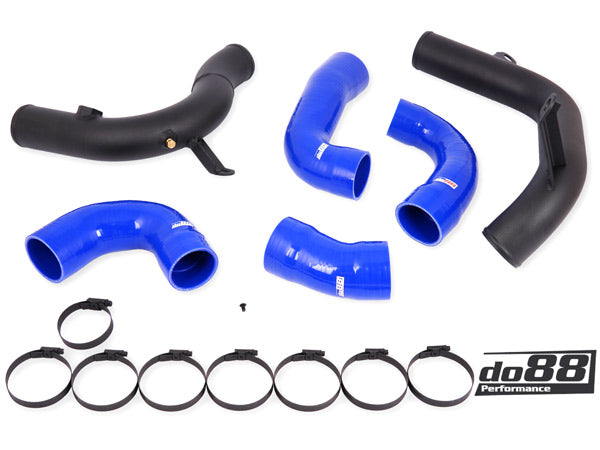

do88 pressure pipes comes with all hardware necessary for installation. Included parts in this kit:

1. Aluminum pressure pipe 2pcs
2. Silicone hoses 4pcs
3. Standard hose clamps 8pcs
4. Installation accessories

When you order this kit, there are two choices that need to be made:

Available colour options for this intercooler pipe set are:

• Blue, black or red hoses
• Intercooler: Select which intercooler you have on your car. OEM or do88 Performance intercooler.

OEM Part number reference: 5Q0145828, 5Q0145832, 5Q0145832D, 5Q0145834, 5Q0145838, 6C0145838A, 5Q0145840, 5Q0145770B, 6C0145770A

DO88 Reference: TR-340, TR340, TR-340-do88-3-R, TR-340-do88-3-B, TR-340-do88-3-S, TR-340-OE-3-S, TR-340-OE-3-B, TR-340-OE-3-R

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Manufactured by

DO88
