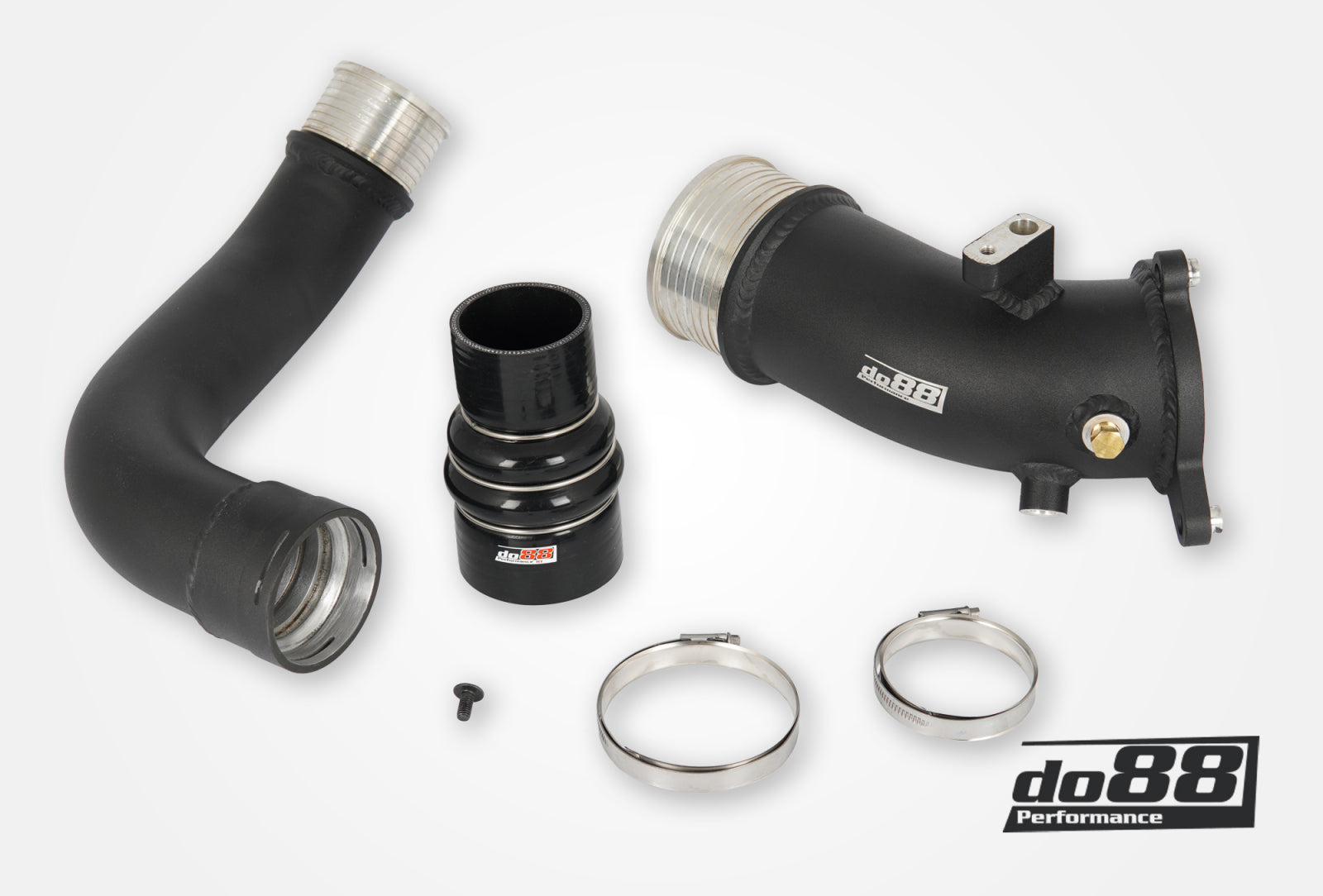

Upgrade your engine with the do88 charge pipe kit for B48/B46 found in BMW 230i, 330i and 430i and more!

BMW often uses plastic for their OEM charge pipes. This choice, although cost-effective for the manufacturer, isn't always suitable for handling pressurized air. As the plastic ages or if the boost in your car increases, these pipes are prone to failure.

A failing charge pipe can result in reduced power, known as the limp mode, or the car might shut down entirely, requiring the pipe to be replaced before it can start again. This could potentially leave you stranded.

Many aftermarket charge pipe kits for the B48 engine are available, but in our opinion, most are not properly designed. Many competitors use a basic design: two pipes joined by a straight reducing silicone hose. It's evident they haven't understood the importance of handling the thermal movement in this system. Such design is almost certain to cause problems with the hose popping off due to it does not allow movement from temperature changes. A common solution people think of is tightening the clamps more, but this will in most cases break the pipes since it will deform the clamping surface.

But we've taken a different approach at do88. For us it was clear the system needs a flexible connection in-between the two pipes which can handle the thermal expansion / contractions. Our solution is an aramid reinforced silicone hose with 3-humps. This hose design allow movement in any direction without folding or putting the connections at stress. To further strengthen our design the pipes have CNC-machined 6063 hose connection ends with 3mm wall thickness. These hose connections won't deform even for overtightened hose clamps.

Our charge pipes don't only solve the durability but of course also improve the performance. We designed our pipes with a larger diameter and smooth mandrel bends to enhance the performance. The lower pipe measures 60mm (2 3/8";) and the upper pipe 76mm (3";), they effectively reduce the pressure drop and cut down on turbulence.

Our charge pipe, which connects to the throttle body by its CNC machined flange, has two 1/8 NPT ports suitable for methanol injection or outlets like a boost pressure sensor. Additionally, we provide two 1/8 NPT plugs for those who choose not to use these ports.

Features:

• Flexible hose connection in-between upper and lower charge pipes allowing movement which prevent the hose from popping off.
• Special designed 3-humped reduced silicone hose reinforced with high temperature rated aramid fabric and outer stainless-steel rings.
• Super high quality hose clamps from Mikalor included. These clamps are fitted with an inner-ring inside the clamp that prevents damage to the hose as well as distributing the pressure of the clamp evenly around the hose.
• Better air flow and less backpressure for your engine!
• 12 % more flow than OEM, with 558 CFM @ 150mbar (2.17psi) compared to the OEM 500 CFM.
• CNC machined hose connections with matching inner diameter to the pipe that gives a deformation safe hose clamping surface.
• CNC machined MAP sensor boss, turbo and throttle body connections.
• CNC-machined (2x) 1/8 NPT connections, perfect for methanol injection or as outlets for example boost pressure sensor.
• Two 1/8 NPT plugs are included if you don't use the ports.
• Mandrel-bent 60mm (2 3/8";) and 76mm (3";) charge pipes coated in a stylish black powder coat.
• Does not interfere with the engine cover.
• Includes all hardware and instructions for complete installation

Toyota GR Supra MK5 (A90)
Engine: B48
Model years: 05/2019 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 1' 120i 125i (F20 F21)
Engine: B48
Model years: 09/2015 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 2' 220i 230i 230iX (F22 F23)
Engine: B48 B46
Model years: 09/2015 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 3' 320i 320iX 330i 330iX 330e (F30 F31 F34)
Engine: B48 B46
Model years: 09/2014 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 3' 330i 330iX 330e (G20 G21)
Engine: B48 B46
Model years: 10/2017 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 4' 420i 420iX 430i 430iX 330e (F32 F33 F36)
Engine: B48 B46
Model years: 03/2015 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 5' 520i 530e 530eX 530i 530iX (G30 G31)
Engine: B48 B46
Model years: 10/2015 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 6' 630i (G32)
Engine: B48
Model years: 10/2016 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW 7' 730i 740e 730Li 740eX 740LeX (G11 G12)
Engine: B48
Model years: 12/2014 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

BMW Z4 20i 30i (G29)
Engine: B48 B46
Model years: 10/2017 -
Miscellaneous: Only suitable for cars with water-cooled intercooler.

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

DO88-TR-400
