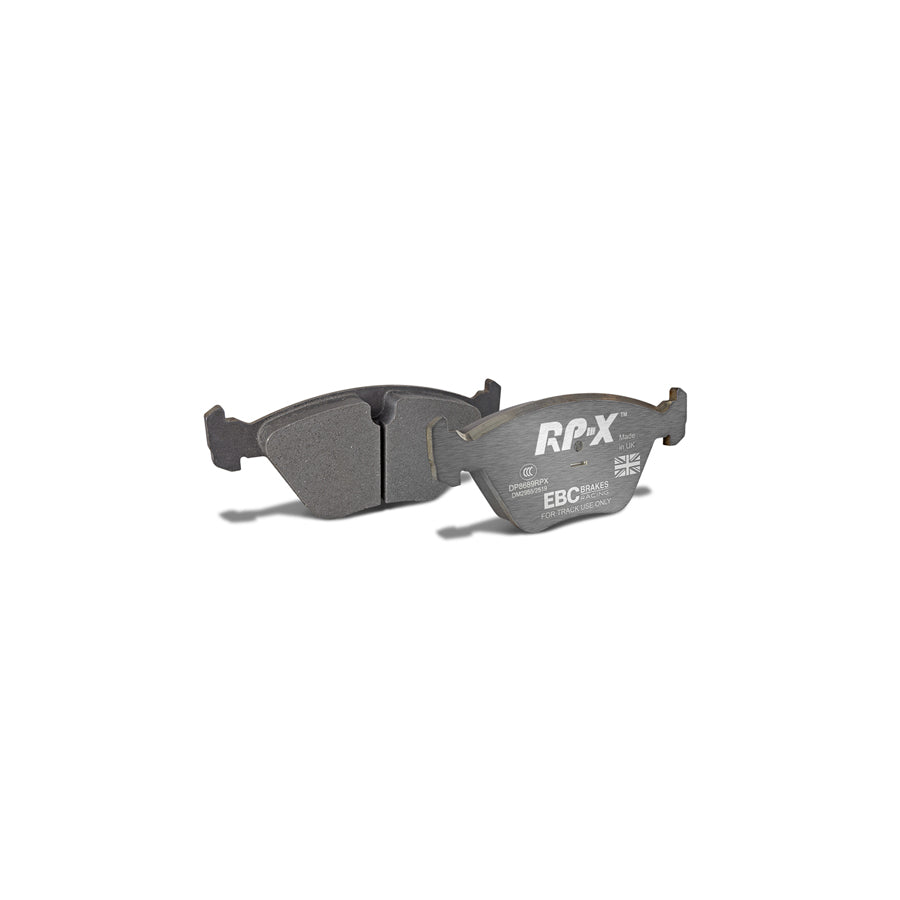

EBC DP8689RPX BMW Alpina Wiesmann RP-X Full Race Front Brake Pads - ATE Caliper (Pair)

EBC DP8689RPX BMW Alpina Wiesmann RP-X Full Race Front Brake Pads - ATE Caliper (Pair)

Regular price £141.07 Inc. VAT
Regular price £146.95 Sale price £141.07 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

EBC Racings' RP‑X compound is an ultra‑high performance track and race pad designed for performance vehicles driven hard on track and for dedicated race cars. RP‑X has a very stable friction coefficient of 0.55μ up to and beyond 850℃, making it an excellent performer for even the most demanding vehicle applications.


RP‑X also has a high friction level from cold, requiring no warmup to achieve maximum braking effect which makes this material well suited for sprint race and hill climb events. Although RP‑X is not R90 homologated for use on the public roads in EU member states, the fact this material possesses excellent cold performance means RP‑X can be safely used for driving to/from motorsport events (where local laws permit).

EBC Racing does however emphasise that RP‑X has been developed for peak on‑track performance, meaning higher levels of brake dust and brake noise should be expected. RP‑X has comparable disc wear to many other popular track/race materials, however RP‑X disc wear is considerably greater than EBC Racing's other track pad RP‑1 which results in high levels of brake dust.

Compared to RP‑1, RP‑X has a 25% increase in friction coefficient across its working temperature range with a much more 'positive' initial bite. This characteristic potentially makes RP‑X more suitable on heavy or inherently under‑servoed vehicles. For light‑medium weight vehicles, cars with non EBC Big Brake Kits fitted, or vehicles with no ABS, the less fierce nature of EBC Racing's other track material RP‑1 may be preferable.



Pad A Dimensions : 156 x 63 x 19mm
R90 Approved : No
Track Suitable? : RACE USE ONLY



  • 1 set of pads for two calipers (2 pcs.)



Model Sub-Model Engine BHP Year Position
Roadster S (E85) - 3.3 - 2004-2005 Front

Model Sub-Model Engine BHP Year Position
5 Series (E34) 518 1.8 - 1988-1996 Front
5 Series (E34) 518 Touring 1.8 - 1991-1997 Front
5 Series (E34) 520 2 - 1988-1996 Front
5 Series (E34) 520 Touring 2 - 1991-1997 Front
5 Series (E34) 524 2.4 TD - 1988-1991 Front
5 Series (E34) 525 2.5 TD - 1991-1996 Front
5 Series (E34) 525 Touring 2.5 TD - 1991-1996 Front
5 Series (E34) 525 2.5 - 1988-1996 Front
5 Series (E34) 530 3 - 1988-1996 Front
5 Series (E34) 535 3.5 - 1988-1992 Front
5 Series (E34) 540 4 - 1992-1996 Front
7 Series (E32) 730 3 218 1992-1994 Front
7 Series (E32) 730 3 - 1987-1994 Front
7 Series (E32) 730 L 3 - 1987-1994 Front
7 Series (E32) 735 3.5 - 1987-1994 Front
7 Series (E32) 740 4 - 1992-1994 Front
7 Series (E32) 750 5 - 1987-1991 Front
M3 E36 3 - 1992-1996 Front
M3 E36 3.2 - 1996-2000 Front
M3 E46 3.2 - 2000-2007 Front
M3 E46 3.2 CSL - 2004-2007 Front
M5 E34 3.5 315 1988-1989 Front
M5 E34 3.5 315 1989-1991 Front
M5 E34 3.8 340 1991-1994 Front
M-Roadster/Coupe (Z3) - 3.2 - 1998-2003 Front
Z3 - 3.2 M 325 1998-2003 Front
Z4 E85 3.2 M 343 2006-2009 Front
Z4 E86 3.2 M 343 2006-2008 Front

Model Sub-Model Engine BHP Year Position
MF 30 - 3 231 1993-1996 Front
MF 3 - 3.2 - 1997-2000 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-DP8689RPX



Manufactured by

EBC Brakes



EAN

5050953876004



Warranty

EBC one year or 10,000 miles warranty
