EBC PD05KF1276 BMW Orangestuff Front Brake Pad & Plain Disc Kit - Brembo/ATE Caliper

EBC PD05KF1276 BMW Orangestuff Front Brake Pad & Plain Disc Kit - Brembo/ATE Caliper

Regular price £379.17 Inc. VAT
Regular price £412.14 Sale price £379.17 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

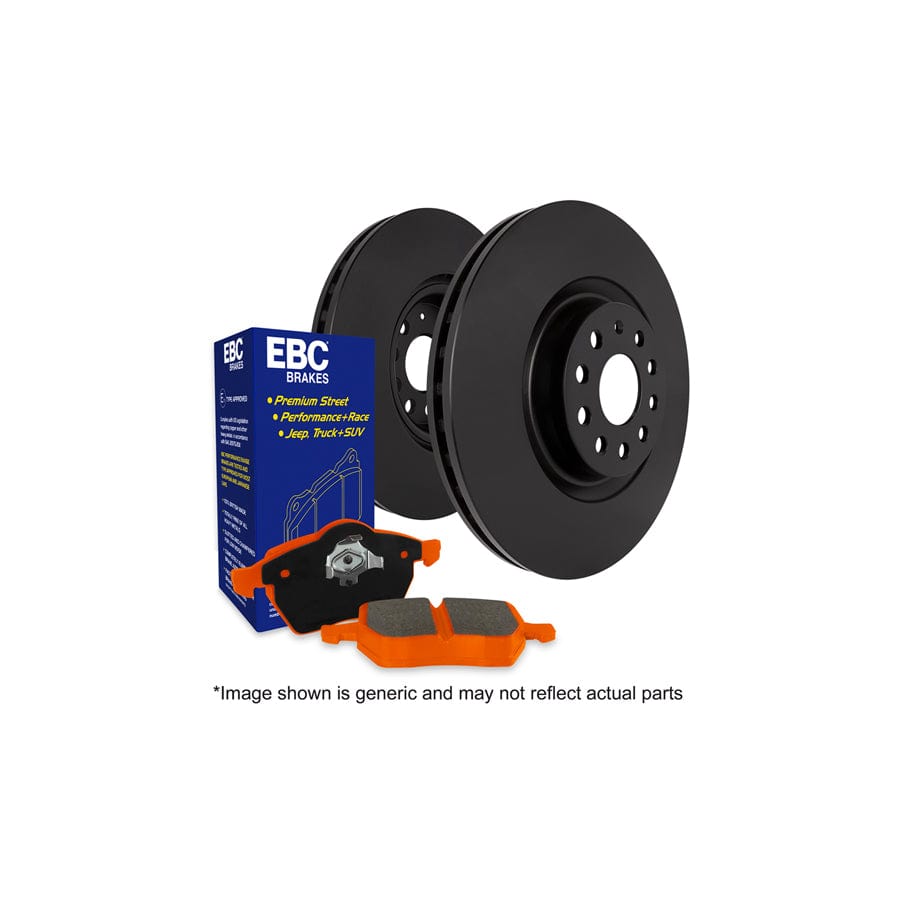

  • Kit contains one set of DP92130 Orangestuff brake pads and one pair of D2064R OE replacement brake discs
  • Money saving brake kit including one set of pads and a pair of discs
  • Orangestuff series was developed as a full race pad with a high friction level that increases with temperature.
  • This material works best on light to middleweight high powered race cars where a higher fade resistance and wear life is desirable compared to Yellowstuff. Despite having an acceptable cold friction making this material street usable, the hot friction is deemed too high for ECE R90 approval and therefore this material is not road legal within Europe.

OE quality replacement brake discs, precision cast from G3000 iron, surface ground and thermic black coated for corrosion resistance. These discs are runout tested and are an exact replacement for OE discs. This kit is perfect for general street use.



Pad A Dimensions : 163 x 74 x 16
Disc Type : Plain
Solid or Vented : V
Bolt Holes : 5
Disc Diameter (mm) : 340
Disc Height (mm) : 73
Disc Thickness (new) (mm) : 30
Disc Thickness (min) (mm) : 28
Kit Components : DP92130 + D2064R



Model Sub-Model Engine BHP Year Position
1 Series (F20) M135 3.0 Turbo 320 2012-2017 Front
1 Series (F20) M140 3.0 Turbo 340 2016-2019 Front
1 Series (xDrive F20) M135 3.0 Turbo 320 2012-2017 Front
1 Series (xDrive F20) M140 3.0 Turbo 340 2016-2019 Front
1 Series (F21) M135 3.0 Turbo 320 2012-2017 Front
1 Series (F21) M140 3.0 Turbo 340 2016-2019 Front
1 Series (xDrive F21) M135 3.0 Turbo 320 2012-2017 Front
1 Series (xDrive F21) M140 3.0 Turbo 340 2016-2019 Front
2 Series (F22 Coupe) 228 2.0 Turbo 240 2014-2016 Front
2 Series (F22 Coupe) 230 2.0 Turbo 252 2016-2020 Front
2 Series (F22 Coupe) M235 3.0 Turbo 326 2013-2016 Front
2 Series (F22 Coupe) M240 3.0 Turbo 340 2016-2021 Front
2 Series (xDrive F22 Coupe) M235 3.0 Turbo 326 2013-2016 Front
2 Series (xDrive F22 Coupe) M240 3.0 Turbo 340 2016-2021 Front
2 Series (F23 Convertible) 230 2.0 Turbo 252 2016-2020 Front
2 Series (F23 Convertible) M235 3.0 Turbo 326 2014-2016 Front
2 Series (F23 Convertible) M240 3.0 Turbo 340 2016-2021 Front
2 Series (xDrive F23 Convertible) M235 3.0 Turbo 326 2014-2016 Front
2 Series (xDrive F23 Convertible) M240 3.0 Turbo 340 2016-2021 Front
3 Series (F30) 320 2.0 TD - 2012-2019 Front
3 Series (F30) 320 2.0 Turbo - 2012-2019 Front
3 Series (F30) 325 2.0 TD - 2013-2019 Front
3 Series (F30) 328 2.0 Turbo - 2012-2016 Front
3 Series (F30) 330 3.0 TD - 2012-2019 Front
3 Series (F30) 335 3.0 TD 313 2013-2019 Front
3 Series (F30) 335 3.0 Turbo - 2012-2016 Front
3 Series (F30) 340 3.0 Turbo 326 2015-2019 Front
3 Series (F30) ActiveHybrid 3 3.0 Turbo and Electric 335 2012-2015 Front
3 Series (xDrive F30) 320 2.0 TD - 2013-2019 Front
3 Series (xDrive F30) 320 2.0 Turbo - 2013-2019 Front
3 Series (xDrive F30) 330 3.0 TD - 2013-2019 Front
3 Series (xDrive F30) 335 3.0 Turbo - 2013-2016 Front
3 Series (xDrive F30) 335 3.0 TD - 2013-2019 Front
3 Series (xDrive F30) 340 3.0 Turbo 326 2015-2019 Front
3 Series (F31) 320 2.0 TD - 2012-2019 Front
3 Series (F31) 320 2.0 Turbo - 2012-2019 Front
3 Series (F31) 325 2.0 TD - 2013-2019 Front
3 Series (F31) 328 2.0 Turbo - 2012-2016 Front
3 Series (F31) 330 2.0 Turbo 252 2015-2019 Front
3 Series (F31) 330 3.0 TD - 2012-2019 Front
3 Series (F31) 335 3.0 TD 313 2013-2019 Front
3 Series (F31) 335 3.0 Turbo - 2012-2016 Front
3 Series (F31) 340 3.0 Turbo 326 2015-2019 Front
3 Series (xDrive F31) 320 2.0 TD - 2013-2019 Front
3 Series (xDrive F31) 320 2.0 Turbo - 2013-2019 Front
3 Series (xDrive F31) 330 3.0 TD - 2013-2019 Front
3 Series (xDrive F31) 335 3.0 Turbo - 2013-2016 Front
3 Series (xDrive F31) 335 3.0 TD - 2013-2019 Front
3 Series (xDrive F31) 340 3.0 Turbo 326 2015-2019 Front
3 Series (F34 GT) 320 2.0 TD - 2013-2019 Front
3 Series (F34 GT) 320 2.0 Turbo - 2013-2019 Front
3 Series (F34 GT) 325 2.0 TD - 2013-2019 Front
3 Series (F34 GT) 328 2.0 Turbo - 2013-2019 Front
3 Series (F34 GT) 330 3.0 TD - 2014-2019 Front
3 Series (F34 GT) 335 3.0 Turbo - 2013-2016 Front
3 Series (F34 GT) 340 3.0 Turbo 326 2015-2019 Front
3 Series (xDrive GT F34) 320 2.0 Turbo - 2013-2019 Front
3 Series (xDrive GT F34) 320 2.0 TD - 2013-2019 Front
3 Series (xDrive GT F34) 328 2.0 Turbo - 2013-2019 Front
3 Series (xDrive GT F34) 330 3.0 TD - 2014-2019 Front
3 Series (xDrive GT F34) 335 3.0 Turbo - 2013-2016 Front
3 Series (xDrive GT F34) 340 3.0 Turbo 326 2015-2019 Front
4 Series (F32 Coupe) 420 2.0 TD 181 2013-2015 Front
4 Series (F32 Coupe) 420 2.0 TD 190 2015-2020 Front
4 Series (F32 Coupe) 420 2.0 Turbo 181 2013-2020 Front
4 Series (F32 Coupe) 425 2.0 TD 215 2014-2020 Front
4 Series (F32 Coupe) 428 2.0 Turbo 242 2013-2017 Front
4 Series (F32 Coupe) 430 3.0 TD 254 2013-2020 Front
4 Series (F32 Coupe) 430 2.0 Turbo 252 2016-2020 Front
4 Series (F32 Coupe) 435 3.0 Turbo 300 2013-2017 Front
4 Series (F32 Coupe) 435 3.0 Twin TD 309 2013-2020 Front
4 Series (F32 Coupe) 440 3.0 Turbo 326 2016-2020 Front
4 Series (xDrive F32 Coupe) 420 2.0 TD 181 2014-2015 Front
4 Series (xDrive F32 Coupe) 420 2.0 TD 190 2015-2020 Front
4 Series (xDrive F32 Coupe) 420 2.0 Turbo 181 2013-2020 Front
4 Series (xDrive F32 Coupe) 428 2.0 Turbo 242 2014-2017 Front
4 Series (xDrive F32 Coupe) 430 3.0 TD 254 2014-2020 Front
4 Series (xDrive F32 Coupe) 430 2.0 Turbo 252 2016-2020 Front
4 Series (xDrive F32 Coupe) 435 3.0 Twin TD 309 2014-2020 Front
4 Series (xDrive F32 Coupe) 435 3.0 Turbo 300 2013-2017 Front
4 Series (xDrive F32 Coupe) 440 3.0 Turbo 326 2016-2020 Front
4 Series (F33 Convertible) 420 2.0 TD 181 2013-2015 Front
4 Series (F33 Convertible) 420 2.0 TD 190 2015-2020 Front
4 Series (F33 Convertible) 420 2.0 Turbo 184 2014-2020 Front
4 Series (F33 Convertible) 425 2.0 TD 218 2014-2020 Front
4 Series (F33 Convertible) 428 2.0 Turbo 242 2013-2017 Front
4 Series (F33 Convertible) 430 3.0 TD 258 2014-2020 Front
4 Series (F33 Convertible) 435 3.0 Turbo 300 2013-2017 Front
4 Series (F33 Convertible) 435 3.0 Twin TD 313 2014-2020 Front
4 Series (F33 Convertible) 440 3.0 Turbo 326 2016-2020 Front
4 Series (xDrive F33 Convertible) 428 2.0 Turbo 242 2013-2020 Front
4 Series (xDrive F33 Convertible) 430 2.0 Turbo 252 2016-2020 Front
4 Series (xDrive F33 Convertible) 435 3.0 Twin TD 313 2014-2020 Front
4 Series (xDrive F33 Convertible) 440 3.0 Turbo 326 2016-2020 Front
4 Series (F36 Gran Coupe) 420 2.0 TD 181 2014-2015 Front
4 Series (F36 Gran Coupe) 420 2.0 TD 190 2015-2020 Front
4 Series (F36 Gran Coupe) 420 2.0 Turbo 181 2013-2020 Front
4 Series (F36 Gran Coupe) 428 2.0 Turbo 242 2014-2017 Front
4 Series (F36 Gran Coupe) 430 2.0 Turbo 252 2016-2020 Front
4 Series (F36 Gran Coupe) 430 3.0 TD 258 2014-2020 Front
4 Series (F36 Gran Coupe) 435 3.0 Turbo 300 2014-2017 Front
4 Series (F36 Gran Coupe) 435 3.0 Twin TD 313 2014-2020 Front
4 Series (F36 Gran Coupe) 440 3.0 Turbo 326 2016-2020 Front
4 Series (xDrive F36 Gran Coupe) 420 2.0 TD 181 2014-2015 Front
4 Series (xDrive F36 Gran Coupe) 420 2.0 TD 190 2015-2020 Front
4 Series (xDrive F36 Gran Coupe) 420 2.0 Turbo 181 2014-2020 Front
4 Series (xDrive F36 Gran Coupe) 428 2.0 Turbo 242 2014-2017 Front
4 Series (xDrive F36 Gran Coupe) 430 3.0 TD 258 2014-2020 Front
4 Series (xDrive F36 Gran Coupe) 430 2.0 Turbo 252 2016-2020 Front
4 Series (xDrive F36 Gran Coupe) 435 3.0 Turbo 300 2014-2017 Front
4 Series (xDrive F36 Gran Coupe) 435 3.0 Twin TD 313 2014-2020 Front
4 Series (xDrive F36 Gran Coupe) 440 3.0 Turbo 326 2016-2020 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-PD05KF1276



Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
