EBC

EBC PD05KF416 Cadillac Opel Saab Vauxhall Orangestuff Front Brake Pad & Plain Disc Kit - ATE Caliper (Inc. Signum & Vectra)

EBC PD05KF416 Cadillac Opel Saab Vauxhall Orangestuff Front Brake Pad & Plain Disc Kit - ATE Caliper (Inc. Signum & Vectra)

£186.08 Inc. VAT
£202.26 £186.08 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

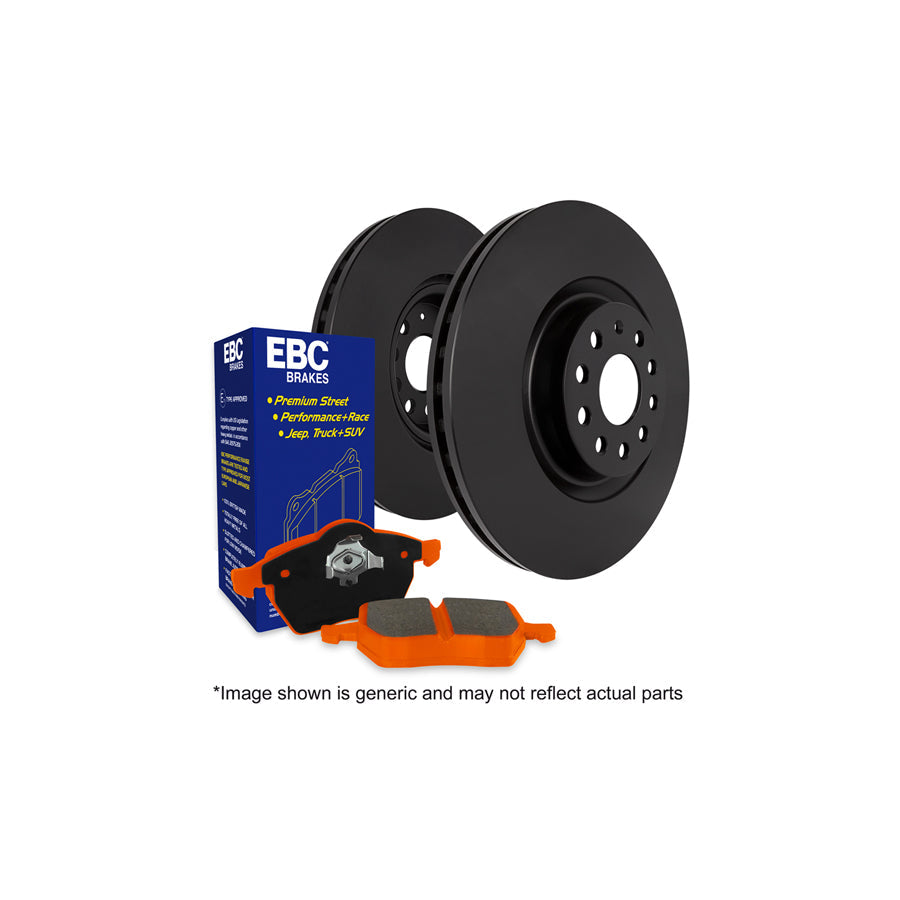

  • Kit contains one set of DP91414 Orangestuff brake pads and one pair of D1119 OE replacement brake discs
  • Money saving brake kit including one set of pads and a pair of discs
  • Orangestuff series was developed as a full race pad with a high friction level that increases with temperature.
  • This material works best on light to middleweight high powered race cars where a higher fade resistance and wear life is desirable compared to Yellowstuff. Despite having an acceptable cold friction making this material street usable, the hot friction is deemed too high for ECE R90 approval and therefore this material is not road legal within Europe.

OE quality replacement brake discs, precision cast from G3000 iron, surface ground and thermic black coated for corrosion resistance. These discs are runout tested and are an exact replacement for OE discs. This kit is perfect for general street use.

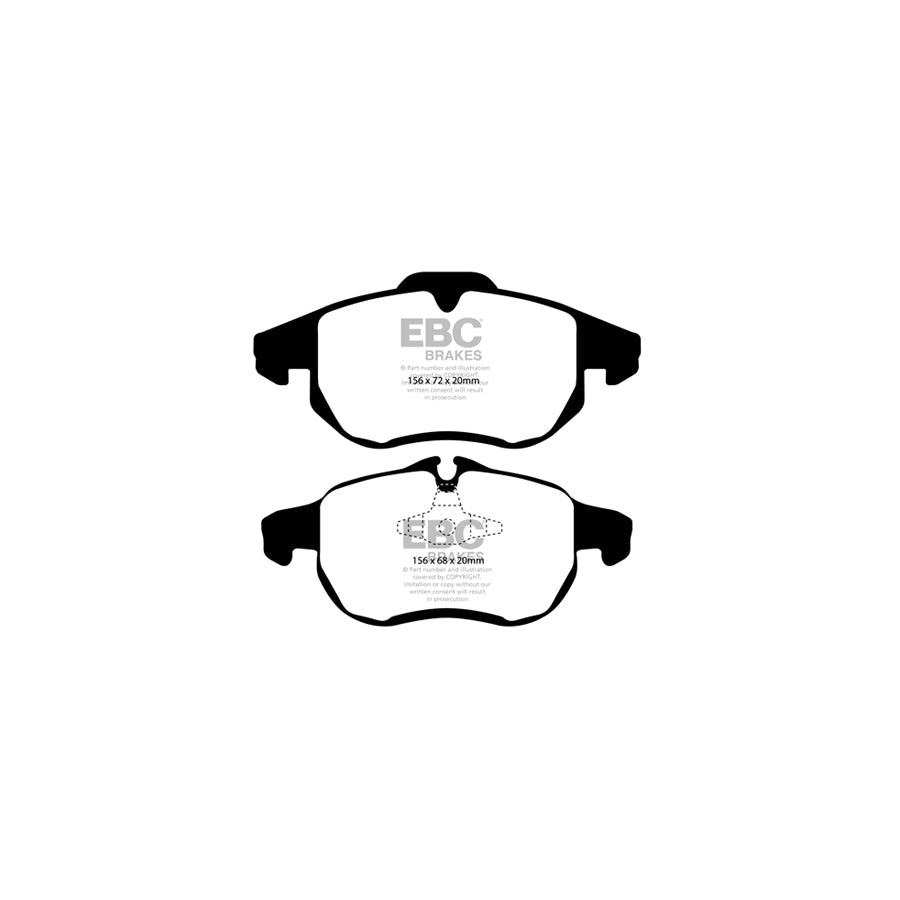

Pad A Dimensions : 156 x 72 x 20
Disc Type : Plain
Solid or Vented : V
Bolt Holes : 5
Disc Diameter (mm) : 285
Disc Height (mm) : 42
Disc Thickness (new) (mm) : 25
Disc Thickness (min) (mm) : 23
Kit Components : DP91414 + D1119



Model Sub-Model Engine BHP Year Position
BLS - 2.0 Turbo 175 2006-2010 Front
BLS - 2.0 Turbo 210 2006-2010 Front
BLS - 2.8 Turbo 255 2006-2010 Front
BLS - 1.9 TD 150 2006-2010 Front
BLS - 1.9 TD 180 2007-2010 Front

Model Sub-Model Engine BHP Year Position
Signum - 1.8 - 2004-2008 Front
Signum - 2.2 - 2003-2004 Front
Signum - 2.2 - 2004-2008 Front
Signum - 1.9 TD 100 2004-2008 Front
Signum - 1.9 TD 120 2004-2008 Front
Signum - 1.9 TD 150 2004-2008 Front
Signum - 2.0 TD - 2003-2004 Front
Signum - 2.0 TD - 2004-2005 Front
Signum - 2.2 TD - 2003-2004 Front
Signum - 2.2 TD - 2004-2005 Front
Vectra - 1.6 - 2003-2004 Front
Vectra - 1.6 - 2004-2008 Front
Vectra - 1.8 - 2002-2004 Front
Vectra - 1.8 - 2004-2008 Front
Vectra - 2 - 2002-2004 Front
Vectra - 2.2 - 2002-2004 Front
Vectra - 2.2 - 2004-2008 Front
Vectra - 1.9 TD - 2005-2008 Front
Vectra - 2.0 D - 2002-2004 Front
Vectra - 2.0 D - 2004-2005 Front
Vectra - 2.0 TD - 2002-2004 Front
Vectra - 2.0 TD - 2004-2005 Front
Vectra - 2.2 TD - 2002-2004 Front
Vectra - 2.2 TD - 2004-2005 Front

Model Sub-Model Engine BHP Year Position
9-Mar - 1.8 - 2003-2004 Front
9-Mar - 1.8 - 2004-2011 Front
9-Mar - 1.8 Turbo - 2002-2004 Front
9-Mar - 1.8 Turbo - 2004-2011 Front
9-Mar - 2.0 Turbo - 2002-2004 Front
9-Mar - 2.0 Turbo - 2004-2011 Front
9-Mar - 2.0 Turbo Aero - 2002-2004 Front
9-Mar - 2.0 Turbo Aero - 2004-2011 Front
9-Mar - 1.9 TD 120 2003-2004 Front
9-Mar - 1.9 TD 120 2004-2011 Front
9-Mar - 1.9 TD 150 2004-2011 Front
9-Mar - 1.9 Twin TD 180 2007-2011 Front
9-Mar - 2.2 TD - 2002-2004 Front
9-Mar - 2.2 TD - 2004-2005 Front

Model Sub-Model Engine BHP Year Position
Signum - 1.8 - 2004-2008 Front
Signum - 2.0 Turbo 175 2004-2008 Front
Signum - 2.2 - 2003-2004 Front
Signum - 2.2 - 2004-2008 Front
Signum - 1.9 TD - 2004-2008 Front
Signum - 2.0 TD - 2003-2004 Front
Signum - 2.0 TD - 2004-2005 Front
Signum - 2.2 TD - 2003-2004 Front
Signum - 2.2 TD - 2004-2005 Front
Vectra - 1.6 - 2004-2008 Front
Vectra - 1.8 - 2002-2004 Front
Vectra - 1.8 - 2004-2008 Front
Vectra - 2 - 2002-2004 Front
Vectra - 2 - 2004-2005 Front
Vectra - 2.2 - 2002-2004 Front
Vectra - 2.2 - 2004-2008 Front
Vectra - 1.9 TD - 2004 Front
Vectra - 1.9 TD - 2004-2008 Front
Vectra - 2.0 TD - 2002-2004 Front
Vectra - 2.0 TD - 2004-2005 Front
Vectra - 2.2 TD - 2002-2004 Front
Vectra - 2.2 TD - 2004-2005 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-PD05KF416



Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
