EBC PD10KF507 Opel Vauxhall Orangestuff Front Brake Pad & USR Disc Kit - Girling/TRW/Bosch Caliper
EBC PD10KF507 Opel Vauxhall Orangestuff Front Brake Pad & USR Disc Kit - Girling/TRW/Bosch Caliper
Regular price
£231.87
Inc. VAT
Regular price
£241.53
Sale price
£231.87
Inc. VAT
Unit price
per
Notify Me When Available
Collect 0 points
Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.
Fitting service at Xatrix, West Yorkshire
We can offer a fitting service for this part. Contact us for a fitting quote.

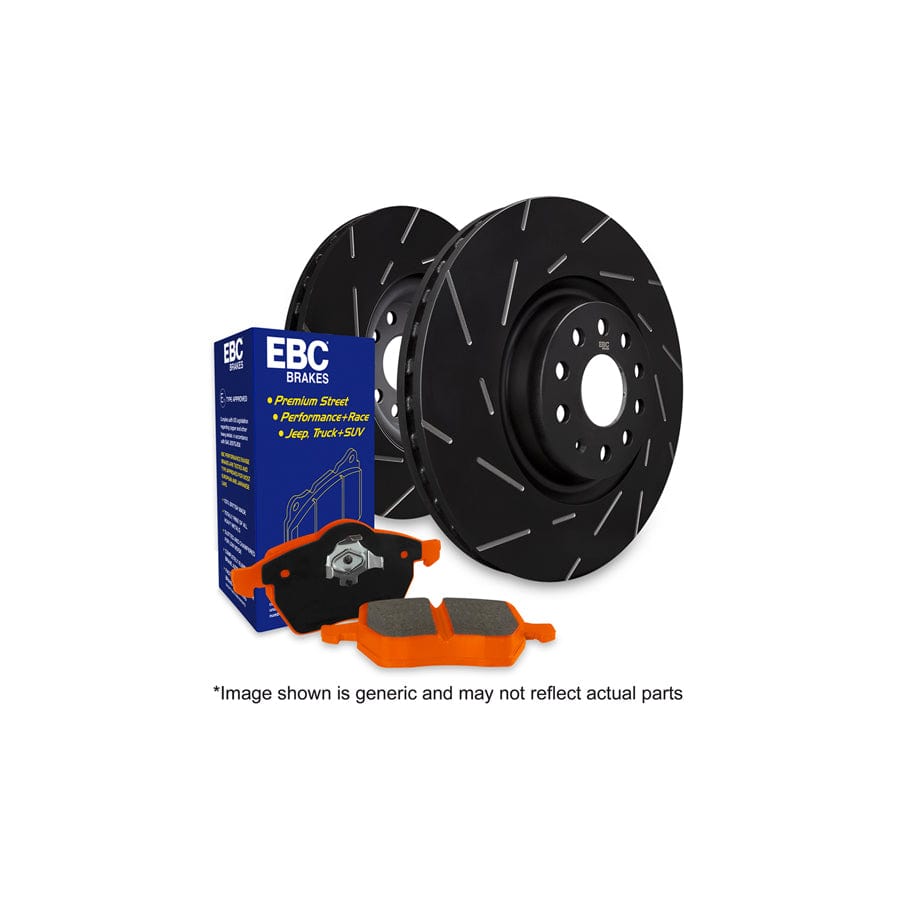

- Kit contains one set of DP91520 Orangestuff brake pads and one pair of USR1070 USR slotted brake discs
- Money saving brake kit including one set of pads and a pair of discs
- Orangestuff series was developed as a full race pad with a high friction level that increases with temperature.
- This material works best on light to middleweight high powered race cars where a higher fade resistance and wear life is desirable compared to Yellowstuff. Despite having an acceptable cold friction making this material street usable, the hot friction is deemed too high for ECE R90 approval and therefore this material is not road legal within Europe.
One pair of slotted upgrade brake discs, slots dispel gasses and debris and give quiet braking. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.

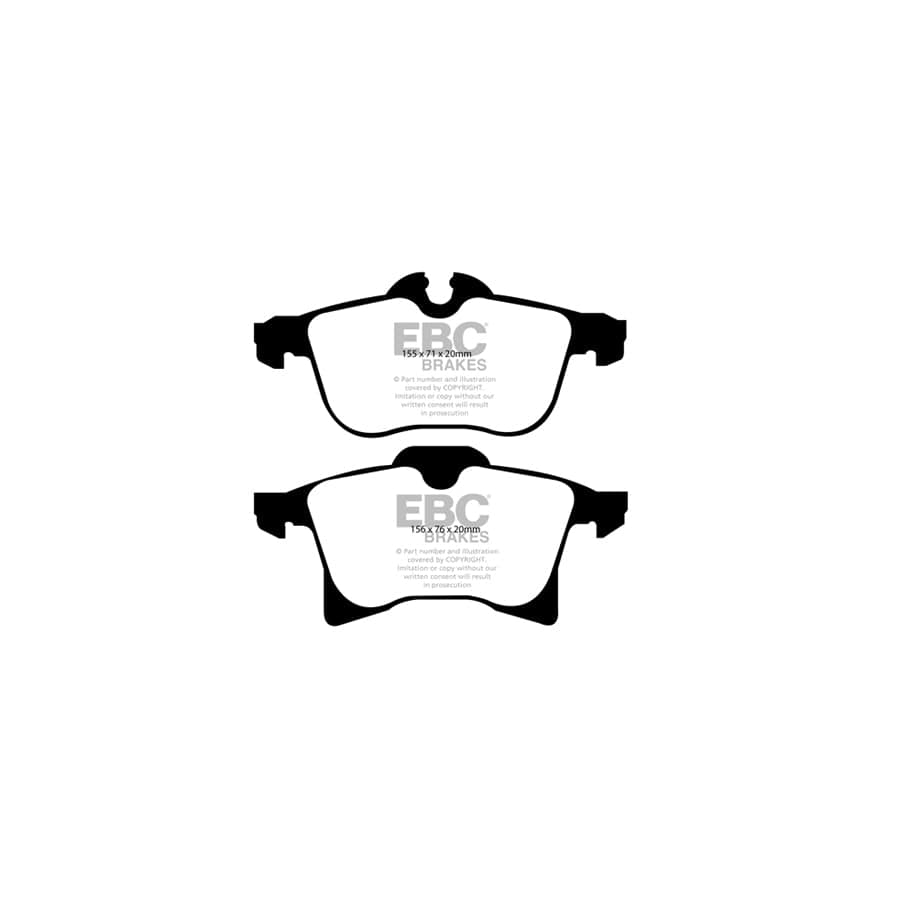

| Pad A Dimensions | : | 155 x 71 x 20 |
| Disc Type | : | Slotted |
| Solid or Vented | : | V |
| Bolt Holes | : | 5 |
| Disc Diameter (mm) | : | 308 |
| Disc Height (mm) | : | 42 |
| Disc Thickness (new) (mm) | : | 25 |
| Disc Thickness (min) (mm) | : | 23 |
| Kit Components | : | DP91520 + USR1070 |
| Model | Sub-Model | Engine | BHP | Year | Position |
| ADAM | - | 1.4 Turbo | 150 | 2015-2019 | Front |
| Astra (H) | - | 1.6 Turbo | - | 2006-2010 | Front |
| Astra (H) | - | 2.0 Turbo | 170 | 2004-2010 | Front |
| Astra (H) | - | 2.0 Turbo | 200 | 2004-2010 | Front |
| Astra (H) | - | 1.9 TD | 100 | 2005-2010 | Front |
| Astra (H) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Astra (H) | - | 1.9 TD | 150 | 2005-2010 | Front |
| Astra GTC (H) | - | 1.6 Turbo | 180 | 2007-2010 | Front |
| Astra GTC (H) | - | 2.0 Turbo | 170 | 2005-2007 | Front |
| Astra GTC (H) | - | 2.0 Turbo | 200 | 2005-2011 | Front |
| Astra GTC (H) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Astra GTC (H) | - | 1.9 TD | 150 | 2005-2010 | Front |
| Astra Convertible (Twin Top) | - | 2.0 Turbo | 170 | 2005-2011 | Front |
| Astra Convertible (Twin Top) | - | 2.0 Turbo | 200 | 2005-2011 | Front |
| Astra Convertible (Twin Top) | - | 1.9 TD | 150 | 2005-2011 | Front |
| Corsa (D) | - | 1.6 Turbo | 150 | 2007-2014 | Front |
| Corsa (D) | OPC | 1.6 Turbo | 190 | 2007-2014 | Front |
| Corsa (E) | - | 1.0 Turbo | 115 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 | 90 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 Turbo | 100 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 Turbo | 150 | 2015-2020 | Front |
| Corsa (E) | OPC | 1.6 Turbo | 207 | 2014-2020 | Front |
| Corsa (E) | - | 1.3 TD | 75 | 2014-2020 | Front |
| Corsa (E) | - | 1.3 TD | 95 | 2014-2020 | Front |
| Meriva | - | 1.4 Turbo | 140 | 2010-2017 | Front |
| Meriva | - | 1.6 Turbo | - | 2005-2010 | Front |
| Meriva | - | 1.6 TD | 95 | 2014-2017 | Front |
| Meriva | - | 1.6 TD | 136 | 2013-2017 | Front |
| Meriva | - | 1.7 TD | 100 | 2010-2011 | Front |
| Meriva | - | 1.7 TD | 130 | 2010-2014 | Front |
| Zafira (B) | - | 1.6 Turbo | - | 2009-2014 | Front |
| Zafira (B) | - | 1.8 | - | 2005-2014 | Front |
| Zafira (B) | - | 2.0 Turbo | 200 | 2005-2009 | Front |
| Zafira (B) | - | 2.2 | - | 2005-2010 | Front |
| Zafira (B) | - | 1.7 TD | - | 2009-2014 | Front |
| Zafira (B) | - | 1.9 TD | 100 | 2005-2010 | Front |
| Zafira (B) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Zafira (B) | - | 1.9 TD | 150 | 2005-2010 | Front |
| Model | Sub-Model | Engine | BHP | Year | Position |
| ADAM | - | 1.4 Turbo | 150 | 2015-2019 | Front |
| Astra (H) | - | 1.6 Turbo | - | 2006-2010 | Front |
| Astra (H) | - | 2.0 Turbo | 170 | 2004-2010 | Front |
| Astra (H) | - | 2.0 Turbo | 200 | 2004-2010 | Front |
| Astra (H) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Astra (H) | - | 1.9 TD | 150 | 2004-2010 | Front |
| Astra Sport Hatch (H) | - | 1.6 Turbo | 180 | 2007-2010 | Front |
| Astra Sport Hatch (H) | - | 2.0 Turbo | 170 | 2005-2007 | Front |
| Astra Sport Hatch (H) | - | 2.0 Turbo | 200 | 2005-2011 | Front |
| Astra Sport Hatch (H) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Astra Sport Hatch (H) | - | 1.9 TD | 150 | 2005-2010 | Front |
| Astra Convertible (Twin Top) | - | 2.0 Turbo | - | 2005-2011 | Front |
| Astra Convertible (Twin Top) | - | 1.9 TD | 150 | 2005-2011 | Front |
| Corsa (D) | - | 1.6 Turbo | 150 | 2007-2014 | Front |
| Corsa (D) | VXR | 1.6 Turbo | 190 | 2006-2014 | Front |
| Corsa (E) | - | 1.0 Turbo | 115 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 | 90 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 Turbo | 100 | 2014-2020 | Front |
| Corsa (E) | - | 1.4 Turbo | 150 | 2015-2020 | Front |
| Corsa (E) | VXR | 1.6 Turbo | 207 | 2015-2020 | Front |
| Corsa (E) | - | 1.3 TD | 75 | 2014-2020 | Front |
| Corsa (E) | - | 1.3 TD | 95 | 2014-2020 | Front |
| Meriva | - | 1.4 Turbo | 140 | 2010-2017 | Front |
| Meriva | - | 1.6 Turbo | - | 2005-2008 | Front |
| Meriva | - | 1.6 TD | 95 | 2014-2017 | Front |
| Meriva | - | 1.6 TD | 110 | 2014-2017 | Front |
| Meriva | - | 1.6 TD | 136 | 2013-2017 | Front |
| Meriva | - | 1.7 TD | 100 | 2010-2011 | Front |
| Meriva | - | 1.7 TD | 130 | 2010-2014 | Front |
| Zafira (B) | - | 1.8 | - | 2005-2014 | Front |
| Zafira (B) | - | 2.0 Turbo | 200 | 2005-2009 | Front |
| Zafira (B) | - | 2.2 | - | 2005-2010 | Front |
| Zafira (B) | - | 1.7 TD | - | 2009-2014 | Front |
| Zafira (B) | - | 1.9 TD | 120 | 2005-2010 | Front |
| Zafira (B) | - | 1.9 TD | 150 | 2005-2010 | Front |
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
EBC-PD10KF507
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
