EBC PD20KF503 Audi Seat Skoda VW Orangestuff Front Brake Pad & BSD Disc Kit - Girling/TRW/Bosch Caliper

EBC PD20KF503 Audi Seat Skoda VW Orangestuff Front Brake Pad & BSD Disc Kit - Girling/TRW/Bosch Caliper

Regular price £218.90 Inc. VAT
Regular price £237.94 Sale price £218.90 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

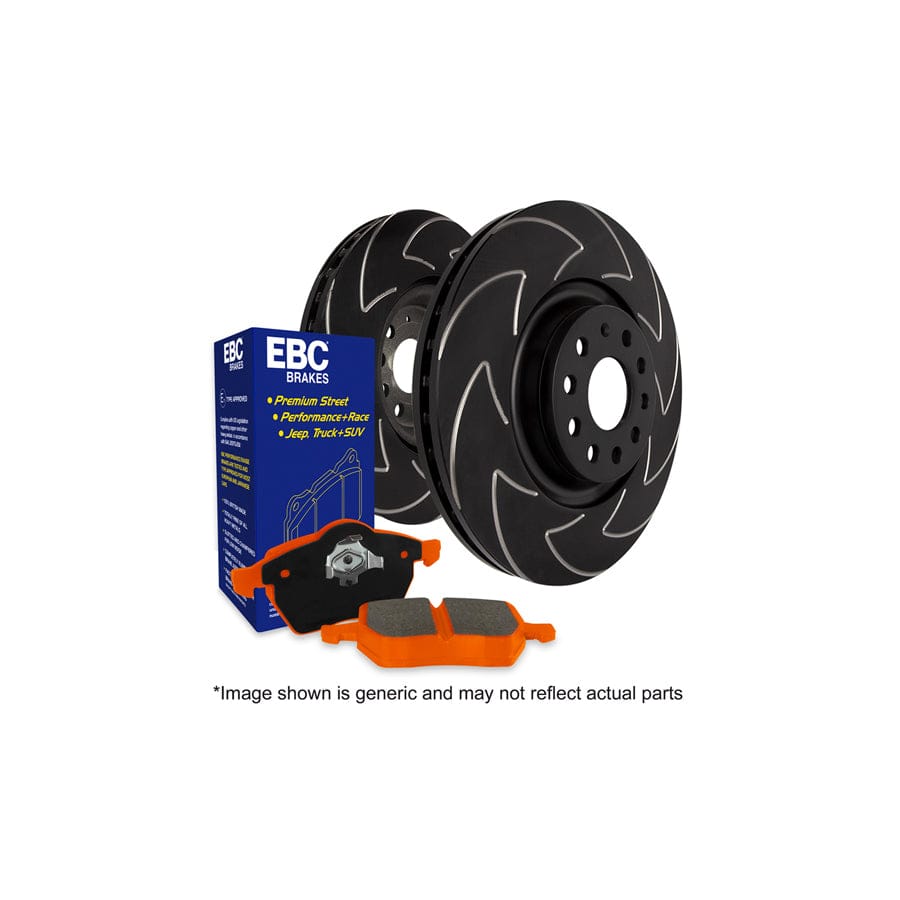

  • Kit contains one set of DP91517 Orangestuff brake pads and one pair of BSD1201 BSD slotted and blade series slotted brake discs
  • Money saving brake kit including one set of pads and a pair of discs
  • Orangestuff 5000 NDX race formula ultra high friction race pad with a friction level peaking above 0.6 under braking that will generate more G force than most, if not all pads out there
  • NDX is capable of street use as it bites well from cold
  • pre-bedded out of the box, surface is heat seared or scorched at the factory
  • Pair of blade upgrade discs with bi-directional slots designed to dispel gasses and debris and give silent braking and better pad venting

One pair of slotted and dimpled upgrade brake discs. Wide slots and blind drilled dimples are designed to dispel gasses and debris. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.

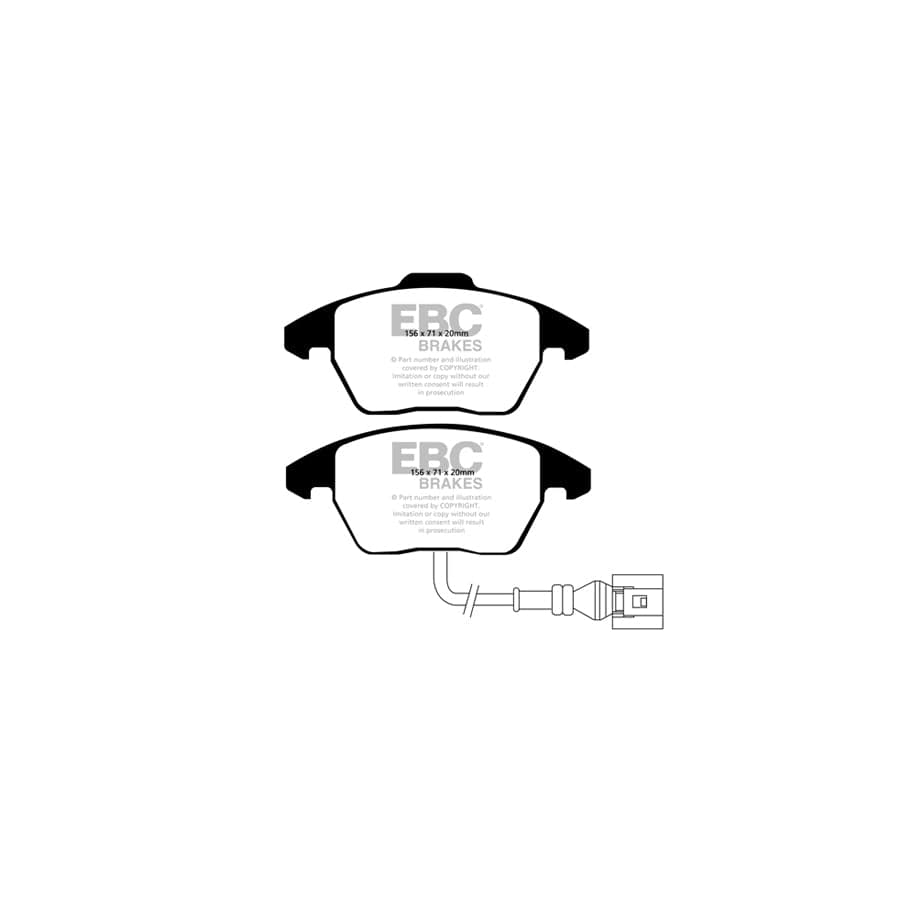

Pad A Dimensions : 156 x 71 x 20
Pad B Dimensions : 155 x 66 x 20
Disc Type : Slotted
Solid or Vented : V
Bolt Holes : 5
Disc Diameter (mm) : 288
Disc Height (mm) : 50
Disc Thickness (new) (mm) : 25
Disc Thickness (min) (mm) : 23
Kit Components : DP91517 + BSD1201



Model Sub-Model Engine BHP Year Position
A3 8P 1.2 Turbo - 2010-2012 Front
A3 8P 1.4 Turbo - 2007-2013 Front
A3 8P 1.4 Turbo - 2009-2013 Front
A3 8P 1.6 - 2003-2010 Front
A3 8P 1.6 - 2009-2010 Front
A3 8P 1.8 Turbo - 2007-2013 Front
A3 8P 1.8 Turbo - 2009-2013 Front
A3 8P 2 - 2003-2007 Front
A3 8P 1.6 TD - 2009-2013 Front
A3 8P 1.9 TD 105 2003-2009 Front
A3 8P 2.0 TD 140 2003-2013 Front
A3 8P 2.0 TD 140 2009-2013 Front
A3 8P 2.0 TD 170 2006-2009 Front
A3 quattro 8P 1.8 Turbo - 2007-2013 Front
A3 quattro 8P 1.8 Turbo - 2008-2013 Front
A3 Cabriolet 8P 1.2 Turbo - 2010-2013 Front
A3 Cabriolet 8P 1.4 Turbo - 2011-2013 Front
A3 Cabriolet 8P 1.6 - 2008-2010 Front
A3 Cabriolet 8P 1.8 Turbo - 2008-2013 Front
A3 Cabriolet 8P 1.6 TD - 2008-2013 Front
A3 Cabriolet 8P 1.9 TD - 2008-2009 Front
A3 Cabriolet 8P 2.0 TD - 2008-2013 Front

Model Sub-Model Engine BHP Year Position
Altea - 1.2 Turbo - 2010-2016 Front
Altea - 1.4 - 2006-2016 Front
Altea - 1.4 Turbo - 2007-2016 Front
Altea - 1.6 - 2004-2016 Front
Altea - 1.8 Turbo - 2006-2016 Front
Altea - 2 - 2004-2016 Front
Altea - 2.0 Turbo FR 200 2005-2016 Front
Altea - 2.0 Turbo 211 2010-2016 Front
Altea - 1.6 TD - 2009-2016 Front
Altea - 1.9 TD - 2004-2016 Front
Altea - 2.0 TD 140 2004-2016 Front
Altea - 2.0 TD FR 170 2006-2016 Front
Leon (1P) - 1.2 Turbo - 2009-2013 Front
Leon (1P) - 1.4 Turbo - 2007-2013 Front
Leon (1P) - 1.4 Turbo - 2009-2013 Front
Leon (1P) - 1.6 - 2005-2013 Front
Leon (1P) - 1.6 - 2009-2013 Front
Leon (1P) - 2 150 2005-2010 Front
Leon (1P) - 1.9 TD 90 2007-2013 Front
Leon (1P) - 1.9 TD 90 2009-2013 Front
Leon (1P) - 1.9 TD 105 2005-2013 Front
Leon (1P) - 1.9 TD 105 2009-2013 Front
Leon (1P) - 2.0 TD 140 2005-2013 Front
Leon (1P) - 2.0 TD 140 2009-2013 Front
Leon (1P) - 2.0 TD FR 170 2005-2013 Front
Leon (1P) - 2.0 TD FR 170 2009-2013 Front
Toledo - 2 - 2004-2009 Front
Toledo - 1.9 TD 103 2005-2009 Front
Toledo - 2.0 TD 140 2005-2009 Front

Model Sub-Model Engine BHP Year Position
Octavia (1Z) - 1.2 Turbo 105 2010-2013 Front
Octavia (1Z) - 1.4 75 2004-2006 Front
Octavia (1Z) - 1.4 80 2006-2013 Front
Octavia (1Z) - 1.4 80 2009-2013 Front
Octavia (1Z) - 1.4 Turbo 122 2008-2013 Front
Octavia (1Z) - 1.4 Turbo 122 2009-2013 Front
Octavia (1Z) - 1.6 115 2004-2013 Front
Octavia (1Z) - 1.6 115 2009-2013 Front
Octavia (1Z) - 1.8 Turbo 160 2007-2013 Front
Octavia (1Z) - 1.8 Turbo 160 2009-2013 Front
Octavia (1Z) Estate 4x4 1.8 Turbo 160 2009-2013 Front
Octavia (1Z) - 2 150 2004-2008 Front
Octavia (1Z) Estate 4x4 2 150 2004-2008 Front
Octavia (1Z) - 2 150 2009-2013 Front
Octavia (1Z) - 1.6 TD 105 2009-2013 Front
Octavia (1Z) Estate 4x4 1.6 TD 105 2009-2013 Front
Octavia (1Z) - 1.9 TD 105 2004-2010 Front
Octavia (1Z) - 1.9 TD 105 2009-2010 Front
Octavia (1Z) Estate 4x4 1.9 TD 105 2004-2010 Front
Octavia (1Z) Estate 4x4 1.9 TD 105 2009-2010 Front
Octavia (1Z) - 2.0 TD 110 2010-2013 Front
Octavia (1Z) Estate 4x4 2.0 TD 110 2011-2013 Front
Octavia (1Z) - 2.0 TD 136 2004-2008 Front
Octavia (1Z) - 2.0 TD 140 2004-2013 Front
Octavia (1Z) - 2.0 TD 140 2009-2013 Front
Octavia (1Z) Estate 4x4 2.0 TD 140 2006-2013 Front
Octavia (1Z) Estate 4x4 2.0 TD 140 2009-2013 Front
Octavia (1Z) - 2.0 TD RS 170 2006-2013 Front
Octavia (1Z) - 2.0 TD RS 170 2009-2013 Front
Octavia (1Z) - 2.0 TD vRS 170 2006-2013 Front
Octavia (1Z) - 2.0 TD vRS 170 2009-2013 Front
Superb (3T) - 1.4 Turbo 125 2008-2015 Front
Superb (3T) - 1.4 Turbo 125 2009-2015 Front
Superb (3T) - 1.8 Turbo 150 2008-2015 Front
Superb (3T) - 1.8 Turbo 150 2009-2015 Front
Superb (3T) - 1.8 Turbo 160 2008-2015 Front
Superb (3T) - 1.8 Turbo 160 2009-2015 Front
Superb (3T) - 1.6 TD 105 2010-2015 Front
Superb (3T) - 1.9 TD 105 2008-2010 Front
Superb (3T) - 1.9 TD 105 2009-2010 Front
Superb (3T) - 2.0 TD 140 2008-2015 Front
Superb (3T) - 2.0 TD 140 2009-2015 Front
Yeti - 1.4 Turbo 122 2010-2017 Front
Yeti - 1.4 Turbo 150 2015-2017 Front
Yeti - 1.6 110 2014-2017 Front
Yeti - 1.8 Turbo 150 2009-2015 Front
Yeti - 1.8 Turbo 160 2009-2015 Front
Yeti - 2.0 TD 110 2009-2017 Front
Yeti - 2.0 TD 140 2009-2017 Front
Yeti - 2.0 TD 150 2015-2017 Front
Yeti - 2.0 TD 170 2009-2015 Front

Model Sub-Model Engine BHP Year Position
Beetle (5C) - 1.2 Turbo 105 2011-2019 Front
Beetle (5C) - 1.4 Turbo 160 2011-2014 Front
Beetle (5C) - 1.4 Turbo 150 2014-2019 Front
Beetle (5C) - 2.0 Turbo 200 2011-2014 Front
Beetle (5C) - 2.0 Turbo 210 2013-2014 Front
Beetle (5C) - 1.6 TD 106 2011-2014 Front
Beetle (5C) - 2.0 TD 140 2012-2014 Front
Beetle (5C) - 2.0 TD 110 2014-2019 Front
Beetle (5C) - 2.0 TD 150 2014-2019 Front
Caddy Life - 1.2 Turbo - 2010-2015 Front
Caddy Life - 1.4 - 2004-2010 Front
Caddy Life - 1.6 - 2004-2015 Front
Caddy Life - 2 - 2004-2015 Front
Caddy Life - 1.6 TD - 2010-2015 Front
Caddy Life - 1.9 TD - 2004-2010 Front
Caddy Life - 2.0 TD - 2004-2015 Front
Eos - 1.4 Turbo - 2008-2014 Front
Eos - 1.4 Turbo - 2009-2014 Front
Eos - 1.6 115 2006-2008 Front
Eos - 2 150 2006-2008 Front
Eos - 2.0 TD 140 2006-2014 Front
Eos - 2.0 TD 140 2009-2014 Front
Golf (Mk5) - 1.4 - 2003-2009 Front
Golf (Mk5) - 1.4 Turbo 140 2005-2007 Front
Golf (Mk5) - 1.4 Turbo 170 2005-2007 Front
Golf (Mk5) - 1.4 Turbo 120 2007-2009 Front
Golf (Mk5) - 1.6 - 2003-2009 Front
Golf (Mk5) - 2 150 2004-2009 Front
Golf (Mk5) - 1.9 TD 90 2003-2009 Front
Golf (Mk5) - 1.9 TD 105 2003-2009 Front
Golf (Mk5) - 1.9 TD - 2004-2009 Front
Golf (Mk5) - 2.0 D 75 2004-2009 Front
Golf (Mk5) - 2.0 TD 140 2003-2009 Front
Golf (Mk6) - 1.2 Turbo 85 2009-2013 Front
Golf (Mk6) - 1.2 Turbo 105 2009-2013 Front
Golf (Mk6) - 1.4 80 2008-2013 Front
Golf (Mk6) - 1.4 Turbo 122 2009-2013 Front
Golf (Mk6) - 1.6 100 2009-2013 Front
Golf (Mk6) - 1.6 TD 105 2009-2013 Front
Golf (Mk6) - 2.0 TD 110 2009-2013 Front
Golf (Mk6) - 2.0 TD 140 2009-2013 Front
Golf Cabriolet (Mk6) - 1.2 Turbo - 2011-2016 Front
Golf Cabriolet (Mk6) - 1.4 Turbo 122 2011-2016 Front
Golf Cabriolet (Mk6) - 1.4 Turbo 160 2011-2016 Front
Golf Cabriolet (Mk6) - 1.6 TD - 2011-2016 Front
Golf Cabriolet (Mk6) - 2.0 TD 140 2011-2016 Front
Golf Plus - 1.2 Turbo - 2010-2014 Front
Golf Plus - 1.4 - 2005-2014 Front
Golf Plus - 1.4 - 2009-2014 Front
Golf Plus - 1.6 - 2005-2009 Front
Golf Plus - 2 - 2005-2009 Front
Golf Plus - 1.6 TD - 2009-2014 Front
Golf Plus - 1.9 TD - 2005-2009 Front
Golf Plus - 2.0 TD - 2005-2014 Front
Golf Plus - 2.0 TD - 2009-2014 Front
Jetta (Mk5) - 1.6 - 2005-2010 Front
Jetta (Mk5) - 1.6 - 2008-2010 Front
Jetta (Mk5) - 2 - 2005-2010 Front
Jetta (Mk5) - 2.5 - 2006-2010 Front
Jetta (Mk5) - 1.9 TD 105 2005-2010 Front
Jetta (Mk5) - 2.0 TD 140 2005-2010 Front
Jetta (Mk5) - 2.0 TD 170 2005-2010 Front
Jetta (Mk5) - 2.0 TD 170 2009-2010 Front
Jetta (Mk6) - 1.2 Turbo 105 2011-2018 Front
Jetta (Mk6) - 1.4 Turbo 122 2010-2018 Front
Jetta (Mk6) - 1.4 Turbo 150 2011-2018 Front
Jetta (Mk6) - 1.4 Turbo 160 2010-2018 Front
Jetta (Mk6) - 1.6 TD 105 2010-2018 Front
Jetta (Mk6) - 2.0 TD 140 2010-2018 Front
Jetta (Mk6) - 2.0 TD 150 2014-2018 Front
Scirocco - 1.4 Turbo 122 2008-2017 Front
Scirocco - 1.4 Turbo 122 2009-2017 Front
Scirocco - 1.4 Turbo 160 2009-2017 Front
Scirocco - 2.0 TD 140 2008-2017 Front
Scirocco - 2.0 TD 140 2009-2017 Front
Scirocco - 2.0 TD 150 2014-2017 Front
Scirocco - 2.0 TD 170 2009-2017 Front
Touran - 1.2 Turbo - 2010-2015 Front
Touran - 1.6 - 2003-2010 Front
Touran - 2 - 2003-2009 Front
Touran - 1.6 TD 90 2010-2015 Front
Touran - 1.6 TD 105 2010-2015 Front
Touran - 1.9 TD - 2003-2010 Front
Touran - 2.0 TD - 2003-2015 Front
Touran - 2.0 TD - 2010-2015 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-PD20KF503



Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
