Ultimax2 high quality OE replacement brake pads are manufactured in the UK and are type approved for your vehicle. Designed for long life with minimal dust and featuring Brake-In coating for faster bed-in.

One pair of premium OE quality replacement brake discs, precision cast from G3000 iron, surface ground and thermic black coated for corrosion resistance.

These discs are runout tested and are an exact replacement for manufacturer discs.

This brake kit provides the perfect combination for general street use.

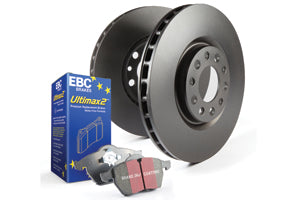

• Kit contains one set of DPX2217 Ultimax brake pads and one set of D1973 OE replacement brake discs plus one set of DPX2120 Ultimax brake pads and one set of D1910 OE replacement brake discs
• Saves up to 12% over cost of buying separate parts
• Ultimax2 type approved brake pad sets
• Pads are designed for a long life with minimal dust
• Two Pairs of OE quality replacement brake discs
• Kit Components DPX2217 + D1973 + DPX2120 + D1910

Specifications

Front Pad A Dimensions :141 x 55 x 16mm

Front Disc Type : Plain

Front Solid or Vented V

Front Bolt Holes : 5

Front Disc Diameter : 280mm

Front Disc Height : 47mm

Front Disc Thickness New : 22mm

Front Disc Thickness Min : 20mm

Rear Pad A Dimensions : 98.6 x 40.1 x 14.4mm

Rear Disc Type : Plain

Rear Solid or Vented S

Rear Bolt Holes : 5

Rear Disc Diameter : 259mm

Rear Disc Height : 43mm

Rear Disc Thickness New : 9mm

Rear Disc Thickness Min : 8mm

• SUZUKI SX4 S-Cross 1.0 Turbo 111 2016-2020
• SUZUKI SX4 S-Cross 1.4 Turbo 140 2016-2020
• SUZUKI SX4 S-Cross 1.6 2013-2016
• SUZUKI SX4 S-Cross 1.6 TD 2013-2016
• SUZUKI SX4 S-Cross 1.6 TD 120 2016-2020
• SUZUKI S-Cross 1.4 Turbo hybrid 129 2020-
• SUZUKI Vitara 1.4 Turbo 140 2017-2020
• SUZUKI Vitara 1.4 Turbo hybrid 129 2020-

Please kindly contact us if you are unsure which caliper you have so we can check prior to your order.

PD40K2398

Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
