The BMW G20 B48 Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the G20, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This however, results in a restriction with only one stock air feed to draw air in from. During development we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore our sealed airbox also has a heat shield with gold reflective to minimise the radiative heat transfer from the exhaust manifold. In order to maximise volume we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally we use a custom made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK



The Eventuri G20 B48 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK
Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

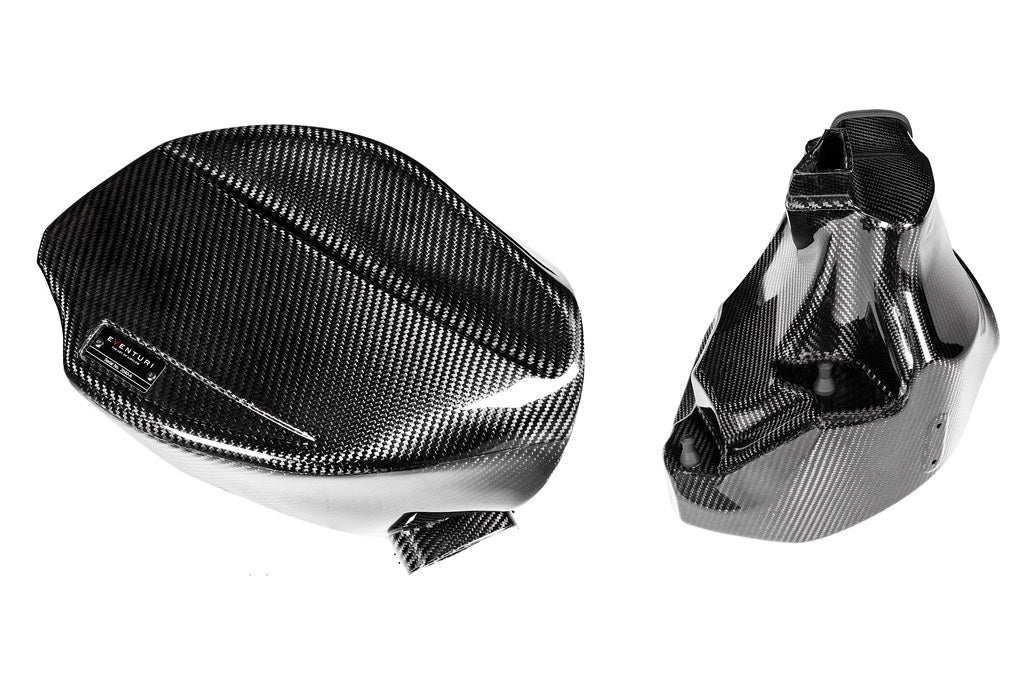

Dual Feed Carbon Fiber Airbox

Crafted from Prepreg Carbon Fiber, the airbox serves 2 objectives - to seal the filter against engine bay heat and to provide a dual cold air feed. Since the airbox is positioned next to the exhaust manifold it is crucial for the filter to be fully sealed so we designed the airbox to encapsulate the filter and at the same time provide a large internal volume. To seal the intake tube we have designed a laser cut plate with a rubber sealing strip which secures to the airbox. The intake tube passes through the plate and the rubber seal ensures heated air does not enter the airbox. To further minimise heat soak, there is an additional heat shield with a gold reflective layer on the exhaust manifold side which effectively combats the radiant heat transfer.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

Having a fully sealed airbox results in the problem of having a restriction for the cold air feed. The stock airbox draws air from a single duct which extends to the front bumper area. During development we identified another area to draw cold air from which was a gap between the wheel arch and the chassis on which the airbox sits. To utilise this feed we extended a scoop at the back of our design which protrudes into the wheel arch and can even be seen after installation behind the front wheel. This second feed allows the turbo to draw from a larger area therefore reducing the restriction.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

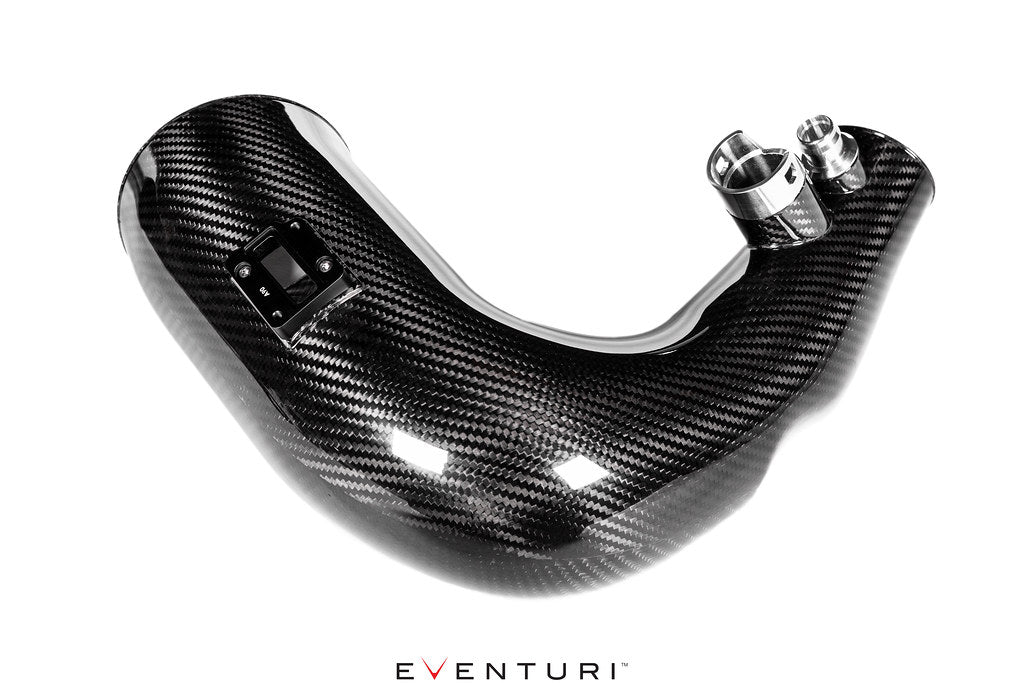

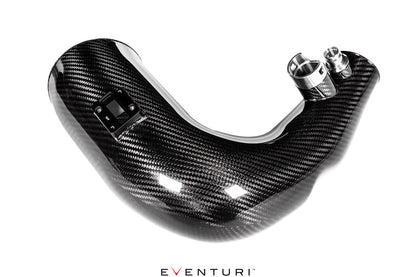

Carbon Inlet Tube

Note: There are two separate versions.

The G20 B48 OEM airbox system was updated in cars built after November 2018 where the airflow sensor was replaced with a temperature sensor in the inlet tube. Prior to this date, all airbox systems had an airflow sensor and for this reason we offer 2 variations. The V1 intake which has an inlet tube to take the MAF (airflow) sensor and the V2 intake for cars built after November 2018 which use a temperature sensor. The difference in the tubes can be see below.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK



The stock inlet tube has a flexible and convoluted section to provide movement with the engine. This however also adds the possibility of turbulence in the flow path as there are multiple faces which can cause eddies. We replace this with our carbon tube which is smooth and also has a larger internal volume. Unlike most aftermarket intakes we maximised the size of our intake tube, the OEM inlet tube has an internal diameter of 80.8mm or 3.2” at the filter end. Our tube for cars built after November 2018 has an internal diameter of 109mm or 4.3”. This equates to a massive 82% increase in cross sectional area over stock. The tube smoothly tapers down to the stock turbo inlet to ensure airflow remains as laminar as possible. The tube also has CNC machined fitting for the temperature sensor and the breather adapter.

Please Note: If you are unsure about the build date of your B48 G20, please remove the sensor in the OEM airbox tube to see if it has the temperature sensor or the MAF sensor to differentiate between the two versions. The photo below demonstrates the difference between the two sensors and which part number you should order.



Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

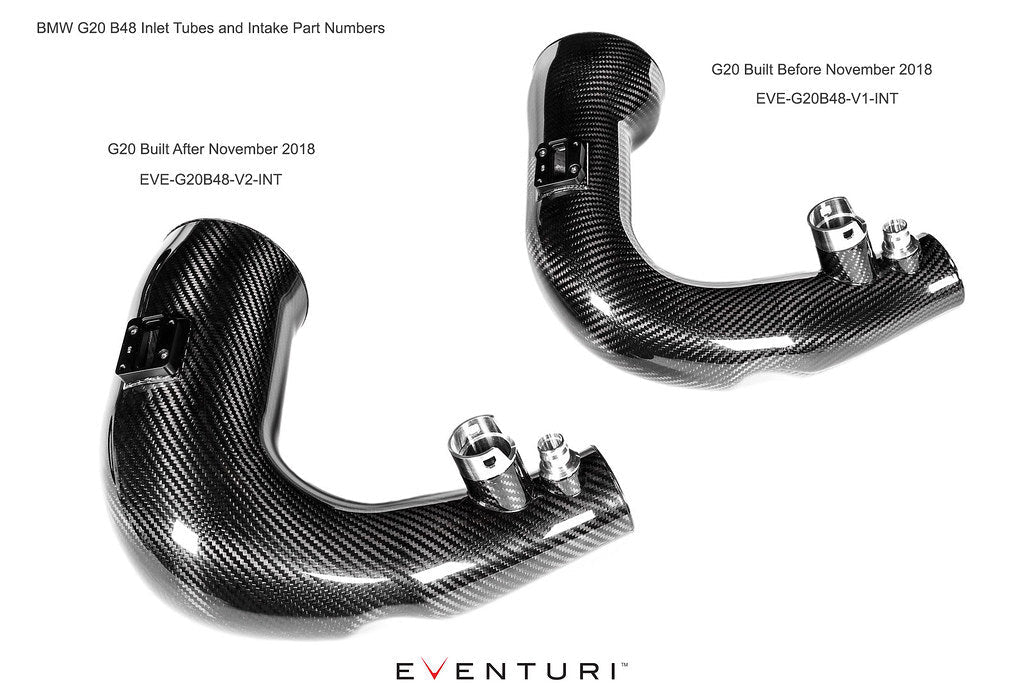

The difference between the V1 and V2 B48 intakes.



Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

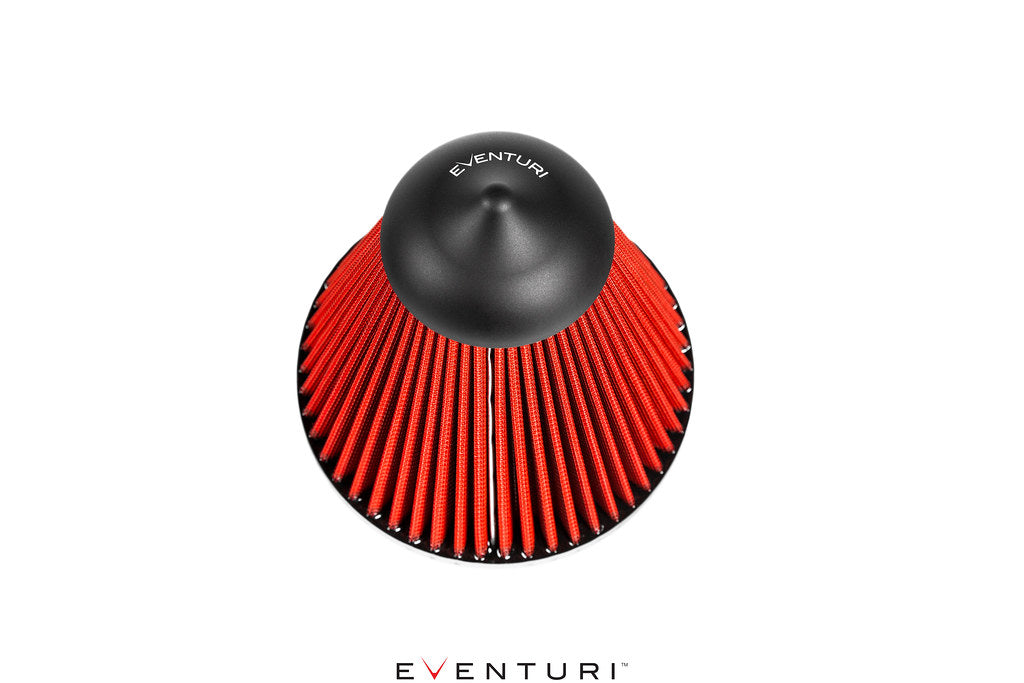

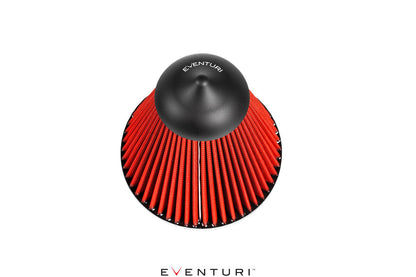

Bespoke Cone Filter

Our cone filter is made from a non-woven mesh material which is double layered and is ISO tested to ensure that filtration is in line with OEM standards. The filter is cleanable and very stable at high temperatures with the base material being Urethane. The filter incorporates and internal flow guiding cone to help aid the airflow to converge while reducing the possibility of a stagnation point in the middle of the filter space. The filter medium has a significantly larger surface volume than the stock panel filter.

Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK

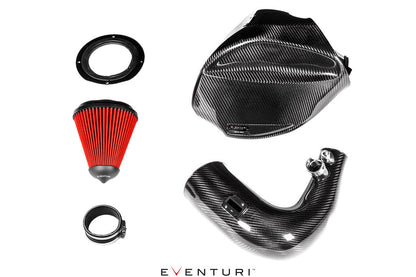

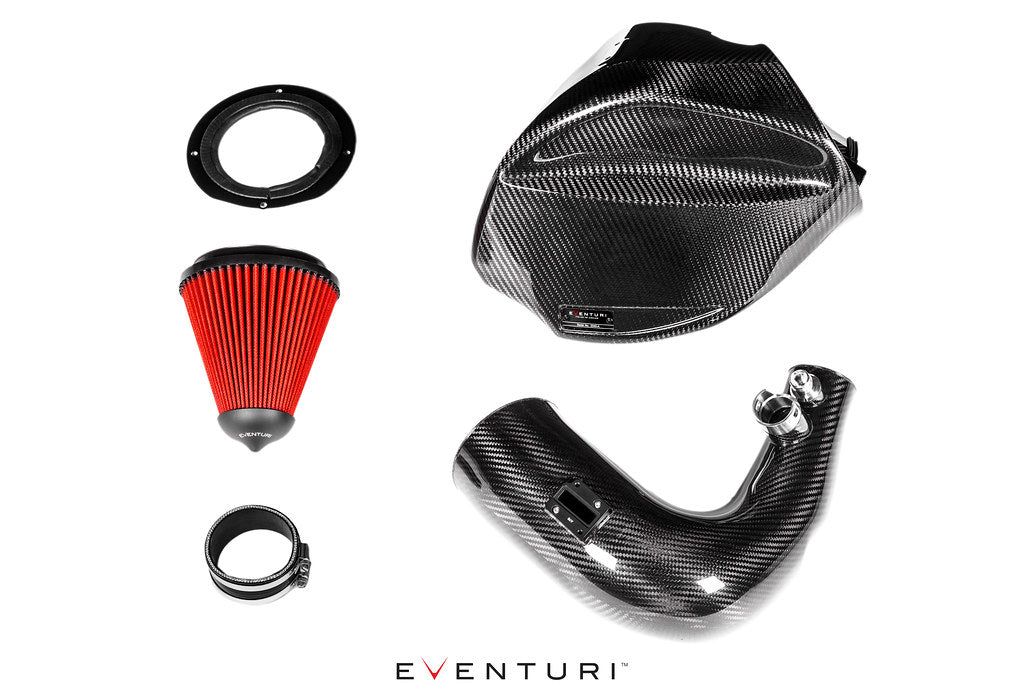

  • Carbon Fiber Airbox with Dual Feeds
  • Bespoke High Flow Dry Cone Filter
  • Carbon Fiber Inlet Tube
  • CNC Machined Temperature Sensor Mount
  • CNC Machined Breather adapters
  • Heat Shield with Gold Reflective Backing
  • Laser Cut Stainless Steel Brackets
  • Silicon Reducer with OEM Specification Clamps
Eventuri BMW B48 G20 Carbon Intake System (318i 320i 330i 330e) - ML Performance UK



  • BMW 3 Series G20 318i Saloon B48 (2017-2022)
  • BMW 3 Series G20 320i Saloon B48 (2017-2022)
  • BMW 3 Series G20 330i Saloon B48 (2017-2022)
  • BMW 3 Series G20 330e Saloon B48 (2017-2022)
  • BMW 3 Series G21 318i Touring B48 (2017-2022)
  • BMW 3 Series G21 320i Touring B48 (2017-2022)
  • BMW 3 Series G21 330i Touring B48 (2017-2022)
  • BMW 3 Series G21 330e Touring B48 (2017-2022)



Please Note:

There are two separate versions of the Carbon Intake System for B48 G20 models built Before November 2018 (V1) and After November 2018 (V2)

Not suitable for newer LCI models made from 2023 onwards.



EVE-G20B48-V1-INT (V1 - Models Built Before November 2018)

EVE-G20B48-V2-INT (V2 - Models Built After November 2018
